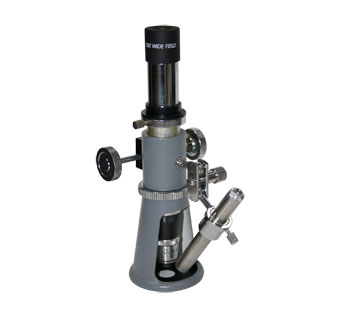

Shop Microscope

ROM-100

Shop Microscope is used for precision measurement, Inspection and quality control in Engineering, Electronics Textile, CPT, Printing, metallurgy. It is equipped with a dual scale reticle graduated in millimeters.
A turn of the eyepiece brings the reticle into sharp focus and the objects can be focused sharply with the help of rack-pinion focusing knobs. The eyepiece reticle can also be rotated through 360° to align it with the job. An adjustable LED illuminator operated on battery is also provided. The base has opening at the bottom for object manipulation.

• Choice of reticule
• The eyepiece reticle can be rotated through 360°.
• Rack and pinion focussing.
• Battery operated pen light illuminator.

Model ROM-40 ROM-60 ROM-100
Magnification 40x 60x 100x
Work distance 24mm 20mm 6mm
Field of View 4.00mm 3.0mm 1.8mm
Least count 0.02mm 0.02mm 0.01mm

As we are continuously improving & developing our products, this websites may not be updated with advancements done. However, we try our best to update the website for latest information's
For complete updated specifications, please do ask for latest brochures
