Travelling Microscope

RVM Series

Travelling Microscope designed to meet the requirements of Research, Colleges, Schools and Industrial laboratories. They are used for accurate measurement of the diameters of different objects. They are also used in Physics Laboratories for more accurate determination of small variation in the liquid levels, Manometers, the refractive index of liquids as well as in surface tension & viscosity experiments.

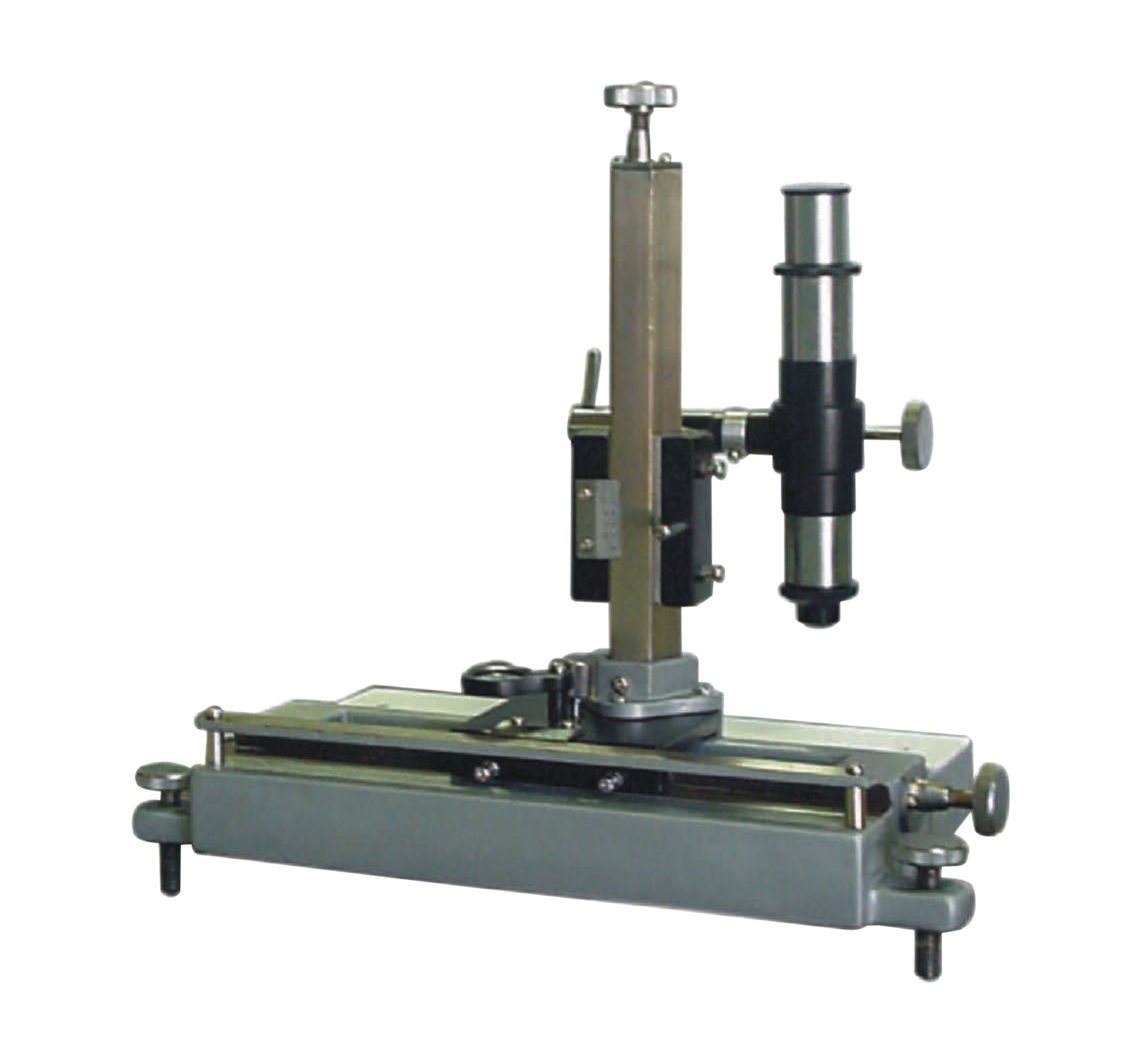

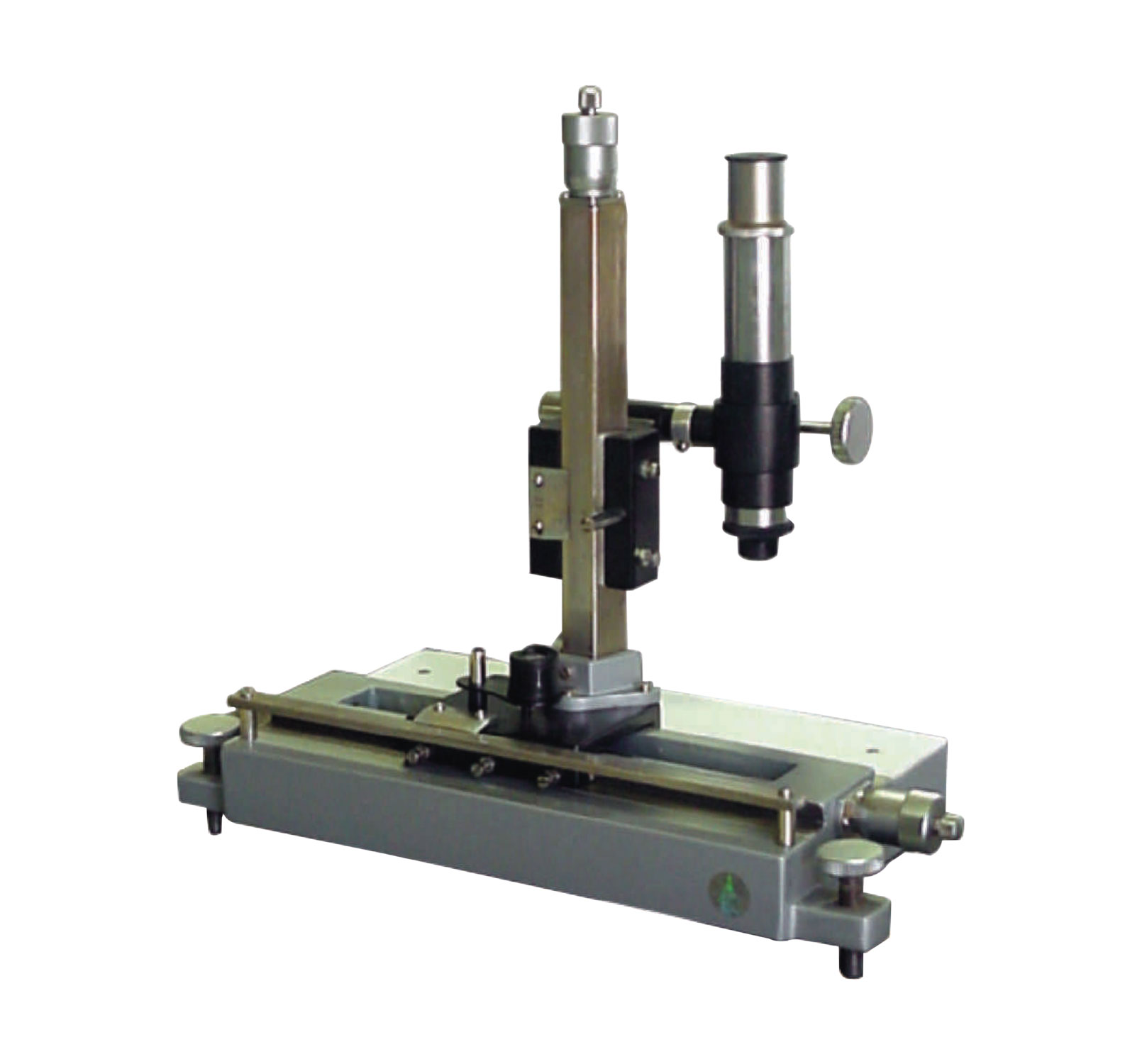

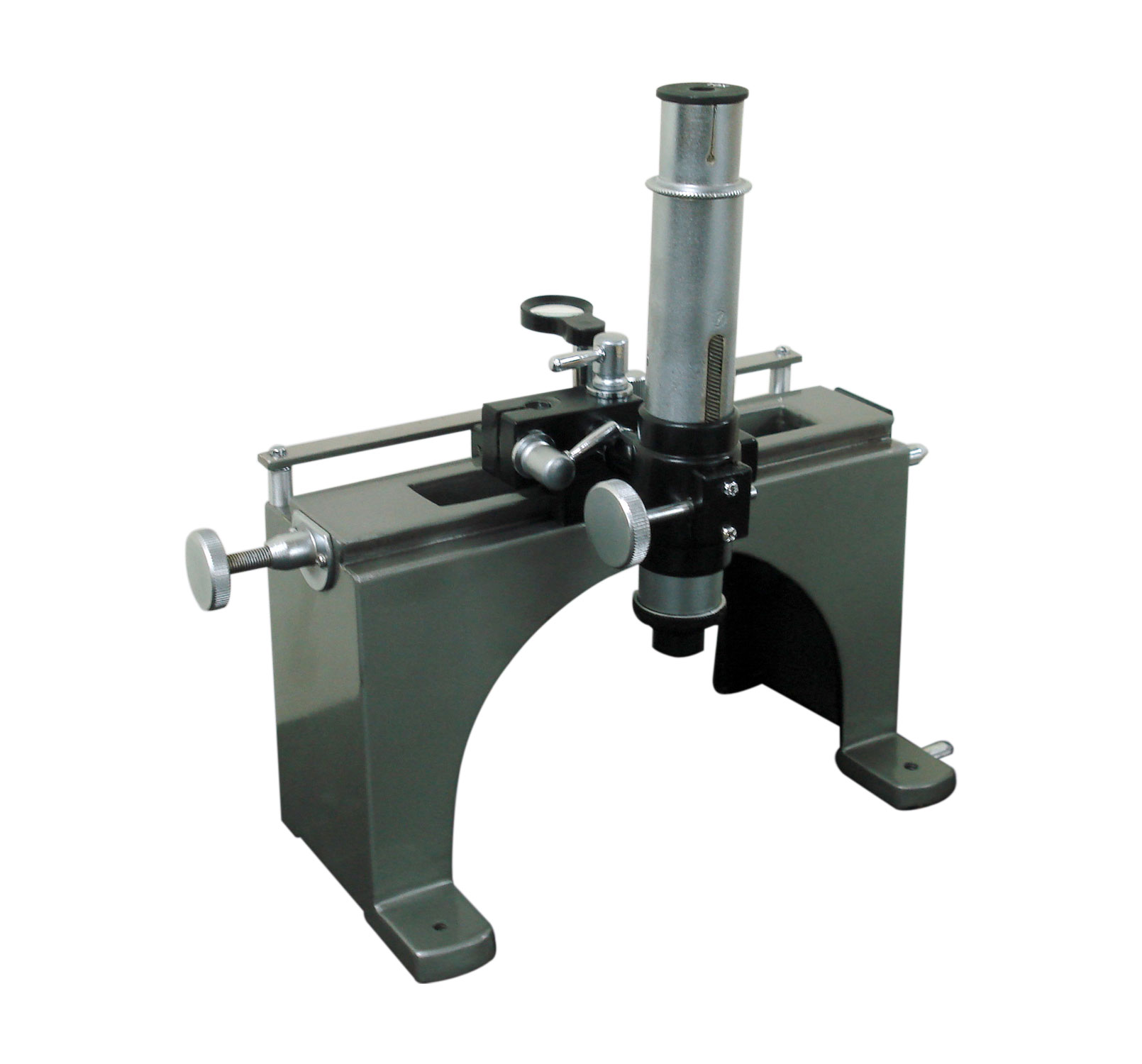

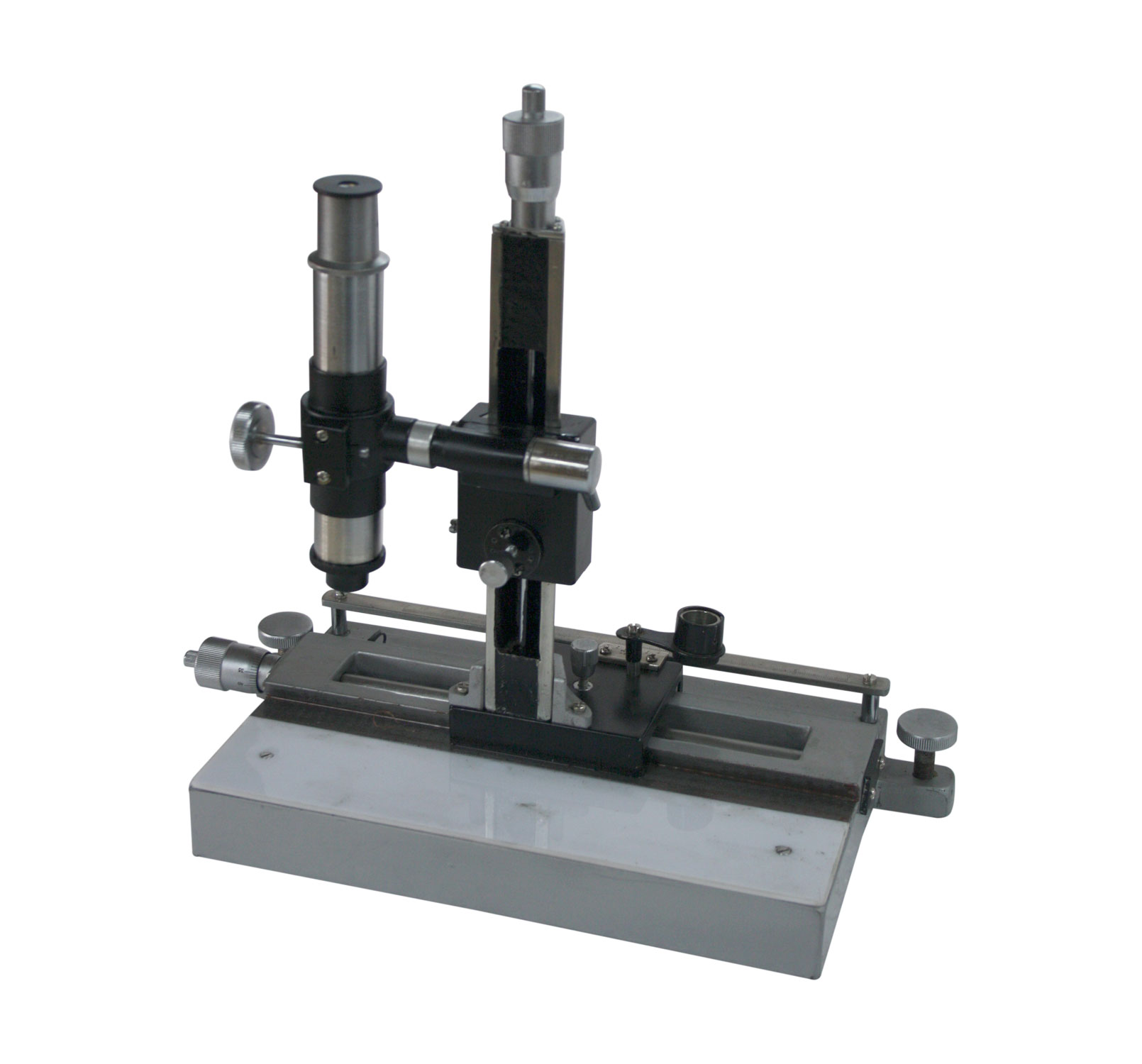

The travelling microscope consists of a cast iron base with machined vee-top surface and is fitted with three levelling screws, one being fixed the microscopes can travel Horizontally 22 cm. and vertically 15 cms. with the help of slides. Two slow motion knobs are provided for taking accurate readings. Vernier readings 0.01 mm. or 0.02 mm. Microscope tube consists of eyepiece 10x with 15 mm. or 75 mm. Objective . For placing objects on horizontal stage, made of milky cenolite sheet is provided on the base.

  • Wide Aperture Optics
  • Accurate and precise arrangement
  • Magnifying lens for reading
  • Rack and pinion arrangement focusing

  •   RVM-201 RVM-202 RVM-203 RVM-204
    Eyepiece 1 Pair High eye point wide field plan eyepiece PL10X/20mm
    Objectives Infinity Plan Achromatic Objective 2X, 4X,10X, 20X,40X(SL), 60X(SL)& 100x(SL) Oil
    Infinity Plan S-APO Objective 2X, 4X,10X, 20X,40X(SL), 60X(SL)& 100x(SL) Oil
    Infinity Plan Fluotar Objective 4X,10X, 20X,40X(SL), 60X(SL)& 100x(SL) Oil
      Infinity Plan Phase Achromatic Objective 10X, 20X,40X(SL) & 100x(SL) Oil
    Observation
    Head
    xxxxx 30° inclined trinocular head, interpupillary distance adjustable : 52-75mm,
    diopter adjustable: +/-5 on R&L Oculars, 2 Position (0:100 & 50:50)
    30° Inclined Binocular Head, Interpupillary distance adjustable : 54-75mm, diopter adjustable: +/-5 on xxxxx
    Nosepiece Reversed Quintuple Nosepiece, Slot for POL/DIC
    Frame Coaxial Coarse and Fine Focusing Control, with Upper Limit Stoper & Tension Control adjustment,
    range : 2mm, Fine Focus LC 0.002mm
    Mechanical Stage Refocusing type Rackless Mechanical Stage, Hard Ceramic Coated Surface, Double Slide Holder,
    Size(XY) 175×145mm, Travel (XY) 74×50mm, Vernier Markings : 0.1mm
    Condenser Abbe Condenser N.A. 1.25 (4X-100X)
    Transmitted Illumination 100-240V built-in wideband voltage, 3W LED/6V30W illumination, intensity adjustable
    Fluorescent Illumination xxxxx Turret 6 Filter Holder, 100W Hg, LEDFluorescent Illuminator with B1/G1 Filter Turret 6 Filter Holder LED Fluorescent Illuminator with B1/G1 Filter

    As we are continuously improving & developing our products, this websites may not be updated with advancements done. However, we try our best to update the website for latest information's
    For complete updated specifications, please do ask for latest brochures
