Histopathology Equipments Microtomes RMT-60 Series

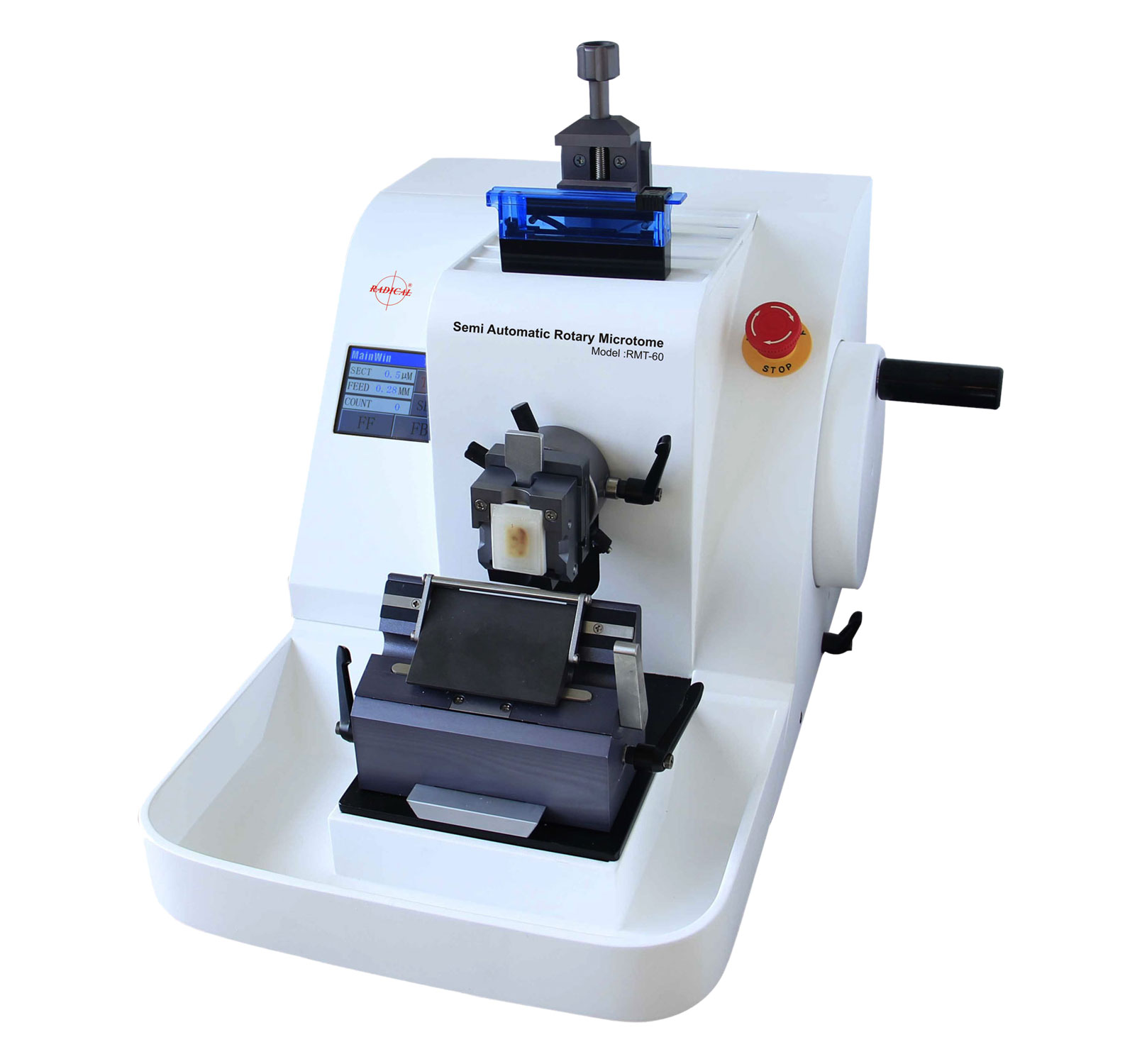

Semi Automatic Rotary Microtome

RMT-60

RADICAL Semi Automatic Rotary Microtome RMT-60 provides utmost reliability, user benefit and outstanding operator comfort. Great basic stability and precision, make this microtome a real multi-purpose instrument that meets the requirements both in paraffin and hard sectioning techniques of the biological, medical and industrial lab also suitable for routine histology & immunohistochemistry sectioning.

  • Touch Screen Panel
  • Adopted Germany stepper motor ensure section more precisely, more reliable and quiet.
  • The touch screen panel shows section and trimming thickness ,section counter ,distance stroke of Clamp, easy to do adjustment of Trimming or Section thickness in the touch screen panel.
  • Special function of specimen retraction which avoid the damage due to the attrition between sample and the back of knife so that the sectioning is more smooth and the life of the knife is more longer.
  • The hand wheel can be locked in any position to ensure the sectioning as safe and convenient as possible.
  • Optional Blade carrier which can use Steel Knife or Blade Holder.
  • Universal cassette clamp and standard specimen clamp.
  • The Anti-static waste tray can be disassembled easily.
  • Sample orientation:8°-10° along the X-Y-axis, rotate 360°.
  • Safety alarm system, overload protection function, sleep mode protection.
  • Fitted with ergonomic handle with safe smooth running hand wheel with auto and conventional manual sectioning mode.
  • The special two in one blade carrier/holder can use high profile blade as well as low profile blade.
  • Blade carrier have angle adjustment.
  • Finger Protection guard.
  • Machine is having Emergency Stop Button for electronically controlled brake for specimen handling and blade.
  • System of balance of hand wheel force: a special system to adjust the balancing force during the section, making the rotation easier and smoother.
    • Section thickness range: 0.5- 100µm Setting values:
  • From 0.5-2µm in 0.5µm –increments
  • Form 2-10µm in 1µm -increments
  • Form 10-20µm in 2µm -increments
  • Form 20-50µm in 5µm -increments
  • Form 50-100µm in 10µm -increments

    • Trimming section thickness range :1-600µm
  • Horizontal specimen stroke :25± 1mm
  • Vertical specimen stroke : 60mm
  • Cutting speed 0-300mm/s
  • Precision error: ± 5%
  • Maximum section size: 50 × 45mm
  • Dimension : 520 x 450 x 300mm
  • Net weight : 35kg
  • Power Supply : AC220V-250V 50Hz/60Hz
    •
  • Standard Cassette Clamp
  • Universal Cassette Clamp
  • Disposable Blade Holder
  • High Profile Disposable Blade
  • Waste Tray
  • Foot Switch
  • Plastic Tissue Cassettes Dust
  • Cover
  • Fuse
  • Tissue Molds
    •  Optional Accessory
  • Blade Carrier(for Blade holder or Steel knife)
  • Blade Holder
  • Microtome Disposable Blade
  • Steel Knife

    • As we are continuously improving & developing our products, this websites may not be updated with advancements done. However, we try our best to update the website for latest information's
    For complete updated specifications, please do ask for latest brochures
