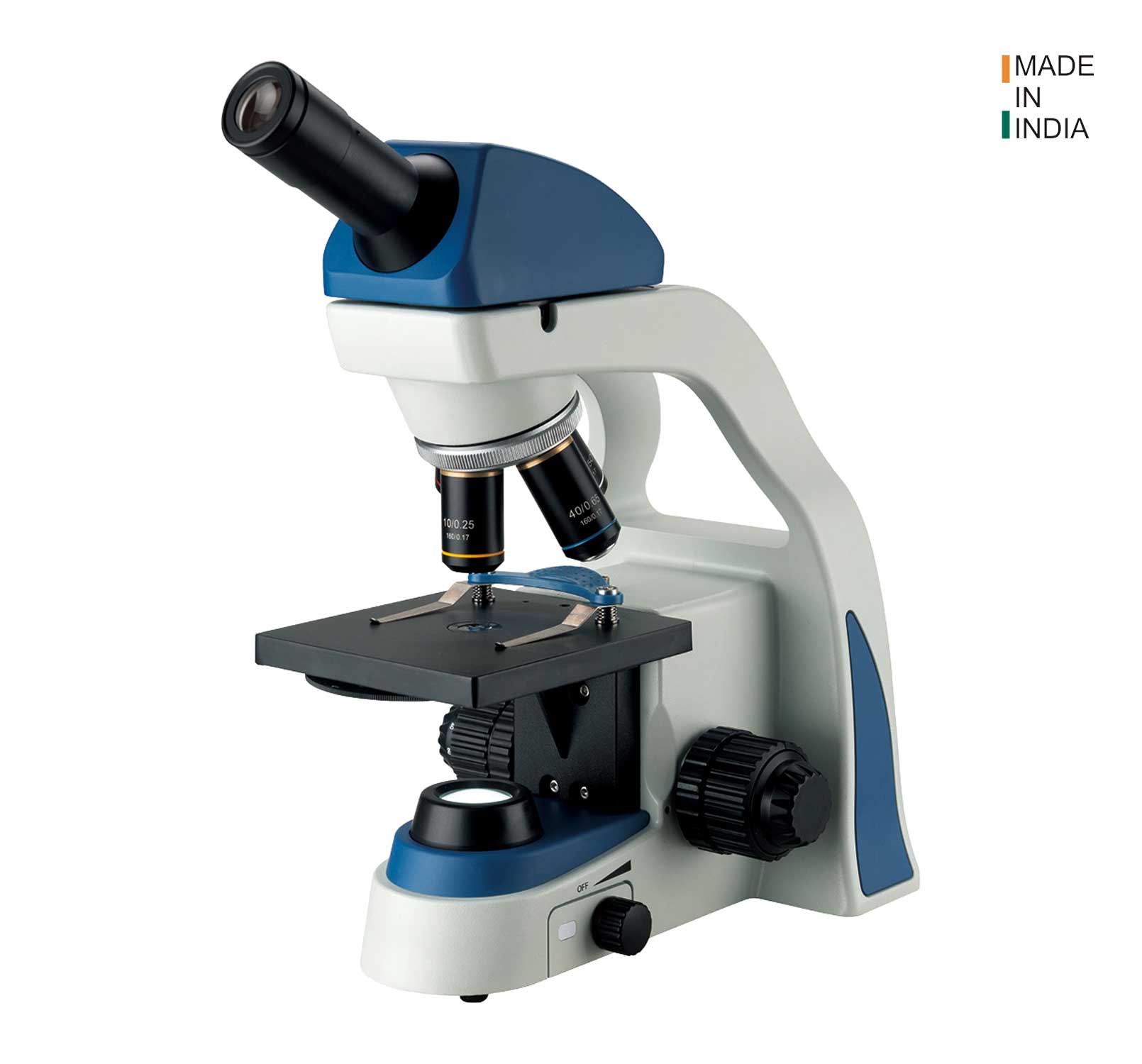

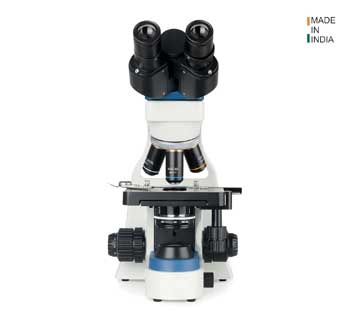

Advanced Educational Biological Microscope
RXL-3
RXL-3 series Education microscopes are manufactured using best quality achromatic objectives, high point eyepieces & with coaxial focusing. The optical system is antifungal treated. Microscope field is illuminated with halogen lamp or optionally can be upgraded to LED (with battery backup).
BRIGHTFIELD
|
DARKFIELD
|
PHASE CONTRAST
|
| Body | Rugged, single die cast, ergonomic design, touch point treated |
|---|---|
| Optical system | Achromatic optical system, colour corrected, anti-fungal, anti-bacterial coated (multi-layered hard coated) |
| Illumination | Halogen or LED with Battery backup, illumination mirror |
| Viewing Head | Monocular, Binocular, Trinocular & Digital head |
| Nosepiece | Quadruple/Quintuple with multiple ball-bearing, rubber/metal grip & click stop |
| Eyepiece | Extra wide field with diopter adjustment |
| Objectives | DIN Semi Plan/plan finite/infinite achromatic |
| Mechanical Stage | Right/left hand control, hard coated surface, double layer, single/double slide holder,low position coaxial movement |
| Condenser | Abbe with iris diaphragm & filter slot brightfiled, darkfiled, phase. |
| Focusing | Coaxial (low position), both side, coarse & fine with tension control & upper limit stopper |
| Certification | EU CE, ISI, ISO, TUV |
| Part name | Part Code | Description |
|---|---|---|
| Body | RX3MB | Rugged, robust, single aluminium die cast, ergonomic design, window in arm, hand rest for comfortable prolonged use. metalic parts with antirust, antibacterial, corrosion-proof & stain-proof coating, acid resistant texture paint, touch point treated, intensity controller & on/off switch, inbuilt light source, rubber feet. |
| Optical system | RX3OS | Achromatic infinity optical system, colour corrected, anti-fungal, anti-bacterial coated (multi-layered hard coated), anti-reflected coated, lead free optical glass, colour coded objectives |
| Koheler Illumination | RX3H20 | Halogen 6V -20W (life 2000 hrs.) for uniform illumination |
| Viewing Head | RX3BSL | Binocular inclined at 30°, siedentopf head, with locking mechanism for eyepieces, right diopter adjustment: ±5; interpupillary distance range: 0-75mm |
| Nosepiece | RX3-4N | Parcentered & parfocal, inward tilted, precise quadruple revolving on multiple ball bearing, with postive click stop |
| Eyepiece | RX3EP1018 | Paired, WF 10X, FOV-18mm, multilayered coated, high quality, good contrast, abresion free, aplantic, anti-fungal & anti-mould treated, precentered, lockable, (single eyepiece in case of monocular head) with rubber gaurd, diaptore adjustment on eyepiece. |
| Mechanical Stage | RX3MS | Rectangular right/left hand low drive control, hard coating, steel single/double slide holder, stage size 115mmX125mm, X-Y movement 75-50mm(graduated with verier) on stainless steel ball |
| Objectives | RX3AC04 | 4X, N.A. 0.10, W.D. 30mm, DIN/JIS achromatic, parfocal & precentered, unbreakable container for storage |
| RX3AC10 | 10X, N.A. 0.25, W.D. 6.1mm, DIN/JIS achromatic, parfocal & precentered, unbreakable container for storage | |
| RX3AC40 | 40X, N.A. 0.65, W.D. 0.65mm, DIN/JIS achromatic, spring loaded, parfocal & precentered, unbreakable container for storage | |
| RX3AC100 | 100X, N.A. 1.25, W.D. 0.18, DIN/JIS achromatic, parfocal & precentered, oil immered, spring loaded, unbreakable container for storage | |
| Focusing | RXF25 | Co-axial, focusing knob, tension control, upper limit stopper, 25mm stroke high sensitivity focus drive with 0.25 mm per revoluation, fine adjustment 2.5µm/Div. |
| Condenser | RABC | Abbe N.A. 1.25 for BF, aspheric lens, separate movement from focusing (rack & pinion) with adjustable iris diaphragm, snap-in filter holder, built-in base illumination, filter holder. |
| Power supply | RSMPS620 | SMPS based, wide voltage range, 90V-240V, 50/60Hz |
| Accessories | RCC | Cleaning cloth |
| RVC | Vinyl cover | |
| RIO | Immersion oil (10ml) | |
| RA3K | Allen key | |
| RF5A | Fuses - 2 no's | |
| MANUAL | Instruction manual | |
| WARRANTY | Warranty card | |
| RBF | Blue Filter (frosted & Plain) | |
| RPC | Power Cord (country Specific) | |
| Lamp (LED), Mirror Unit (Plano Concave) with miror holder attachment |
| Filters | RGF | Green plane or frosted |
|---|---|---|
| Immersion oil | RIO100 | High quality immersion oil 100ml |
| Cleaning Kit | RCLEAN | Anti static cleaning brush, Cleaning tissue paper, lens cleaning solution |
