| Compatible with Radical Clinical & Research Microscopes |
| Infinity Achromat Objective |
RIAO-04 |
Achromat 4X, N.A. 0.1, W.D. 30mm |
| |
RIAO-10 |
Achromat 10X, N.A. 0.25, W.D. 7mm |
| |
RIAO-20 |
Achromat 20X, N.A. 0.4, W.D. 3.9mm (long working distance) |
| |
RIAO-40 |
Achromat 40X, N.A. 0.65, W.D. 0.65mm (long working distance) |
| |
RIAO-60 |
Achromat 60X, N.A. 0.8, W.D. 0.3mm, spring loaded |
| |
RIAO-100 |
Achromat 100X, N.A. 0.36-1.25, W.D. 0.23mm, oil, spring loaded |
| |
RIAO-100ir |
Achromat 100X, N.A. 0.5-1.25, W.D. 0.23mm, oil, spring loaded with iris |
| |
| Objectives |
RXIPO1.25C |
POL PL1.25X, N.A. 0.04, W.D. 3.9mm, plan achromatic, infinite, with cover glass corrected |
|
RXIPO2.5C |
POL PL2.5X, N.A. 0.07, W.D. 11.2mm, plan achromatic, infinite, with cover glass corrected |
|
RXIPO2.5P |
POL PL2.5X, N.A. 0.07, W.D. 11.2mm, plan achromatic, infinite, unbreakable container for storage |
|
RXIPO4 |
4X, N.A 0.10, W.D 15.5mm, plan achromatic, infinite, unbreakable container for storage |
|
RXIPO4i |
4X, N.A 0.10, W.D 17.2mm, plan achromatic, infinite, unbreakable container for storage |
|
RXIPO5C |
POL PL5X, N.A. 015, W.D. 12.0mm, plan achromatic, infinite, with cover glass corrected |
|
RXIPO10 |
10X, N.A 0.25, W.D 7mm, plan achromatic, infinite, unbreakable container for storage |
|
RXIPO10a |
10X, N.A 0.25, W.D. 10.6mm, plan achromatic, infinite, unbreakable container for storage |
|
RXIPO10lw |
10X, N.A 0.25, W.D 21mm, plan achromatic, infinite, unbreakable container for storage |
|
RXIPO20lw |
20X, N.A 0.4, W.D 6.7mm, plan achromatic, infinite, unbreakable container for storage |
|
RXIPO20lcg |
20X, N.A 0.4, W.D 6.7mm, plan achromatic, infinite, cover glass correction 0.17mm |
|
RXIPO40 |
40X, N.A 0.65, W.D 0.7mm, plan achromatic, infinite, spring loaded, unbreakable container for storage |
|
RXIPO40i |
40X, N.A 0.65, W.D 0.6mm, plan achromatic, infinite, spring loaded, unbreakable container for storage |
|
RXIPO40-CC |
40X, N.A 0.65, W.D 2.6mm, plan achromatic, infinite, over glass 1.2mm, unbreakable container for storage |
|
RXIPO65 |
65X, N.A 0.80, W.D. 0.3mm, plan achromatic, infinite, spring loaded, unbreakable container for storage |
|
RXIPO100 |
100X, N.A 1.25, W.D 0.18mm, plan achromatic, oil immered, infinite, spring loaded, unbreakable container for storage |
|
RXIPO100a |
100X, N.A 1.25, W.D 0.13mm, plan achromatic, oil immered, spring loaded, spring loaded, unbreakable container for storage |
| |
| Infinity Plan Achromat Objective |
RIPAO-01 |
Plan Achromat 1X, N.A. 0.04, W.D. 3.2mm, infinite |
| |
RIPAO-02 |
Plan Achromat 2X, N.A. 0.06, W.D. 7.5mm, infinite |
| |
RIPAO-04 |
Plan Achromat 4X, N.A. 0.10, W.D. 30mm, infinite |
| |
RIPAO-04i |
Plan Achromat 4X, N.A. 0.10, W.D. 30.7mm, infinite |
| |
RIPAO-10 |
Plan Achromat 10X, N.A. 0.25, W.D. 11mm, infinite |
| |
RIPAO-10i |
Plan Achromat 10X, N.A. 0.25, W.D. 17.4mm, infinite |
| |
RIPAO-10ewd |
Plan Achromat 10X, N.A. 0.25, W.D. 12mm, infinite |
| |
RIPAO-20 |
Plan Achromat 20X, N.A. 0.4, W.D. 1.2mm, infinite, spring loaded |
| |
RIPAO-20elw |
Plan Achromat 20X, N.A. 0.4, W.D. 10.6mm, infinite |
| |
RIPAO-40 |
Plan Achromat 40X, N.A. 0.65, W.D. 0.65mm, infinite, spring loaded |
| |
RIPAO-40i |
Plan Achromat 40X, N.A. 0.65, W.D. 0.65mm, infinite, spring loaded |
| |
RIPAO-40cg |
Plan Achromat 40X, N.A. 0.65, W.D. 0.36mm, infinite, spring loaded, cover glass correction 0.17mm |
| |
RIPAO-40ewd |
40X, N.A 0.65, W.D 36mm, plan achromatic, infinite |
| |
RIPAO-40ncg |
Plan Achromat 40X, N.A. 0.65, W.D. 0.48mm, infinite, No cover glass, spring loaded |
| |
RIPAO-50 |
Plan Achromat 50X, N.A. 0.9, W.D. 0.35mm, infinite, spring loaded, oil |
| |
RIPAO-60 |
Plan Achromat 60X, N.A. 0.8, W.D. 0.3mm, infinite, spring loaded, dry |
| |
RIPAO-60D |
Plan Achromat 60X, N.A 0.80, W.D 0.30mm, dry, infinite, spring loaded, unbreakable container for storage |
| |
RIPAO-60i |
Plan Achromat 60X, N.A. 0.5-1.25, W.D. 0.20mm, spring loaded, oil, iris diaphragm, unbreakable container for storage |
| |
RIPAO-60cg |
Plan Achromat 60X, N.A. 0.8, W.D. 0.3mm, infinite, spring loaded, cover glass correction 0.17mm |
| |
RIPAO-100 |
Plan Achromat 100X, N.A. 1.25, W.D 0.30mm, infinite, spring loaded, oil immersed. |
| |
RIPAO-100cg |
Plan Achromat 100X, N.A. 1.25, W.D 0.10mm, infinite, spring loaded, oil, cover glass correction 0.17mm |
| |
RIPAO-100ewd |
Plan Achromat 100X, N.A. 1.25, W.D 0.36mm, spring loaded, oil. |
| |
RIPAO-100ncg |
Plan Achromat 100X, N.A. 0.9, W.D 0.26mm, infinite, No cover glass, spring loaded |
| |
| Infinity Plan SAPO/Fluor Objective |
RIPFO-2.5 |
Plan Fluor 2.5X, N.A. 0.08, W.D. 10.7mm, suitable for BF, POL, DIC |
| |
RIPFO-04 |
Plan Fluor/S-APO 4X, N.A. 0.13, W.D. 17.1mm |
| |
RIPFO-04i |
Plan Fluor/S-APO 4X, N.A 0.10, infinite |
| |
RIPFO-10 |
Plan Fluor 10X, N.A. 0.3, W.D. 16.0mm |
| |
RIPFO-10i |
Plan Fluor 10X, N.A 0.25, infinite |
| |
RIPFO-20 |
Plan Fluor 20X, N.A. 0.5, W.D. 2.1mm |
| |
RIPFO-20B |
Plan Fluor 20X, N.A. 0.5, W.D. 2.1mm |
| |
RIPFO-20elwd |
Plan Fluor 20X, N.A. 0.45, W.D. 8.1-7.0mm, Extra long working distance |
| |
RIPFO-20elwd-cc |
ELWD Plan Fluor 20X, N.A. 0.45, W.D. 8.2, with cover glass correction 0-2.0mm |
| |
RIPFO-40 |
Plan Fluor/SAPO 40X, N.A. 0.75, W.D. 0.72mm, spring loaded |
| |
RIPFO-40i |
Plan Fluor/SAPO 40X, N.A 0.65, W.D 0.66mm, infinite spring loaded |
| |
RIPFO-40ic |
Plan Fluor 40X, N.A. 0.6, W.D. 4-2.7mm, Extra Long working distance |
| |
RIPFO-40oil |
Plan Fluor 40X, N.A. 1.3, W.D. 0.2mm, oil, spring loaded |
| |
RIPFO-40elwd |
Plan Fluor 40X, N.A. 0.6, W.D. 3.7-2.7mm, Extra Long working distance |
| |
RIPFO-40elwd-CC |
Plan Fluor 40X, N.A. 0.6, W.D. 3.5-2.8mm, Extra Long working distance with cover glass correction 0-2mm |
| |
RIPFO-50oil |
Plan Fluor 50X, N.A. 0.85, W.D. 0.30mm, spring loaded oil |
| |
RIPFO-60 |
Plan SAPO/Fluor 60X, N.A. 0.95, W.D. 0.3mm, spring loaded |
| |
RIPFO-60cc |
Plan Fluor/SAPO 60X, N.A. 0.85, W.D. 2.2-1.5mm, having correction collar |
| |
RIPFO-60Dry |
Plan S-APO/Fluor 60X, N.A. 0.9, W.D.0.2mm, dry, correction collar |
| |
RIPFO-60oil |
Plan Fluor 60X, N.A. 0.5-1.25, W.D. 0.22mm, oil, spring loaded with iris |
| |
RIPFO-60elwd |
Plan Fluor 60X, N.A. 0.70, W.D. 2.1-1.5mm, Extra Long working distance |
| |
RIPFO-63oil |
Plan Fluor/SAPO 63X, N.A. 1.3, W.D. 0.28mm, oil, spring loaded with iris, unbreakable container for storage |
| |
RIPFO-100dry |
Plan Fluor 100X, N.A. 0.9, W.D. 0.3mm, dry, spring loaded |
| |
RIPFO-100 |
Plan Fluor/SAPO 100X, N.A. 1.3, W.D. 0.25mm, oil, spring loaded, infinite |
| |
RIPFO-100i |
Plan Fluor/SAPO 100X, N.A 1.25, W.D 0.16mm, infinite, oil immersed, spring loaded |
| |
RIPFO-100ir |
Plan Fluor 100X, N.A. 0.5-1.3, W.D. 0.2mm, oil, spring loaded with iris |
| |
RIPFO-05PL |
5X, N.A. 0.13, W.D. 11.8mm, plan S-APO |
| |
RIPFO-10PL |
10X, N.A. 0.25 W.D. 17mm, plan S-APO |
| |

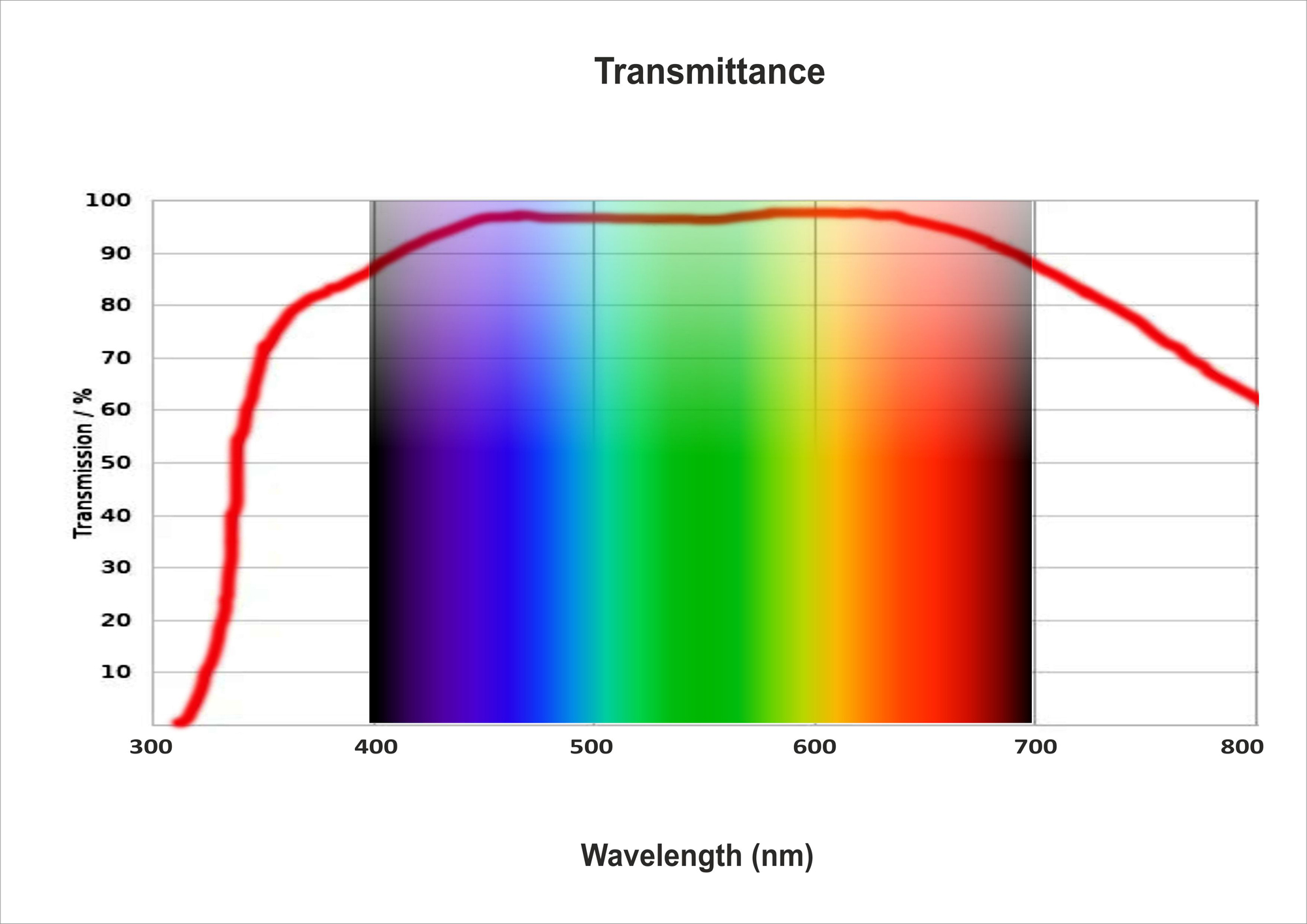

RIPFO-20PL |
20X, N.A. 0.35 W.D. 6.9mm, plan S-APO, long working distance |
| |

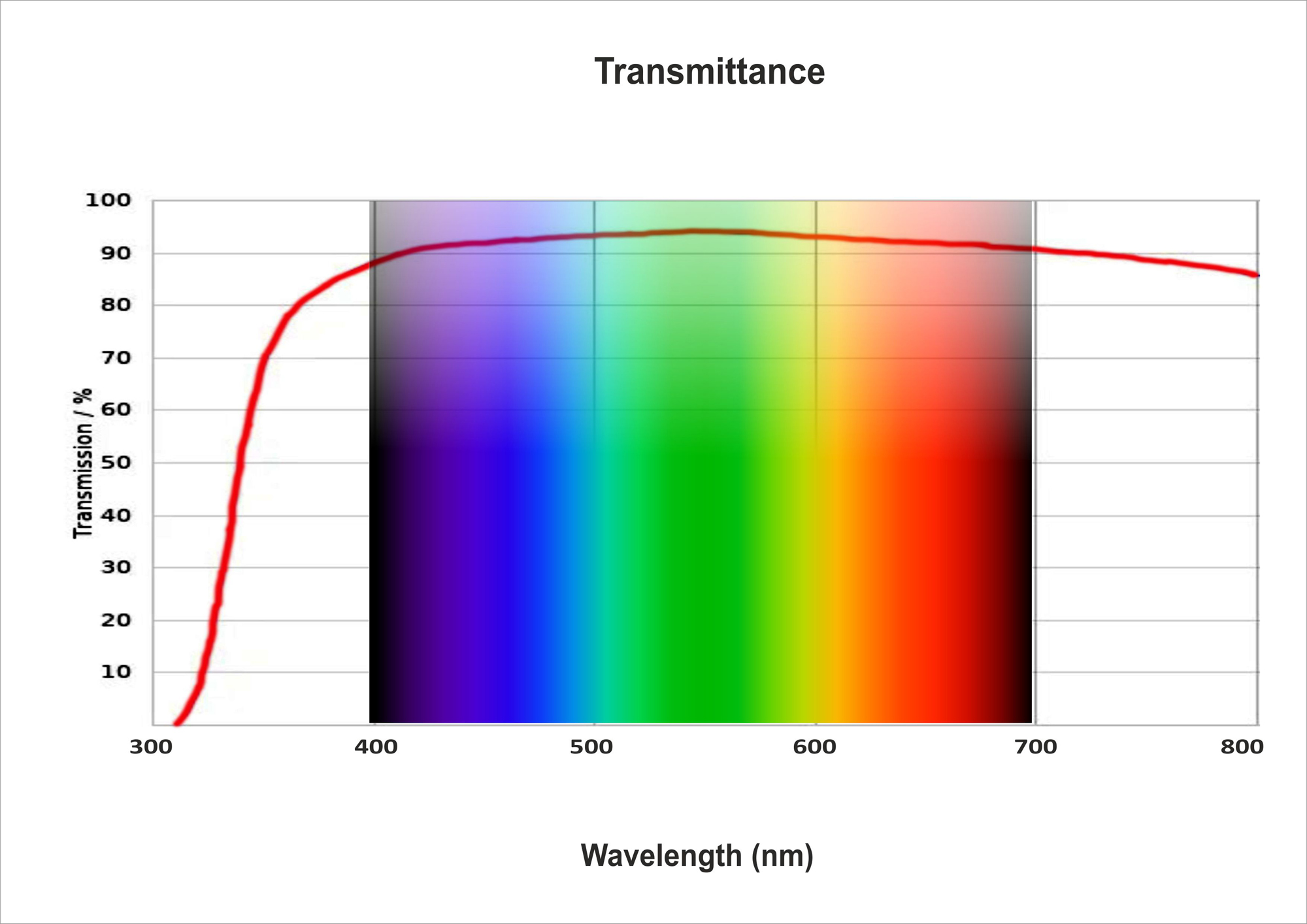

RIPFO-40PL |
40X, N.A. 0.55 W.D. 3.7mm, plan S-APO, having correction collar, long working distance |
| |

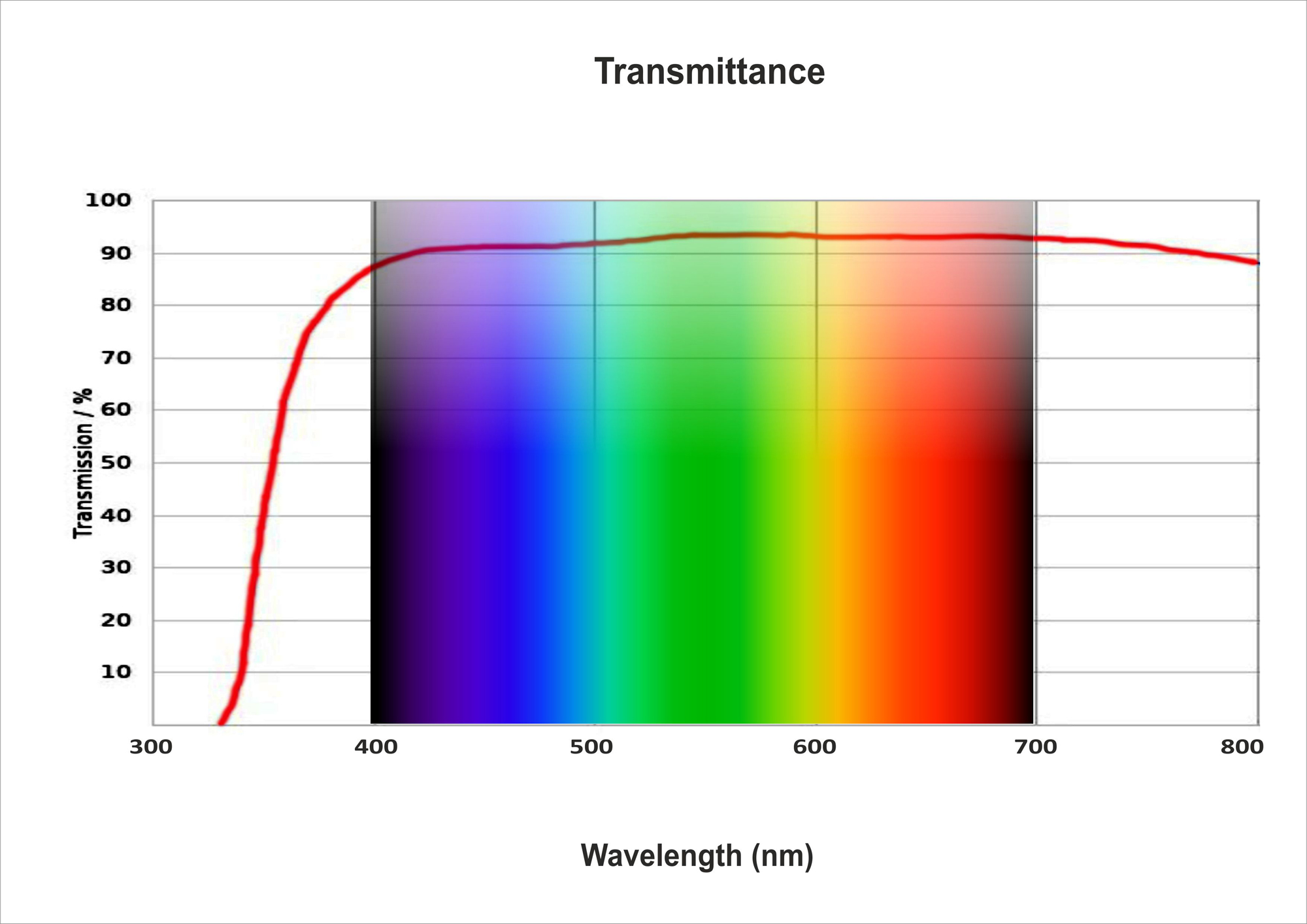

RIPFO-100PL |
LWD 100X, N.A. 1.25, W.D. 0.28mm, plan S-APO, oil immersed, spring loaded |
| |
| Infinity Plan Apochromat Objective |
RIAPAO-1.0 |
Plan Apochromat Fluor 1X, N.A. 0.04, W.D. 5.0mm |
| |
RIAPAO-1.0 |
Plan Apochromat Fluor 1.5X, N.A. 0.05, W.D. 4.2mm |
| |
RIAPAO-1.25 |
Plan Apochromat Fluor 1.25X, N.A. 0.05, W.D. 4.2mm |
| |
RIAPAO-02 |
Plan Apochromat Fluor 2X, N.A. 0.1, W.D. 8.5mm |
| |
RIAPAO-02a |
Plan Apochromat/Fluor 2X, N.A. 0.08, W.D. 6.2mm |
| |
RIAPAO-2.5 |
Plan Apochromat Fluor 2.5X, N.A. 0.06, W.D. 7.5mm |
| |

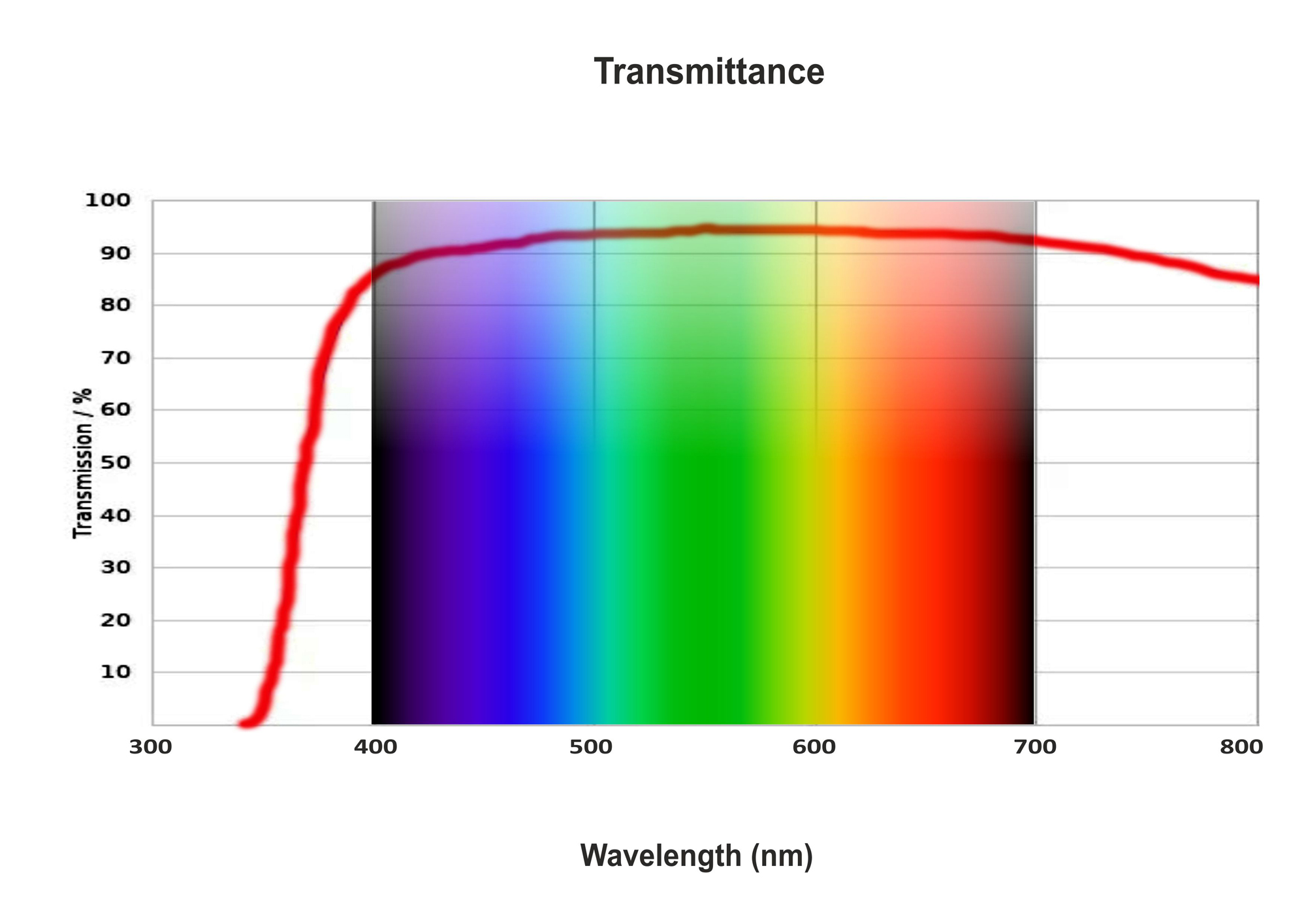

RIAPAO-04 |
Plan Apochromat Fluor 4X, N.A. 0.2, W.D. 20mm |
| |
RIAPAO-04a |
Plan Apochromat Fluor 4X, N.A. 0.16, W.D. 13.0mm |
| |
RIAPAO-04L |
Plan Apochromat/Fluor 4X, N.A. 0.10, W.D. 30mm |
| |
RIAPAO-05 |
Plan Apochromat Fluor 5X, N.A. 0.12, W.D. 14mm, |
| |

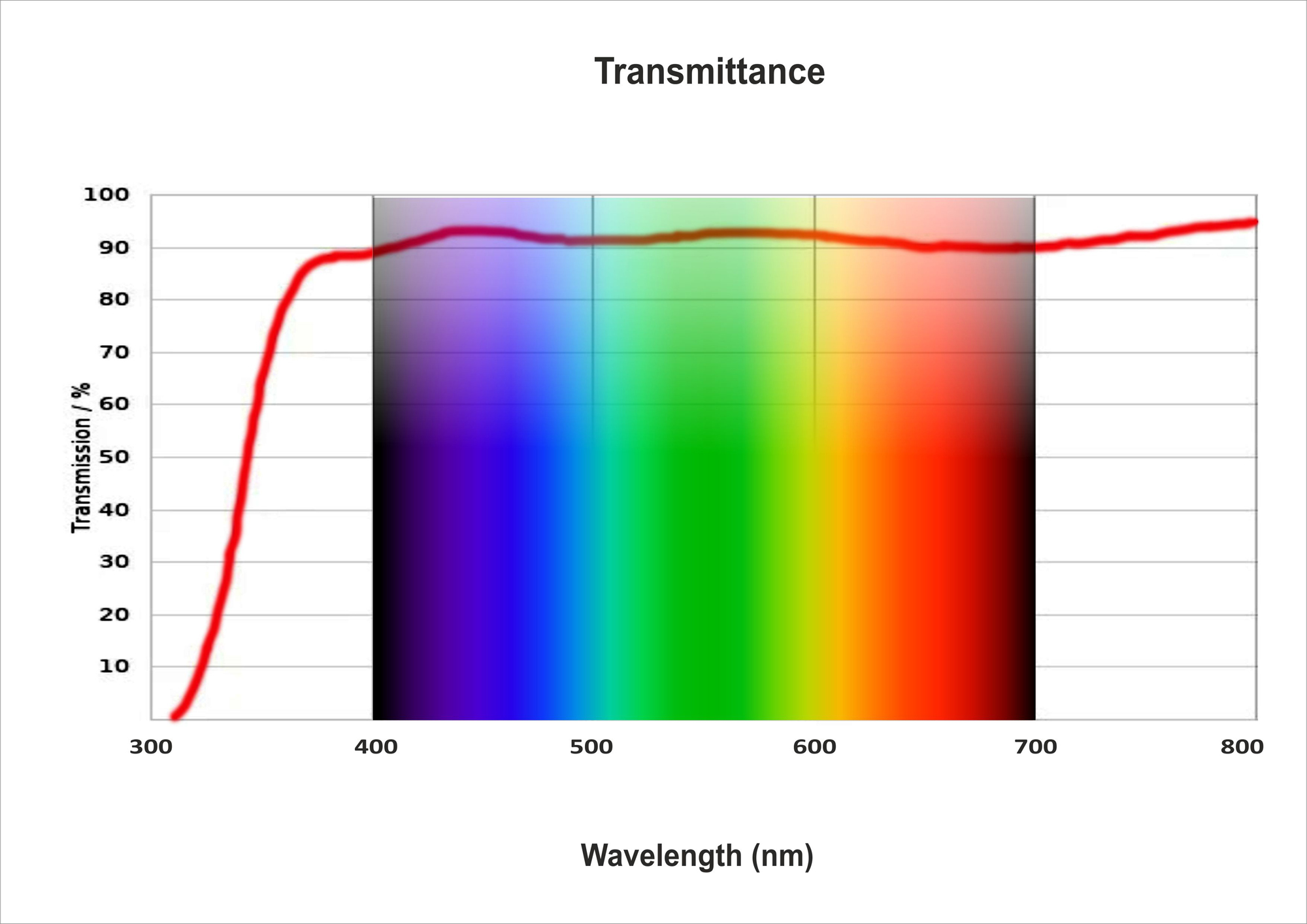

RIAPAO-10 |
Plan Apochromat Fluor 10X, N.A. 0.45, W.D. 4.0mm |
| |
RIAPAO-10a |
Plan Apochromat Fluor 10X, N.A. 0.4, W.D. 3.1mm |
| |
RIAPAO-10B |
Plan Apochromat Fluor 10X, N.A. 0.45, W.D. 4.2mm |
| |
RIAPAO-10L |
Plan Apochromat/Fluor 10X, N.A. 0.25, W.D. 10.6mm |
| |

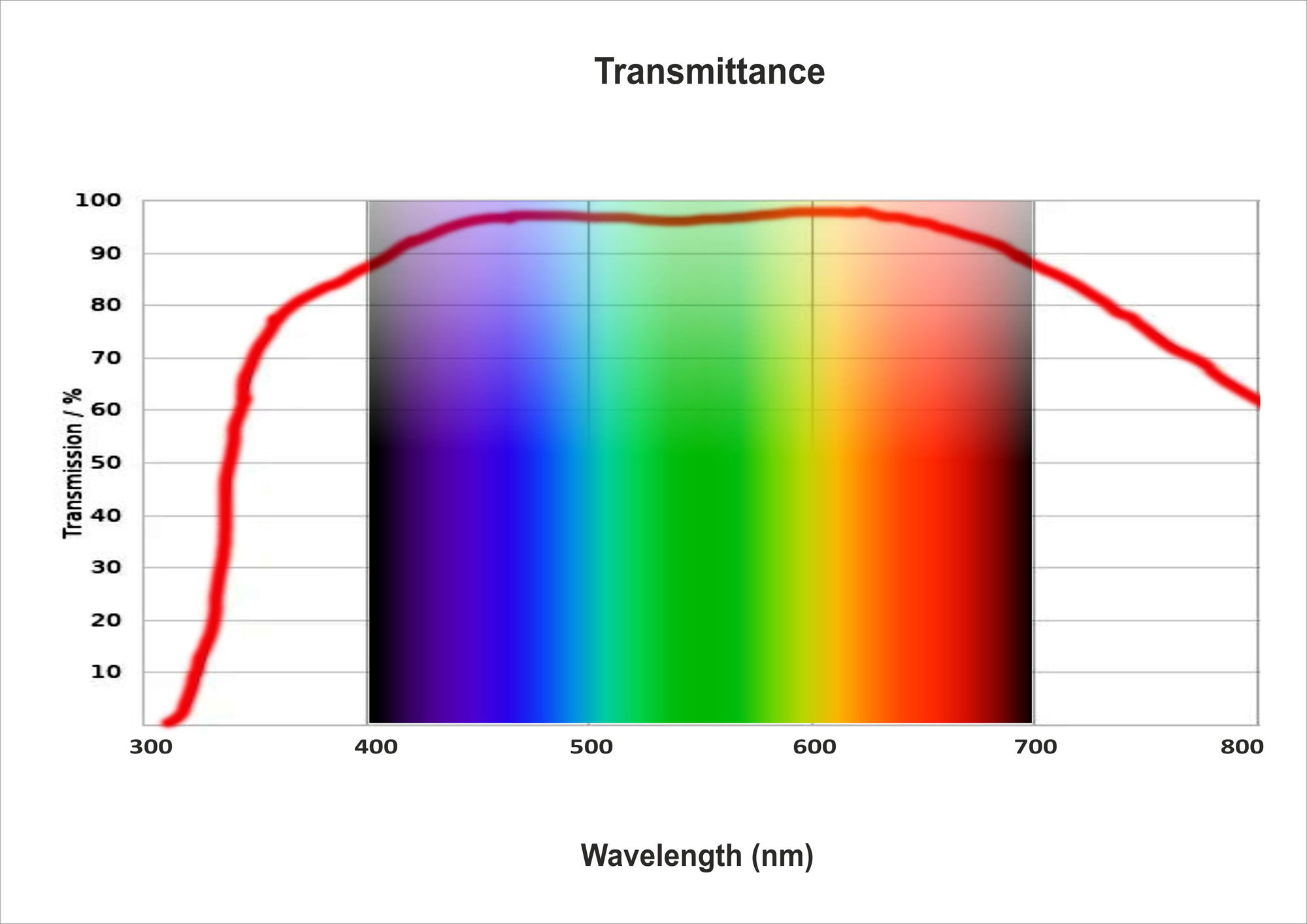

RIAPAO-20 |
Plan Apochromat Fluor 20X, N.A. 0.80, W.D. 1.0mm, spring loaded |
| |
RIAPAO-20a |
Plan Apochromat Fluor 20X, N.A. 0.80, W.D. 0.6mm, spring loaded |
| |
RIAPAO-20d |
Plan Apochromat Fluor 20X, N.A. 0.80, W.D. 1.0mm, dry, spring loaded. |
| |
RIAPAO-20i |
Plan Apochromat Fluor 20X, N.A. 0.75, W.D. 1mm, spring loaded |
| |
RIAPAO-20L |
Plan Apochromat/Fluor 20X, N.A 0.45, W.D 2.1mm, spring loaded |
| |
RIAPAO-20L-CC |
Plan Apochromat Fluor 20X, N.A 0.45, W.D 8.2-6.9mm, spring loaded |
| |
RIAPAO-40 |
Plan Apochromat Fluor 40X, N.A. 0.95, W.D. 0.14mm, spring loaded |
| |
RIAPAO-40a |
Plan Apochromat Fluor 40X, N.A. 0.95, W.D. 0.18mm, spring loaded |
| |
RIAPAO-40B |
Plan Apochromat Fluor 40X, N.A. 0.95, W.D. 0.25mm |
| |
RIAPAO-40acc |
Plan Apochromat Fluor 40X, N.A. 0.95, W.D. 0.18mm, spring loaded with correction collar 0.11-0.23mm |
| |
RIAPAO-40d |
Plan Apochromat Fluor 40X, N.A. 1.4, W.D. 0.14mm, dry, spring loaded |
| |
RIAPAO-40k |
Plan Apochromat/Fluor 40X, N.A. 0.75, W.D. 0.65mm, spring loaded |
| |
RIAPAO-40L |
Plan Apochromat/Fluor 40X, N.A. 0.65, W.D. 0.65mm, spring loaded |
| |
RIAPAO-40L-CC |
Plan Apochromat Fluor 40X, N.A. 0.6, W.D. 3.6-2.8mm, spring loaded. |
| |
RIAPAO-40CC |
Plan Apochromat Fluor 40X, N.A. 0.95, W.D. 0.21mm, spring loaded with correction ring |
| |
RIAPAO-40oil |
Plan Apochromat Fluor 40X, N.A. 1.0, W.D. 0.16mm, oil, spring loaded |
| |
RIAPAO-60 |
Plan Apochromat Fluor 60X, N.A. 0.95, W.D. 0.15mm, spring loaded |
| |
RIAPAO-60acc |
Plan Apochromat Fluor 60X, N.A. 0.9, W.D. 0.2, spring loaded, dry, correction collar |
| |
RIAPAO-60CC |
Plan Apochromat Fluor 60X, N.A. 0.95, W.D. 0.21-0.11, spring loaded, Dry, Corretion ring |
| |
RIAPAO-60W |
Plan Apochromat Fluor 60X, N.A. 1.4, W.D. 0.22mm, water immerstion, spring loaded |
| |
RIAPAO-60oil |
Plan Apochromat Fluor 60x, N.A. 1.42, W.D. 0.17mm, oil, spring loaded |
| |
RIAPAO-60oilcc |
Plan Apochromat Fluor 60x, N.A. 1.42, W.D. 0.17mm, oil, spring loaded, correction collar |
| |
RIAPAO-63 |
Plan Apochromat Fluor 60X, N.A. 0.80, W.D. 0.4mm, spring loaded |
| |
RIAPAO-100 |
Plan Apochromat Fluor 100X, N.A. 1.45, W.D. 0.13mm, oil, spring loaded |
| |
RIAPAO-100e |
Plan Apochromat Fluor 100X, N.A. 1.40, W.D. 0.13mm, oil, spring loaded |
| |
RIAPAO-100B |
Plan Apochromat Fluor 100X, N.A. 1.45, W.D. 0.14mm, oil, spring loaded |
| |
RIAPAO-100L |
Plan Apochromat/Fluor 100X, N.A. 1.25, W.D. 0.29mm, oil, spring loaded |
| |
RIAPAO-100cr |
Plan Apochromat Fluor 100X, N.A. 1.4, W.D. 0.13mm, oil, spring loaded, correction collar /ring |
| |
RIAPAO-100ncg |
Plan Apochromat Fluor 100X, N.A. 1.4, W.D. 0.17mm, No cover glass oil |
| |
| Infinity Super Fluor Objective |
RISFO-04 |
Super Fluor 4x, N.A. 0.2, W.D. 15.5mm |
| |
RISFO-10 |
Super Fluor 10x, N.A. 0.5, W.D. 1.2mm, spring loaded |
| |
RISFO-20 |
Super Fluor 20x, N.A. 0.75, W.D. 1mm, spring loaded |
| |
RISFO-40 |
Super Fluor 40x, N.A. 0.9, W.D. 0.3mm, spring loaded |
| |
RISFO-40oil |
Super Fluor 40x, N.A. 1.3, W.D. 0.22mm, oil, spring loaded |
| |
RISFO-100 |
Super Fluor 100x, N.A. 0.5 - 1.30, W.D. 0.2mm, oil, spring loaded with iris |
| |
| Infinity water dipping Objective |
RIWDO-10W |
Fluor 10X water, N.A. 0.3, W.D. 2mm |
| |
RIWDO-20W |
Fluor 20X water, N.A. 0.5, W.D. 2mm |
| |
RIWDO-40W |
Fluor 40X water, N.A. 0.8, W.D. 2mm |
| |
RIWDO-60W |
Fluor 60X water, N.A. 1, W.D. 2mm |
| |
| Infinity Achromat Phase Contrast |
RIAPC-10 |
LWD Achromat phase infinity 10x, N.A. 0.25, W.D. 7mm |
| |
RIAPC-10i |
LWD Achromat phase infinity 10x, N.A. 0.30, W.D. 15mm |
| |
RIAPC-20 |
LWD Achromat phase infinity 20x, N.A. 0.4, W.D. 3.9mm |
| |
RIAPC-20i |
LWD Plan achromat phase 20X N.A. 0.45, W.D. 8.2-6.9mm |
| |
RIAPC-20il |
LWD Achromat phase infinity 20x, N.A. 0.40, W.D. 1.20mm |
| |
RIAPC-40 |
LWD Achromat phase infinity 40x, N.A. 0.65, W.D. 0.65mm, spring loaded |
| |
RIAPC-40i |
LWD Achromat phase infinity 40x, N.A. 0.65, W.D. 0.56mm, spring loaded |
| |
RIAPC-40iCC |
LWD Plan achromat phase 40X N.A. 0.60, W.D. 3.6-2.8mm, spring loaded, with cover glass correction 0-2.0mm |
| |
RIAPC-100 |
LWD Achromat phase infinity 100x, N.A. 1.25, W.D. 0.23mm, oil, spring loaded |
| |
| Infinity phase Contrast |
RIPAPC-05 |
Plan fluor achromat phase 5x, N.A. 0.15, W.D. 12mm |
| |
RIPAPC-10 |
Plan fluor achromat phase 10x, N.A. 0.25, W.D. 11.5mm |
| |
RIPAPC-20 |
Plan fluor achromat phase 20x, N.A. 0.4, W.D. 1.2mm |
| |
RIPAPC-20CC |
Plan fluor achromat phase 20X N.A. 0.45, W.D. 8.2-6.9mm |
| |
RIPAPC-20lwd |
Plan fluor achromat phase 20x, N.A. 0.45, W.D. 8.2mm |
| |
RIPAPC-40 |
Plan fluor achromat phase 40x, N.A. 0.75, W.D. 2.1mm, spring loaded |
| |
RIPAPC-40CC |
Plan fluor achromat phase 40X N.A. 0.6, W.D. 3.6-2.8mm, spring loaded, with cover glass correction 0-2.0mm |
| |
RIPAPC-40cg |
Plan fluor achromat phase 40x, N.A. 0.55, W.D. 2.7-1.7mm with cover glass, spring loaded |
| |
RIPAPC-40lwd |
Plan fluor achromat phase 40x, N.A. 0.6, W.D. 3.7mm, spring loaded |
| |
RIPAPC-60CC |
Plan fluor achromat 60X N.A. 0.70, W.D. 2.6-1.8mm, spring loaded |
| |
RIPAPC-63 |
Plan fluor achromat 63X N.A. 0.95, W.D. 0.28mm, spring loaded |
| |
RIPAPC-100 |
Plan fluor achromat phase 100x, N.A. 1.25, W.D. 0.30mm, oil, spring loaded |
|
RIPAPC1-05 |
Plan achromat phase 5x, N.A. 0.15, W.D. 12mm |
| |
RIPAPC1-10 |
Plan achromat phase 10x, N.A. 0.25, W.D. 11.5mm |
| |
RIPAPC1-10c |
Plan achromat phase 10x, N.A. 0.25, W.D. 10mm |
| |
RIPAPC1-20 |
Plan achromat phase 20x, N.A. 0.4, W.D. 1.2mm |
| |
RIPAPC1-20i |
Plan achromat phase 20x, N.A. 0.50, W.D. 1.2mm |
| |
RIPAPC1-20CC |
Plan achromat phase 20X N.A. 0.45, W.D. 8.2-6.9mm |
| |
RIPAPC1-20CC2 |
Plan achromat phase 20x, N.A. 0.4, W.D. 3.7-2.4mm with correction ring |
| |
RIPAPC1-20lwd |
Plan achromat phase 20x, N.A. 0.45, W.D. 8.2mm |
| |
RIPAPC1-40 |
Plan achromat phase 40x, N.A. 0.65, W.D. 2.1mm, spring loaded |
| |
RIPAPC1-40a |
Plan achromat phase 40x, N.A. 0.65, W.D. 0.5mm, spring loaded |
| |
RIPAPC1-40i |
Plan achromat phase 40x, N.A. 0.75, W.D. 2.1mm, spring loaded |
| |
RIPAPC1-40CC |
Plan achromat phase 40X N.A. 0.6, W.D. 3.6-2.8mm, spring loaded, with cover glass correction 0-2.0mm |
| |
RIPAPC1-40cg |
Plan achromat phase 40x, N.A. 0.55, W.D. 2.7-1.7mm with cover glass, spring loaded |
| |
RIPAPC1-40lwd |
Plan achromat phase 40x, N.A. 0.6, W.D. 3.7mm, spring loaded |
| |
RIPAPC1-40ilwd |
LWD Plan achromat phase 40x, N.A. 0.40, W.D. 3.1mm, spring loaded |
| |
RIPAPC1-60CC |
Plan achromat 60X N.A. 0.70, W.D. 2.6-1.8mm, spring loaded |
| |
RIPAPC1-60lwd |
LWD Plan achromat 60X N.A. 0.55, W.D. 2.1mm, spring loaded |
| |
RIPAPC1-100 |
Plan achromat phase 100x, N.A. 1.25, W.D. 0.2mm, oil, spring loaded |
| |
RIPAPC1-100d |
Plan achromat phase 100x, N.A. 1.25, W.D. 0.15-0.2mm, spring loaded & cover glass thickness |
| |
RIPAPC2-10 |
Plan achromat phase 10x, N.A. 0.3, W.D. 17mm |
| |
RIPAPC2-20 |
Plan achromat phase 20x, N.A. 0.5, W.D. 6.5mm |
| |
RIPAPC2-40 |
Plan achromat phase 40X N.A. 0.75, W.D.2mm, spring loaded |
| |
RIPAPC2-40is |
Plan achromat phase 40X N.A. 0.60, W.D.2mm, spring loaded, correction collor cover glass 0-2mm |
| |
| Infinity Plan S-APO/Fluor Phase Contrast |
RIPFPC-04 |
Plan fluor/S-APO phase 4x, N.A. 0.13, W.D. 16.4mm |
|
RIPFPC-04i |
Plan fluor/S-APO phase 4x, N.A. 0.13, W.D. 17mm |
| |
RIPFPC-10 |
Plan fluor/SAPO phase 10x, N.A. 0.3, W.D. 16mm |
| |
RIPFPC-10i |
Plan fluor/SAPO phase 10x, N.A. 0.25 W.D. 18mm |
| |
RIPFPC-10ie |
Plan fluor/SAPO phase 10x, N.A. 0.3, W.D. 10mm |
| |
RIPFPC-20 |
Plan fluor/SAPO phase 20x, N.A. 0.5, W.D. 2.2mm |
| |
RIPFPC-20B |
Plan fluor/S-APO phase 20x, N.A. 0.45, W.D. 3.2mm |
| |
RIPFPC-20C |
Plan fluor/SAPO phase 20x, N.A. 0.45, W.D. 8mm, elwd |
| |
RIPFPC-20lwd |
Plan fluor/SAPO phase 20x, N.A. 0.45, W.D. 6.5-7.8mm |
| |
RIPFPC-20elwd |
Plan fluor phase 20x, N.A. 0.45, W.D. 8.1-7.0mm, extra long working distance, with correction ring |
| |
RIPFPC-20elwdi |
Plan fluor phase 20x, N.A. 0.45, W.D. 8.2-6.9mm, extra long working distance |
| |
RIPFPC-40 |
Plan fluor/SAPO phase 40x, N.A. 0.80, W.D. 0.72mm, spring loaded |
| |
RIPFPC-40a |
Plan fluor/SAPO phase 40x, N.A. 0.75, W.D. 0.51mm, spring loaded |
| |
RIPFPC-40e |
Plan fluor/SAPO phase 40x, N.A. 0.75, W.D. 0.72mm, spring loaded |
| |
RIPFPC-40FP |
Plan fluor phase/S-APO 40x, N.A. 0.65, W.D. 3.7mm, spring loaded |
| |
RIPFPC-40elwd |
Plan fluor/SAPO phase 40x, N.A. 0.6, W.D. 3.7-2.7mm, spring loaded, extra long working distance, with correction ring |
| |
RIPFPC-40elwdi |
Plan fluor/SAPO phase 40x, N.A. 0.6, W.D. 2.0, 4mm, spring loaded, extra long working distance, with correction ring/collar. |
| |
RIPFPC-40elwd3 |
Plan fluor phase 40x, N.A. 0.6, W.D. 3-5-2.8mm, spring loaded, extra long working distance with cover glass correction 0-2mm |
| |
RIPFPC-40elwd4 |
Plan fluor/S-APO phase 40x, N.A. 0.6, W.D. 3-4.2mm, spring loaded, extra long working distance with cover glass correction 0-2mm |
| |
RIPFPC-40elwd5 |
Plan fluor phase 40x, N.A. 0.60, W.D. 3.6-2.8mm, spring loaded, extra long working distance, with correction ring |
| |
RIPFPC-40elwd6 |
Plan fluor phase 40x, N.A. 0.6, W.D. 2.7-4mm, spring loaded, extra long working distance |
| |
RIPFPC-60 |
Plan fluor phase 60x, N.A. 0.7, W.D. 2.1-1.5mm |
| |
RIPFPC-60i |
Plan fluor phase 60x, N.A. 0.7, W.D. 1.5-22mm with correction color |
| |
RIPFPC-60elwd |
Plan fluor phase 60x, N.A. 0.70, W.D. 2.6-1.8mm, spring loaded, extra long working distance |
| |
RIPFPC-63 |
LWD Plan fluor phase 63x, N.A. 0.75, W.D. 1.7mm |
| |
RIPFPC-63e |
LWD Plan S-APO phase 63x, N.A. 0.70, W.D. 1.7mm |
| |
RIPFPC-63cc |
LWD Plan fluor phase 63x, N.A. 0.75, W.D. 1.7mm with correction ring 0-1.5mm |
| |
RIPFPC-100 |
Plan fluor/SAPO phase 100x, N.A. 1.3, W.D. 0.2mm, oil, spring loaded |
| |
| Infinity Plan APO |
RIPAPPC-1.25 |
Plan Apochromat 1.25X, N.A. 0.04, W.D. 5.0mm |
|
RIPAPPC-04 |
Plan Apochromat 4X, N.A. 0.13, W.D. 30mm |
|
RIPAPPC-10L |
Plan apochromat 10x, N.A. 0.45, W.D. 6.5mm, infinite |
| |
RIPAPPC-20L |
Plan apochromat 20x, N.A. 0.80, W.D 0.65mm, infinite, spring loaded |
| |
RIPAPPC-40L |
Plan apochromat 40x, N.A. 0.65, W.D 0.60mm, infinite, spring loaded |
| |
RIPAPPC-60 |
Plan apochromat 63x, N.A. 1.4, W.D 0.13mm, infinite, oil, spring loaded |
| |
RIPAPPC-63L |
Plan apochromat 63x, N.A. 0.95, W.D 0.17mm, infinite, spring loaded |
| |
RIPAPPC-100L |
Plan apochromat 100x, N.A. 1.35, W.D. 0.29mm, infinite, oil, spring loaded |
| |
| Infinity Plan APO Phase |
RIPAPPC-10 |
LWD Plan apochromat phase 10x, N.A. 0.4, W.D. 6.5mm, infinite |
|
RIPAPPC-10PH |
LWD Plan apochromat phase 10x, N.A. 0.45, W.D. 6.5mm, infinite |
| |
RIPAPPC-20PH |
Plan apochromat phase 20x, N.A. 0.75, W.D 0.65mm, infinite, spring loaded |
| |
RIPAPPC-20Phi |
Plan apochromat phase 20x, N.A. 0.50, W.D 1.1mm, infinite, spring loaded |
| |
RIPAPPC-40PH |
LWD Plan apochromat phase 40x, N.A. 0.75, W.D 0.60mm, infinite, spring loaded |
| |
RIPAPPC-40PHi |
LWD Plan apochromat phase 40x, N.A. 1.15, W.D 0.61mm, infinite, spring loaded |
| |
RIPAPPC-63PH |
Plan apochromat phase 63x, N.A. 0.95, W.D 0.17mm, infinite, spring loaded |
| |
RIPAPPC-100PH |
Plan apochromat phase 100x, N.A. 1.35, W.D. 0.29mm, infinite, oil, spring loaded |
| |
| Infinity Plan Apochromat Phase Contrast |
RIPAPPC-10c |
Plan apochromat phase 10x, N.A. 0.30, W.D. 6.5mm, infinite |
|
RIPAPPC-20 |
Plan apochromat phase 20x, N.A. 0.75, W.D. 1mm, infinite, spring loaded |
| |
RIPAPPC-40 |
Plan apochromat phase 40x, N.A. 0.95, W.D. 0.21mm, infinite, spring loaded |
| |
RIPAPPC-40oil |
Plan apochromat phase 40x, N.A. 1.0, W.D. 0.16mm, infinite, oil, spring loaded |
| |
RIPAPPC-60D |
Plan apochromat phase 60x, N.A. 0.95, W.D. 0.15mm, infinite, spring loaded |
| |
RIPAPPC-60oil |
Plan apochromat phase 60x, N.A. 1.4, W.D. 0.13mm, infinite, oil, spring loaded |
| |
RIPAPPC-60D-CC |
Plan apochromat phase 60x, N.A. 0.70, W.D. 1.5mm, dry, spring loaded, infinite, having correction collar for cover glass thickness correction from 0.1- 1.3mm |
| |
RIPAPPC-63i-CC |
Plan apochromat phase 63x, N.A. 0.70, W.D. 1.8-2.6mm, spring loaded, infinite, having correction collar for cover glass thickness correction from 0.1- 1.3mm |
| |
RIPAPPC-100 |
Plan apochromat phase 100x, N.A. 1.45, W.D. 0.13mm, infinite, oil, spring loaded |
| |
RIPAPPC-100c |
Plan apochromat phase 100x, N.A. 1.40, W.D. 0.13mm, infinite, oil, spring loaded |
| |
| Lambda APO objectives |
RIAPAOLD-2 |
Plan Apochromat L.W. 2x, N.A. 0.10, W.D. 8.5mm |
| |
RIAPAOLD-4 |
Plan Apochromat L.W. 4x, N.A. 0.20, W.D. 20.0mm |
| |
RIAPAOLD-10 |
Plan Apochromat L.W. 10x, N.A. 0.45, W.D. 4.0mm |
| |
RIAPAOLD-20 |
Plan Apochromat L.W. 20x, N.A. 0.80, W.D. 0.80mm, spring loaded |
| |
RIAPAOLD-40 |
Plan Apochromat L.W. 40x, N.A. 0.95, W.D. 0.21mm, spring loaded |
| |
RIAPAOLD-60 |
Plan Apochromat L.W. 60x, N.A. 1.42, W.D. 0.15mm, oil, spring loaded for FOV 25mm |
| |
RIAPAOLD-100 |
Plan Apochromat L.W. 100x, N.A. 1.45, W.D. 0.13mm, oil, spring loaded |
| |
| Infinity Hoffman Modulation Contrast |
RIHMC-10 |
Hoffman modulation contrast 10x, N.A. 0.25, W.D. 6.2mm |
| |
RIHMC-20 |
Hoffman modulation contrast 20x, N.A. 0.40, W.D. 3.1mm, long working distance |
| |
RIHMC-40 |
Hoffman modulation contrast 40x, N.A. 0.55, W.D. 2.7-1.7mm, long working distance |
| |
| Objectives for RSMr |
RSMR10OC1.0 |
Plan achromat parfocal objective 1x (WD 63mm) |
|
RSMR10OC1.5 |
Plan achromat parfocal objective 1.5x (WD 28mm) |
|
RSMR10OC0.63 |
Plan achromat parfocal objective 0.63x (WD 107mm) |
