Optical Microscopes Industrial Microscopes RMM-7NX Series

Inverted Research Metallurgical Microscope

Inverted Research Metallurgical Microscope

RMM-7NX

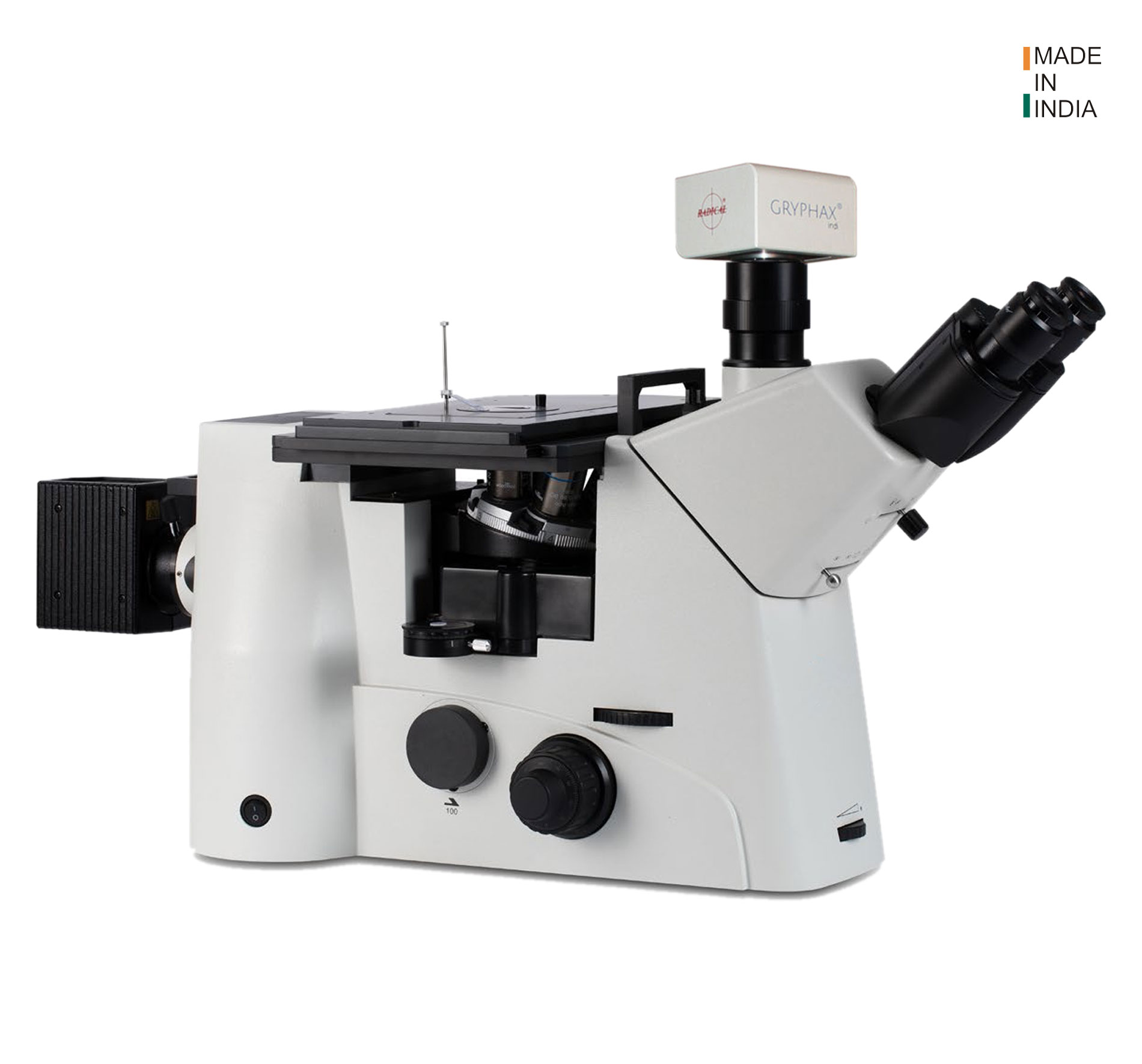

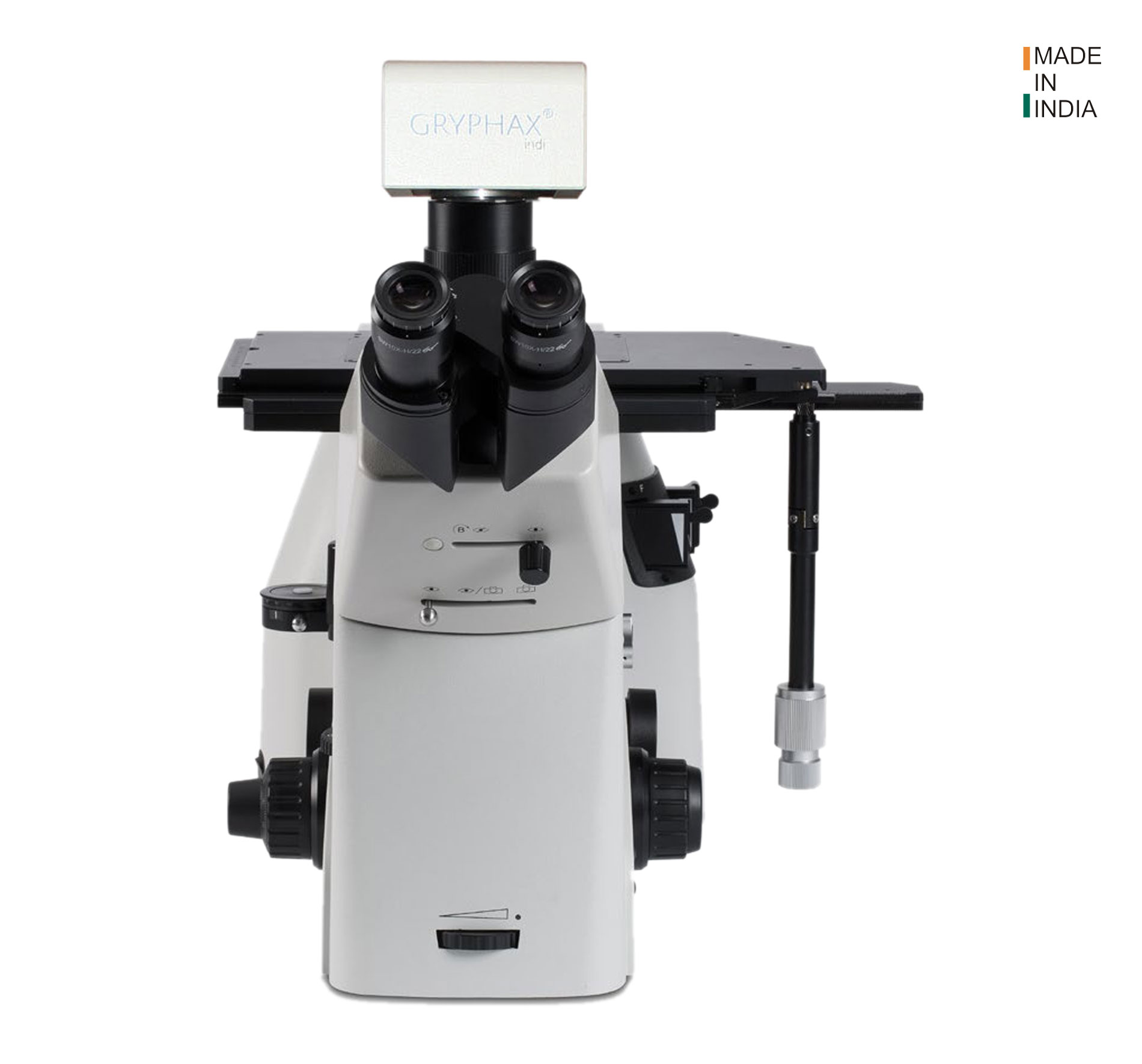

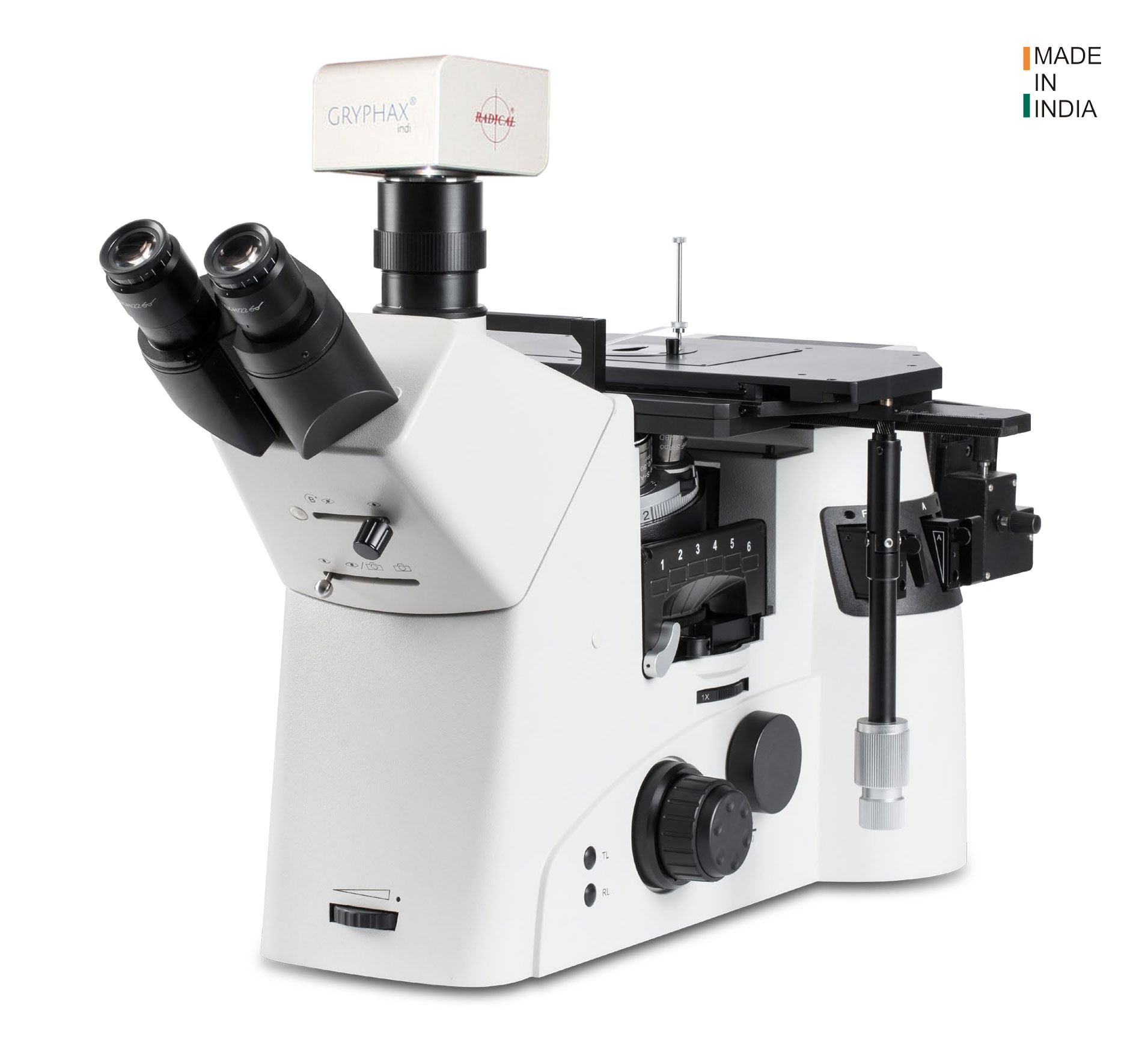

RMM-7NX Inverted Research Metallurgical Microscope provides for a more comfortable user experience with its compact, ergonomic design for easy, durable use for observation of metallurgical samples, electronic components, and metal parts. Microscope is designed for routine metallurgical applications in industrial and educational applications. optional to mix of BF & DF observation

BRIGHTFIELD
DARKFIELD
DIC
MORPHOMETRY
POLARIZING
PARTICAL COUNT
Observation Method Infinite optical system, colour corrected
Illumination 50W Kohler illumination/LED
Viewing Heads Ergonomic siedentopf binocular/trinocular head, inclination 45° rotatable 360° with IPD 48-75mm, upper & lower position, diopter adjustable
Nosepiece Reversed Quintuple/Sextuple nosepiece
Objectives LWD Infinity plan semi APO chromatic plan
Eyepiece
 High Point Wide-field WF 10X with FOV 22/25mm
Mechanical Stage Fixed stage with 3point support, Attachable mechanical stage, X-Y coaxial control, moving range 120×78mm double layer mechanical stage 150×300mm, moving range 50×50mm
Focusing Coaxial, tension control & upper limit stopper high sensitivity focus drive with 0.01mm per revolution
Observation Bright Field, Darkfield & Polarizing
Magnification 50x-1000x
Filters Blue, Green, Built-in Slots for Analyzer & Polarizer
Part Name Part Code Description
Body RMM7NXMB Rugged/ rigid and sturdy metallic stand, turntable port switching Horizontal modular designed for easy handling of control knobs frame equipped with C-mount Camera attachment to provide images on camera monitor & eyepiece observation, turntable port switching (left port/right port/eyepiece observation), split ratio: left/eyepiece =100/0; right/eyepiece=80/20; optional/eyepiece =0/100, interface for LED & 100W halogen with shutter function, snap button, interface for alternative HAL 100 or LED.
Optical system RMM7NXiOS Infinite optical system, color corrected, antifungal, anti-bacterial coated, multi-layered hard coated, color coded objectives, parfocal, pre-centered, in adopts a six-station turntable structure, which can be from the host easy to take out, convenient to install various observation modules like reflected light, BF/DF/ Fluorescence/ Polarized light, Oblique illumination, Lambda Plate of 530 angstrom Wavelength & differential interference contrast mode of observation. When using, just turn the dial to achieve observation the mode changes the positioning is accurate and the use is convenient
Illumination RMM7NXHL 12V 100W adjustable halogen lamp four-band LED fluorescent·100W mercury lamp
Viewing Head RMM7NXT45 Trinocular tiltable with eyepoint adjustable at 45°, hinged, with bertrand lens, IPD 47-78
Nosepiece RMM7NX-5N Inward tilted, precise quintuple revolving on multiple ball bearing
Eyepiece RMM7NXEP1022 Paired, high eye point WF 10X, FOV-22mm, multilayered coated, High quality, good contrast, abrasion free, eyepiece reticule, aplanatic, pre-centered, diopter adjustment on both eyepiece (±5mm), focusable, suitable for spectacle wearers.
Mechanical Stage RMM7NXMS Rectangular ceramic coated, scratch resistant, three-layer mechanical mobile platform, moving range 130X85mm, flexible right handle, load capacity upto 5kg, wire driven and common axis knob at bottom adjustable tension, small work benches of different sizes can be installed on the top platform according to requirements, stage mirror to prevent objective to collide with the sample

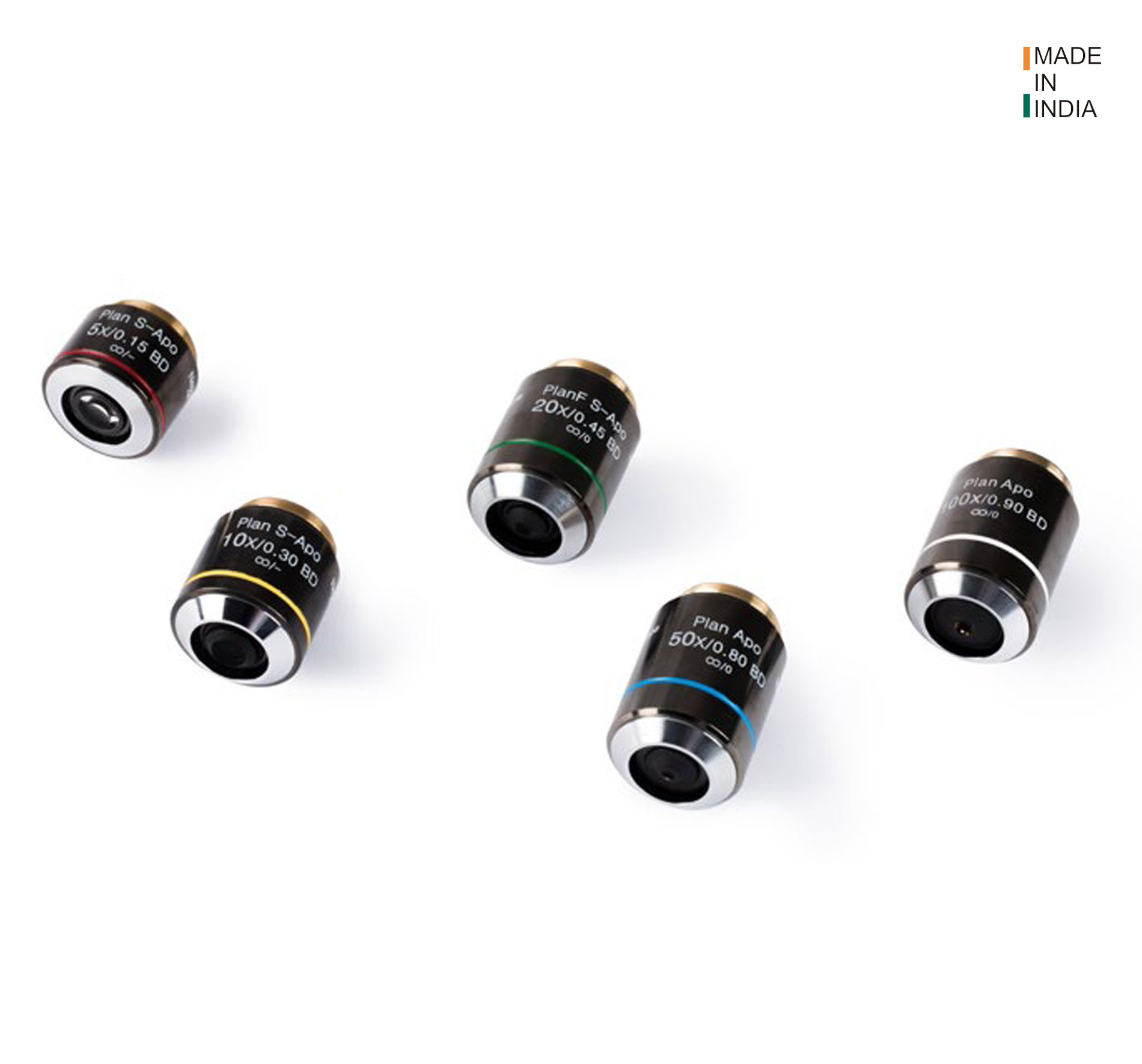

Objectives RMM7NX05i LWD, 5X/0.15 BD/FD N.A 0.15, W.D 20mm, plan SAPO, infinite, parfocal & pre-centered, unbreakable container for storage
RMM7NX10i LWD, 10X/0.3 BD/FD N.A 0.3, W.D 11mm, plan SAPO, infinite, parfocal & pre-centered, unbreakable container for storage
RMM7NX20i LWD, 20X/0.45 BD/FD N.A 0.45, W.D 3.5mm, plan SAPO, infinite, parfocal & pre-centered, unbreakable container for storage
RMM7NX50i LWD, 50X/0.8 BD/FD N.A 0.8, W.D 1mm, plan SAPO, infinite, parfocal & pre-centered, unbreakable container for storage
  RMM7NX100i LWD, 100X/0.9 BD/FD N.A 0.9, W.D 1mm, plan SAPO, infinite, parfocal & pre-centered, unbreakable container for storage
Focusing RXF20 Coaxial coarse and fine movement lifting mechanism, moving stroke upto 22mm (up 2mm, down 9mm), coarse adjustment stroke 2mm/per circle, fine adjustment stroke 0.2mm/per circle, with 200 graduations marking on the fine adjustment knob, Torque adjustment ring and upper limit stopper for coarse focusing
Power Supply RSMPS620 SMPS based, wide voltage range, 90V-240V, 50/60Hz, Single phase AC, 3wire system, suitable for LED & halogen
Accessories RCC Cleaning cloth
RVC Vinyl cover
RAK Allen keys
RCLP C-clamp for tension adjustment
RF5A Fuses - 2 no's
MANUAL Instruction manual
WARRANTY Warranty card
RBF Blue/Green/Yellow Filter
RPC Power Cord (country Specific)
  • Reflected/ Incident Illumination
    • Part Name Part Code Description
      Reflected/Incident Illumination RMM7NXH50RL 12V-50W life 2000 hrs., with field and aperture diaphragm
      RMM7NXH100RL 12V-100W life 2000 hrs., with field and aperture diaphragm
      RMM3L5WRL LED 5W life 62000 hrs., Lumens equivalent 100W, with field and aperture diaphragm, Suitable for Bright field, Dark field, Pol and DIC
      RMM3L5WRL-M LED 5W, life 62000 hrs., Lumens equivalent 100W, colour Temp: 5700k, colour rendering >90 with conversion filter 5700-3200k, with Intensity control, with field and aperture diaphragm, Suitable for Bright field, Dark field, Pol and DIC etc.
      RMM7L5WRL LED 5W life 62000 hrs., Lumens equivalent 100W, with field and aperture diaphragm
      RMM7NXL5WRL 4 Position turret with upto 4 mirror cubes for BF, DF Pol, DIC/oblique & fluorescence attachment etc. observation rectangular filament 5W White LED (life 65000 hrs.), Lumens equivalent 100W, having 4500K constant colour temperature, pre-centered, with Intensity control/Manager, auto cutoff (after 30 minutes), heat absorbent filter, intensity adjustable & slot for DIC slider & built-in filters, fly eye lens (for uniform illumination to entire FOV), with adjustable field and aperture diaphragm.
      RMM7L10WRL LED (white)10W life 62000 hrs., Lumens equivalent 100W, with field and aperture diaphragm, with Light Intensity Manager, Eco energy saving auto cut Off, Suitable for Bright field, Dark field, Pol and DIC.
  • Viewing Head
    • Viewing Head RMM7NXF45 Trinocular inclined at 45°, hinged, with bertrand lens, IPD 47-78
      RMM7NXTST-C50 Trinocular inclined at 45°, siedentopf head, rotatable through 360°, IPD 48-76, Diopter adjustment on both eyepieces, port for camera attachment, splitting ratio 50(EP):50 (camera)
      RMM7NXTST-C50-1 Trinocular inclined at 45°, siedentopf Head, rotatable through 360°, IPD 45-75, Diopter adjustment on both eyepieces, port for camera attachment, 2 position splitting ratio 50:50, 100:0/0:100 with eyepiece rotation prevention mechanism, height adjustment upto 50mm.
      RMM7NXTST-C80 Trinocular inclined at 45°, siedentopf head, rotatable through 360°, IPD 48-76, Diopter adjustment on both eyepieces, port for camera attachment, splitting ratio 20(EP):80 (camera)
      RMM7NXTST-3PC50 Trinocular inclined at 45°, siedentopf head, rotatable through 360°, IPD 48-76, Diopter adjustment on both eyepieces, port for camera attachment with interface 60N, with sliding prism, 3 position splitting ratio 100:0, 50:50, 0:100, FOV upto 25mm, with Bertrand lens and manual shutter.
      RMM7NXTST-3PC80 Trinocular inclined at 45°, siedentopf head, rotatable through 360°, IPD 48-76, Diopter adjustment on both eyepieces, port for camera attachment, 3 position splitting ratio 100:0, 20:80, 0:100
  • Nosepiece
    • Nosepiece RMM7NX-4N Inward tilted, precise quadruple revolving on multiple ball bearing
      RMM7EX-5CN Inward tilted, precise quintuple (5 position) revolving on multiple ball bearing, coded/motorized nosepiece with automatic component recognition, with LIM function, it can memorize the illumination brightness when using each objective. When nosepiece is rotated the light intensity gets automatically adjusted to reduce visual fatigue and improve work efficiency inbuilt DIC and polarizer & analyzer slot, filter slots, one empty slider slot and relief contrast/equivalent contrast for future upgradation.
      RMM7EX-6N Inward tilted, precise sextuple, reflector turret encoded, revolving on multiple ball bearing, inbuilt DIC and analyzer slot and relief contrast/ equivalent contrast.
      RMM7EX-6CN Inward tilted, precise sextuple revolving on multiple ball bearing, coded/motorized nosepiece with automatic component recognition, with LIM function, it can memorize the illumination brightness when using each objective. When nosepiece is rotated the light intensity gets automatically adjusted to reduce visual fatigue and improve work efficiency inbuilt DIC and analyzer slot and relief contrast/equivalent contrast.
  • Eyepieces
    • Eyepieces RMM7NXEP1020M WF 10X, FOV-20mm, micrometer (10/100mm), multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable
      RMM7NXEP1020P WF 10X, FOV-20mm, pointer/cross hair, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable
      RMM7NXEP1022M WF 10X, FOV-22mm, micrometer (10/100mm), multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable
      RMM7NXEP1022CM high eye point WF 10X, FOV-22mm, micrometer (10/100mm), 90 Cross hair, multilayered coated, high quality, good contrast, abrasion free,aplanatic, pre-centered, diopter adjustment eyepiece (±5mm)
      RMM7NXEP1022P WF 10X, FOV-22mm, pointer/cross hair, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable
      RMM7NXEP1025 Paired, WF 10X, FOV-25mm, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable with provision to attached graticule
      RMM7NXEP1025M WF 10X, FOV-25mm, Micrometer (10/100mm), multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable
      RMM7NXEP1025P WF 10X, FOV-25mm, Pointer/cross hair, Multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable
      RMM7NXEP1025CM WF 10X, FOV-25mm, cross hair, micrometer (10/100mm) multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable
      RMM7NXEP1515 Paired, WF 15X, FOV-15mm, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable
      RMM7NXEP2010 Paired, WF 20X, FOV-10mm, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable
      RMM7NXEP-C Customized eyepiece of 5X/10x/12x/15x/16x/20x with different types of reticles / graticules
      RMM7NXEP-1023 Paired, high eye point WF 10X, FOV-23mm, multilayered coated, High quality, good contrast, abrasion free, diopter adjustment on both eyepiece (±5mm) with eyecups/Eyeguard pair.
      RMM7NXECUP Eyecups (pair)
  • Mechanical Stage
    • Mechanical Stage RMM7NXMS-1 Rectangular right hand control, horizontal, hard ceramic coating, double slide holder, X-Y movement - 50mm x 50mm with stage plate diameter 12, 25
      RMM7NXMS-2 Rectangular ceramic coated three-layer mechanical mobile platform, Stage size: 200X200mm, X/Y Moving range/stroke: 50X50mm, center plate hole diameter: 110mm, flexible right handle, load capacity upto 5kg, wire driven and common axis knob at bottom adjustable tension, small work benches of different sizes can be installed on the top platform according to requirements, stage mirror to prevent objective to collide with the sample.
      RMM7NXMS-C Rectangular right/left hand control, horizontal, hard ceramic coating, double slide holder, stage size - customized as per requirement, X-Y movement - customized as per requirement
      RMM7NXMS-RK Rackless, Rectangular right/left hand control, horizontal, hard ceramic coating, double slide holder, stage size - customized as per requirement, X-Y movement - customized as per requirement
      RMM7NXMS-M Motorized scanning stage with software controlled (PCI or USB) with joystick, Rectangular right/left hand control, horizontal, scratch resistant hard ceramic coated anodized surface, double slide holder, X-Y movement/travel: 130X85mm, speed 100mm/s, resolution:0.1 μm, reproducibility: +/- 1 μm, Accuracy: +/- 5 μm. Mounting frame for reflected light, d=72 mm, with height adjustable spring clip, specimen size upto 68 x 48 mm, frame size 160 x 110 mm. Stage metal inserts: d=10 mm, d=20 mm, d=23 mm, d=drop shape aperture (length/width): 20 mm/10 mm
      RMM7NXMS-MOT Rectangular right/left hand control, horizontal, hard ceramic coating, double slide holder, X-Y movement motorized, stage size - customized as per requirement, X-Y movement - customized as per requirement with controller (PCI or USB)
      RMM7NXMS-MOT1 Rectangular right/left hand control, horizontal, hard ceramic coating, double slide holder, X-Y movement motorized, stage size-customized as per requirement, X-Y movement -130X85mm with controller (PCI or USB)
  • Objectives
    • Objectives RMM7NXPL02iM 2X, N.A. 0.06, W.D. 7.50mm, plan achromatic, infinite, parfocal & pre-centered, unbreakable container for storage
      RMM7NXPL05 5X, N.A 0.15, W.D 12mm, plan achromatic, infinite
      RMM7NXPL10 10X, N.A 0.25, W.D 6.7mm, plan achromatic, infinite
      RMM7NXPL20 20X, N.A 0.45, W.D 2.1mm, plan achromatic, infinite
      RMM7NXPL60iM 60X, N.A. 0.80, W.D. 0.30mm, plan achromatic, infinite, parfocal & pre-centered, oil immersed, spring loaded, unbreakable container for storage
      RMM7NXPL63iM 63X, N.A. 0.84, W.D. 0.28mm, plan achromatic, infinite, parfocal & pre-centered, oil immersed, spring loaded, unbreakable container for storage
      RMM7NX100iM 100X, N.A. 1.25, W.D. 0.18, plan achromatic,  oil immersed, infinite, spring loaded, unbreakable container for storage
      RMM7NXP-100iDF 100X, N.A. 1.25, W.D. 0.18mm, plan achromatic, infinite, oil immersed, spring loaded, darkfield, unbreakable container for storage
      Plan SAPO Objectives RMM7NX05ic LWD, 5X/0.10 BD/FD N.A 0.10, W.D 12mm, plan SAPO, infinite
        RMM7NX10ic LWD, 10X/0.25 BD/FD N.A 0.25, W.D 6.5mm, plan SAPO, infinite
        RMM7NX20ic LWD, 20X/0.40 BD/FD N.A 0.40, W.D 1.3mm, plan SAPO, infinite
        RMM7NX50 50X, N.A. 0.9, W.D. 1mm, plan SAPO infinite, spring loaded, oil
        RMM7NX50ic LWD, 50X/.75 BD/FD N.A 0.75, W.D 0.38mm, plan SAPO, infinite
        RMM7NX100 100X, N.A. 1.25, W.D 1mm, plan SAPO infinite, spring loaded, oil immersed
        RMM7NX100ic LWD, 100X/0.90 BD/FD N.A 0.90, W.D 0.21mm, plan SAPO, infinite
      SEMI APO/Flotar/Fluor objectives RMM7NXP-SAPO04i 4X, N.A. 0.13, W.D. 17.1mm, SAPO, infinite, unbreakable container for storage
      RMM7NXP-SAPO10i 10X, N.A. 0.3, W.D. 16mm, SAPO, infinite, unbreakable container for storage
      RMM7NXP-SAPO20i 20X, N.A. 0.5, W.D. 2.1mm, SAPO, infinite, unbreakable container for storage
      RMM7NXP-SAPO40i 40X, N.A. 0.75, W.D. 0.72mm, SAPO, infinite, spring loaded, unbreakable container for storage
      RMM7NXP-SAPO60i 60X, N.A. 0.80, W.D. 0.3mm, SAPO, infinite, oil immersed, spring loaded, unbreakable container for storage
      RMM7NXP-SAPO63i 63X, N.A. 0.85, W.D. 0.28mm, SAPO, infinite, oil immersed, spring loaded, unbreakable container for storage
      RMM7NXP-SAPO100i 100X, N.A. 1.3, W.D. 0.20mm, SAPO, infinite, oil immersed, spring loaded, unbreakable container for storage.
      Apochromatic objectives RIAPAO-50 LWD, 50X BD/FD N.A 0.95, W.D 1mm, plan APO, infinite, parfocal & pre-centered
      RIAPAO-100 LWD, 100X BD/FD N.A 0.95, W.D 1mm, plan APO, infinite, parfocal & pre-centered, spring loaded, Dry
          Please click for More Objectives...
  • Focusing
    • Focusing RXF10 Co-axial, coarse & fine (two stage) tension control, upper limit stopper, focus stroke 12mm, torque adjustment ring, high sensitivity focus drive with 0.10 mm per revaluation, fine adjustment 1µm/Div.
      RXF10i Co-axial, coarse & fine (two stage) tension control, upper limit stopper, focus stroke 22mm, torque adjustment ring, high sensitivity focus drive with 0.10mm per revaluation, fine adjustment 1μm/Div.
      RXF103 Manual 3 step focus system, Coaxial coarse and fine focusing adjustment mechanism, travel range 12mm, torque adjustment ring, high sensitivity focus drive with 0.10 mm per revaluation, fine adjustment 1µm/Div.
      RXF Coaxial coarse and fine movement lifting mechanism, moving stroke 9mm (up 2mm, down 7mm), coarse adjustment stroke 2mm/per circle, fine adjustment stroke 0.2mm/per circle
      RMXF1.0-MOT Motorized Focusing through stepper motor, least count 10nm, precision controlled, flat, ergonomic control knob right side of body, external controller through PCI or USB
  • Power supply
    • Power supply RTF620 6V-20W Transformer based, wide voltage range, 90V-240V, 50/60Hz,
        RTF630 6V-30W Transformer based, wide voltage range, 90V-240V, 50/60Hz,
        RSMPS630 SMPS based, wide voltage range, 90V-240V, 50/60Hz
        RPSLED LED power supply, wide voltage range, 90V-240V, 50/60Hz
  • Micrometer/Calibration slide
    • Micrometer/Calibration slide RCS10 Micrometer slide for calibration, 1mm with 10µm least count
        RCS100 Micrometer slide for calibration, 10mm with 100µm least count
  • C-mount
    • C-mount RCMT50X 0.5X Camera Adaptor/Tube/Mount
        RCMT65X 0.65X Camera Adaptor/Tube/Mount
        RCMT70X 0.7X Camera Adaptor/Tube/Mount
        RCMT01X 1X Camera Adaptor/Tube/Mount
  • Packing
    • Packing RWBX Wooden box with separate container for accessories, lock & key, carrying handle
      RSTYRO standard Styrofoam packing

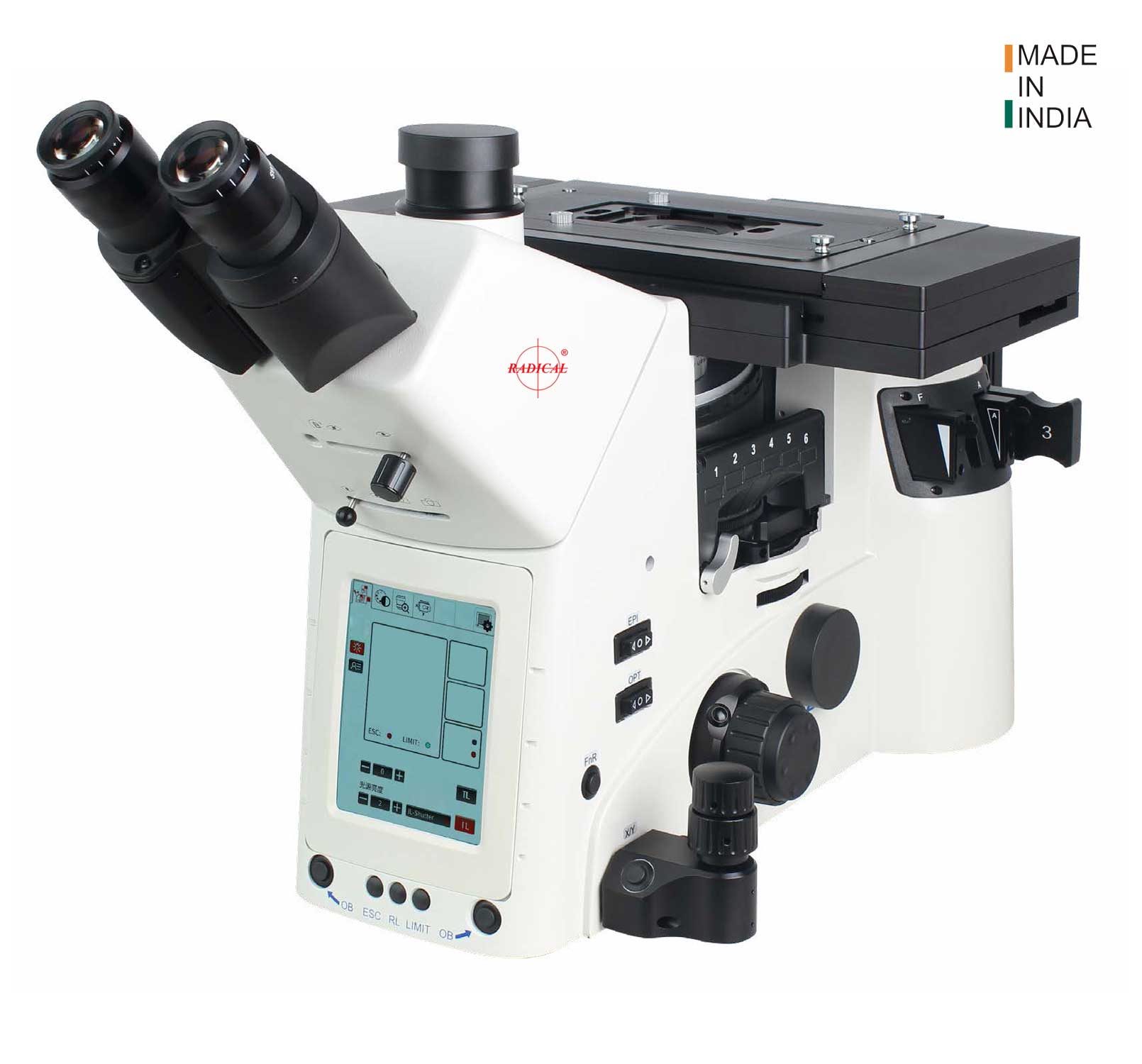

Body RMM7NXMB-M Rugged and sturdy fully motorized Inverted metallurgical microscope stand, Turntable port switching Horizontal modular designed for easy handling of control knobs frame equipped with C-mount Camera attachment to provide images on camera monitor & eyepiece observation, turntable port switching (left port/right port/eyepiece observation), split ratio: left/eyepiece=100/0; right/eyepiece =50/50; eyepiece =0/100, motorized focus drive, motorized nosepiece, TFT touchscreen to control motorized components like objective changeover, illumination control, reflector modules changeover without requiring PC, In-built light manager (LIM) function
Magnification Range 50X-1000X
Magnification changer Through the intermediate switching dial, the fast switching between 1x and 2x can be realized
DICKIT DIC kit with DIC Prism for 5x, 10x, 20x, 50x & 100x, polarizer/analyzer & DIC annuals

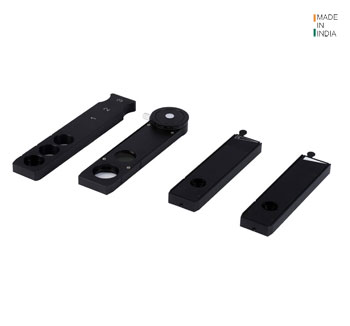

Slider RMM7NXSLDF Darkfield slider
Reflected Turret RMM3L-RT Motorized 6 position reflector turret for push & click reflector modules, exchangeable without removal of turret.

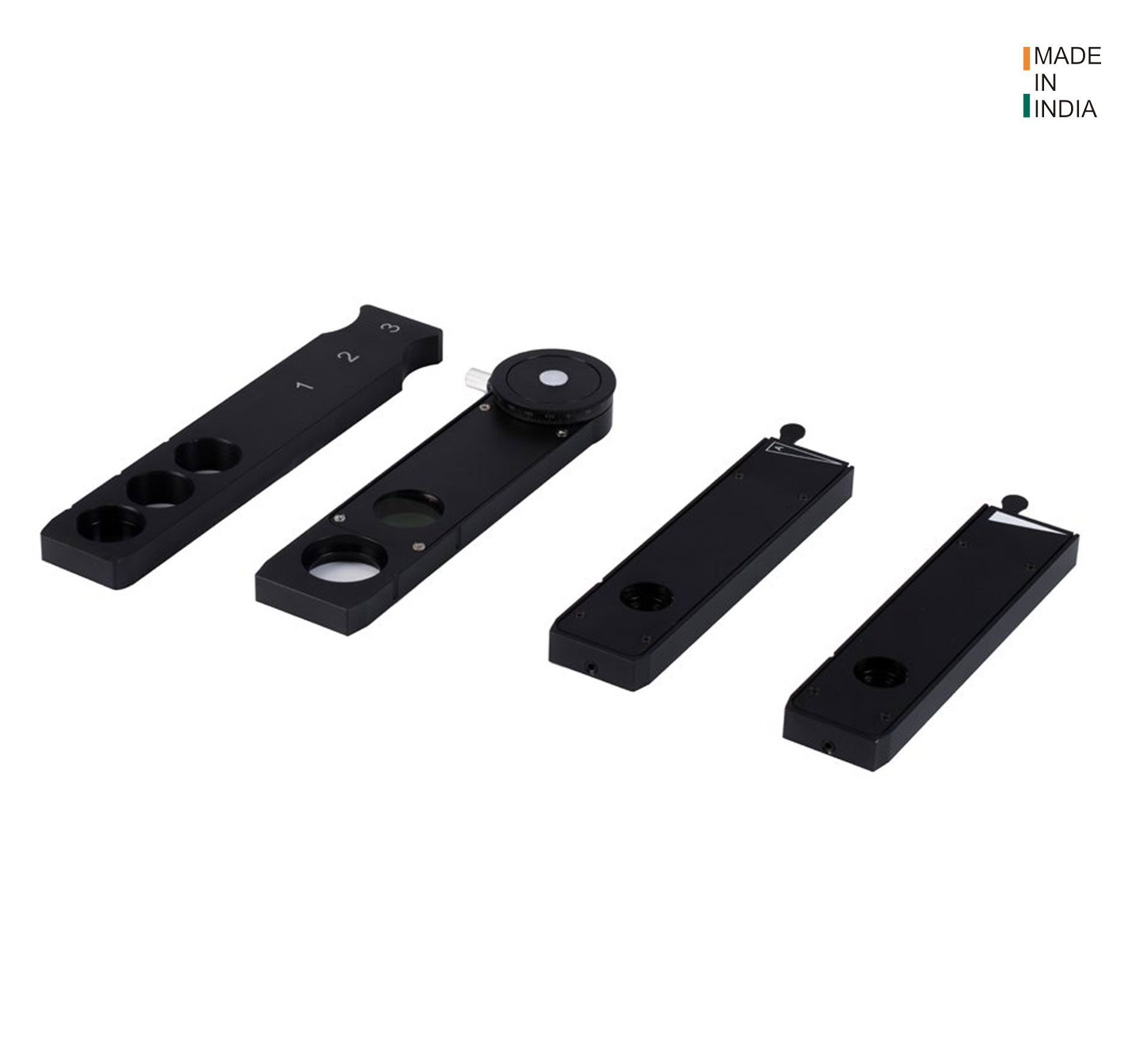

Analyzer/Polarizer RMM7NXSLANA Set of analyzer and polarizer, 360° rotatable
Filters  RGF Green plane or frosted
Cleaning Kit RCLEAN Anti static cleaning brush, Cleaning tissue paper, Lens cleaning solution
Accessories Manually Adjustable Field Diaphragm for reflected light Filter Magazine for 2 Filters (Manual operation) Acrylic enclosure for dust free and safe environment
Eyepiece with ASTM Graticule for Grain size measurement suitable cables, controls & connections.

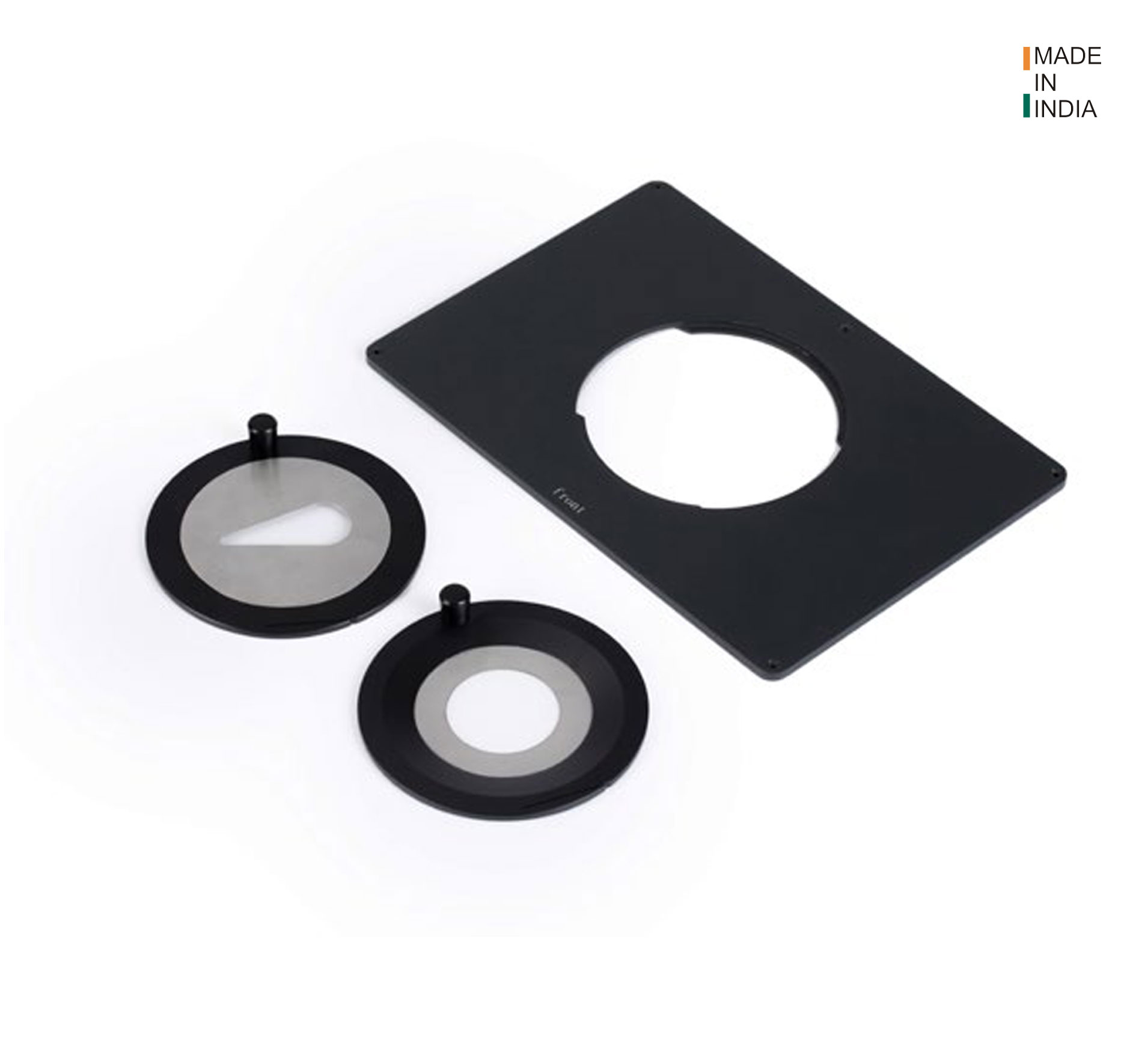

Stage Insert Plates   5mm Dia (Round/tear drop)
10mm Dia (Round/tear drop)
Oval Shape stage insert plate or 20mm dia stage insert plate

As we are continuously improving & developing our products, this websites may not be updated with advancements done. However, we try our best to update the website for latest information's
For complete updated specifications, please do ask for latest brochures
