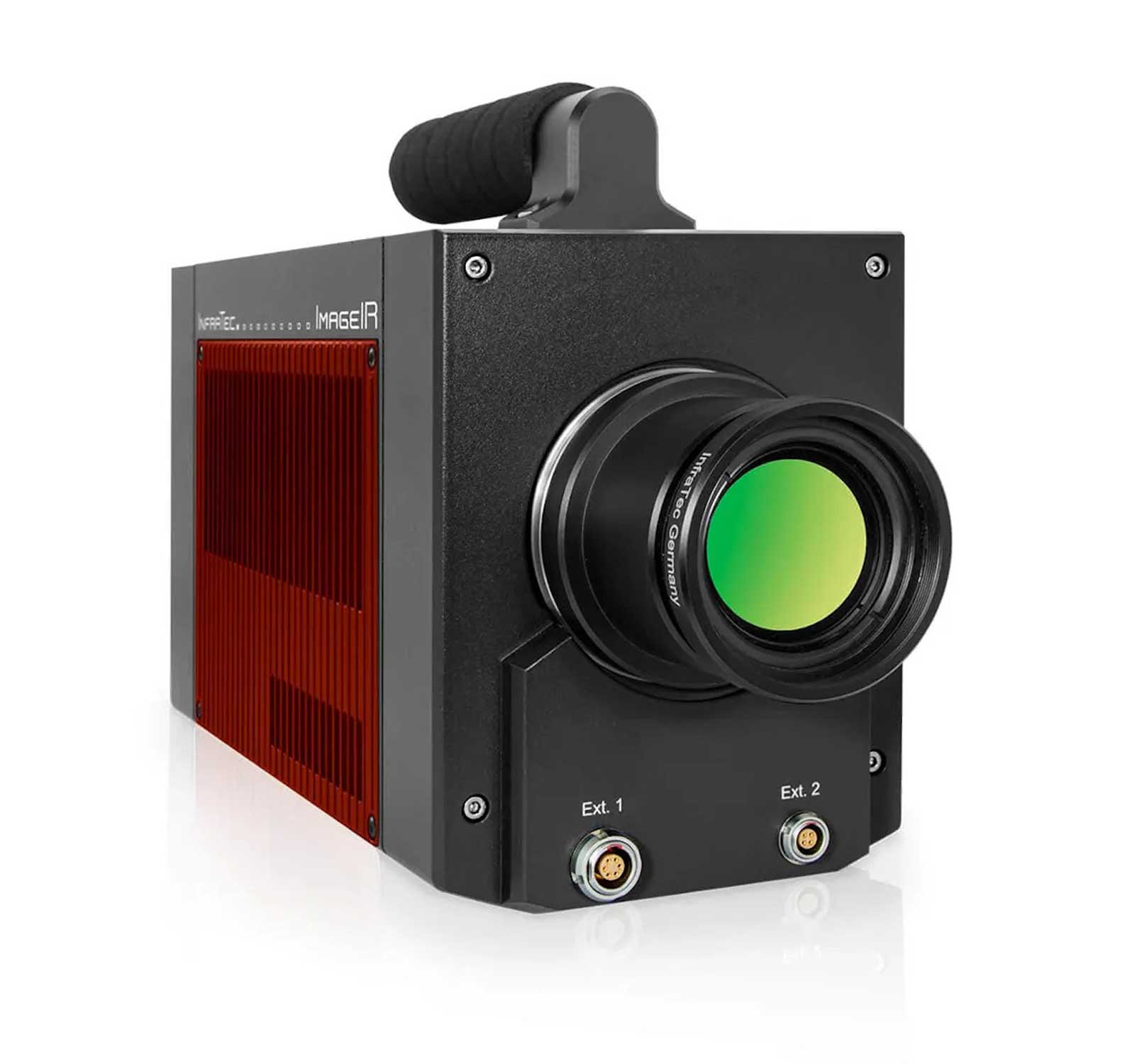

ImageIR® 9400 Series
High-end Thermographic Camera with HD Image Quality
The benefits of the ImageIR® 9400 infrared camera are clearly based on its versatility. Especially users looking for a cooled camera with a high geometrical resolution will find an excellent solution with this model.
 |
Detector Format
Efficient measurement of smallest structures on large-scale objects |
 |
MicroScan
(2.560 × 2.048) IR pixels by genuine camera hardware |
 |
10 GigE Interface
Transmission and storage of large amounts of measurement data on a computer in very short time |
 |
Internal Trigger Interface
Camera control and output of control signals for external devices |
 |
Integration Time
Analysis of fast processes at an ideal NETD |
| Spectral range | (2.0 ... 5.7) µm |
|---|---|
| Pitch | 15 µm |
| Detector | InSb |
| Detector Format | (1,280 x 1,024) |
| Image format with opto-mechanical MicroScan (IR pixels) | (2,560 × 2,048) |
| Readout mode | ITR / IWR |
| Aperture ratio | f/2.0 or f/4.6 |
| Detector cooling | Stirling cooler |
| Temperature measuring range | (-40 ... 1,500) °C (up to 2,000 °C)* |
| Measurement accuracy | ± 1 °C or ± 1 % |
| Temperature resolution @ 30 °C | 0.025 K |
| Frame rate | Up to 106 / 200 / 390 / 3,200 Hz |
| Window mode | Yes |
| Focus | Manually, motorised or automatically* |
| Dynamic range | Up to 16 bit |
| Integration time | (0.5 … 18,000) µs |
| Rotating filter wheel* | Up to 5 positions |
| Rotating aperture wheel* | Up to 5 positions |
| Interfaces | GigE | 10 GigE* | 2× CAMLink* | HDMI* |
| Trigger | 2 IN / 2 OUT, TTL |
| Analog signals*, IRIG-B* | 1 IN / 2 OUT, yes |
| Tripod adapter | 1/4" and 3/8" photo thread, 2 x M5 |
| Power supply | 24 V DC, wide-range power supply (100 ... 240) V AC |
| Storage temperature | (-40 ... 70) °C |
| Operation temperature | (-20 ... 50) °C |
| Protection degree | IP54, IEC 60529 |
| Impact strength/vibration resistance in operation | 2 G, IEC 68-2-29/26 |
| Dimensions/Weight | (235 × 120 × 160) mm; 4.0 kg (without lens) |
| Further functions | High-speed mode*, Multi Integration Time* |
| Analysis and evaluation software* | IRBIS® 3, IRBIS® 3 view, IRBIS® 3 plus*, IRBIS® 3 professional*, IRBIS® 3 control*, IRBIS® 3 online*, IRBIS® 3 process*, IRBIS® 3 active*, IRBIS® 3 mosaic*, IRBIS® 3 vision* |
