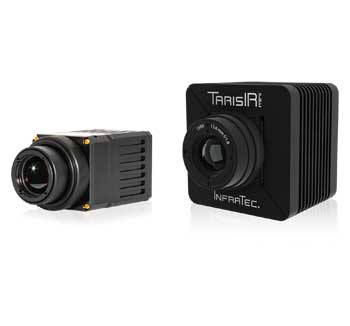

Designed for universal use, the compact camera TarisIR® mini with the corresponding IRBIS® software from InfraTec enables entry-level access to stationary thermography at an excellent price-performance ratio. The radiometrically calibrated infrared camera is based on an uncooled microbolometer FPA detector of the latest generation with (640 × 480) IR pixels and a pixel pitch of only 12 μm. In combination with the high thermal resolution of 20 mK, the camera provides unprecedented image quality in this camera segment with exceptionally sharp detail.
The TarisIR® mini is designed for uncompromising continuous operation. It provides reliable thermographic real-time image data that can be operated in any position with a full-frame rate of up to 50 Hz. The camera measures in the long-wave atmospheric window of (8 … 14) μm, making it well suited for monitoring applications in outdoor areas. Algorithms specially developed for this detector technology in combination with a very comprehensive and sophisticated calibration process ensure precise results with a measurement accuracy of 2%, even under difficult measurement conditions.

	Detector Format Uncooled microbolometer FPA detector; 12 μm pitch
	IR-Frame Rate Analysis of extreme temperature changes and gradients in full frame
	Measurement Accuracy Highly accurate and repeatable measurements
	Thermal Resolution Precise detection of smallest temperature differences
	GigE Interface For loss-free real-time data transmission and analysis
	Rugged Light Metal Housing Easy and economical installation
