Optical Microscopes Educational Microscopes RSM-4 Series

Student Laboratory Microscope

RSM-4

RSM-4 series stereo microscopes are manufactured with extra wide field eyepiece and long working Distance objective, making it suitable for medical and material science application. With multiple Illumination and stand option these are configurable for any laboratory task.

BRIGHTFIELD

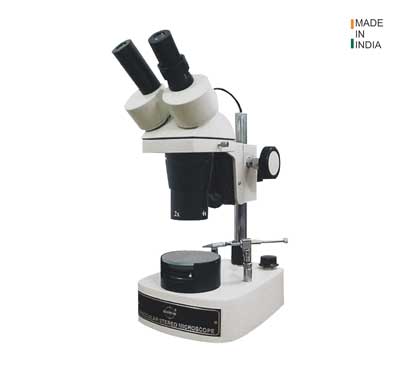

DARKFIELD
Optical system Greenough system
Illumination LED/Halogen
Viewing Head Binocular/Trinocular
Eyepiece Extra wide field
Stage Large stage with handrest
Objectives Long working distance
Highest magnification 160x
Stand Two step focusing, universal, customized
Certification EU CE, ISI, ISO, TUV
Part Name Part Code Description

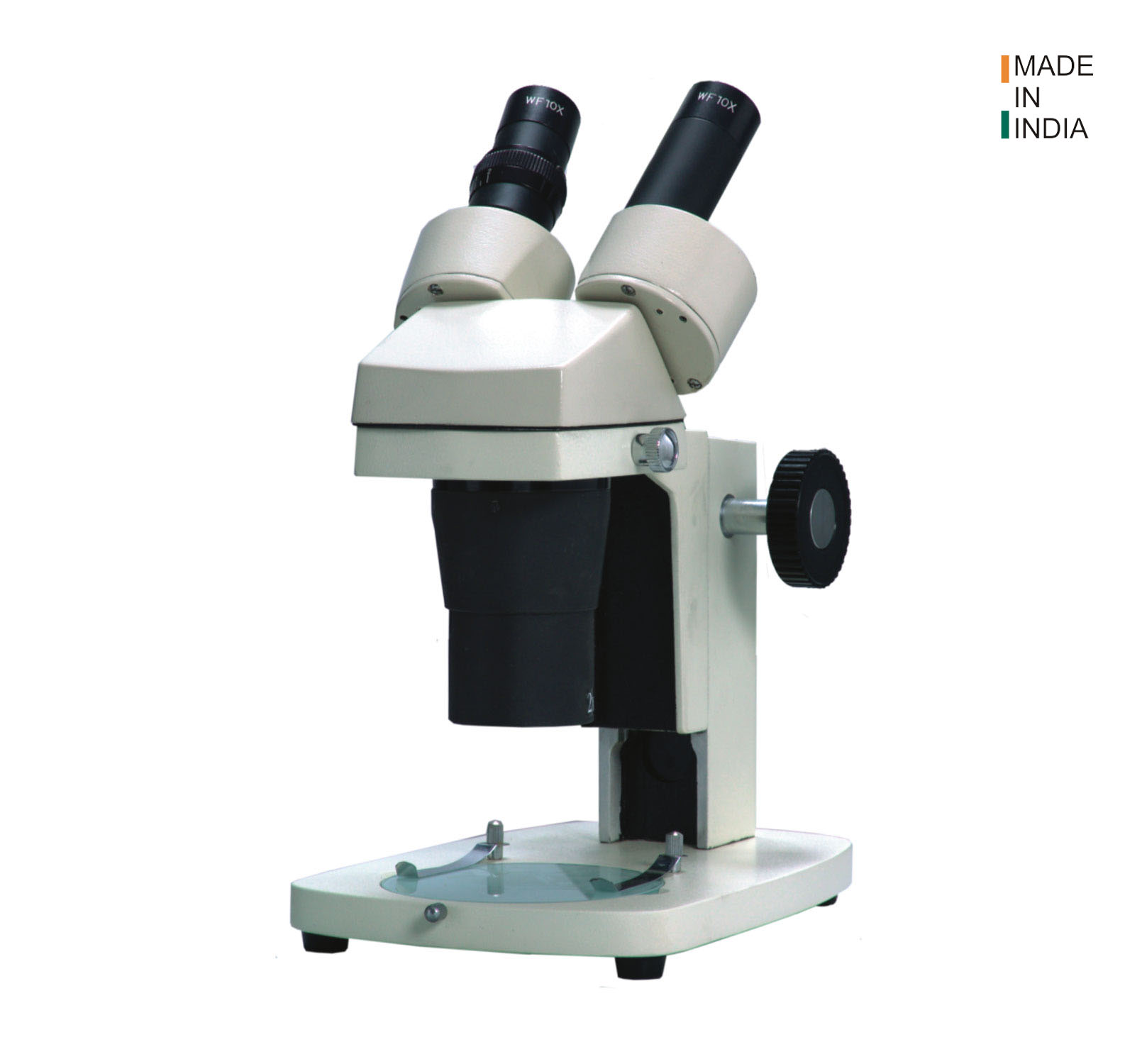

Body RSM4MB Plain focusing stand, rugged, ergonomic design, touch point treated, anti mould, anti electrostatic, acid resistant texture painted, rubber feet & stage clips.
Optical System RSM4GOS Greenough optical system
Total Magnifications RSM4TX 10x to 160x (using different combinations of Eyepeice, zoom lens & aux. objectives)
Standard Zoom Lens RSM4ZL 2X & 4X (rotatable), working distance 100mm
Eyepeices RSM41018 Paired, WF 10X, FOV-18mm, multilayered coated, high quality, good contrast, abrasion free, aplantic, lockable
Head RSM4H45 Binocular head, siedentopf, 45° inclined, rotatable 360°, IPD 48-75mm
Focusing  RSM4PFOC Plain focusing, lifting upto 50mm
Illumination RSM4HAL Halogen (transmitted and reflected), separate intensity controller & ON/OFF switch
Accessories RCC Cleaning cloth
  RVC vinyl cover
  MANUAL Instruction manual
  WARRANTY Warranty card
  RPC Power Cord (If any - country Specific)
  • Body/Stand
    • Part Name Part Code Description

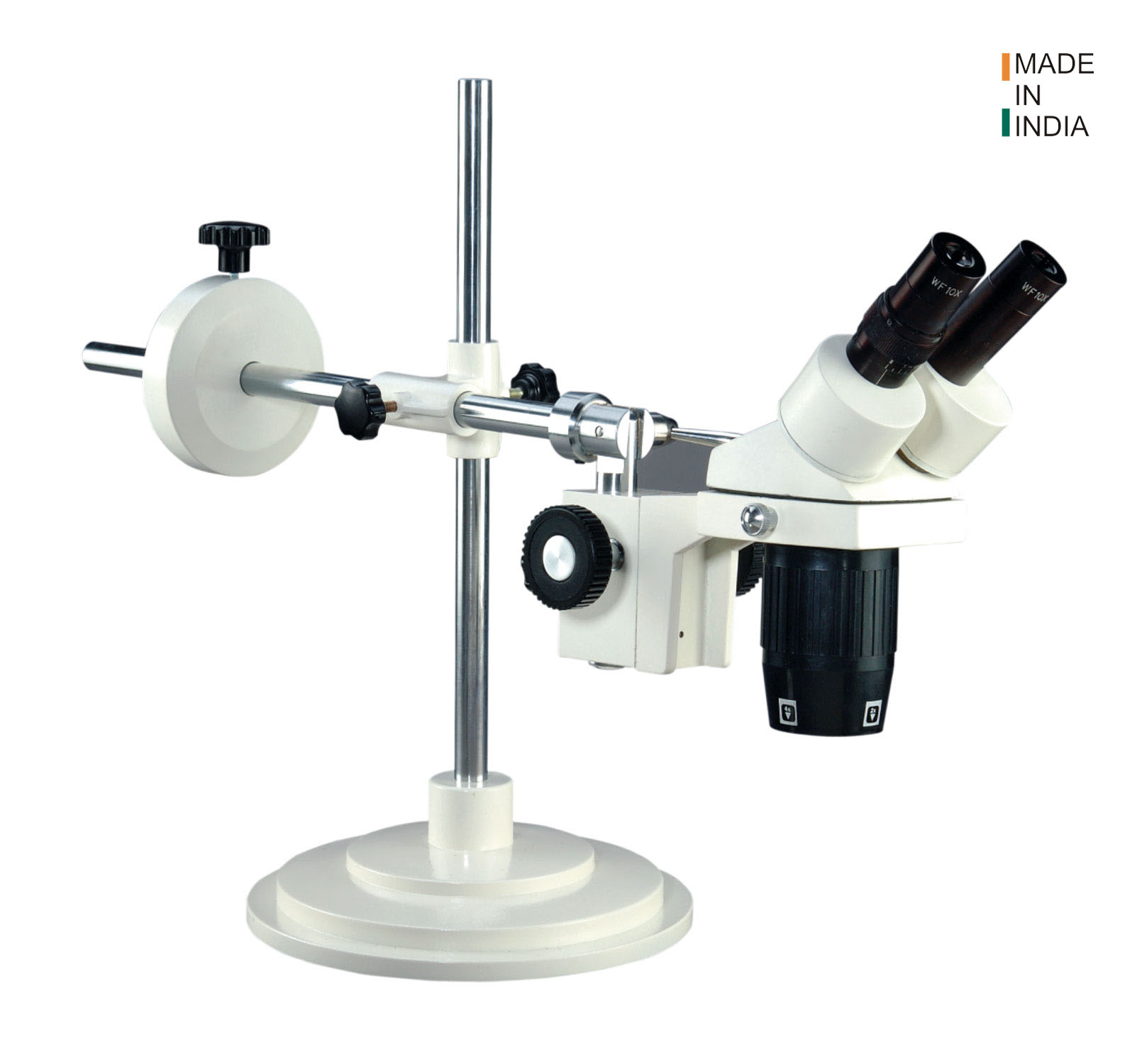

      Body/Stand RSM4UNV Universal bracket arm, height, angle position adjustable, vertical high 350mm, diameter 35mm, horizontal movement 400mm, no transmitted light
        RSM4COF Column flat base, black & white sheet dia 95mm, column height 240mm, dia32mm, no transmitted light

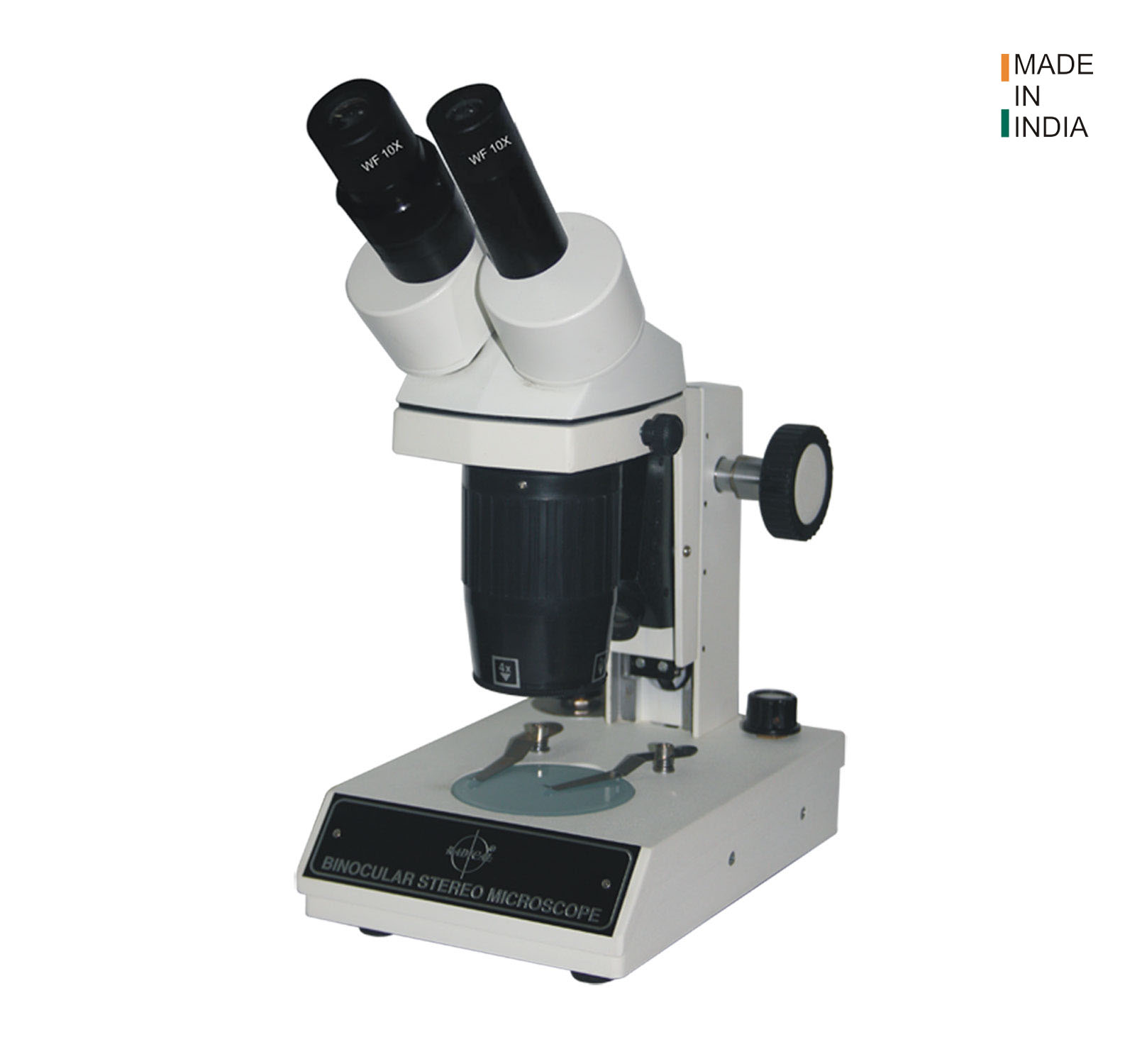

        RSM4BLIT Base with table, 95mm glass, black & white plate, transmitted light 12V-15W halogen, 7W fluorescent optional, intensity controller, column height 240mm, dia 32mm, base 20mm x 255mm, 40mm

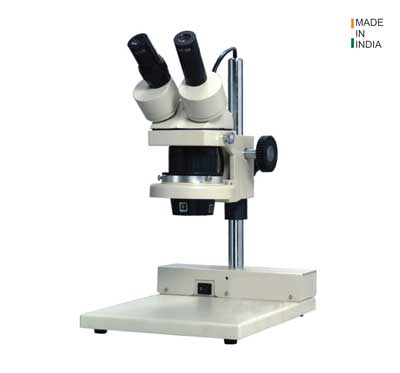

        RSM4LRFLT Large flat base, column height 240mm, dia 32mm, base size 380x260x20mm, no transmitted light
        RSM4FLTB Flat base, black & white plate 95mm, arm height 300mm, focusing knob 100mm
        RSM4LEDGSNK Flat base, black & white plate 95mm, arm height 250mm, Dual LED (3W) lighting gooseneck inbuilt into stand
        RSM4LEDRLTL Transmitted & reflected LED, intensity controller, column height 240mm,
        RSM4BFLAT Plain, flat base with coloum, no transmitted light
  • Eyepiece
    • Eyepiece RSM4EP1020 Paired, WF 10X, FOV-20mm, multilayered coated, high quality, good contrast, abrasion free, aplantic, lockable
        RSM4EP1515 Paired, WF 15X, FOV-15mm, multilayered coated, high quality, good contrast, abrasion free, aplantic, lockable
        RSM4EP2010 Paired, WF 20X, FOV-10mm, multilayered coated, high quality, good contrast, abrasion free, aplantic, lockable
  • Auxillary Objectives
    • Auxillary Objectives RSM4AUX0.5 0.5X / 165mm
        RSM4AUX1.5 1.5X/45mm
        RSM4AUX2.0 2X/30mm
  • Head
    • Head RSM4H1X2X 1X/2X zoom combination
        RSM4H1X3X 1X/3X zoom combination
  • Illumination
    • Illumination RSM4RLTLLED Epi-illumination, incident & transmitted LED, intensity/brightness control
        RSM4RLGSK Fibre optic light source with single or double flexible light pipes
        RSM4RLTL100 Co-axial illuminator 12V-100W Halogen
        RSM4RLFL Circular fluorescent illuminator
        RSM4FLR 60 LED, intensity adjustable, color temperature 6400K, 24V6W
        RSM4LEDR 56 LED, Ring Light, color temperature 6400K, 24V6W
        RSM4HAL15W Halogen bulb with reflector, 12V15W
        RSM4BB Battery backup from 2-12 hours for LED (internal/external)
  • Packing
    • Packing RWBX Wooden box with separate container for accessories, lock & key, carrying handle
        RSTYRO Standard Styrofoam packing
Micrometer slide RCS100 Micrometer slide for calibration, 10mm with 100µm least count
Mechanical stage RSM4STAGE Stage, X-Y movement, ball guide, 180X155X26mm, travel 35X30mm, size 185X140mm
Cleaning Kit RCLEAN Anti static cleaning brush, cleaning tissue paper, lens cleaning solution

As we are continuously improving & developing our products, this websites may not be updated with advancements done. However, we try our best to update the website for latest information's
For complete updated specifications, please do ask for latest brochures
