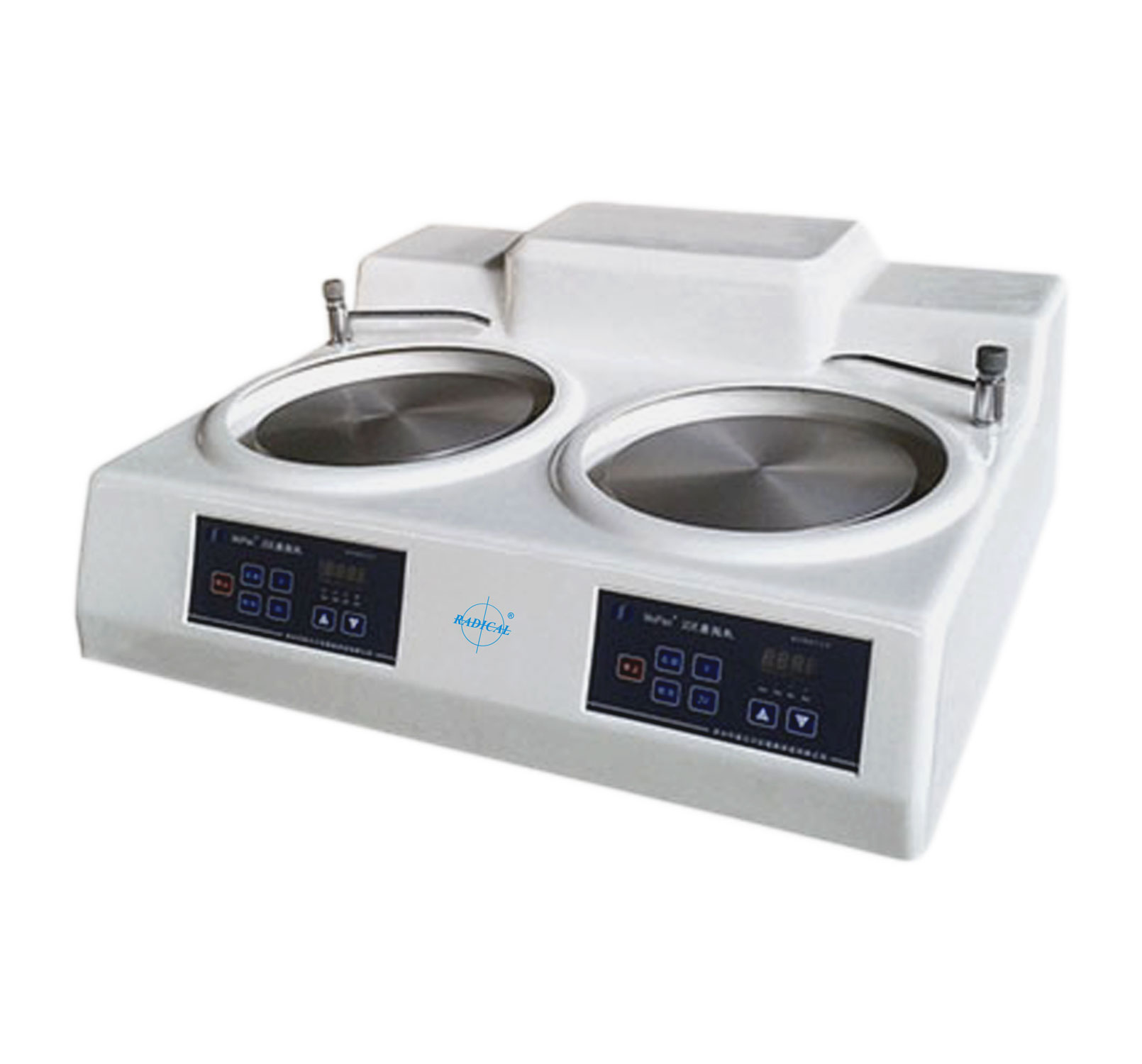

The polishing machine is a double-desktop, applicable to rough grinding, accurate grinding and polishing of metallographic sample. The machine has microprocessor control system, with stepless speed of 50-600rpm. The machine has two control system, so it can be operated by two person meanwhile. The machine has a cooling device to cool the sample during grinding and polishing, thus preventing the damage of the metallographic structure caused by overheat of the sample. The machine, easy to use, safe and reliable, is an ideal preparation equipment for the labs of plants, research institutes and universities and colleges etc. The machine, easy to use, safe and reliable, is an ideal preparation equipment for the labs of plants, research institutes and universities and colleges etc.
Diameter of polishing disc | φ203mm |
---|---|
Rotating speed of working disk | 50-600rpm (stepless speed changing) |
Working voltage AC | 220V 50HZ |
Motor | 250W |
Dimension | 690×735×310mm |
Weight | 55kg appx |
As we are continuously improving & developing our products, this websites may not be updated with advancements done. However, we try our best to update the website for latest information's
For complete updated specifications, please do ask for latest brochures
