Optical Microscopes Medical Research Microscopes RTC-7NXF Series RTC-7NXF

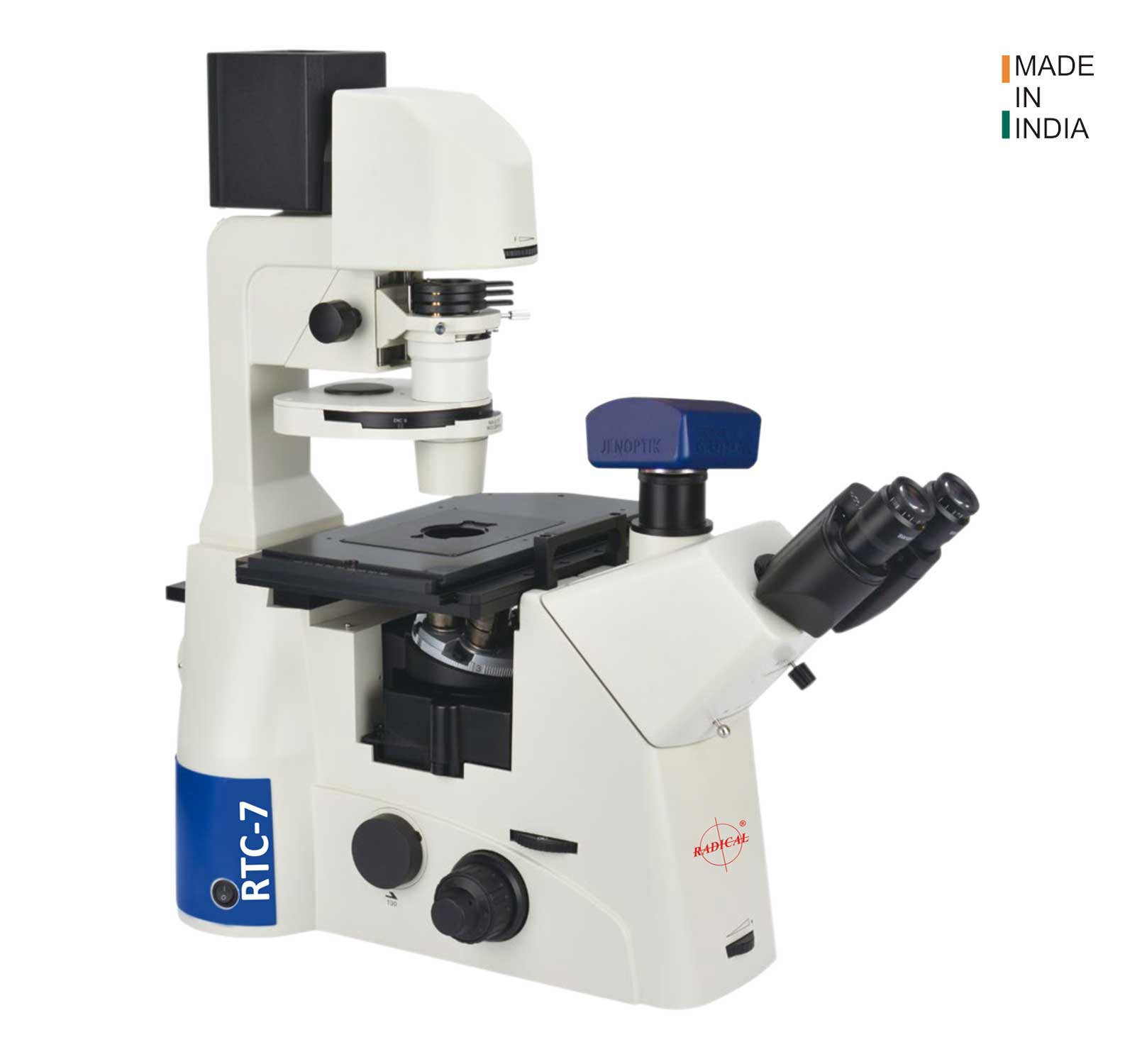

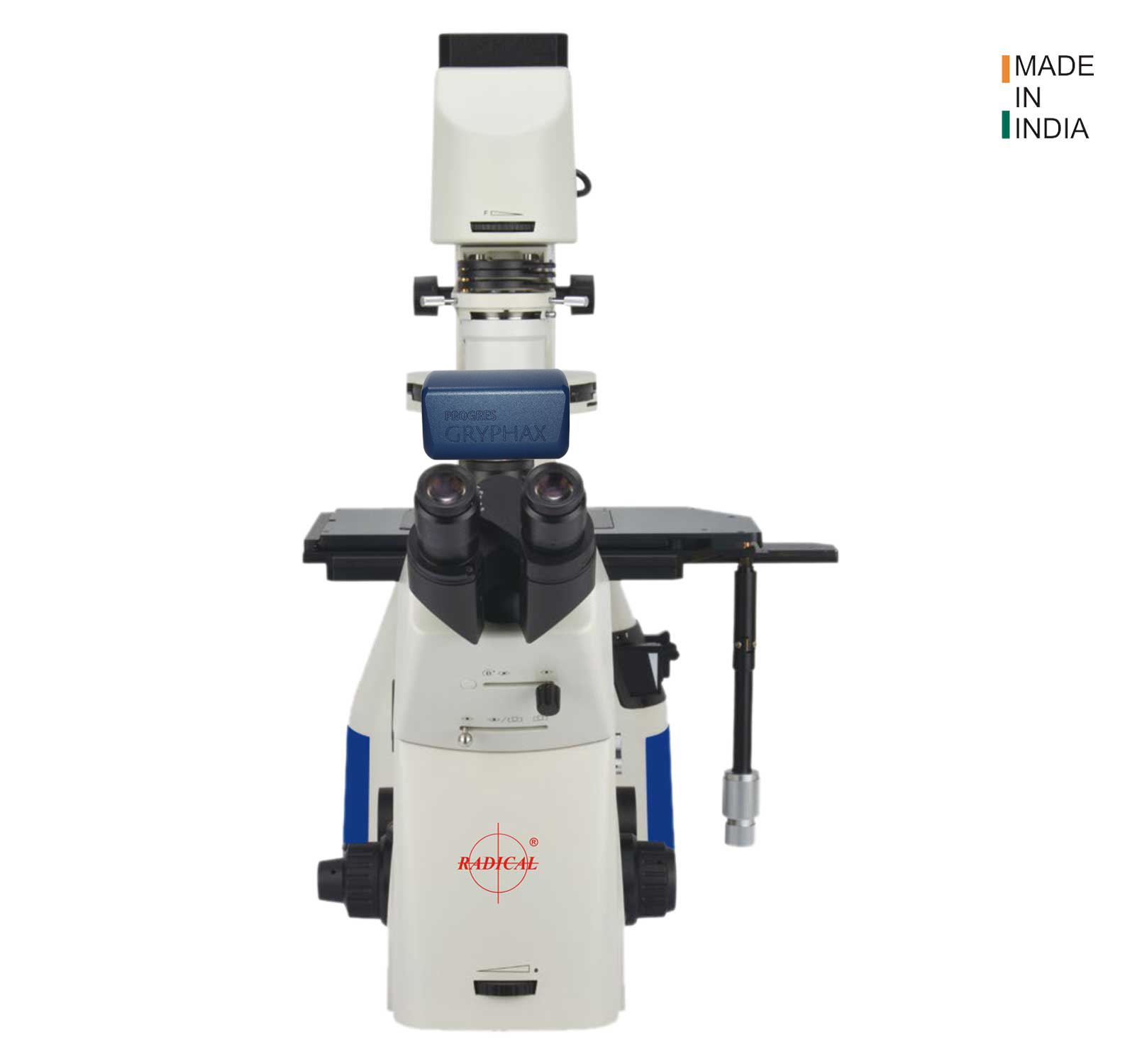

Advanced Research Inverted Tissue Culture Microscope

RTC-7 NXF

RTC-7NXF having NIS60 optical system features Retroverted illumination, coded nosepiece, turret phase, turret fluorescence, median lens, camera adaptor on both sides, etc is latest offering from the House of RADICAL is suitable for broad range of observation methods. In addition to conventional contrast, microscope is versatile in observation methods, including fluorescence, Phase Contrast, DIC, and Hoffman Modulation Contrast.

BRIGHTFIELD
FLUORESCENCE
PHASE CONTRAST
Body Rugged, ergonomic design, touch point treated
Optical system NIS 60 universal infinite optical system (IOS), Color corrected (CCIS), anti-fungal, anti-bacterial coated (multi-layered hard coated)
Illumination Halogen/LED, intensity adjustable, battery backup, auto cut-off
Viewing Head Ergonomic siedentopf Binocular/Trinocular head, built in bertrand lens
Camera Port Both side
Mechanical Stage 3 layers mechanical stage with flexible knob
Objectives LWD infinity Flotar/SAPO/APO objectives
Condenser Flexible long working distance turret condenser
Nosepiece Sextuple nosepiece having built in DIC slot with ball-bearing, rubber/metal grip & click stop
Eyepiece Extra wide field, high point with diopter adjustment
Focusing Feather touch ultra-precise coaxial (low position), both sides, coarse & fine with tension control & upper limit stopper
Median Lens Multiple Magnification(user choice)
Fluorescence Attachment Turret filter structure with high function filter
Power Supply 90V-240V/50Hz AC (SMPS)
Microscopy Techniques Brightfield, fluorescence, phase contrast, Hoffman phase, 3D emboss contrast, DIC
Certification EU CE, ISI, ISO, TUV
Part Name Part Code Description
Body RT7NX9-MB Rugged, metallic, high static rigidity, waterproof construction, ergonomic modular design, compact, multiple camera ports, touch point treated, (rigid and vibration-free) acid resistant texture painted, intensity controller & on/off switch, RL/TL switch, Eco mode*, rubber feet, slot for ana/pol, transmitted diffusion/filters LBD/NCB11/ND2 /ND6/ND16/ND25, filter holder, collector, scattering filter, automatic re-adjustable illumination intensity etc, inbuilt diaphragm for different contrast methods. In-built power unit for halogen/led, mounted microscopy stand with provision to attach camera in left side/right side/top port
Optical System RT7NX9iOS Universal infinity corrected optical system, fly eye lenses, colour corrected, anti-fungal, anti-bacterial coated (multi-layered hard coated), colour coded objectives, parcentered, suitable for bright field, phase/fluorescence/DIC/Emboss/Plastic DIC/Hoffman, anti-reflection coated, contrast/varel contrast inversion contrast, IMC, DF, ICR, POL, UC-3D imaging with glass and plastic dishes etc.
Illumination RT7NX9L5WL3 5W LED cool illumination Life 30,000 hrs, with 4500K (white) constant colour temperature, equivalent to 100W halogen, suitable for bright field, phase, DF, POL, IMC, Hoffman, DIC/inversion contrast, emboss etc. flexible/retroverted ensuring large space, transmitted/epi-fluorescent control knobs located on right side of body-easy to operate, fly eye lens technology, uniform brightness to entire FOV, flexible with retroverted (tiltable light axis), field diaphragm buttons for transmitted and reflected easy switch with 2 position filter sliders, condenser holder, adjustable field iris diaphragm and TTL shutter.
Fluorescence Attachment RT7NX9FL6100 100W Mercury fluorescence lamp house, 6-8 position Attachment removable turret structure with high position filter including 1 for brightfield, centre adjustable filed diaphragm and 3 holes filter slot for reflected illumination, with standard BG & UV filter, easy to change (push & click), with Fluorescence protection shield, other filters on demand
Viewing Head RT7NX9B45 Binocular inclined at 45°, siedentopf head, rotatable through 360°, IPD - from 47-78, built in Bertrand lens
Nosepiece RT7NX96N Inward tilted with positive click stop, Precis sextuple revolving on multiple ball bearing, inbuilt DIC slot
Eyepiece RT7NX9EP1022 Paired, high eye point WF 10X, FOV-22mm, Anti-fungus coated, Anti-dust construction, multilayered coated, high quality, good contrast, abrasion free, aplanatic, precentered, diopter adjustment on both eyepiece (±5mm) with Eyepiece guard, eye cups.
Mechanical Stage RT7NX94MS Rectangular, 3-layer, 3 point mounting, fixed size 215(X) × 250(Y)mm, attachable mechanical stage with travel:130(X) ×85(Y) mm, flexible right hand low drive control, with three level adjustable stroke, Ceramic coated, dual slide holder, accepts different types of micro-test plate, tissue culture bottles, glass slide holder & culture flask holder, universal holder for holding different types of plate’s petri dishes, cell culture plates, flasks specimen slides of all sizes (6, 12, 24, 96 well) smooth positioning system to enable cell tracking at high magnification. Universal holder for holding all types of plates, hemocytometer, Petri dish/plates, multi-well plates, glass slides, Terasaki plates, Microplates etc.
Objectives RT7NX9PL04i 4X, N.A. 0.13, W.D. 22mm, plan achromatic, infinity, long working distance, unbreakable container for storage
  RT7NX9PL10i 10X, N.A. 0.3, W.D. 7.94mm, plan, infinity, long working distance, unbreakable container for storage
  RT7NX9PL20i 20X, N.A. 0.45, W.D. 7.66mm, plan, infinity, long working distance, unbreakable container for storage
  RT7NX9PL40i 40X, N.A. 0.65, W.D. 3.71mm, plan, infinity, long working distance, unbreakable container for storage
Phase attachment RT7NX9PH4SL Phase annulus for 4X/10X/20X/40X, empty position for brightfield/DIC
Focusing RXF20 Co-axial knobs (both sides), coarse & fine, two position, Z-focus coarse range-9mm, coarse 0.2mm per rotation, fine precision 2µm, tension control, upper limit stopper, focus depath 10mm, total travel 25mm.
Condenser RT7NX9CON Long working distance turret front knob universal condenser N.A. 0.55, dismountable, tiltable upto working distance 27mm, Condenser holder with 88mm stroke, 6-positions for phase, DIC, Plas DIC, fluorescence & brightfield with adjustable diaphragm, front operation
Magnification Changer RT7NX9MAGCHG Magnifications 1X, 1.5X or 2X
Power Supply RSMPS620 SMPS based, wide voltage range, 90V-240V, 50/60Hz/80VA
Accessories RCC Cleaning cloth
  RVC Vinyl cover
  RAK Allen keys
  RF5A Fuses - 2 no's
  RT7NX9IM Instruction manual
  WARRANTY Warranty card
  RBF Blue Filter (frosted & plain)
  RPC Power Cord (country Specific)
  • Body
    • Body Port RT7NX9-MB4 Rugged, waterproof, ergonomic modular design, multiple camera ports 4 output position, four active ports-Trinocular head + 3 Camera Port available, touch point treated, (rigid and vibration-free) acid resistant texture painted, intensity controller & on/off switch, rubber feet, slot for ana/pol, transmitted diffusion/filters LBD/ND6/ND25, filter holder, collector, scattering filter, automatic re-adjustable illumination intensity etc, inbuilt diaphragm for different contrast methods. in-built power unit for halogen/led.
      RT7NX9-MD Rugged, waterproof, ergonomic modular design, double deck structure, multiple camera ports, touch point treated, (rigid and vibration-free) acid resistant texture painted, intensity controller & on/off switch, dia/epi switch, RL/TL switch, snap button on either side & Eco mode*, rubber feet, slot for ana/pol, transmitted diffusion/filters LBD/ND6/ND25, filter holder, collector, scattering filter, automatic re-adjustable illumination intensity etc, inbuilt diaphragm for different contrast methods. In-built power unit for halogen/led, mounted microscopy stand with provision to attach camera in left side/right side port, LCD display, showing status of objectives and filter cubes, magnification, timing sleep, brightness indication & lock, etc.
      RT7NX9-MK Rugged, metallic, high static rigidity, waterproof construction, ergonomic modular design, compact, multiple camera ports, touch point treated, (rigid and vibration-free) acid resistant texture painted, intensity controller & on/off switch, RL/TL switch, Eco mode*, rubber feet, slot for ana/pol, transmitted diffusion/filters LBD/NCB11/ND2/ND6/ND16/ND25, filter holder, collector, scattering filter, automatic re-adjustable illumination intensity etc, inbuilt diaphragm for different contrast methods. In-built power unit for halogen/led, mounted microscopy stand with provision to attach camera in left side/right side/top port. Buttons/knob on the left and right side for aperture diaphragm, field diaphragm, focus etc
  • Body Port
    • Body Port   Turntable port switching (left/right port/visual observation), split ratio: left/eyepiece= 100/0; right/visual=80/20; optional/visual=0/100
      Body Port/Camera Port RT7NX9CP Encoded Turntable side camera port switching (left/right port/visual observation), split ratio: 100:0/ 80:20/ 0:100
      Left Camera Port LCP Port for camera attachment, splitting ratio 0(EP):100(camera) and 100:0 with 20mm FOV for camera
      Right Camera Port RCP Port for camera attachment, splitting ratio 50(EP):50(camera)
  • Condenser
    • Condenser RABC-SW N.A. 0.3 dismountable W.D. 72/75mm with 3 position slide for PH10x/20, PH40, center able annulus/phase ring & centering telescope bracket can be remove from optical path to accommodate large flask (upto 190mm W.D), iris diaphragm & filter holder.
        RT7NX9CON03-72 Universal long working distance turret condenser N.A. 0.3, dismountable, working distance 75mm, 6-positions for BF, PH/PH1, PH2, DIC, plastic DIC, HMC. Varel contrast and Hoffman modulation (optional) swap in neutral density filters/green filter/blue filter for contrast applications. suitable for phase, DIC, BF etc. upto 100x objective.
        RT7NX9CON03-80 Universal long working distance turret condenser N.A. 0.3, dismountable, working distance 80mm, 5-positions for BF, PH, POL, DIC, plastic DIC, DIC, HMC. varel contrast and Hoffman modulation (optional) swap in neutral density filters/green filter/blue filter for contrast applications. suitable for phase, DIC, BF, FL etc. upto 100x objective.
        RT7NX9CON4 Long working distance turret condenser N.A. 0.40, dismountable, working distance 50mm, 5-positions for BF, PH, POL, DIC, plastic DIC, DIC, HMC. Varel contrast and Hoffman modulation (optional) etc. phase annulus for 10x, 20x, 40x. (universal)
        RT7NX9CON5 Long working distance turret condenser N.A. 0.30, dismountable, working distance 72mm, 5-positions for BF, PH, POL, DIC etc
        RT7NX9CON5a Long working distance turret front knob universal condenser N.A. 0.55, dismountable, tiltable upto working distance 27mm, 5-positions for phase, DIC, brightfield with adjustable built-in iris diaphragm
        RT7NX9CON5b Long working distance turret front knob universal condenser N.A. 0.55, dismountable, tiltable upto working distance 27mm, 6-positions for BF, Ph/PH1, Ph2, DIC, plastic DIC, HMC varel contrast and Hoffman modulation/ND filter module (optional) with adjustable diaphragm
        RT7NX9CON7 Long working distance turret condenser N.A. 0.55, dismountable, working distance 26mm, 7-positions for BF, PH, POL, DIC, Embass, Plas DIC, DIC, HMC. Varel contrast and Hoffman modulation/ND filter module (optional) with adjustable diaphragm phase annulus for 4x, 10x, 20x, 40x
        RT7NX9CON7I Long working distance turret condenser N.A. 0.60, dismountable, working distance 72mm, 4-positions for BF, PH, POL, DIC, Plas DIC, DIC, HMC. Varel contrast and Hoffman modulation (optional) etc. phase annulus for 4x, 10x, 20x, 40x.
        RT7NX9CON8 Long working distance turret condenser N.A. 0.52/0.55, dismountable, working distance 72mm, 5-positions for BF, PH, POL, DIC, Plas DIC, DIC, HMC. Varel contrast and Hoffman modulation (optional) etc, with aperture diaphragm, phase annulus for 4x, 10x, 20x, 40x.
        RT7NX9CON9 Long working distance turret universal condenser N.A. 0.40, dismountable, working distance 45mm, 4-positions rotating disc phase contrast condenser, suitable for for BF, PH, POL, DIC, plastic DIC, DIC, HMC. with click stop 0°,90°,180°,270°, Varel contrast and Hoffman modulation (optional) etc.
        RT7NX9CON10 Long working distance turret condenser N.A. 0.30, dismountable, working distance 72mm, verticle stroke 66mm, O.D. 65mm, 6-positions for BF, PH, POL, DIC etc
        RT7NX9CON-W30 Long working distance turret front knob universal condenser N.A. 0.52, dismountable, tiltable upto working distance 30mm, 6-positions for phase (PH1 & PH2 module), DIC, brightfield with adjustable diaphragm
        RT7NX9CON45 Long working distance turret condenser N.A. 0.45, dismountable, working distance 50mm, 5-positions, suitable for bright field, phase contrast, pol, Hoffman/Integrated modulation contrast, IMC & DIC. Phase annulus for 10x, 20x, 40x
        RT7NX9CON4-55 Universal long working distance turret condenser N.A. 0.40, dismountable, working distance 55mm, 5-positions for BF, PH, POL, DIC, plas DIC, DIC, HMC. Varel contrast and Hoffman modulation (optional) swap in neutral density filters/green filter/blue filter for contrast applications. suitable for phase, DIC, BF etc. upto 100x objective.
        RT7NX9CON75 Long working distance turret condenser N.A. 0.55, dismountable, working distance 45mm, (190mm without condenser) 7-positions for phase, DIC, fluorescence & brightfield, light ring, IC prism/modulation slit
        RT7NX9CON75-1 Long working distance turret condenser N.A. 0.5, dismountable, working distance 26mm, 7-positions for BF, PH, POL, DIC, Embass, Plas DIC, DIC, HMC. Varel contrast and Hoffman modulation with adjustable diaphragm phase annulus for 10x(Ph1), 20x(Ph1), 40x(Ph2), 60x(Ph2).
  • C-mount
    • C-mount RCMT50X 0.5X Camera Adaptor/Tube/Mount
        RCMT65X 0.65X Camera Adaptor/Tube/Mount
        RCMT70X 0.7X Camera Adaptor/Tube/Mount
        RCMT01X 1X Camera Adaptor/Tube/Mount
  • DIC Kit
    • DIC Kit RT7NXDICKIT DIC kit including condenser/objectives (prisms/polarizer/analyzer block) for 10x to 100x objective.
        RIAPDIC-40 DIC Kit for 40x
  • Eyepiece
    • Eyepiece RT7NX9EP1020M WF 10X, FOV-20mm, Micrometer(10/100mm), multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable
        RT7NX9EP1020P WF 10X, FOV-20mm, Pointer/cross hair, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable
        RT7NX9EP1020  Paired, WF 10X, FOV-20mm, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable
        RT7NX9EP1022M WF 10X, FOV-22mm, Micrometer (10/100mm), multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable
        RT7NX9EP1022P WF 10X, FOV-22mm, Pointer/cross hair, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable
        RT7NX9EP1023 Paired, WF 10X, FOV-23mm, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable, diopter adjustment on both eyepiece (+5nm), rubber eye guard
        RT7NX9EP1025  Paired, WF 10X, FOV-25mm, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable, high eye point, diopter adjustment in both eyepieces.
        RT7NX9EP1025M WF 10X, FOV-25mm, Micrometer (10/100mm), multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable
        RT7NX9EP1025P WF 10X, FOV-25mm, Pointer/cross hair, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable
        RT7NX9EP1216 Paired, WF 12.5X, FOV-16mm, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable
        RT7NX9EP1515 Paired, WF 15X, FOV-15mm, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable
        RT7NX9EP1522 Paired, high eye point, WF 15X, FOV-22mm, Anti-fungal & multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable with graduated and diopter adjustment on both eyepiece (±5mm), built in bertrand lens & dark slide shutter.
        RT7NX9EP2010 Paired, WF 20X, FOV-10mm, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable
        RT7NX9EP-C Customized eyepiece of 5X/10x/12x/15x/16x/20x with different types of reticles/graticules
        RT7NX9ECUP Eyecups (pair)
  • Fluorescence Attachment
    • Fluorescence Attachment RT7NX9FL4LED LED cooled fibre fluorescence lamp house (life 25,000hrs.), four/six position turret structure with high position filter including 1 for brightfield, LED module white 540-580nm, 0 pixel shift technology centre adjustable filed diaphragm and 3/5 holes filter slot for reflected illumination, LED with intelligent power supply, life span of 25000 hrs., easy to change (push & click)
      RT7NX9FL4LED-T Turret 5 position filter holder, LED fluorescence lamp house, life hrs. 30,000, built in fly-eye lens, Individual channels LED light source takes use of 4 high power LED lamp, peak wavelength 365nm/385nm/395nm; 460nm/470nm; 520nm/525nm/560nm; 625nm, providing high brightness and uniform brightness without lamp shadow, each channel light intensity can be controlled separately and support TTL electric frequency pulse mode trigger. Digital screen touchable control panel works for users to continuously adjust light intensity and choose different lighting mode, easy to change (push & click), 0 pixel shift technology, noise terminator mechanism.
      RT7NX9FL4LED-T3 Turret 4 position filter holder, LED fluorescence lamp house, life hrs. 30,000, built in fly-eye lens, Individual channels LED light source takes use of 4 high power LED lamp, providing high brightness and uniform brightness without lamp shadow, each channel light intensity can be controlled separately and support TTL electric frequency pulse mode trigger. Digital screen touchable control panel works for users to continuously adjust light intensity and choose different lighting mode, easy to change (push & click), 0 pixel shift technology, noise terminator mechanism, Peak wavelength 365nm/385nm/395nm; 470nm; 525nm/560nm; 625nm.
      RT7NX9FL4LED4CC LED fluorescence lamp house, upto 4 Channel fluorescence light, Separate LEDs, desired peak wavelength 385nm/475nm/555nm/ 631nm, precentered (life 30,000hrs.), zero pixel shift technology, LCD indicator, high position filter including 1 for brightfield, slot for reflected 4 solid state LED with filters Red(630nm) for excitation of Cy5, Alexa 631, TOTO-3 and similar dyes Green(555nm) for excitation of Cy3,TRITC,Ds Red and similar dyes blue(475nm) for excitation of eGFP, Fluo4, FITC and similar dyes UV(385nm)for excitation of DAPI, Alexa 405, Hoechst 33258 and similar dyes.
      RT7NX9FL4LED4M100 White LED fluorescence lamp house, Covers UV and visible light spectrum 350nm~740nm Long life span 30000 hrs, UV can be controlled individually, Stable brightness, adjustable brightness Digital touch screen shows light intensity, Red(630nm) for excitation of Cy5, Alexa 631, TOTO-3 and similar dyes Green(555nm) for excitation of Cy3,TRITC,Ds Red and similar dyes Blue(475nm) for Excitation of eGFP, Fluo4, FITC and similar dyes UV(385nm)for excitation of DAPI, Alexa405, Hoechst33258 and similar dyes. Suitable for IHC & Live cell imaging
      RT7NX9FL4LED6CC Six position reflector turret filter holder LED fluorescence lamp house, upto 4 Channel fluorescence light, Separate LEDs, desired peak wavelength 385nm/ 475nm/ 555nm/ 631nm, precentered (life 65,000hrs.), zero pixel shift technology, LCD indicator, high position filter including 1 for brightfield, slot for reflected 4 solid state LED with filters Red (630nm) for excitation of Cy5, Alexa 631, TOTO-3 and similar dyes Green (565nm) for excitation of Cy3, TRITC, Ds Red and similar dyes blue(475nm) for excitation of eGFP, Fluo4, FITC and similar dyes UV(385nm) for excitation of DAPI, Alexa 405, Hoechst 33258 and similar dyes.
        RT7NX9FL5LED LED cooled fluorescence lamp house, precentered, (life 30,000hrs.), zero pixel shift technology, noise terminator mechanism, with separate controller, five position turret structure with high position filter including 1 for brightfield, centre adjustable filed diaphragm and 3 holes filter slot for reflected illumination, easy to change (push & click), Peak wavelength 385nm, 470nm, 525/530nm
        RT7NX9FL5LEDT Turret 5 position filter holder with LED Engine for working in the spectrum range of 330nm to 720nm, life hrs. 30,000, built in fly-eye lens, providing high brightness and uniform brightness without lamp shadow. Turret can attach upto 5 filter cubes, which can be individually removed or fixed. Intensity & filter movement control through software & control panel. easy to change filters (push & click), 0 pixel shift technology, noise terminator mechanism.
        RT7NX9FL5LEDCC LED cooled fibre fluorescence lamp house, precentered, (life 30,000hrs.), zero pixel shift technology, LCD display, five position turret structure with high position filter including 1 for brightfield, centre adjustable filed diaphragm and 3 holes filter slot for reflected illumination, easy to change (push & click)).
        RT7NX9FL6LED LED cooled fibre fluorescence lamp house, precentered, (life 30,000hrs.), six position turret structure with high position filter including 1 for brightfield, centre adjustable filed diaphragm and 3 holes filter slot for reflected illumination, with standard BG & UV filter, easy to change (push & click) other filters on demand along with precentered, alignment free, light guided, cooled LED (pE 340 fura) and light source controlled by imaging software.
        RT7NX9FL6LEDC LED fluorescence lamp house, precentered, (life 30,000hrs.), zero pixel shift technology, noise terminator mechanism, six position turret structure with high position filter including 1 for bright filed, centre adjustable filed diaphragm and 3 holes filter slot for reflected illumination, standard BG & UV filter, with FITC, TRITC, DAPI filter, easy to change (push & click) in-built sensor to recall position and calibration values, other filters on demand along with precentered, alignment free, LED
        RT7NX9FL6LEDM LED fluorescence lamp house, precentered, (life 30,000hrs.), six position motorized fluorescence filter turret structure with high position filter including 1 for brightfield, centre adjustable aperture & filed diaphragm, with inbuilt 4/5 position light intensity filter wheel for fluorescence/ reflected illumination, with standard B,G & UV filter, easy to change (push & click) along with precentered, alignment free LED, 0 pixel shift technology, noise terminator mechanism, suitable for 360nm-700nm wavelength excitation, support TTL electric frequency pulse mode trigger.
        RT7NX9FL6LED4CC White LED fluorescence lamp house, upto 6 Channel fluorescence light source with integrated control unit for continuous brightness adjustment, encoded Separate white LEDs, desired peak wavelength 385nm/475nm/550/555nm/631nm, precentered (life 30,000hrs.), zero pixel shift technology, LCD indicator, high position filter including 1 for brightfield, slot for reflected 4 solid state LED with filters, noise terminator mechanism, LED controlled through PC software, Natural cooling. Red(630nm) for excitation of Cy5, Alexa 631, TOTO-3 and similar dyes Green(555nm) for excitation of Cy3,TRITC,Ds Red and similar dyes blue(475nm) for excitation of eGFP, Fluo4, FITC and similar dyes UV(385nm)for excitation of DAPI, Alexa 405, Hoechst 33258 and similar dyes, suitable for IHC & Live cell imaging.
        RT7NX9FL6LED25 Fluorescence turret 6 position rotating filter holder, std fluorescence life upto 25000 hrs., 1 position for brightfield & balance 5 position for fluorescent filters, suitable for 360nm-700nm wavelength excitation, zero-pixel shift technology, filter B & G, others on request, iris diaphragm and aperture diaphragm, with separate power supply & contrllor, central adjustable, with filter slot and polarizing slot LED controlled through remote/ PC software, suitable for FISH application, suitable from UV to Cy7, suitable for single/dual/multiband filters
        RT7NX9FL7LED LED cooled fibre fluorescence lamp house (life upto 65,000hrs.), four position turret structure with high position filter including 1 for brightfield, 0 pixel shift technology centre adjustable filed diaphragm and 3 holes filter slot for reflected illumination, LED with power supply, easy to change (push & click) Suitable for Alexa Flour 488, 568, 647, DS-Red, eGFP and DAPI/Hoechst.
        RT7NX9FL8LED25 Fluorescence turret 8 position rotating filter holder, std fluorescence life upto 25000 hrs., suitable for 360nm-700nm wavelength excitation, zero-pixel shift technology, filter B & G, others on request, iris diaphragm and aperture diaphragm, with separate power supply & controller, central adjustable, with filter slot and polarizing slot LED controlled through remote/ PC software, suitable from UV to Cy7, suitable for single/dual/multiband filters.
        RT7NX9FL Filter turret rotating position turret with capacity to accommodate 6 fluorescence filter block (inbuilt 4/5 position light intensity filter wheel) instant switching between BF or FL mode via button, diaphragm centrable aperture & filed diaphragm, 3 slots for ND filter/Pol/ balancer. 100W mercury with intelligent power supply, life span of 20000 Hrs, 0 pixel shift technology.
        RT7NX9FL-LED Filter turret rotating position turret with capacity to accommodate 6 fluorescence filter block (inbuilt 4/5 position light intensity filter wheel) instant switching between BF or FL mode via button, feature to replicate illumination power of same wave lenght, diaphragm centrable aperture & filed diaphragm, noise terminator mechanism, 3 slots for ND filter/Pol/balancer. LED with intelligent power supply, life span of 25000 hrs, automatic LED Fluorescence illumination intencity recognition fuction.
        RT7NX9FL-LED1 Filter turret rotating position turret with capacity to accommodate 6 fluorescence filter block instant switching between BF or FL mode via button, diaphragm centrable aperture & filed diaphragm, noise terminator mechanism, 3 slots for ND filter/Pol/balancer. LED with intelligent power supply, life span of 25000 hrs, Fluorescence protection shield.
        RT7NX9FL-LEDi Filter turret rotating position turret with capacity to accommodate 4 fluorescence filter block instants switching between BF or FL mode via button, controller, diaphragm centrable aperture & filed diaphragm, noise terminator mechanism, 3 slots for ND filter/Pol/balancer. LED with intelligent power supply, life span upto 50000 hrs.
        RT7NX9FL4100 100W Mercury fluorescence lamp house, 4 positions Attachment removable turret structure with high position filter including 1 for brightfield, centre adjustable filed diaphragm and 3 holes filter slot for reflected illumination, with standard BG & UV filter, easy to change (push & click), UV protection shield, other filters on demand
        RT7NX9FL5100 100W Mercury fluorescence lamp house, 5 positions Attachment removable turret structure with high position filter including 1 for brightfield, centre adjustable filed diaphragm and 3 holes filter slot for reflected illumination, with standard BG & UV filter, easy to change (push & click), other filters on demand
        RT7NX9FL5100-7 100W Mercury fluorescence lamp house, 7 positions attachment removable coded epi-fluorescence turret structure with built-in shutter, with high position filter including 1 for brightfield, centre adjustable filed diaphragm and 6 holes filter slot for reflected illumination, with standard B,G & UV filter, easy to change (push & click), in-built sensor to recall position and calibration values, with separate power supply & controller.
        RT7NX9FL6120 120W, cooled fibre, Mercury/Metal halide fluorescence lamp house, with life hrs of 2000, six position coded turret structure with high position filter including 1 for brightfield, centre adjustable filed diaphragm, noise terminator mechanism, high S/N Ratio images and 3 holes filter slot for reflected illumination, built-in shutter, easy to change (push & click), with standard BG & UV filter, other filters on demand
        RT7NX9FL6130 130W cooled fibre, Mercury/metal halide fluorescence lamp house, with life hrs of 2000, six position turret structure with high position filter including 1 for brightfield, centre adjustable filed diaphragm and 3 holes filter slot for reflected illumination, easy to change (push & click), with standard BG & UV filter, other filters on demand
        RT7NX9FL6130N 130W Mercury fluorescence lamp house, with life hrs. of Attachment 2000, six position turret structure with high position filter including 1 for bright filed, centre adjustable filed diaphragm and 3 holes filter slot for reflected illumination, shutter easy to change (push & click)
        RT7NX9FL6200 200W cooled fibre, Mercury/metal halide, fluorescence lamp house, with life hrs of 2,000, six position turret structure with high position filter including 1 for brightfield, centre adjustable filed diaphragm and 3 holes filter slot for reflected illumination, easy to change (push & click), with standard BG & UV filter, other filters on demand
        RT7EXFL4130 130W cooled fibre, Mercury/metal halide fluorescence lamp house, 4 position sliding structure with high position filter including 1 for brightfield, centre adjustable filed diaphragm and 3 holes filter slot for reflected illumination, easy to change (push & click), pre-centered mercury short-Ark lamp, high S/N Ratio, Noise terminator mechanism, life span of lamp is 2000hrs under standard working conditions. UV protection screen is provided to safeguard the operator from harmful radiations heat absorbing filter.
          Motorized Fluorescent turret optionally available
  • Focusing
    • Focusing RXFA Co-axial knobs (both sides), coarse & fine, two position, Z-focus coarse range-11mm, coarse 0.2mm per rotation, fine precision 1µm, tension control, upper limit stopper, focus depath 10mm, total travel 25mm, stroke upto 8mm, down 3mm, refocusing mechanism mounted*(optional).
      RXFB Co-axial knobs (both sides), coarse & fine, two position, Z-focus coarse range-11mm, fine 0.1mm per rotation, fine precision 1µm, tension control, upper limit stopper, total travel 25mm, stroke upto 8mm, down 3mm, coarse stroke 5mm per rotation.
      RXF10 Co-axial knobs (both sides), coarse & fine, coarse range-9mm, coarse 0.1mm per rotation, fine precision 1µm, total travel 25mm, 3step focusing, tension control, upper limit stopper, focus depth 10mm.
        RXF10B Co-axial knobs (both sides), vertical movement via coarse and fine focusing knob, tension control, upper limit stopper, coarse stroke-10mm, high sensitivity focus drive with 0.10mm per revaluation, fine adjustment 1µm/Div., focal point upto 18.5mm from stage surface.
        RXF10C Co-axial knobs (both sides), tension control, Pre-focusing lever, upper limit stopper, coarse range-13mm, high sensitivity focus drive with 0.10 mm per revaluation, fine adjustment 1µm/Div.
        RXF10i Co-axial knobs, tension control, upper limit stopper, coarse range 10mm, high sensitivity focus drive with 0.10 mm per revaluation, fine adjustment 1µm/Div.
        RXF10m Coaxial focus system, z-axis motorized focusing system, coarse range:10.5mm, fine focus display precision:10nm.
        RXF20B Co-axial knobs (both sides), coarse & fine, two position, Coarse 37mm per rotation, coarse 0.2mm per rotation, Fine 0.2mm per rotation, fine precision 2µm, tension control, upper limit stopper,focus depath 10mm,
        RXF20C Co-axial knobs (both sides), tension control, upper limit stopper, coarse range-customized upto 18mm, high sensitivity focus drive with 0.20 mm per revaluation, fine adjustment 2µm/Div.
        RXF20i Co-axial knobs (both sides), coarse & fine, Z-focus coarse range-12mm, coarse 0.2mm per rotation, fine precision 2µm, tension control, upper limit stopper, focus depth 10mm, total travel 25mm
        RXF20m Coaxial focus system, motorized coarse & fine focusing, Z-focus coarse range-9mm, coarse 0.2mm per rotation, fine precision 2µm, tension control, upper limit stopper, focus depth 10mm, total travel 25mm.
        RXF25 Co-axial knobs (both sides), tension control, upper limit stopper, coarse range-9mm, high sensitivity focus drive with 0.25 mm per revaluation, fine adjustment 2.5µm/Div.
          Motorized Focusing optionally available
  • Filters
    • Filters RGF Green plane or frosted
        RT7NX9FLTLBD LBD color temperature change filter（φ45mm）
        RT7NX9FLTGRN IF550 green interference filter（φ45mm）
        RT7NX9-CTELE Centering telescope φ30
        RT7NX9-GPLATE Glass plate
        RT7NX9-MPLATE Metal plate (kidney hole)
        RT7NX9-RULERS Mechanical mobile ruler, moving range120(X)*78(Y)mm
        RT7NX9-EXTPLATE Stage extension plate
        RT7NX9-PDHOL φ35 Petri dish holder
        RT7NX9-SLHOLD Slides holder (φ54 and 26.5x76.5)
        RT7NX9-TERAHOL Teraseki holder (φ65 and 56X81.5)
  • Illumination
    • Part Name Part Code Description
      Illumination RT7NX9H50 Halogen 12V-50W, life 2000 hrs.
        RT7NX9H100 Halogen 12V-100W, life 2000 hrs. with 4500K colour temperature suitable for bright field, phase, IMC, Hoffman, DIC/inversion contrast, emboss etc. flexible/retroverted ensuring large space, transmitted/ epi-fluorescent control knobs located on right side of body-easy to operate, flexible with retroverted (tiltable piller), buttons for transmitted and reflected easy switch
        RT7NX9L3WL3 LED 3W, cool illumination, life 30000 hrs., with 4500K colour temperature, Lumens equivalent 50W halogen
        RT7NX9LBB Battery backup from 2-12 hours for LED (Internal/External)
        RT7NX9L5W LED 5W, cool illumination, life 30000 hrs., with 4500K colour temperature, Lumens equivalent 100W halogen
        RT7NX9ACUT Intelligent ECO infrared sensing system
        RT7NX9L3WL6 LED 3W cool illumination, life 65,000 hrs., with 4500K colour temperature, Lumens equivalent 50W halogen
        RT7NX9L3WL8 LED 3W cool illumination, life 82,000 hrs., with 4500K colour temperature, Lumens equivalent 50W halogen
        RT7NX9L5WL3C Encoded 5W LED cool white Kohler illumination life 30,000 hrs, with 4500K (white) colour temperature, eco illumination equivalent to 100W halogen, automatic adjustment of illumination to the contrast methods, (Auto off function), suitable for bright field, phase, IMC, Hoffman, DIC/inversion contrast, emboss etc. flexible/ retroverted ensuring large space, transmitted/ epi-fluorescent control knobs located on right side of body-easy to operate, light manager system, flexible with retroverted (tiltable light axis), buttons for transmitted and reflected easy switch. adjustable field iris diaphragm and TTL shutter.
        RT7NX9L5WL6 LED 5W cool white Kohler illumination illumination, life 65,000 hrs., with 4500K/5500K/5800K colour temperature, lumens equivalent 100W halogen. automatic adjustment of illumination to the contrast methods, fly eye lens technology, uniform brightness to entire FOV, high color reproductive, buttons for transmitted and reflected easy switch. Convertible to 12V/60W halogen.
        RT7NX9L5WL6C 5W LED cool white Kohler illumination life 65,000 hrs, with 4500K (white) colour temperature, eco illumination equivalent to 100W halogen, automatic adjustment of illumination to the contrast methods, (Auto off function), suitable for bright field, phase, IMC, Hoffman, DIC/inversion contrast, emboss etc. flexible/ retroverted ensuring large space, transmitted/ epi-fluorescent control knobs located on right side of body-easy to operate, light manager system, flexible with retroverted (tiltable), buttons for transmitted and reflected easy switch.
        RT7NX9L5WL8 LED 5W cool illumination, life 82,000 hrs., with 4500K colour temperature, lumens equivalent 100W halogen
        RT7NX9LWL10 LED 10W cool illumination, life 65,000 hrs., with 4500K (white) constant colour temperature, lumens equivalent 100W halogen, suitable for bright field, phase, DF, POL, IMC, Hoffman, DIC/inversion contrast, high colour reproducibility, emboss etc. flexible/retroverted ensuring large space, transmitted/epi-fluorescent control knobs located on right side of body-easy to operate, field diaphragm buttons for transmitted and reflected easy switch with 2 position filter sliders, condenser holder, adjustable field iris diaphragm and TTL shutter.
        RT7NX9L10WL6C 10W LED cool white Kohler illumination life 65,000 hrs, with 4500K (white) colour temperature, eco illumination equivalent to 100W halogen, automatic adjustment of illumination to the contrast methods, suitable for brightfield, phase, IMC, Hoffman, DIC/ inversion contrast, emboss etc. flexible/ retroverted ensuring large space, transmitted/ epi-fluorescent control knobs located on right side of body-easy to operate, light manager system, buttons for transmitted and reflected easy switch.
        RT7NX9L14WL6 LED 14W (white) cool illumination, life 65,000 hrs., with 4500K constant colour temperature, fly eye lens technology, Lumens equivalent 50W halogen
        RT7NX9LWL15 LED 15W cool illumination, life 30,000 hrs., with 4500K colour temperature, lumens equivalent 100W halogen
        RT7NX9L-C Extra long life LED upto 1,00,000 hrs with 4500K colour temperature, 3W/5W
        RT7NX9SOLAR Solar power battery charger for LED
  • Immersion oil
    • Immersion oil RIO Immersion oil (10ml)
        RIO100 High quality immersion oil 100ml
  • Mechanical Stage
    • Mechanical Stage RT7NX9M4MS Motorized stage with resolution 0.01µm, repeatability ± 2µm, moving speed not less than 1.5mm/s, with specimen rack, additional grooves for petri dish. 100-240V electric control box and rocker, controlled by application software/Joystick, attachable mechanical stage with travel:126(X) ×78(Y) mm, dual slide holder, glass slide holder & petri dish holder, flasks specimen slides of all sizes (6, 12, 24, 96 well), Universal holder for holding all types of plates, hemocytometer, Petri dish/plates, glass slides, Terasaki plates, Microplates etc.
      RT7NX9MS-RK Rackless, rectangular right/left hand low drive control, horizontal, hard ceramic coating, double slide holder, stage size-customized as per requirement, X-Y movement-customized as per requirement
        RT7NX94MS-1 Rectangular, 3-layer, fixed size 290(X)x 300(Y)mm, attachable mechanical stage with travel: 114(X)x75(Y)mm, flexible right hand low drive control, with three level adjustable stroke, Ceramic coated, dual slide holder, accepts different types of micro-test plate, tissue culture bottles, glass slide holder & culture flask holder, universal holder for holding different types of plate’s petri dishes Ø35, cell culture plates, flasks specimen slides of all sizes (6, 12, 24, 96 well), Petri dish holder 35mm, glass slides, Terasaki plate holder, acrylic holder etc.
        RT7NX94MS-2 Rectangular, 3-layer, fixed size 260(X)x 300(Y)mm, attachable mechanical stage with travel:114(X)x73-75(Y)mm, flexible right hand low drive control, with three level adjustable stroke, Ceramic coated, dual slide holder, accepts different types of micro-test plate (upto 10), tissue culture bottles, glass slide holder & culture flask holder, universal holder for holding different types of plate’s petri dishes Ø35,Ø54,Ø65, cell culture plates, flasks specimen slides of all sizes (6, 12, 24, 96 well) smooth positioning system to enable cell tracking at high magnification. Petridish holder 100mm, Universal holder for holding all types of plates, hemocytometer, Petri dish /plates, glass slides, Terasaki plates, Microplates, acrylic holder, stage stopper function etc.
        RT7NX94MS-3 Rectangular, 3-layer, stage size 232X240mm, attachable mechanical stage with travel:130(X)x85(Y) mm, flexible right hand low drive control, with three level adjustable stroke, hard coated anodized surface or ceramic coated, dual slide holder, objective guide, accepts different types of micro-test plate, tissue culture bottles, glass slide holder & culture flask holder, universal holder for holding different types of plate’s petri dishes, cell culture plates, flasks specimen slides of all sizes (6, 12, 24, 96 well) smooth positioning system to enable cell tracking at high magnification. Universal holder & stage insert for all types of plates, hemocytometer, 35mm culture dishes, Petri dish/plates, multi-well plates, glass slides, Terasaki plates, Microplates, etc.
        RT7NX94MS-A Rectangular, 3-layer, fixed size 215(X) × 250(Y)mm, attachable mechanical stage with travel:126(X) ×78(Y) mm, flexible right hand low drive control, with three level adjustable stroke, accepts different types of micro-test plate, tissue culture bottles, glass slide holder & culture flask holder, universal holder for holding different types of plate’s petri dishes (35,50mm), cell culture plates, flasks specimen slides of all sizes (6, 12, 24, 96 well) smooth positioning system to enable cell tracking at high magnification. Universal holder for holding all types of plates, hemocytometer, Petri dish/plates, glass slides, Terasaki plates Microplates etc.
        RT7NX94MS-B Rectangular, 3-layer, stage size 232X230mm, attachable mechanical stage with travel:130(X)x85(Y) mm, flexible right hand low drive control, with three level adjustable stroke, hard coated anodized surface or ceramic coated, dual slide holder, objective guide, accepts different types of micro-test plate, tissue culture bottles, glass slide holder & culture flask holder, universal holder for holding different types of plate’s petri dishes, cell culture plates, flasks specimen slides of all sizes (6, 12, 24, 96 well) smooth positioning system to enable cell tracking at high magnification. Universal holder for holding all types of plates, hemocytometer, Petri dish/plates, glass slides, Terasaki plates, Microplates, stage stopper function etc.
        RT7NX94MS-AB Rectangular, 3-layer, fixed size 215(X) × 250(Y)mm, attachable mechanical stage with travel:126(X) ×78(Y) mm, flexible right hand low drive control, with three level adjustable stroke limit pins options available for Stage X limit pin to set in 3 Position (X= 114, 75, 18mm) (± 5%) and Y limit pin to set in 3 Position (Y= 73, 50, 18mm) (± 5%), accepts different types of micro-test plate, tissue culture bottles, glass slide holder & culture flask holder, universal holder for holding different types of plate’s petri dishes (35,50mm), cell culture plates, flasks specimen slides of all sizes (6, 12, 24, 96 well) smooth positioning system to enable cell tracking at high magnification. Universal holder for holding all types of plates, hemocytometer, Petri dish/plates, glass slides, Terasaki plates Microplates etc.
        RT7NX9MS-C Rectangular, anodized or ceramic hard coated, customized stage size (standard) 215(X)×250 (Y)mm-can be customized, Attachable mechanical stage (standard): 130(X) × 85(Y)mm can be customized, having stopper function & object guide with long coaxial X-Y drive knobs and holders, hard ceramic coated, accepts different types of micro-test plate, petri dish (35mm) glass slide holder & culture flask holder, universal holder for holding all types of plates, Petri dish/plates, multi-well plates, glass slides, Terasaki plates, Microplates etc, stage lock, round acrylic stage insert.
        RT7NX9MS-5 Rectangular, anodized or ceramic hard coated, stage size 248(X)×212 (Y)mm, attachable mechanical stage 130(X) × 85(Y)mm, having stopper function, hard ceramic coated, accepts different types of micro-test plate, petri dish glass slide holder & culture flask holder, Electrochemical cell, universal holder for holding all types of plates, round acrylic stage insert, Petri dishes (24-68mm). 96 well plate, object guide for moving regular heatable & cooling holders.
        RT7NX9MS-6 Rectangular, anodized or ceramic hard coated, stage size (standard) 214(X)×241 (Y)mm Attachable mechanical stage X-Y movement 30mmx75mm, having stopper function & object guide with long coaxial X-Y drive knobs and holders, hard ceramic coated, accepts different types of micro-test plate, petri dish (35mm) glass slide holder, Culture dish holder 54mm excitation filter & culture flask holder, universal holder for holding all types of plates, stage lock, round acrylic stage insert.
          Motorized stage movement optionally available
  • Micrometer/Calibration slide
    • Micrometer/Calibration slide RCS10 Micrometer slide for calibration, 1mm with 10µm least count
        RCS100 Micrometer slide for calibration, 10mm with 100µm least count
  • Nosepiece
    • Nosepiece RT7NX9-5N Inward tilted with positive click stop, Precise Quintuple revolving on multiple ball bearing with slot for DIC.
        RT7NX9M6N Motorized brightfield sextuple revolving nosepiece (with DIC slot) with light intensity memory function to accommodate objectives of different magnification.
        RT7NX96NEN Inward tilted with positive click stop, precise encoded sextuple (accommodate 6 objectives at a time) revolving on multiple ball bearing, inbuilt DIC slot, having waterproof structure, It can memorize the illumination brightness while using each objective. When nosepiece is rotated the light intensity gets automatically adjusted to reduce visual fatigue and improve work efficiency, optional* in built sensor read different parameters like intensity value, magnification and calibration values.
          Motorized Nosepiece optionally available
  • Objectives
    • Objectives RT7NX9FLO10i LWD 10X, N.A. 0.3, W.D. 15.2mm, Plan Fluor/SAPO, infinite, unbreakable container for storage
        RT7NX9FLO20i LWD 20X, N.A. 0.45, W.D. 8.2-6.9mm, Plan Fluor/SAPO, infinite, unbreakable container for storage
        RT7NX9FLO40i 40X, N.A. 0.6, W.D. 3.6-2.8mm, Plan Fluor/SAPO, infinite, spring loaded, unbreakable container for storage
        RT7NX9APO60i LWD 60X oil, N.A. 1.4, W.D. 0.13mm, Apochromatic, infinite, oil immersed, spring loaded, unbreakable container for storage
        RT7NX9APO100i LWD 100X oil, N.A. 1.4, W.D. 0.13mm, Apochromatic, infinite, oil immersed, spring loaded, unbreakable container for storage
      Plan Infinity Objectives RT7NX9PL05il 5X, N.A. 0.12, W.D. 11.8mm, plan, infinity, long working distance
      RT7NX9PL10il 10X, N.A. 0.25, W.D. 7.9mm, plan, infinity, long working distance
      RT7NX9PL63i 63X, N.A. 0.70, W.D. 2.5mm, plan, infinity, long working distance, oil, spring loaded
      RT7NX9PL100id 100X, N.A. 0.85, W.D. 1.1mm, plan, infinity, long working distance, dry, spring loaded
      Plan Achromat Objectives RT7NX9PL04ii 4X, N.A. 0.30, W.D. 22mm, plan fluor achromat, infinity, long working distance, unbreakable container for storage
      RT7NX9PL04iCC 4X, N.A. 0.10, W.D. 30mm, plan fluor achromat, infinity, long working distance, unbreakable container for storage
      RT7NX9PL05i 5X, N.A. 0.13, W.D. 11.8mm, plan fluor achromat, infinity, long working distance, unbreakable container for storage
        RT7NX9PL60i LWD 60X, N.A. 0.80, W.D. 0.30mm, plan fluor achromatic, infinite, parfocal & precentered, oil immersed, spring loaded, unbreakable container for storage
        RT7NX963i LWD 63X, N.A. 0.80, W.D. 0.30mm, plan fluor achromatic, infinite, oil immersed, spring loaded, parfocal & precentered, unbreakable container for storage
        RT7NX9PL100i LWD 100X, N.A. 1.31, W.D. 0.28mm, plan fluor achromatic, infinite, parfocal & precentered, oil immersed, spring loaded, unbreakable container for storage
      Phase Objectives RT7NX9PH05il 5X, N.A. 0.12, W.D. 11.8mm, plan phase, infinity, long working distance
      RT7NX9PFLP10 LWD PH10X, N.A. 0.25, W.D. 6.2mm, phase, plan fluor, infinite, spring loaded
      RT7NX9PH10i LWD PH10X, N.A. 0.30, W.D. 10.5mm, phase, plan fluor achromatic, infinite, unbreakable container for storage
        RT7NX9PH10ia LWD PH10X, N.A. 0.25, W.D. 6.2mm, phase, plan achromatic, unbreakable container for storage.
        RT7NX9PH10e LWD PH10X,N.A. 0.30, W.D. 10.6mm phase, plan fluor achromatic, infinite, unbreakable container for storage.
        RT7NX9PFLP20 LWD PH20X, N.A. 0.40, W.D. 3.1mm, phase, plan fluor, infinite, spring loaded
        RT7NX9PH20i LWD PH20X, N.A. 0.45, W.D. 7.66mm, phase, plan fluor achromatic, infinite, unbreakable container for storage
        RT7NX9PH20ik LWD PH20X, N.A. 0.40, W.D. 7.66mm, phase, plan achromatic, infinite, unbreakable container for storage
        RT7NX9PH20is LWD PH20X, N.A. 0.40, W.D. 7.66mm, phase, achromatic, infinite, cover glass 0-2mm unbreakable container for storage
        RT7NX9PH20io LWD PH20X, N.A. 0.35, W.D. 7.66mm, phase, plan fluor achromatic, infinite unbreakable container for storage
        RT7NX9PFLP40 LWD PH40X, N.A. 0.75, W.D. 0.66mm, phase, plan fluor, infinite, spring loaded
        RT7NX9PH40i LWD PH40X, N.A. 0.65, W.D. 3.71mm, phase, plan fluor achromatic, infinite, spring loaded, unbreakable container for storage
        RT7NX9PH40ia LWD PH40X, N.A. 0.55, W.D. 2.1mm, phase, plan achromatic, unbreakable container for storage
        RT7NX9PH40io LWD PH40X, N.A. 0.55, W.D. 3.71mm, phase, plan fluor achromatic, infinite, spring loaded, unbreakable container for storage
        RT7NX9PH40i-CC LWD PH40X, N.A. 0.60, W.D. 3.4mm, phase, plan fluor achromatic, infinite, having correction collar for cover glass thickness correction from 0-2mm, spring loaded, unbreakable container for storage
        RT7NX9PFLP60 LWD PH60X, N.A.0.70, W.D. 2.61-1.79mm, phase, plan fluor, infinite, spring loaded, with cover glass correction: 0.1-1.3
        RT7NX9PH60i LWD PH60X, N.A. 0.80, W.D. 0.30mm, phase, plan fluor achromatic, infinite, oil immersed, spring loaded, unbreakable container for storage
        RT7NX9PH63i LWD PH63X, N.A. 0.80, W.D. 1.8mm, phase, plan fluor achromatic, infinite, oil immersed, spring loaded, unbreakable container for storage
        RT7NX9PH100i LWD PH100X, N.A. 1.31, W.D. 0.2mm, plan fluor achromatic, infinite, parfocal & precentered, oil immersed, spring loaded, unbreakable container for storage
      SEMI APO Objectives RT7NX9SAPO04i LWD 4X, N.A. 0.16, W.D. 13.0mm, SAPO, infinite, unbreakable container for storage
      RT7NX9SAPO04iL LWD 4X, N.A. 0.13, W.D. 17mm, plan SAPO achromatic, infinite
        RT7NX9SAPO5i LWD 5X, N.A. 0.10, W.D. 15.2mm, SAPO, infinite, unbreakable container for storage
        RT7NX9SAPO10i LWD 10X, N.A. 0.40, W.D. 3.1mm, SAPO, infinite, unbreakable container for storage
        RT7NX9SAPO20i LWD 20X, N.A. 0.75, W.D. 0.6mm, SAPO, infinite, unbreakable container for storage
        RT7NX9SAPO20iL LWD 20X, N.A. 0.5, W.D. 2.1mm, plan SAPO achromatic, infinite
        RT7NX9SAPO40i 40X, N.A. 0.95, W.D. 0.18mm, SAPO, infinite, spring loaded, unbreakable container for storage
        RT7NX9SAPO40L LWD 40X, N.A. 0.75, W.D. 0.51mm, SAPO, infinite, spring loaded, unbreakable container for storage
        RT7NX9SAPO50i LWD 50X, N.A. 0.9, W.D. 0.35mm, SAPO, infinite, spring loaded, unbreakable container for storage
        RT7NX9SAPO60i LWD 60X oil, N.A. 1.35, W.D. 0.15mm, SAPO, infinite, oil immersed, spring loaded, unbreakable container for storage
        RT7NX9SAPO100i LWD 100X oil, N.A. 1.40, W.D. 0.13mm, SAPO, infinite, oil immersed, spring loaded, unbreakable container for storage
        RT7NX9SAPO100iL LWD 100X oil, N.A. 1.3, W.D. 0.2mm, SAPO, infinite, oil immersed, spring loaded.
      SEMI APO Phase Objectives RT7NX9PSAPO10i LWD 10X, Phase,  N.A. 0.40, W.D. 3.1mm, SAPO, infinite, unbreakable container for storage
        RT7NX9PSAPO20i LWD 20X, Phase, N.A. 0.75, W.D. 0.6mm, SAPO, infinite, unbreakable container for storage
        RT7NX9PSAPO20iCC ELWD 20X, N.A. 0.45, W.D. 8.2-6.9mm, plan fluor phase, SAPO, infinite, correction collar, unbreakable container for storage
        RT7NX9PSAPO20iCC2 ELWD 20X, N.A. 0.45, W.D. 8.2-6.9mm, plan fluor phase, SAPO, infinite, correction collar (0-2mm), unbreakable container for storage
        RT7NX9PSAPO40i 40X, Phase, N.A. 0.95, W.D. 0.18mm, SAPO, infinite, spring loaded, unbreakable container for storage
        RT7NX9PSAPO40iCC ELWD 40X, N.A. 0.60, W.D. 3.6-2.8mm, plan fluor phase, SAPO, infinite, spring loaded, correction collar, unbreakable container for storage
        RT7NX9PSAPO40iCC2 ELWD 40X, N.A. 0.60, W.D. 4.2-2.8mm, plan fluor phase, SAPO, infinite, spring loaded, correction collar (0-2mm), unbreakable container for storage
        RT7NX9PSAPO40L LWD 40X, Phase, N.A. 0.75, W.D. 0.51mm, SAPO, infinite, spring loaded, unbreakable container for storage
        RT7NX9PSAPO50i LWD 50X, phase, N.A. 0.9, W.D. 0.35mm, SAPO, infinite, spring loaded, unbreakable container for storage
        RT7NX9PSAPO60i LWD60X oil, Phase, N.A. 1.35, W.D. 0.15mm, SAPO, infinite, oil immersed, spring loaded, unbreakable container for storage
        RT7NX9PSAPO60iCC ELWD 60X, N.A.0.70, W.D. 2.6-1.8mm, plan fluor, SAPO, infinite, Dry, spring loaded, unbreakable container for storage
        RT7NX9PSAPO100i 100X oil, Phase, N.A. 1.40, W.D. 0.13mm, SAPO, infinite, oil immersed, spring loaded, unbreakable container for storage.
      Plan SEMI APO/Fluorite Phase Objectives RT7NX9PHSAPO4i LWD PH4X, N.A. 0.13, W.D. 17mm, phase, plan SAPO/fluor achromatic, infinite, unbreakable container for storage
        RT7NX9PHSAPO10i LWD PH10X, N.A. 0.30, W.D. 10mm, phase, plan SAPO /fluor achromatic, infinite, unbreakable container for storage
        RT7NX9PHSAPO20i LWD PH20X, N.A. 0.45, W.D. 6.6-7.80mm, phase, plan SAPO /fluor achromatic, infinite, unbreakable container for storage
        RT7NX9PHSAPO40i LWD PH40X, N.A. 0.60, W.D. 2.7-4mm, phase, plan SAPO /fluor achromatic, infinite, unbreakable container for storage
        RT7NX9PHSAPO60i LWD PH60X, N.A. 0.70, W.D. 1.5-2.2mm, phase, plan SAPO /fluor achromatic, infinite, unbreakable container for storage
          Please click for More Objectives...
  • Power supply
    • Power supply RTF620 6V-20W Transformer based, wide voltage range, 90V-240V, 50/60Hz,
        RTF630 6V-30W Transformer based, wide voltage range, 90V-240V, 50/60Hz,
        RSMPS630 SMPS based, wide voltage range, 90V-240V, 50/60Hz
        RPSLED Integrated LED power supply, wide voltage range, 90V-240V, 50/60Hz
  • Packing
    • Packing RABX Aluminum box with separate container for accessories, lock & key, carrying handles
        RSTYRO Standard Styrofoam packing
        RWBOX Wooden box to cover the microscope
  • Slider
    • Slider RT7NX9PH20-SL Phase slider ring for 20X, centrable, with two handles
        RT7NX9PH40-SL Phase slider ring for 40X, centrable, with two handles
        RT7NX9PH-SL Phase slider ring for 4/10/20, 40X, 60X & 100X, centrable, with two handles
        RT7NX9DF-SL Darkfield slider, centrable, with two handles
  • Accessories
    • Accessories RCOV ONE Coverglass cap D=0.17mm
        DICKIT DIC kit with DIC Prism for 5x, 10x, 20x, 40x & 60x, polarizer/analyser & DIC annuals
          IR polarizer 360° rotate
          Petri dish holder (35mm, 60mm & 100mm)
      Filter Heat absorbing Filter
      Eyepiece Micrometer 10mm/100mm division and Stage Micrometer 1mm/100 division
      Lens Cleaning cloth/paper
      Lens cleaning kit
      Immersion oil 10ml
      Fibre box for Microscope
      Blue Filter (frosted & Plain), ND 0.06 Filter & balance filter suitable C-Mount adapter
      Diffusion Disc for Condenser 2.5x Magnification
  • Viewing Head
    • Viewing Head RT7NX9TST-C30 Trinocular inclined at 30°, siedentopf head, rotatable through 360°, IPD - from 55-70, diopter adjustment on both eyepieces, both sides port for camera attachment, 3 way splitting ratio 100(EP):0(camera)/20(EP):80(camera)/ 50:50/ 0(EP):100(camera) with 0.7x relay lens placed at side of microscope body, built in bertrand lens & dark slide shutter, FOV upto 25mm.
      RT7NX9TST-C30-1 Trinocular inclined at 30°, siedentopf head, rotatable through 360°, IPD - from 52-74, diopter adjustment on both eyepieces, both sides port for camera attachment, 3 way splitting ratio 100(EP):0(camera)/20(EP):80(camera)/50:50/0(EP):100(camera) with 0.7x relay lens placed at side of microscope body, built in bertrand lens & dark slide shutter, FOV upto 25mm.
      RT7NX9TST-C35 Trinocular inclined at 35°, siedentopf head, rotatable through 360°, IPD - from 48-76, diopter adjustment on both eyepieces, both sides port for camera attachment, 3 way splitting ratio 100:0/ 20:80/ 50:50/0:100 with 0.7x relay lens placed at side of microscope body, built in bertrand lens & dark slide shutter, FOV upto 25mm.
      RT7NX9TST-C50 Trinocular inclined at 30°/45°, siedentopf head, rotatable through 360°, IPD - from 47-78, diopter adjustment on both eyepieces, top & both side port for camera attachment, splitting ratio 100(EP):0(camera) /50(EP):50 (camera)/0(EP):100(camera) with 0.7x relay lens placed at side of microscope body, built in bertrand lens, FOV upto 25mm.
        RT7NX9TSTE-C50 Ergonomic design, tiltable Up & down, Trinocular inclined at 45°, siedentopf head, rotatable through 360°, IPD - from 47-78, diopter adjustment on both eyepieces, top & both side port for camera attachment, splitting ratio 100(EP):0(camera)/50(EP):50 camera)/0(EP):100(camera) with 0.7x relay lens placed at side of microscope body, built in bertrand lens, FOV upto 25mm.
        RT7NX9TST-C50-1 Hinged trinocular (with boehmite), 45° inclination, pitch 47-78mm
        RT7NX9TSTE-C5030 Ergonomic design, tiltable pillar Up & down, Trinocular inclined at 30°, siedentopf head, rotatable through 360°, IPD - from 50-76mm, diopter adjustment on both eyepieces, top & both side port for camera attachment, splitting ratio 100(EP):0(camera)/50(EP):50 (camera) /0(EP):100(camera) with 0.7x relay lens placed at side of microscope body, built in bertrand lens, FOV upto 25mm.
        RT7NX9TST-C80 Trinocular inclined at 45°, siedentopf head, rotatable through 360°, IPD - from 48-76, diopter adjustment on both eyepieces, both sides port for camera attachment, 3 way splitting ratio 100(EP):0(camera)/20 (EP):80(camera)/50:50/0(EP):100(camera) with 0.7x relay lens placed at side of microscope body, built in bertrand lens & dark slide shutter, FOV upto 25mm.
        RT7NX9TST-D50 Binocular tube inclined at 45°, siedentopf head, rotatable through 360°, IPD - from 50-75mm, diopter adjustment on both eyepieces, top & both side port for camera attachment, splitting ratio 100(EP):0(camera) /50(EP):50 (camera)/0(EP):100(camera) /20(EP): 80(camera) with 0.7x relay lens placed at side of microscope body, built in bertrand lens, FOV upto 25mm.
        RT7NX9B45T Binocular tube with variable viewing angle 30° to 45°, siedentopf head, rotatable through 360°, IPD: 47-78, built in Bertrand lens, FOV. 25mm.
          Motorized Beam splitter optionally available
Heating Stage RHS50 Biotherm heating stage
Customized Stage RT7NX94MS-C Rectangular, 3-layer, hard coated anodized or ceramic, customized stage size (standard) 215(X) × 250(Y)mm-can be customized, attachable precision mechanical stage (standard):130(X) ×85(Y)mm-can be customized, hard ceramic coated, anodized surface, accepts different types of micro-test plate, , tissue culture bottles, glass slide holder & culture flask holder, petri dish (35mm), cell culture plates, specimen slides of all sizes, glass slide holder & culture flask holder, universal holder for holding all types of plates
Phase attachment RT7NX9PH4SL1 Phase annulus for 10X/20X/40X/60X, PHL, PH1, PH2, empty position for bright field, special supporting slider for phase contrast will be provided to completely remove HALO effect
Cleaning Kit RT7NX9CLK Anti-static cleaning brush, cleaning tissue paper, lens cleaning solution
Holders RT7NX9-HOL Petri dish holder 65mm, petri dish holder 90mm terasaki holder for terasaki holder and dia 65 dish, slide glass holder for glass slides dia 54 dish and hemocytometer, universal holder for terasaki plate holder and glass slide, dia 35-65 dish, test tubes and hemocytometer
Hoffman Kit RT7NX9-HFKIT 10x, 20x, 40x Hoffman condenser, special objective
Emboss Contrast RT7NX9-EMB Condenser and eyepiece with emboss contrast 10x, 20x, 40x, universal emboss contrast slide
Contrast shield contrast shield, contrast slider for obtaining glare free 3D images

As we are continuously improving & developing our products, this websites may not be updated with advancements done. However, we try our best to update the website for latest information's
For complete updated specifications, please do ask for latest brochures

Educational Microscopes

Laboratory Clinical Microscopes

Medical Research Microscopes

Microscope Cameras

Industrial Microscopes

Advanced Microscopy System

Camera Control Software

Material Science Software

Life Sciences Software

Infrared Thermography

Metrology & Metallurgy

About Radical

Support

Contact Info
