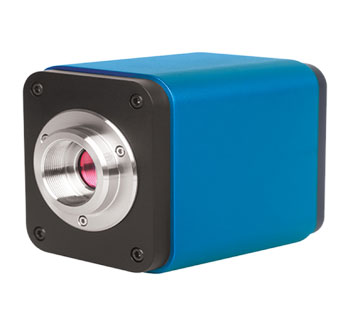

ProCAM is a multiple interfaces (HDMI+WiFi+SD card) CMOS camera with autofocus function and it adopts ultra-high performance Sony CMOS sensor as the image-picking device. HDMI+WiFi are used as the data transfer interface to HDMI display or computer. For HDMI output, The ProCAM will be loaded and a camera control panel and toolbar are overlaid on the HDMI screen, in this case, the USB mouse can be used to set the camera, browse and compare the captured image, play the video ital. In HDMI output, the camera embedded Auto/Manual focus function can obtain the clear image at ease. No hand rotation of the microscope Coarse/Fine knob is needed. For WiFi output, unplug the mouse and plug in the USB WiFi adapter, connect the computer WiFi to the camera, then the video stream can be transfer to computer with the advanced software, you can control the camera, process the image as other USB series camera.
| Model | ProCAM-2AF | ProCAM-5AF | ProCAM-8AF | ProCAM-8AF-B | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Sensor size | 1/1.9"(7.20x4.05) CMOS Colour |
1/1.8"(6.22x4.67) CMOS Colour |
1/1.8"(7.68x4.32) CMOS Colour |
1/2.8" CMOS Colour 4K/Sony/Aptina |
||||||||||||
| Pixel | 3.75µm X 3.75µm | 2.4µm X 2.4µm | 2.0µm X 2.0µm | 2.0µm X 2.0µm | ||||||||||||
| Resolution (Live, Capture & Record) |
1920x1080 : 60FPS (HDMI) 1920x1080 : 25FPS (WiFi) |
1920x1080 : 30FPS (HDMI) 1920x1080 : 25FPS (WiFi) |
3840x2160 : 30FPS (HDMI) 3840x2160 : 30FPS (WLAN) 3840x2160 : 30FPS (USB) |
3840x2160 : 60FPS (HDMI) 3840x2160 : 30FPS (WLAN) 3840x2160 : 30FPS (USB) 1920x1080 : 50FPS (HDMI, USB) |
||||||||||||
| G Sensitivity Dark Signal |
1120 mv with 1/30s 0.15 mv with 1/30s |
425 mv with 1/30s 0.15 mv with 1/30s |
505 mv with 1/30s 0.13 mv with 1/30s |
1/50 sec-1/10000 0.13 mv with 1/30s |
||||||||||||
| Exposure | 0.06ms~918ms | 0.03ms~918ms | 0.04ms~1000ms | 0.04ms~1000ms | ||||||||||||
| Interface & Button Functions |
|
|||||||||||||||
| HDMI Output | ||||||||||||||||
| UI Operation | With USB Mouse | |||||||||||||||
| Image Capture | JPEG Format with 2M Resolution in SD Card | JPEG Format with 5M Resolution in SD Card | 8M JPEG/TIFF image in SD card or USB flash drive | |||||||||||||
| Video Record | ASF Format 1080P 30fps in SD Card | |||||||||||||||
| Camera Control Panel | Including Exposure, Gain, White Balance, Colour Adjustment, Sharpness and Denoising Control | |||||||||||||||
| Auto-focus Control Panel | Including Auto-focus, Manual Focus, One Push AF and Conjugate Correction Functions | |||||||||||||||
| Toolbar | Including Zoom, Mirror, Comparison, Freeze, Cross, WDR, Auto-focus, Browser Function, Setting, Muti-language and View Version Information | |||||||||||||||
| WIFI Output | ||||||||||||||||
| UI Operation | With USB Mouse to Operate on the embedded XCamView | |||||||||||||||
| WIFI Performance | 802.11n 150Mbps; RF Power 20dBm(Maximum) | |||||||||||||||
| Maximum Connected Devices | 3~6(According to the Environment and Connection Distance) | |||||||||||||||
| White Balance | Auto White Balance | |||||||||||||||
| Color Technique | Ultra-Fine Color Engine (WiFi) | |||||||||||||||
| Capture/Control SDK | Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc) (WiFi) |
|||||||||||||||
| Recording System | Still Picture or Movie (WIFI) | |||||||||||||||
| Software/Operating Environment | ||||||||||||||||
| Operating System | Microsoft® Windows® 7/8/8.1/10/11(32 & 64 bit) OSx(Mac OS X) Linux | |||||||||||||||
| PC Requirements | CPU: Equal to Intel Core2 2.8GHz or Higher, Memory: 4GB or More, USB Port: USB2.0 High-speed Port, Display: 19” or, CD-ROM Larger |
|||||||||||||||
| Operating Temp. | -10° ~ 50°C | |||||||||||||||
| Storage Temp. | -20°~ 60°C | |||||||||||||||
| Operating Humidity | 30~80%RH | |||||||||||||||
| Storage Humidity | 10~60%RH | |||||||||||||||
| Power Supply | DC 12V/2A Adaptor | |||||||||||||||
