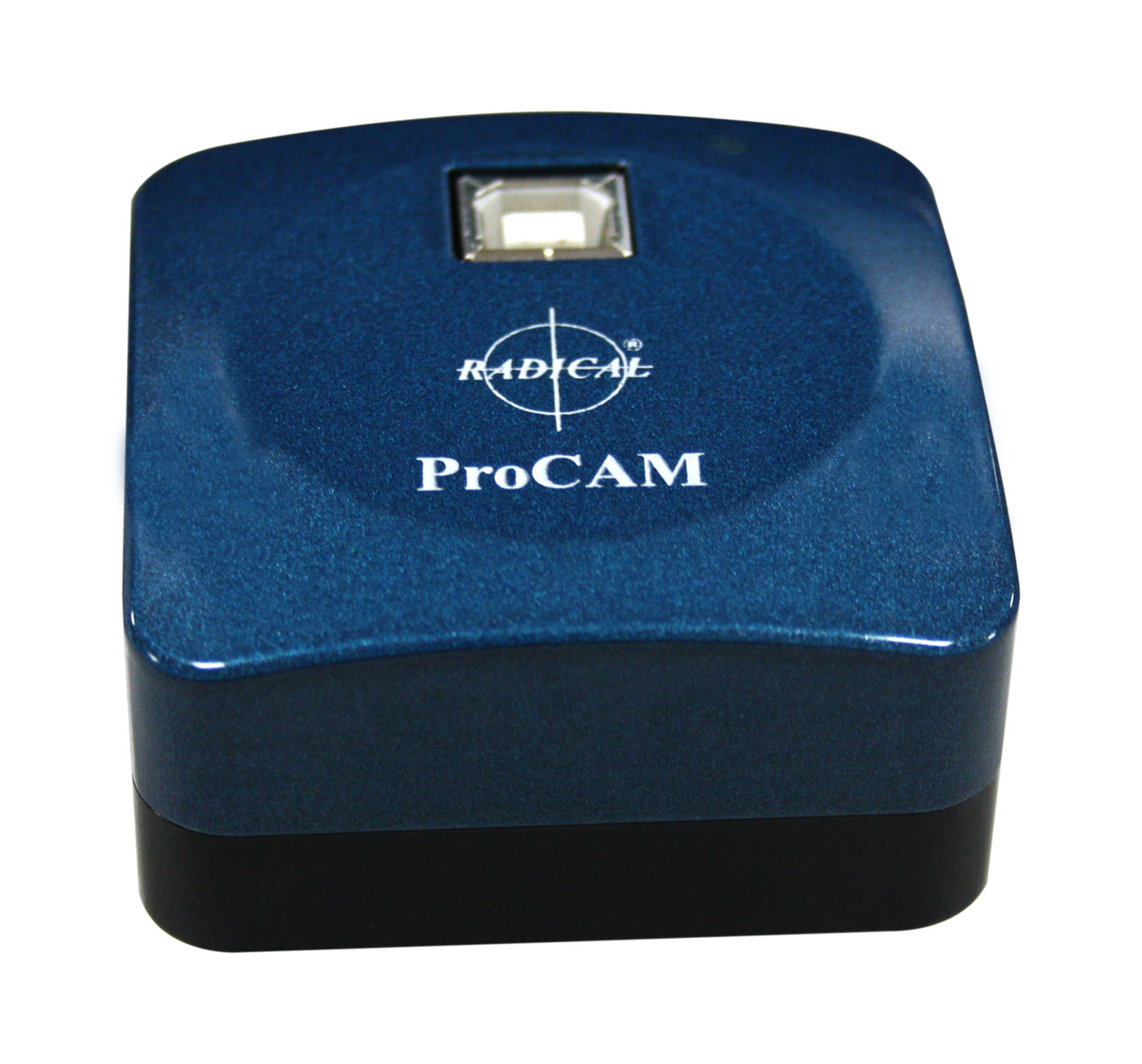

CCD HST-B Cameras
Equipped with USB-3 these cameras are particularly remarkable for their fast live images, short reaction times, high resolution and clear contrast. These cameras support all contrasting methods including Differential Interference Contrast (DIC), Phase Contrast (PH), and Bright field (BF), Fluorescence. Camera colour reproduction perfectly matches all kinds of staining procedures.
| Model | ProCAM HST-B 1.4MP | ProCAM HST-B 5MP | ProCAM HST-B 6MP | ProCAM HST-B 16MP |
|---|---|---|---|---|
| Sensor Size | 1/2" | 1/2.5" | 1" | 4/3" |
| Pixel Size | 4.65µm x 4.65µm | 2.2µm x 2.2µm | 5.0µm x 5.0µm | 3.8µm x 3.8µm |
| Resolution/Frame Rate (Live, Capture & Record) |
1360x1024:15FPS 1280x720(ROI)*25FPS 680x512:28FPS Any Area ROI |
2560x1922 : 14.2FPS 1280x960 : 38.3FPS 640x480 : 101.2FPS Any Area (ROI) |
2748x2200 : 7.5FPS 2748x1092 : 14FPS Any Area (ROI) |
4648x3506 : 6.0FPS 2304x1750 : 15.0FPS 1536x1168 : 30.0FPS Any Area (ROI) |
| Sensitivity | 400mV-1/30s 16mv with 1/30s |
1.76v/lux-sec 67.74dB 38.5dB |
1000mv with 1/30s 8mv with 1/30s |
R: 1315LSB Gr: 2413LSB Gb: 2413LSB B: 1042LSB |
| Exposure Time | 0.127ms~60s | 0.1ms~2000ms | 0.06ms~1000s | 0.06ms~15s |
| Dynamic Range | 60 | |||
| ADC | 14 bit | |||
| Image Data Format | 8/12/14 bit | |||
| Spectral Range (nm) | 400nm-1000nm (with infrared filter) | |||
| Binning | 1x1,2x2,3x3,4x4 | |||
| Shutter | Global | |||
| Scanning Mode | Progressive Scan | |||
| Programable Control |
Image resolution, image mode, brightness, contrast, exposure time, gain, GAMMA, RGB gain, saturation, sharpness, frame/sec (speed) |
|||
| Capture/Control API | Native C/C++, C#/VB.NET, Directshow, Twain, Labview | |||
| Cooling | Peltier's cooling optional | |||
| Exposure Control | Manual/Auto/Area | |||
| White Balance | Manual/One time/Auto/Area | |||
| Software Interface | Radical ProCAM capture & measurement software (supports direct show/TWAIN) | |||
| Operating System | Windows 7/8/10/11 (32bit/64bit) | |||
| Data Interface/ Rated Voltage |
USB3.0 (B Type) Power 5V via USB/> 2.5W | |||
| Lens Mount | 0.66X C Mount for 2/3" Sensor & 0.5X C mount for ½" sensor | |||
| Dimensions/Weight | 100.8mm×90mm×48.7mm/Aprox. 620g | |||
| Temp/Humidity | Operation: 0~50°C /storage: -20°C ~ 60°C/ working: 10%~90% RH (No condensation) 10% ~ 60%RH | |||
