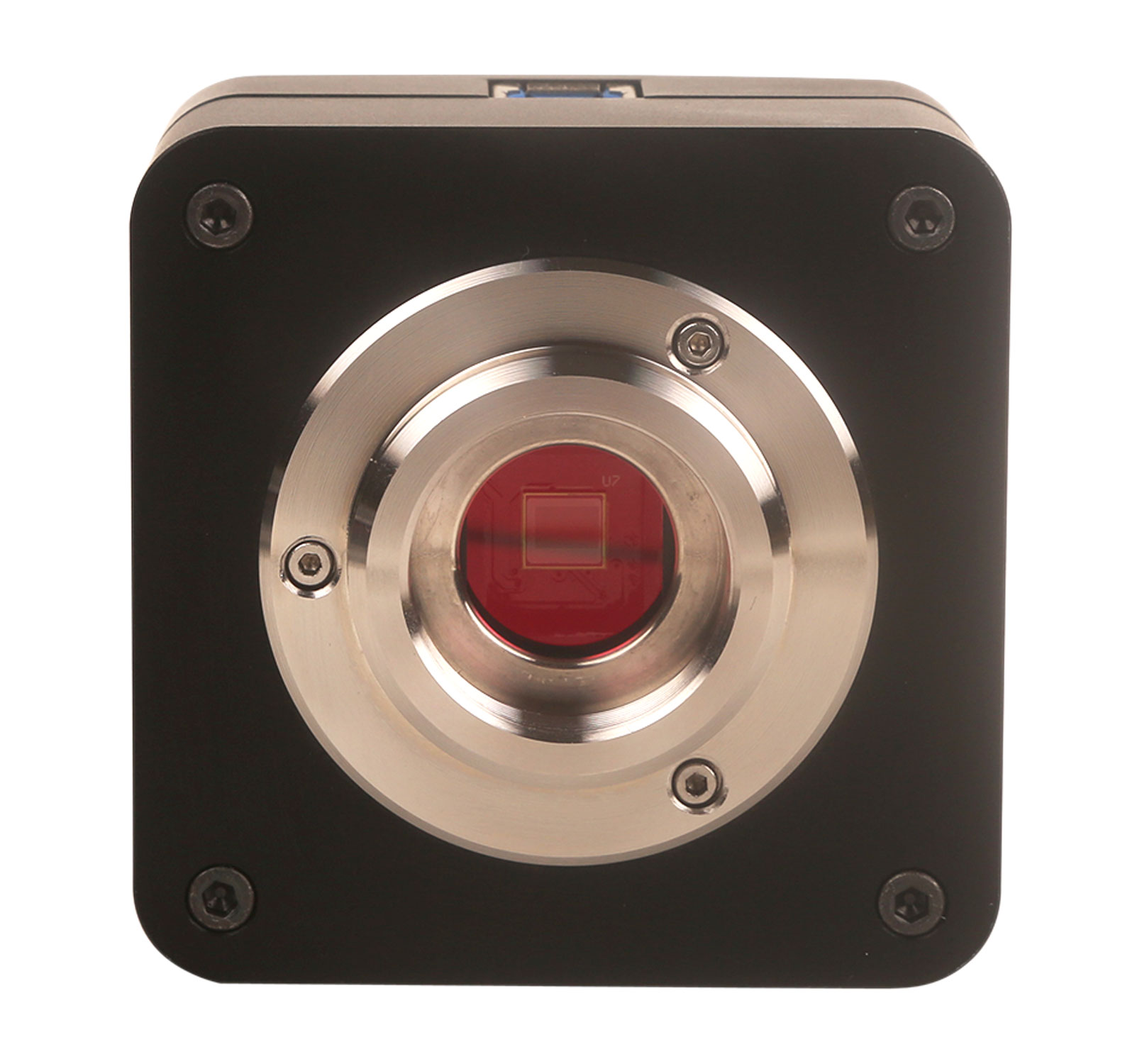

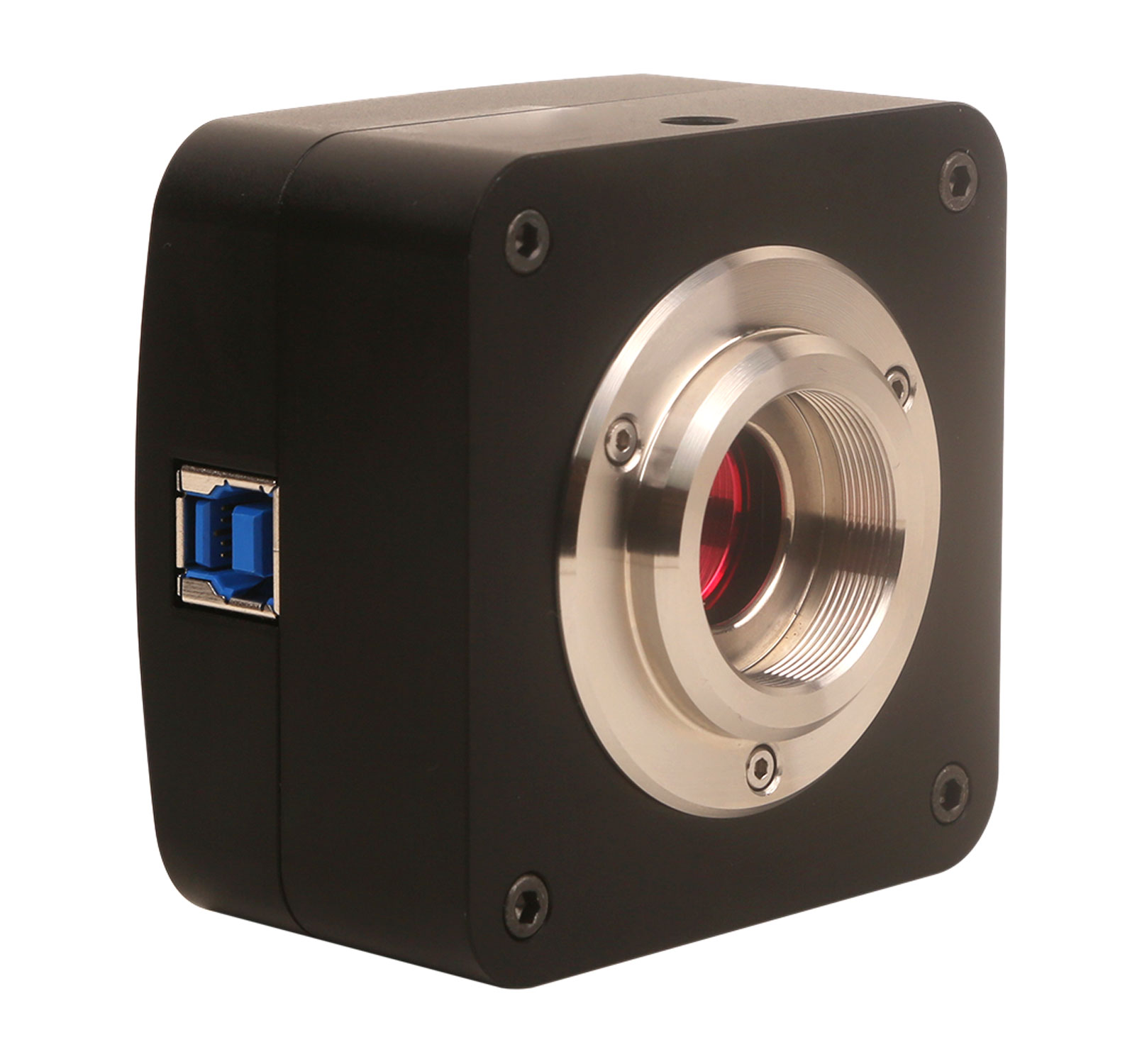

CMOS HSR Series
Our new generation USB3.0 cameras, with big array and high frame rates; With high sensitivity , ultra-low power consumption and super low noise output, real color reproduction and high image quality in various environment and color temperature.
With high sensitivity ,widely used in microscopy imaging, material analysis, medical inspection, police forensics, teaching and research applications etc.
| Model | Sensor Size | Pixel Size | Resolution/Frame Rate (Live, Capture & Record) |
Exposure Time | Sensitivity | Quantum Efficiency | Dynamic Range | SN Ratio | Spectral Range(nm) |
|---|---|---|---|---|---|---|---|---|---|
| ProCAM HSR-5 |
5.0MP 1/2.8" CMOS (Colour/Mono) |
2.0µm x 2.0µm | 2560x1920: 30FPS 1600x1200: 50FPS Any Area (ROI) |
0.1ms~2s | 18.8ke-/lux 73dB 40dB |
Upto 80% at 500nm | 75dB | 46dB | 380nm ~ 1050nm (with infrared filter) |
| ProCAM HSR-5.1 |
5.1MP 1/1.8" CMOS (Colour/Mono) |
2.74µm x 2.74µm | 2472x2064: 56FPS Any Area (ROI) |
0.29ms~2000ms | 425mv with 1/30s 0.15mv with 1/30s |
Upto 80% at 500nm | 66.5dB | 40.5dB | 380nm ~ 650nm (with infrared filter) |
| ProCAM HSR-5.2 |
5.2MP 2/3" CMOS (Colour/Mono) |
3.45µm x 3.45µm | 2510x2084: 36FPS 1224x1024: 40FPS 1024x768: 45FPS Any Area (ROI) |
0.1ms~30s | 1146mv with 1/30s 0.15mv with 1/30s |
Upto 80% at 500nm | 66.5dB | 40.5dB | 380nm ~ 650nm (with infrared filter) |
| ProCAM HSR-6 |
6.0MP 1/1.8" CMOS (Colour/Mono) |
2.4µm x 2.4µm | 3072x2048: 59FPS 1920x1080: 59FPS 1440x1024: 30FPS 640x480: 70FPS Any Area (ROI) |
1µs~30s | 425mv with 1/30s 0.15mv with 1/30s |
Upto 65% at 500nm | 75dB | 46dB | 380nm ~ 1050nm (with infrared filter) |
| ProCAM HSR-9 |
9MP 1" CMOS (Colour/Mono) |
3.45µm x 3.45µm | 4096×2160: 34FPS 4104x2174: 34FPS 3840x2160: 32FPS (4K) 2048×1080: 60FPS 1920x1080: 64FPS Any Area (ROI) |
0.02ms~15s | 1146mv with 1/30s 0.15mv with 1/30s |
Upto 80% at 500nm | |||
| ProCAM HSR-10 |
10MP 1/2.3" CMOS (Colour/Mono) |
1.67µm x 1.67µm | 3584x2748: 7.2FPS 1920x1080: 15FPS 1792x1374: 24.5FPS 896x684: 38FPS Any Area (ROI) |
0.3ms~2000ms | 0.34v/lux-sec at 550nm | Upto 75% at 500nm | |||
| ProCAM HSR-12 |
12.0MP 1" CMOS (Colour) |
3.1µm x 3.1µm | 4088x3072(full): 5FPS Any Area ROI |
100µs-10s | 1146mv with 1/30s 0.1mv with 1/30s |
Upto 80% at 500nm | |||
| ProCAM HSR-16 |
16MP 1/2.3" CMOS (Colour) |
1.34µm x 1.34µm | 4608x3456(full): 12FPS AnyArea ROI |
95µs-10ms | 388mv with 1/30s 0.21mv with 1/30 |
||||
| ProCAM HSR-20 |
20MP 1/1.2" CMOS (Colour) |
5.86µm x 5.86µm | 5760x3600:15FPS 1920x1200:60FPS 960x600:60FPS Any Area ROI |
39µs-60s | 462mv with 1/30s 0.21mv with 1/30s |
||||
| ProCAM HSR-20M |
20MP 1/1.2" CMOS (Colour) |
5.4µm x 5.4µm | 5760x3600:15FPS 1920x1080:60FPS 960x600:60FPS Any Area (ROI) |
39µs-60s | 462mv with 1/30s 0.21mv with 1/30s |
380 nm ~ 720nm (with infrared filter) | |||
| ISO Sensitivity | ISO 50 to ISO 3200 | ||||||||
| Gain | 1x to 251X | ||||||||
| Full Well Capacity | 14000e | ||||||||
| Binning | 1X1, 2X2, 3X3, 4X4 | ||||||||
| Shutter | Electronic Rolling shutter/Global shutter | ||||||||
| Image Data Format | 12 bit RAW Format (12x3=36 bit RGB) color filter RGB bayer | ||||||||
| Image Format | 4/3 | ||||||||
| Shading | Manual/Auto | ||||||||
| Readout Noise | 12 e- | ||||||||
| Shading | Manual/Auto | ||||||||
| AD Conversion | 8/12 bit | ||||||||
| Picture Format | JPEG/BMP/PNG/RAW | ||||||||
| Colour rendering technique | Ultra fine colour engine | ||||||||
| Exposure Correction | Average metering: ±1EV, Step:1/6EV | ||||||||
| Image Processing | GAMMA/Contrast/Black Level/Noise Reduction/3D Noise Reduction/Sharpness/ Saturation | ||||||||
| Scanning Mode | Progressive Scan | ||||||||
| Operating Mode | Continuous Output | ||||||||
| Exposure Control | Manual /Auto /Area | ||||||||
| Capture/Control API | Native C/C++, C#, Directshow, Twain, Labview, SDK | ||||||||
| Cooling | Natural/Peltier fan/passive cooling | ||||||||
| IR Filter Range | 380-650nm (IR Cut) | ||||||||
| White Balance | Manual/One-Time/Auto | ||||||||
| Software interface | Radical ProCAM Capture & Measurement Software (Supports Direct Show /TWAIN) | ||||||||
| Operating System | Windows 7/8/10/11 (32 & 64 bit) OS X (Mac OS X), Linux | ||||||||

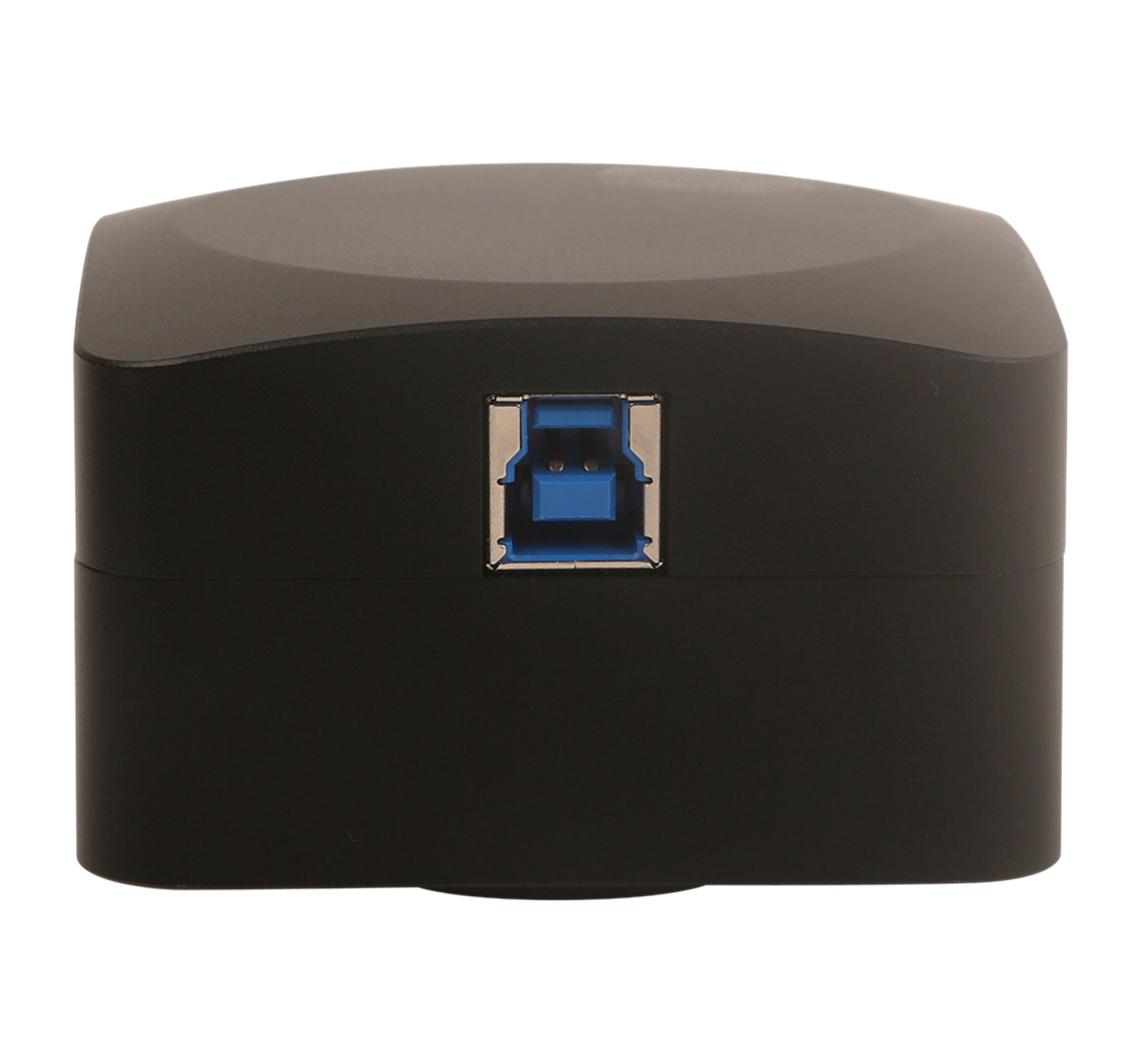

| Data Interface | USB 2.0/3.0/3.1/3.2 & HDMI1.4 (B Type), with 2.5 cable, LV-TV Tube adopter, image capture button on microscope body/Trigger/though single mouse click. | ||||||||
| Lens Mount | 0.5X/0.6X/C/CS Mount, Compatible C-Mount with microscope & sizing adapter tube | ||||||||
| Technology | On-sensor light guide technology for reducing scattering of light inside the senor | ||||||||
| Dimensions/Weight | Metallic square body 58mm, height 36mm/(Exclude Lens Mount)/Approx. 180g | ||||||||
| Rated Voltage/Power | 5V via USB | ||||||||
| Temperature/Humidity | Operation: 0~60°C /storage: -20°C ~ 60°C/ Working: 10%~90% RH (No Condensation) 10% ~ 60% | ||||||||
| LED Pilot Light | RH Light Once Plugged/flashing while working | ||||||||
| Interval Shooting* | 10sec-6hrs. | ||||||||
| In- built Display* | Camera can optionally have the 8.4 inch Built-in TFT /LCD sceen(1024 X 768) to view images and control camera functions like zoom upto 16X, time lapse imaging up to 24 hrs, image enhancement featuers like contrast, brightness, white balance, Gamma, shading, black level, hue, saturation etc. | ||||||||

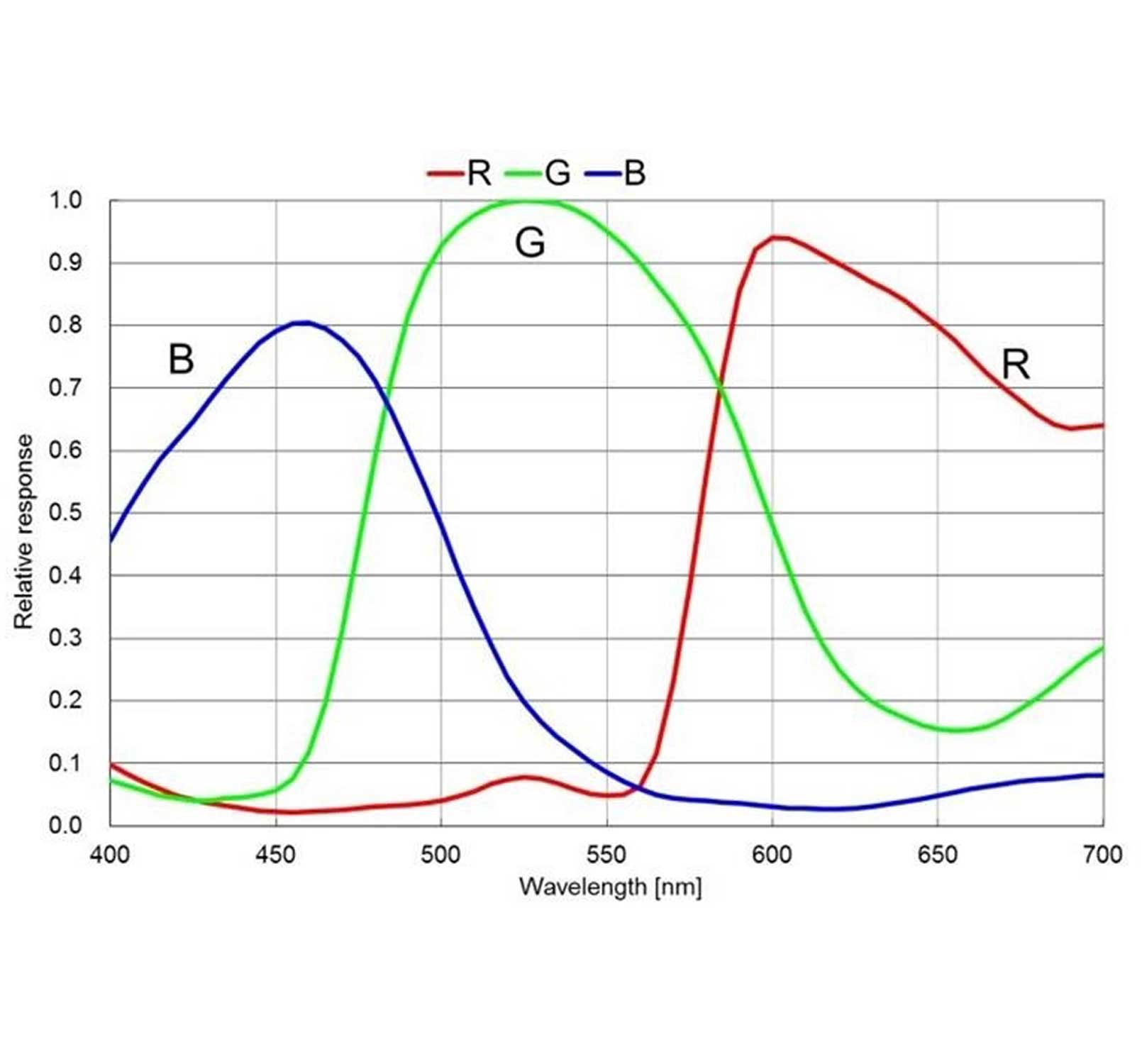

| Quantum Efficiency Graph |  |
||||||||
