CMOS HST Series

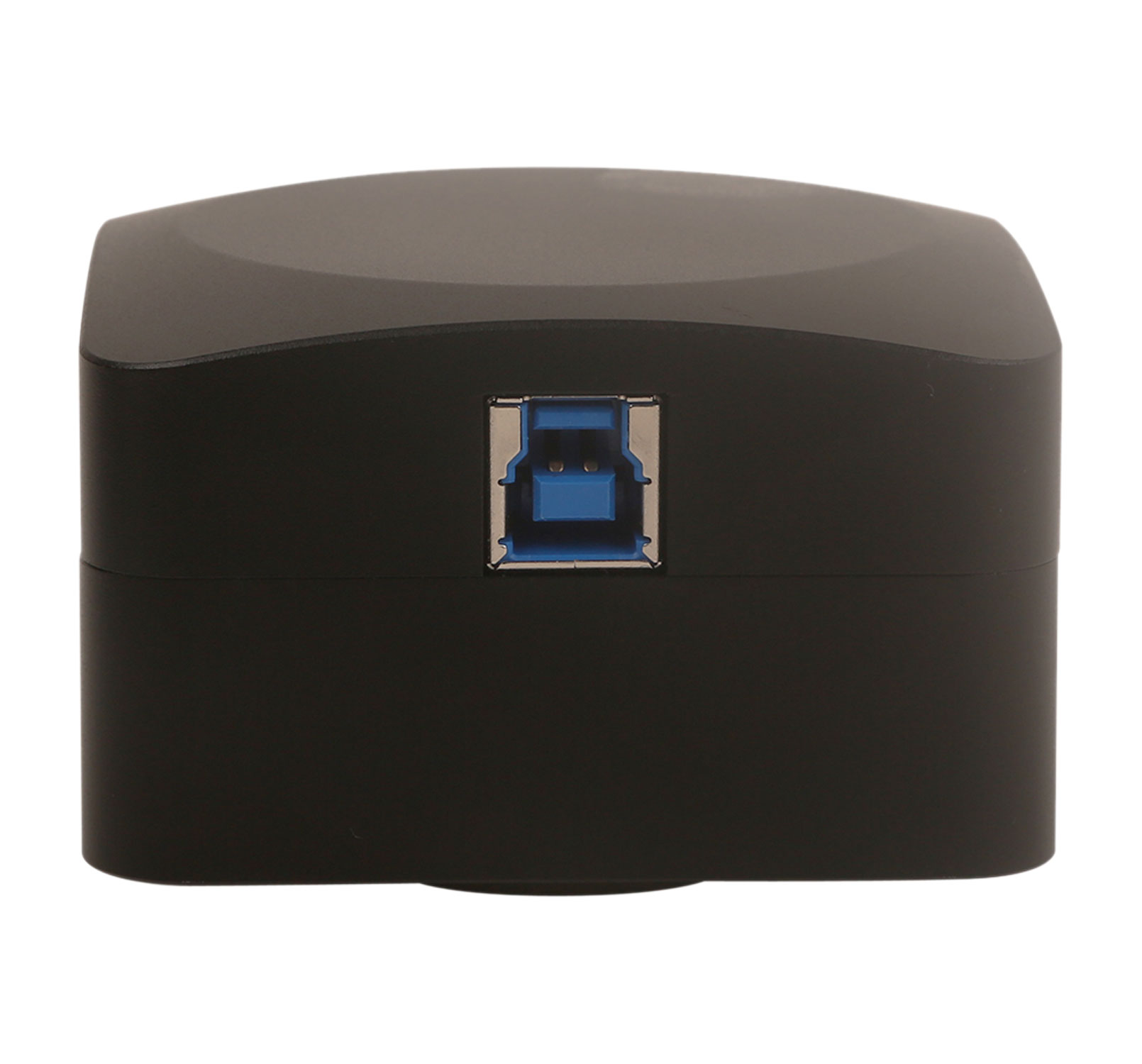

Standard C-Mount camera with CMOS sensor With hardware resolution among 1.5MP to 45MP. Integrated zinc aluminum alloy housing. USB3.0 5Gbps interface ensuring high speed data transmission. Ultra-Fine color engine with perfect color reproduction capability. With advanced video & image processing application Providing Windows/Linux/OSX multiple platform SDK. Native C/C++, C#, DirectShow, Twain Control API.
| Model | Pixels | Sensor Size | Pixel Size | Resolution/Frame Rate (Live, Capture & Record) |
Exposure Time | Sensitivity |
|---|---|---|---|---|---|---|
| ProCAM HST-1.5 | 1.5MP (Colour/mono) |
1/2.9" (4.968mmX3.726mm) |
3.45µmX3.45µm | 1440x1080:164FPS 720x540:320FPS Any Area (ROI) |
0.1ms~15s | 1146mv with 1/30s 0.15mv with 1/30s |
| ProCAM HST-2 | 2MP (Colour) |
1/2" (7.2mmX4.05mm) |
3.75µmX3.75µm | 1920x1080:125FPS Any Area (ROI) |
0.1ms~15s | 2350mv with 1/30s 0.15mv with 1/30s |
| ProCAM HST-2.1 | 2.1MP (Colour) |
1/1.2" (11.14mmX6.26mm) |
5.8µmX5.8µm | 1920x1080: 96FPS Any Area (ROI) |
14us~15s | 8935mv with 1/30s 0.6mv with 1/30s |
| ProCAM HSTC-2.3 | 2.3MP (Colour/mono) |
1/1.9" (7.20mmX4.50mm) |
3.75µmX3.75µm | 1920x1200: 38FPS 960x600: 66FPS Any Area (ROI) |
0.244ms~2000ms | 1120mv with 1/30s |
| ProCAM HST-2.3 | 2.3MP (Colour/mono) |
1/1.2" (11.25mmX7.03mm) |
5.86µmX5.86µm | 1920X1200: 30FPS 1920X1080: 65FPS Any Area (ROI) |
0.244ms~2000ms | 1016mv with 1/30s 0.15mv with 1/30s |
| ProCAM HST-3.1/3.0 | 3.1MP (Colour/mono) |
1/1.8" | 3.45µmX3.45µm | 2112x1584: 60FPS 1024x768: 85FPS Any Area (ROI) |
0.1ms~15s | 1146mv with 1/30s 0.15mv with 1/30s |
| ProCAM HST-3.5 | 3.5MP (Colour/mono) |
1/2.5" | 2.60µmX2.60µm | 2304x1536: 40FPS 1152x768: 40FPS Any Area (ROI) |
25µs~2s | 3.0V/lux-sec |
| ProCAM HST-5 | 5.0MP (Colour/mono) |
2/3" (8.45mmX7.07mm) |
3.45µmX3.45µm | 2448x2048: 36FPS 1224x1024: 50FPS Any Area (ROI) |
0.1ms~30s | 1146mv with 1/30s 0.15mv with 1/30s |
| ProCAM HST-5M | 5.0MP (Monochrome) |
2/3" (8.45mmX7.07mm) |
3.45µmX3.45µm | 2448x2048: 15FPS 1224x1024: 60FPS Any Area (ROI) |
0.1ms~60s | 915mv with 1/30s 0.15mv with 1/30s |
| ProCAM HST-5A | 5.1MP (Colour/mono) |
1/2.8“ (5.18mmX3.89mm) |
2.0µmX2.0µm | 2592x1944: 20FPS 1296x972: 40FPS Any Area (ROI) |
0.1ms~2000ms | 505mV 70dB 43dB |
| ProCAM HST-5.1 | 5.1MP (Colour/mono) |
2/3" (8.45mmX7.07mm) |
3.45µmX3.45µm | 2592x1944: 30FPS 2464x2056: 36FPS 2048x2048: 36FPS 1920x1080: 67FPS 1024x1024: 70FPS 640x480: 30FPS 512x512: 136FPS 128x128: 456FPS Any Area (ROI) |
0.1ms~60s | 915mv with 1/30s 0.15mv with 1/30s |
| ProCAM HST-5.1A | 5.1MP (Colour/mono) |
1/1.8" (8.45mmX7.07mm) |
2.74µmX2.74µm | 2448x2048: 63FPS 1224x1024: 208.4FPS Any Area (ROI) |
0.03ms~15s | 1337mv with 1/30s 0.15mv with 1/30s |
| ProCAM HST-5.1B | 5.1MP (Colour/mono) |
1/1.8" (8.45mmX7.07mm) |
3.45µmX3.45µm | 2448x2048: 75FPS 1224x1024: 208.4FPS Any Area (ROI) |
0.03ms~15s | 1337mv with 1/30s 0.15mv with 1/30s |
| ProCAM HST-6 | 6.3MP (Colour/mono) |
1/1.8" (7.37mmX4.92mm) |
2.4µmX2.4µm | 3072x2048: 59FPS 2560x1920: 59FPS 1920x1080: 60FPS 1536x1024: 59FPS 1440x1024: 59FPS 640X480: 70FPS Any Area (ROI) |
13µs~30s | 425mv with 1/30s 0.15mv with 1/30s |
| ProCAM HST-8 | 8.3MP Colour |
1/1.8" (7.68mmX4.32mm) |
2.0µmX2.0µm | 3840x2160: 35FPS 1920x1080: 65FPS Any Area (ROI) |
0.02ms~15s | 505mv with 1/30s 0.15mv with 1/30s |
| ProCAM HST-8A | 8.3MP Colour/Mono |
1/1.2" (11.14mmX6.26mm) |
2.9µmX2.9µm | 3840x2160: 45FPS 1920x1080: 70FPS Any Area (ROI) |
0.02ms~15s | 2188mv with 1/30s 0.15mv with 1/30s |
| ProCAM HST-8D | 8.3MP Colour/Mono |
1/2.5" (6.22mmx3.50mm) |
1.62µmx1.62µm | 3840x2160: 32FPS 1920x1080: 65FPS Any Area (ROI) |
0.244ms~15s | 236mv with 1/30s 0.1mv with 1/30s |
| ProCAM HST-8L | 8.0MP Colour |
1.15" (13.00mmX13.00mm) |
4.63µmX4.63µm | 2808x2808: 30FPS(14bit) 1392x1392: 139FPS 696x696: 139FPS Any Area (ROI) |
0.1ms~15s | 419mv with 1/30s 0.12mv with 1/30s |
| ProCAM HST-9 | 9.0MP Colour |
1" (11.31mmX11.28mm) |
3.76µmX3.76µm | 3008x3000: 40FPS 1488x1500: 123FPS 992x998: 186FPS Any Area (ROI) |
0.1ms~15s | 535mv with 1/30s 0.04mv with 1/30s |
| ProCAM HST-9A | 9.0MP Colour |
1" (14.13mmX7.45mm) |
3.76µmX3.76µm | 4100x2160: 34FPS 3840x2160: 34FPS 2048x1080: 64FPS Any Area (ROI) |
0.03ms~15s | 1146mv with 1/30s 0.15mv with 1/30s |
| ProCAM HST-9B | 9.0MP Colour |
1" (11.31mmX11.28mm) |
3.45µmX3.45µm | 3840x2160: 32FPS 1920x1080: 64FPS Any Area (ROI) |
0.02ms~15s | 1146mv with 1/30s 0.15mv with 1/30s |
| ProCAM HST-10 | 10MP (Colour/mono) |
1/2.3" (5.98mmX4.58mm) |
1.67µmX1.67µm | 3584x2748: 7.2FPS 1920x1080: 15FPS 1792x1372: 25FPS 896x684: 30FPS Any Area (ROI) |
0.3ms~2000ms | 0.34v/lux-sec at 550nm |
| ProCAM HST-10A | 10MP (Colour/mono) |
1/2.3" (5.68mmX4.26mm) |
1.5µmX1.5µm | 3664x2748: 8.5FPS 2048x1536: 20.8FPS 1920x1200: 30FPS 1832x1374: 49FPS 912x686: 137FPS Any Area (ROI) |
0.1ms~2000ms | 250mv with 1/30s 0.25mv with 1/30s |
| ProCAM HST-12 | 12MP (Colour/mono) |
1/1.7" | 1.85µmX1.85µm | 4000x3000: 7.1FPS 3000x2000: 28FPS 2048x1080: 30FPS Any Area (ROI) |
0.1ms~2000ms | 280mv with 1/30s 0.1mv with 1/30s |
| ProCAM HSTF-12 | 12MP (Colour/mono) |
1/1.7" | 1.85µmX1.85µm | 4000x3000: 30FPS 2048x1080: 50FPS Any Area (ROI) |
0.1ms~15s | 280mv with 1/30s 0.1mv with 1/30s |
| ProCAM HST-14 | 14MP (Colour) |
1/2.3" | 1.4µmX1.4µm | 4096x3286: 6.2FPS 2048x1644: 20.8FPS 1920x1080: 31FPS 1024x822: 53.3FPS Any Area (ROI) |
0.4ms~2000ms | 0.724v/lux-sec |
| ProCAM HST-16 | 16MP (Colour/mono) |
1/2.33" | 1.33µmX1.33µm | 4648x3506: 10FPS 2304x1750: 15.0FPS 1536x1168: 28.0FPS Any Area (ROI): 50FPS at ROI |
100µ-30s | 0.53 V/lux-sec |
| ProCAM HST-LD 16 | 16MP (Colour) |
4/3" | 3.85µmx3.85µm | 4648x3506: 22FPS 2304x1750: 43FPS 1536x1168: 49FPS Any Area (ROI) |
0.2ms~15s | 0.53 V/lux-sec |
| ProCAM HST-18 | 18MP (Colour/mono) |
1/2.3" (6.14mm x 4.61mm) |
1.25µmX1.25µm | 4912x3684: 5.6FPS 2456x1842: 18.1FPS 1920x1080: 31FPS 1228x922: 32.2FPS Any Area (ROI) |
10µs~2 Sec | 0.62 V/lux-sec |
| ProCAM HSTF-18 | 18MP (Colour) |
1/2.2" (5.86mmX4.46mm) |
1.25µmX1.25µm | 4880x3720: 17FPS 2448x1836: 40FPS 1728x1296: 55FPS Any Area (ROI) |
0.1ms~15s | 130mv with 1/30s 0.10mv with 1/30s |
| ProCAM HST-20 | 20MP (Colour/mono) |
1" (13.06mmX8.76mm) |
2.4µmX2.4µm | 5440x3648:15FPS 4912x3684: 20FPS 3840x2160: 25FPS 2736x1824: 50FPS 3072x2048: 59FPS 1824x1216: 60FPS 1920x1080: 64FPS Any Area (ROI) |
22µs~30s | 462mv with 1/30s 0.21mv with 1/30s |
| ProCAM HST-21 | 21MP (Colour) |
4/3" (17.40mmX13.00mm) |
3.3µmX3.3µm | 5280x3954: 17FPS 3952x3952: 17FPS 2640x1976: 56FPS 1760x1316: 67FPS 584x438: 192FPS Any Area (ROI) |
0.1ms~15s | 399mv with 1/30s 0.1mv with 1/30s |
| ProCAM HST-32 | 32MP (Colour) |
1.1" (12.96mmX12.96mm) |
2.3µmX2.3µm | 5600x5600: 8.1FPS 2800x2800: 30.0FPS 1400x1400: 30.0FPS Any Area (ROI) |
0.1ms~15s | 419mv with 1/30s 0.03mv with 1/30s |
| ProCAM HST-45 | 45MP (Colour) |
1.4" ((18.93mmX13.00mm) |
2.3µmX2.3µm | 8176x5616: 8.1FPS 4088x2808: 30.0FPS 7408x5556: 8.1FPS 4088x2808: 33.0FPS 8176x4320: 10.4FPS 4096x2160: 34.7FPS 2048x1080: 62.5FPS 1360x720: 86.5FPS Any Area (ROI) |
0.1ms~15s | 419mv with 1/30s 0.03mv with 1/30s |
| Gain | Upto 25X | |||||
| Dynamic Range | 75dB | |||||
| Full Well Capacity | 14000e | |||||
| SN Ratio | 46dB | |||||
| Binning | 1x1, 2x2, 3x3, 4x4 | |||||
| Capture/Control API | Native C/C++, C#/VB.NET, Directshow, Twain, Labview, SDK | |||||
| Cooling | Natural/Peltier fan/passive cooling (optional) | |||||
| IR Filter Range | 380-650nm (IR Cut) | |||||
| Spectral Range(nm) | 380 nm ~ 720nm (with infrared filter) | |||||
| Shutter | Electronic rolling shutter (Global shutter optional) | |||||
| Image Data Format | 12 bit RAW Format (12x3=36 bit RGB) color filter RGB bayer | |||||
| Shading | Manual/Auto | |||||
| AD Conversion | 10/32/64bit | |||||
| Readout Noise | 12 e- | |||||
| Operating Mode | Continuous output | |||||
| Scanning Mode | Progressive Scan | |||||
| Exposure Control | Manual/Auto/Area | |||||
| White Balance | Manual/One time/Auto/Area | |||||
| Image Processing | GAMMA/Contrast/Black Level/Noise Reduction/3D Noise Reduction/Hue Wheel variation/Sharpness/Saturation | |||||
| Quantum Efficiency | Upto 80% at 500nm | |||||
| Picture Format | JPEG/BMP/PNG/RAW/TIFF | |||||
| Colour rendering technique | Ultra fine colour engine | |||||
| Exposure Correction | Average metering: ±1EV, Step:1/6EV | |||||
| Software interface | Radical ProCAM Software | |||||
| Operating System | Windows 7/8/10/11 (32 & 64 bit) OS X (Mac OS X), Linux | |||||
| Data Interface | USB 3/3.1 (B Type), with 2.5 cable, LV-TV Tube adopter, image capture button on microscope body/Trigger/ though single mouse click |
|||||
| Lens Mount | 0.55X/0.65X/1X C/CS Mount, Compatible C-Mount with microscope & sizing adapter tube | |||||
| Technology | On-sensor light guide technology for reducing scattering of light inside the senor, pixel shift technology | |||||
| Dimensions/Weight | Metallic square body 58mm, height 36mm/(Exclude Lens Mount)/Approx. 180g | |||||
| Rated Volt/Power | 5V via USB | |||||
| Temp./Humidity | Operation:-10~60°C / storage: -20°C ~ 60°C / Working: 10%~90% RH (No Condensation) 10% ~ 60% | |||||
| ISO Sensitivity | ISO 50 to ISO 3200 | |||||
| In- built Display | Camera can optionally have the 8.4 inch Built-in TFT /LCD sceen(1024 X 768) to view images and control camera functions like zoom upto 16X, time lapse imaging up to 24 hrs, image enhancement featuers like contrast, brightness, white balance,Gamma, shading,black level, hue, saturation etc. | |||||
