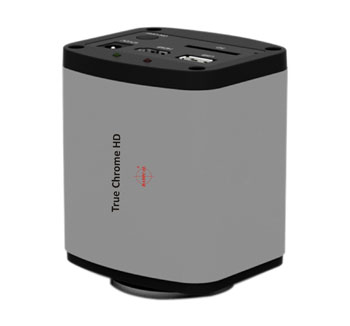

CMOS HDMI Truechrome HD
This standalone HDMI scientific imaging solution offers users a 1080p, 60 frame per second live preview with perfect color reproduction streaming directly to a monitor. The HDMI camera can be operated by connecting directly to a monitor without the need for a PC. Images can be captured and saved to the included microSD card, or the camera can be used as a standard USB 2.0/3.0 camera. The HDMI camera reacts to lighting changes in any life science, clinical or material applications. With video output via an HDMI connection, the on-camera buttons allow for easy access to features and settings.
| Model | Pixel | Sensor | Pixel Size | Live Resolution | Image Capture Resolution | Resolution/Frame Rate (Live, Capture & Record) |
Exposure Time |
|---|---|---|---|---|---|---|---|
| Truechrome HD-C | 8MP | 1/1.2"(11.14x6.26) | 2.9µm x 2.9µm | 1980X1080 pixels Full HD 1080pixel@ 60FPS |
3840x2160 pixel | 3840x2160: 30FPS (HDMI) 1980x1080: 30FPS (USB2.0) 1920x1080: 60FPS (HDMI) |
0.04ms~1000ms |
| HD-C | 6MP | 1/2.8" CMOS Colour Sensor | 2.8µm x 2.8µm | 1980x1080 pixels, Full HD 1080pixel @30FPS |
3264x1840 pixels | 1920x1080: 30FPS (USB2.0) 1920x1080: 60FPS (HDMI) |
1ms-10s |
| HD-B | 6MP | 1/2.7” CMOS Sensor | 2.8µm x 2.8µm | 1980x1080 pixels, Full HD 1080pixel @60FPS |
3264x1840 pixels | 1920x1080: 30FPS (USB2.0) 1920x1080: 60FPS (HDMI) |
0.1ms-2sec |
| HD-A | 6MP | 1/2.9" CMOS Colour Sensor | 2.9µm x 2.9µm | 1980x1080 pixels, Full HD 1080pixel @30FPS |
3264x1840 pixels | 1920x1080: 30FPS (USB2.0) 1920x1080: 60FPS (HDMI) |
1ms-10s |
| HD | 6MP | 1/2.8” CMOS Sensor | 3.2µm x 3.2µm | 1980x1080 pixels, Full HD 1080pixel @60FPS |
3264x1840 pixels | 1920x1080: 30FPS (USB2.0) 1920x1080: 60FPS (HDMI) |
1.0ms-17.8Min. |
| HD Lite | 5MP | 1/2.5” CMOS Sensor (Colour/Mono) | 2.8µm x 2.8µm | 1980x1080 pixels, Full HD 1080pixel @30FPS |
2592x1944 pixels | 1920x1080: 30FPS (USB2.0) 1920x1080: 30FPS (HDMI) |
0.1µs-10Sec |
| Truechrome HD-B | 5MP | 1/2.8” CMOS Sensor | 2.4µm x 2.4µm | 1980x1080 pixels, Full HD 1080pixel @30FPS |
3072x1728 pixels | 1920x1080: 30FPS (USB2.0) 1920x1080: 60FPS (HDMI) |
1.6ms-17.8Min. |
| 3B Lite | 3.1MP | 1/2” CMOS Color Sensor | 3.4µm x 3.4µm | 1980x1080 pixels | 2048x1536 pixels | 1920x1080: 30FPS (USB2.0) 1920x1080: 30FPS (HDMI) |
|
| Sensitivity | 1300mv with 1/30s | ||||||
| Video Record | 30FPS (SD/HDMI) | ||||||
| A/D Conversion | 8/12bits | ||||||
| Colour Depth | 24(8x3) bits | ||||||
| Colour Temperature | 1800k-10000k | ||||||
| Dynamic Range | 71dB | ||||||
| SN Ratio | 40.5dB | ||||||
| Binning | 2x2, 4x4 | ||||||
| Scanning Mode | Progressive Scan | ||||||
| Spectral Range | 380-700nm IR filter | ||||||
| Exposure Mode | Auto/Manual | ||||||
| White Balance | Auto/Manual | ||||||
| Operating Tempe. | -10~60(in Cent degree) | ||||||
| Storage Tempe. | -20~70(in Cent degree) | ||||||
| Operating Humi. | 30~80%RH | ||||||
| Storage Humidity | 10~60%RH | ||||||
| Power Supply | DC 12V/1A Adaptor | ||||||
| Settings | White Balance, Gain, 3D Noise Reduction, Noise Reduction, Gamma, Exposure Time, WDR,etc | ||||||
| Output | Multiple Outputs USB 2.0/3.0, HDMI HDMI (direct display to LCD TV/ projector, directly connect your projector/ LED TV thru HDMI for projection | ||||||
| Exposure | Dual FPGA optimizes the white balance, exposure time and saturation | ||||||
| Capture Images | On Board 8GB Micro SD card/U Disk to Capture Images/Videos | ||||||
| On Board Software to work without PC/Laptop for camera control & navigation | |||||||
| Built in USB Wired/Wireless Mouse/Remote connectivity for camera control while working without PC/Laptop | |||||||
| Image Comparison, vibration fee, Image ROI Function, Cross hair, album view etc. tools: Including Zoom, Mirror, Image invert horizontal and vertical, Comparison, Freeze, Cross, Browser Function | |||||||
| USB 2.0/3.0 PC Connection to work on PC/ Laptop | |||||||
| Color Technique | Super-FineTM Color Engin | ||||||
| Recording System | Still Picture or Movie (USB)USB 2.0/3.0 PC Connection to work on PC/ Laptop | ||||||
| Capture/Control API | Standard UVC for Windows/Linux/Mac (USB) | ||||||
| Operating Support | 2D Measurement Software for WIN/MAC OS | ||||||
| Supply with | HDMI & USB cable and SD Card | ||||||
| C-mount | 0.55X | ||||||
| Screen* | Screen Feature Retina Screen,
Sensor Size 12”,
Aspect Ratio 16:09,
Display Resolution 1920×1080 Display Type IPS-Pro, Brightness 320cd/m2, Static Contrast Ratio 1000:01:00 HDMI Port 1 Type, External Adaptor, Power Supply Type 12V, 2A |
||||||
| Note | Screen is optional | ||||||
