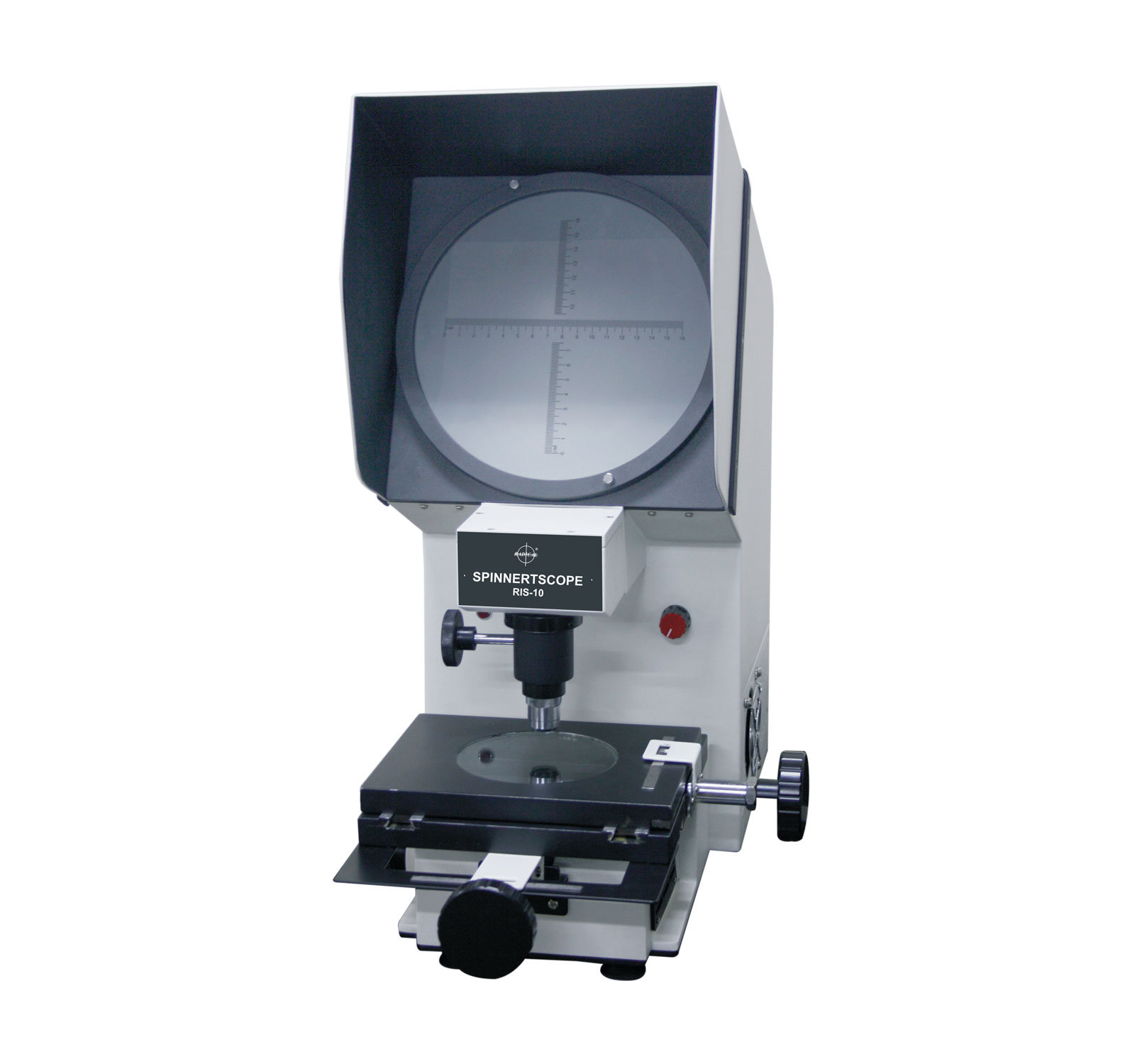

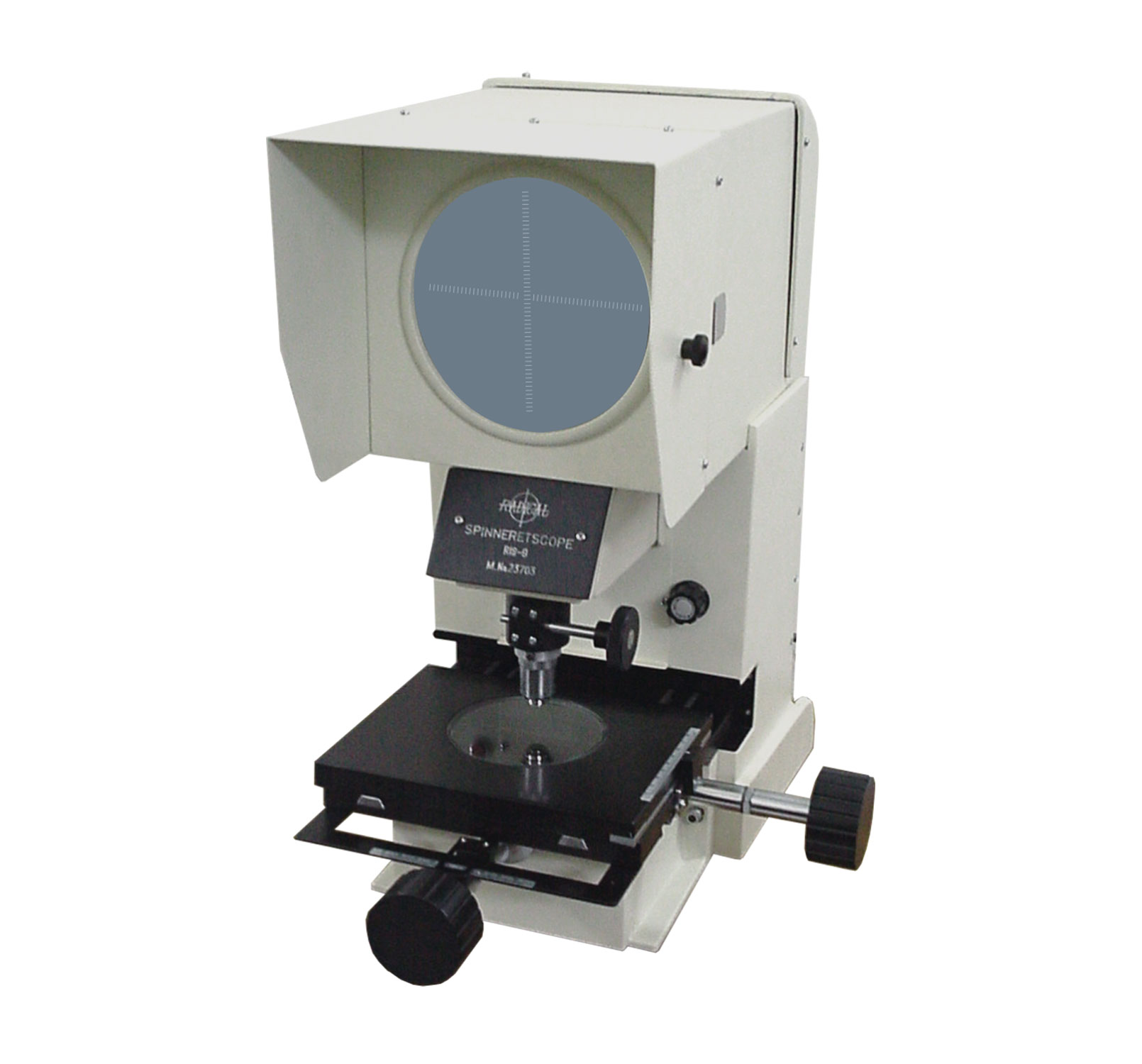

Specially designed to check the blockage in spinerts, equipped with Halogen Projection lamp 12v & 100 watts workable 220 volts mains, cooling fan provided inside the base for continuous working, arrangement for easy and convenient transverse of the spinnerts is provided both in X & Y direction.
Screen Diameter :- 150mm with graduation on X & Y axis's.
Magnification :- 50x or 100x.
Field of view :- 6mm (Focusing by Rack & Pinion).
Specially designed to check the blockage in spinerts, equipped with Halogen Projection lamp 12v & 100 watts workable 220 volts mains, cooling fan provided inside the base for continuous working, arrangement for easy and convenient transverse of the spinnerts is provided both in X & Y direction.
Screen Diameter :- 200mm with graduation on X & Y axis's.
Magnification :- 50x or 100x.
Field of view :- 6mm (Focusing by Rack & Pinion).

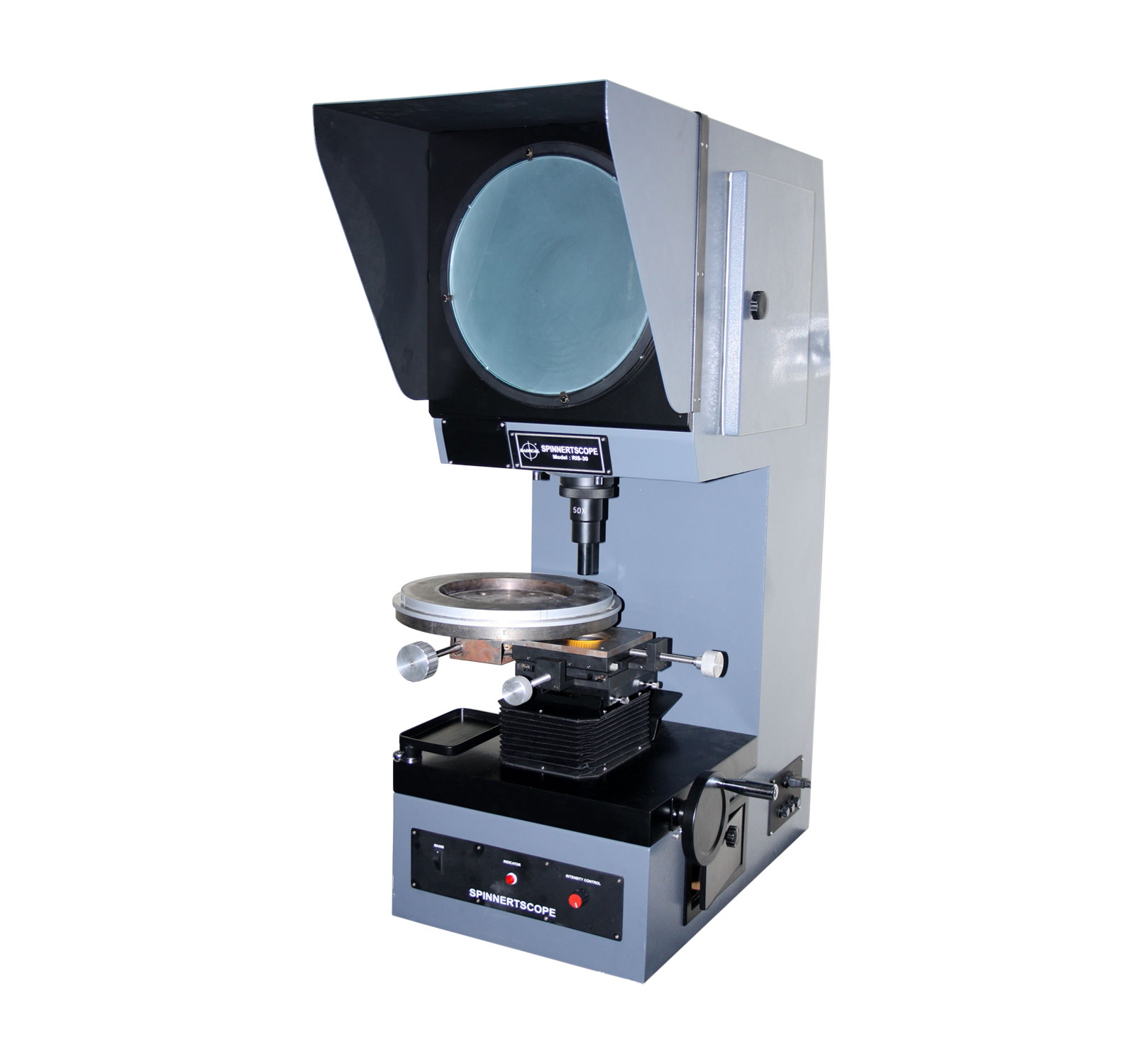

Specially designed to check the blockage in spinerts, equipped with Halogen Projection lamp 24x 150 watts workable 220 volts mains, cooling fan provided inside the base for continuous working, arrangement for easy and convenient transverse of the spinnerts is provided both in X & Y direction.
Screen Diameter :- 300mm with graduation on X & Y axis's.
Magnification :- 50x or 100x.
Field of view :- 6mm (Focusing by Worm & Worm Gear).

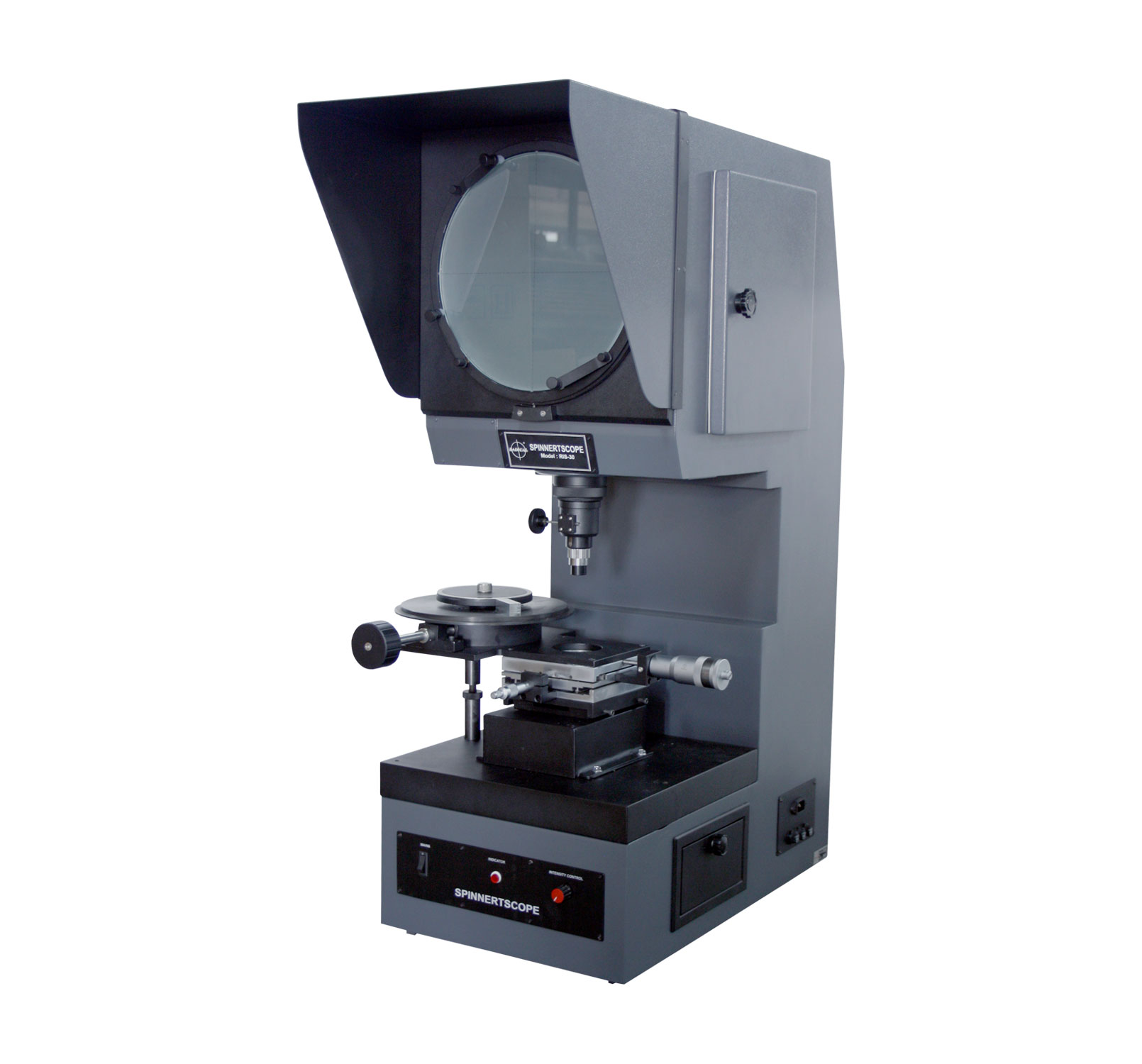

New Improved model with choice of greater magnification, X-Y movement of spinnert stage snd seasurement facility of spinnert holes. Specially designed to check the blockage in spinnerets, equipped with Halogen projection lamp of 24/150 watts workable on 220 volts mains, cooling fan provided inside the main unit for continuous working. Arrangement for easy and convenient X and Y movement of the spinnerets is provided.
| Screen Diameter | 300mm. |
|---|---|
| X-Movement | 0-50mm |
| Y-Movement | 0-25mm |
| Objectives | 50X & 100X |
| Rotary Spinnert Stage | 360° Graduated with Index Line for Zero Reset |
| Illumination | Contour |
| Filter | Built in Yellow Filter |
| Cooling | Built in Cooling Fan |
| Fuses | 5 Amp |
| Accessories | L-Key, Power Cord, Vinyl Cover, Fuses & Bulbs |

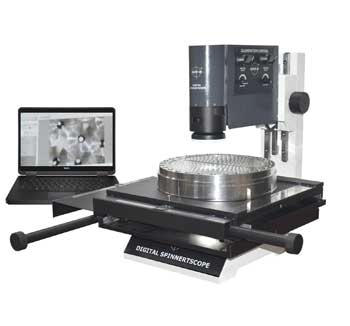

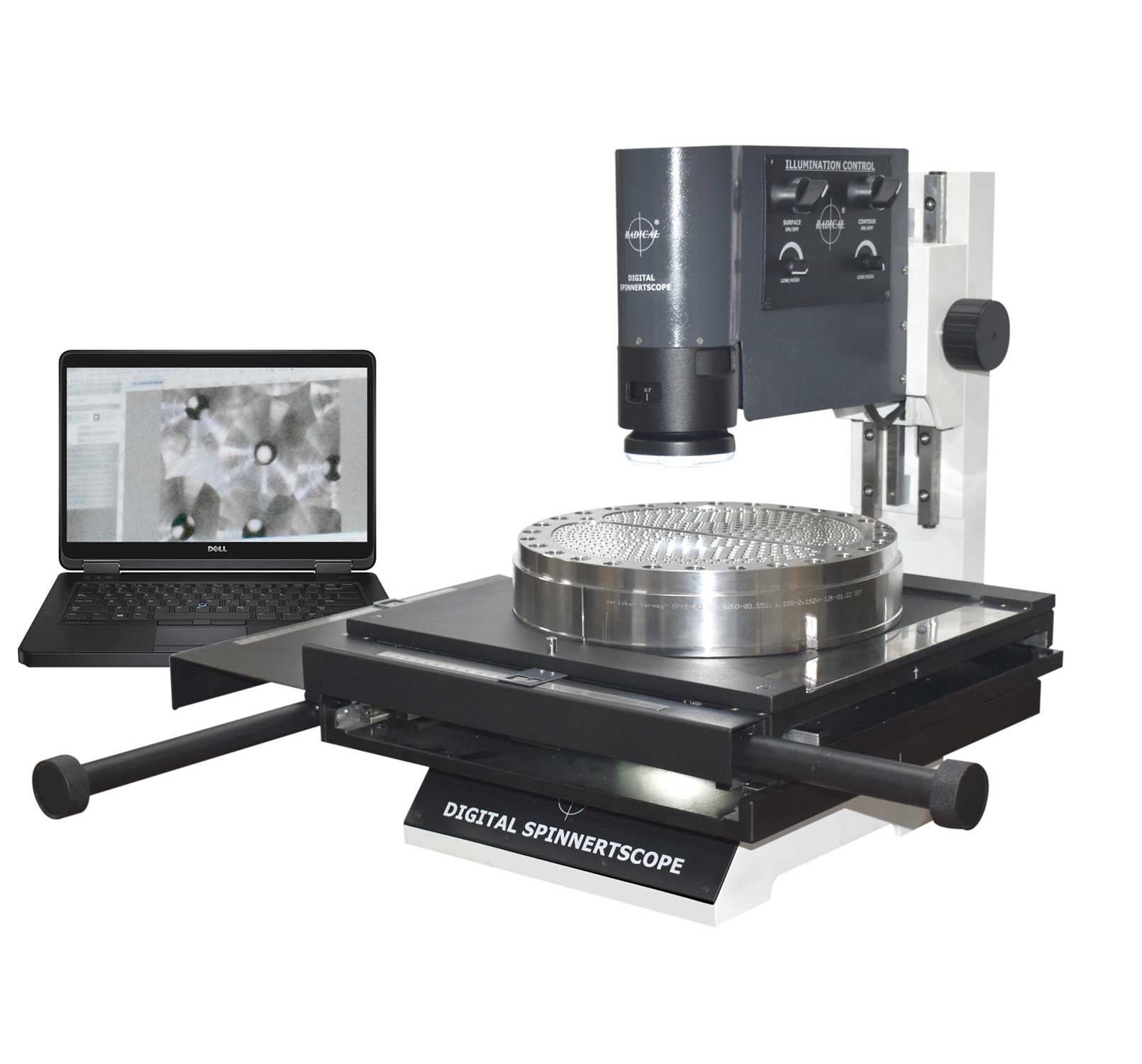

Specially designed for the inspection of spinnerts. Fitted with dedicated high quality Color Microscopy Camera for image display on Color Monitor. Magnification achievable on Monitor is 50x to 300x, depends on the size of monitor. Crisp, erect images with high resolution and excellent stereoscopic effect. Gliding stage having x-y movement 170 x 170mm.
1. Images can be edited, saved and emailed on PC.
2. Suitable for Spinnerets Size 172 X 165 X 34 mm(Thick)
3. Customization in the stage size possible for specific requirements.
