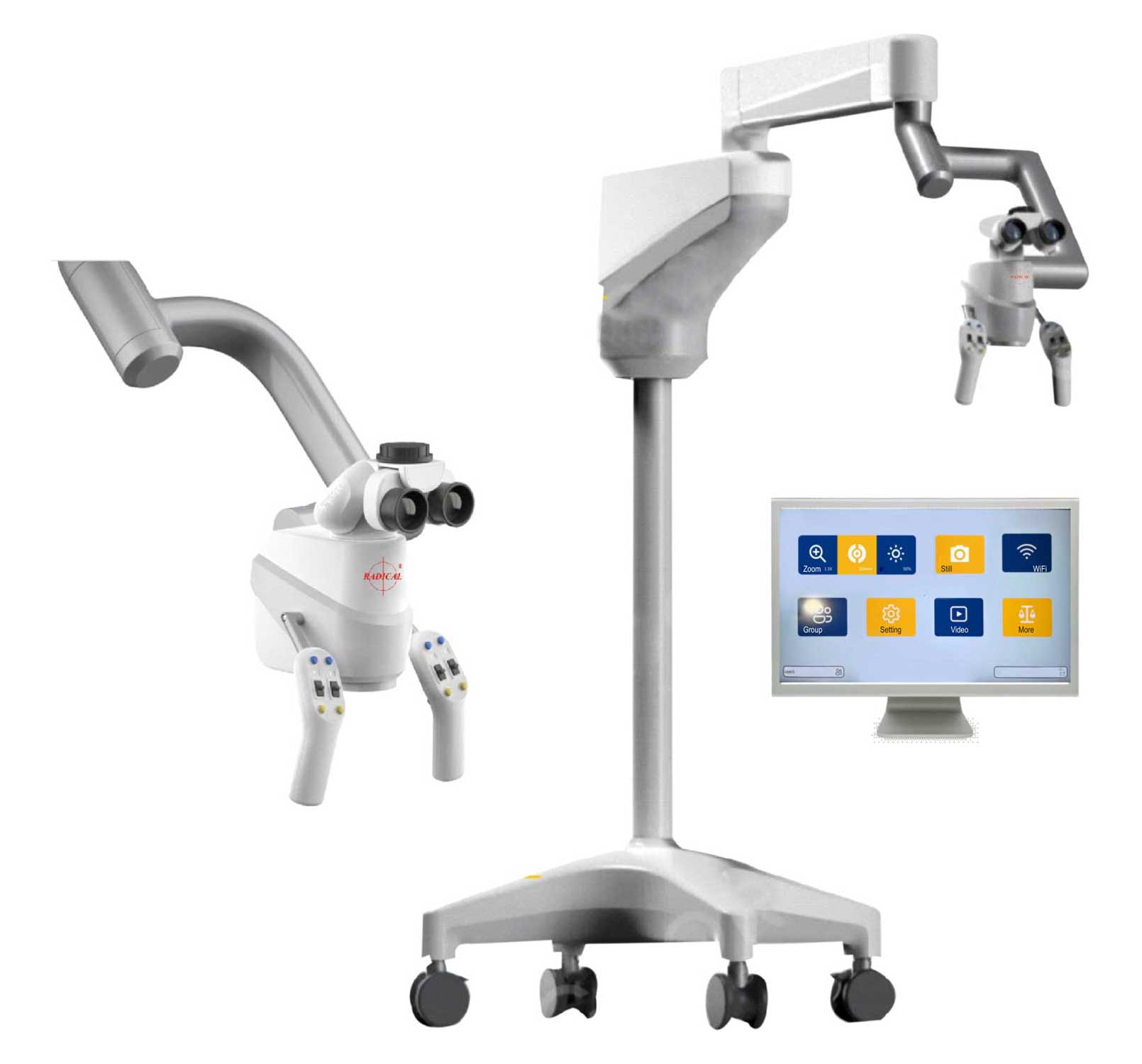

RSM-606 Series
Surgical Microscope is a highly versatile with a Zooming Optical System which helps in focusing. This microscope has a high magnification for making the view of a particular part clear for surgery.
Integrated with a built-in 4K HD image system
Using 1 / 1.2 inch large target surface chip, to achieve large vision digital image, high color reduction, realistic image
Apochromatic System
Apochromatic optical design can obtain clear surgical surface and imaging, effectively slow doctor eye fatigue.
Full-electric Control Handle
The electric, functional and ergonomic handle design can realize electric power doubling, zoom, brightness adjustment and other functions. At the same time, you can only press the button to automatically focus, without changing the working position.
LED High Continuous Zoom Off Axis Lighting System
Normal stereo microscope coaxial lighting system has the disadvantage that lighting center and the observation surface center position is not easy to overlap, surgical microscope using off-axis lighting, the system contains two off-axis optical elements, the system not only ensure the lighting surface center position constant, and surgical microscope observation surface center position, lighting zoom lens movement realizes the lighting spot and size can work distance change, lighting spot can achieve 108- F 175mm
Ergo Tilling Viewing Head
0~180° field of view 20mm Integrated with built-in LED lighting
1:6 Continuous (infinite) Zoom
1 . 7 X ~ 1 7 . 5 X h a s adjustable ratio and clear vision; It solves the pain point of vision jump in the process of file change
Zoom objective lens ultra-long zoom stroke, large depth of field
The 210~450mm ultra- long zoom stroke can cover the entire oral depth and meet the needs of doctors for various surgical positions
Realize Continuous Zoom
Pull the electric controller focus button, The working distance and lighting spot achieve continuous change, and the working distance can be manually adjusted using the focal knob.
Realize Continuous Doubling
Pull the electric handle doubling button, Continuous magnification, Double friction and center stability, Maximum multiplier resolution up to 6-3.
| Objective | Motorized Zoom Objective, WD 210-450mm, achromatic system |
|---|---|
| Zoom | Motorized Continuous Zoom 1.7x-17.5x (EP12.5x), zoom factor 0.4x-2.4x |
| Head | 0-180° Inclined Binocular Viewing Tube, Focal Distance 170mm, Interpupillary distance range 54-76mm, Interpupillary could be displayed |
| Eyepiece | 12.5x High Eyesight Wide Angle Eyepiece, Diopter Regulation Range 8D+5D, FOV 20mm |
| Field of View | 151mm-14mm |
| Illumination Source | Build in LED lamp, Color temperature 5600k, CRI 90 |
| Focal Diameter | Big Diameter 160mm, the size of facula is continuous adjustable |
| Diaphragm | Big, Middle, Small, Color Orange, Green, Integrated Built in 4K Ultra high definition image |
| Preserve | SD Storage, Support Static, Dynamic Image Storage |
| Transmit | Transmitted by USB, HDMI, WIFI Port |
| Display | Standard Video Monitor to receive 4K image in real time, and display the current multiplier, scale, working distance |
| Holder | Electromagnetic System, Electromagnetic Locking and Positioning Control |
| Handle | Multi-function handle, can operate the working distance zoom, lighting switch control, brightness adjustment, video recording, photo, auto focus, video, brightness adjustment, video screen control panel switch. |
| Foot Control | Foot Switch: Foot control to adjust zoom, zoom, photo, video recording |
| Balance | Super Balance Arm Body center of gravity adjustment, damping regulator torque |
| Height Range | 1345 x 2065mm |
| Base | 640 x 640mm, Cross Shaped Base |
