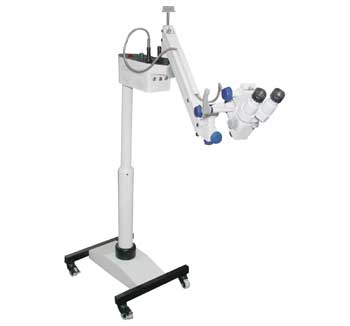

Surgical Microscope

RSSM-06 Series

Surgical Microscope is a highly versatile with a Zooming Optical System which helps in focusing. This microscope has a high magnification for making the view of a particular part clear for surgery.


Part Name Description
Binocular Tube 45° ENT & GENERAL SURGERY
Eyepiece 12.5x/10x 16mm dioptric adjustment.
Magnification Changes Built in Manual 5-step Changer
Field of View 48mm, 30.50mm, 19.30mm, 11.88mm, 7.88mm
Magnification 4x, 6x, 10x, 16x, 25x
Objective Lens F=200mm(for generaal micro-surgical fields)
Working Distance 200mm
Inerpupillary Distance adjustment 55mm x 75mm
Illumination type By optical light guide system
Light source 24V/250 Watts Halogen lamp
Illumination Control Continuos adjustment
Field of illumination 70mm
Working Distance 200mm
Type Floor Stand
Filter Cobalt Blue, Red-free, heat absorbing Filter
Vertical Range of counter Balanced Arm 400mm
Base Size 600mm x 550mm appx.
Weight 60 kg. appx
Height 1550mm appx
Electrical Power AC 220V, 240V, 50/60Hz
Power Consumption 220VA / 110V

As we are continuously improving & developing our products, this websites may not be updated with advancements done. However, we try our best to update the website for latest information's
For complete updated specifications, please do ask for latest brochures
