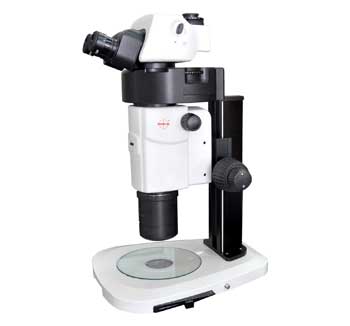

Motorized EPI-Fluorescence Stereo Microscope
RSMr-X8 Series
RSMr-X8 Series is a Parallel microscope, using apochromatic optical system and can obtain perfect high three-dimensional and visual softer image.Large zoom range and field of view may be applied to imaging and observation of the image from macro to micro.It has a 18: 1 high zoom ratio, providing superior optical system, high resolution and ergonomic design. Zebrafish research and living cell imaging In biology, pass rate and scratch detection in industrial detection, and observation and imaging in material science research can all be realized through RSMr-X8 Series.
| Body | LED Stereo Illumination Base (OCC llluminator Built-In) |
|---|---|
| Optical system | Parallel (zoom-type) Apochromatic Optical System |
| Zoom mode | Manual |
| Zoom | 18:1 |
| Zoom range | 0.75-13.5x |
| Objectives | PLAN APO lX NA 0.15,WD 60mm |
| Magnification | 7.5-135X(1X Objective/10X Eyepiece) |
| Eyepiece | 10X(23) (F.O.V.mm) |
| Viewing Head | Trinocular Tube Inclination angle:20°(100/0,0/100) |
| Focusing range | 60+90mm |
| Fluorescent Attachment | 6 Filter Cubes Mountable,4-Band LED Light Source |
| Observation Method | Bright Field, Fluorescent, Simple Polarizing, Dark Field, Oblique Lighting |
