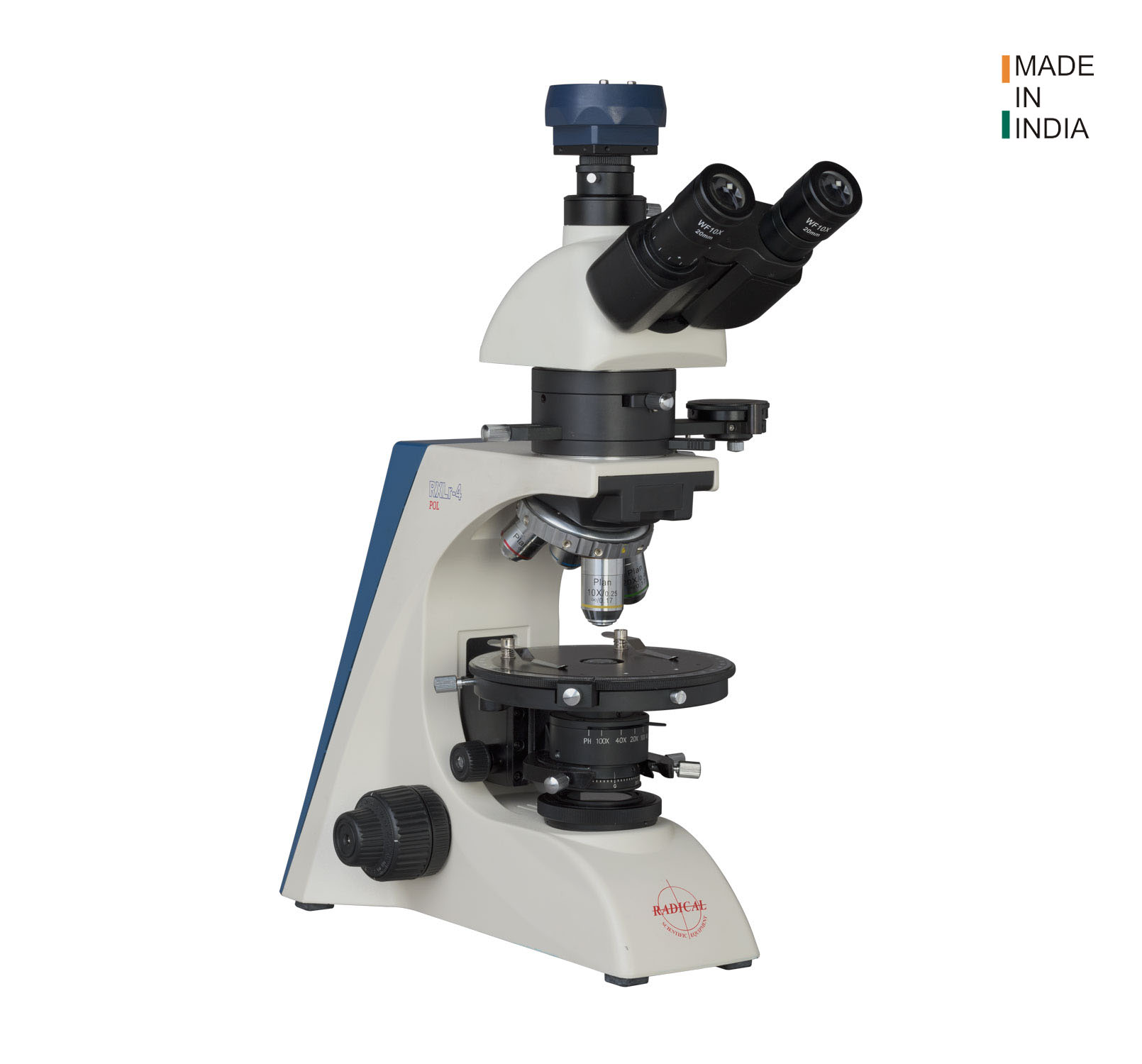

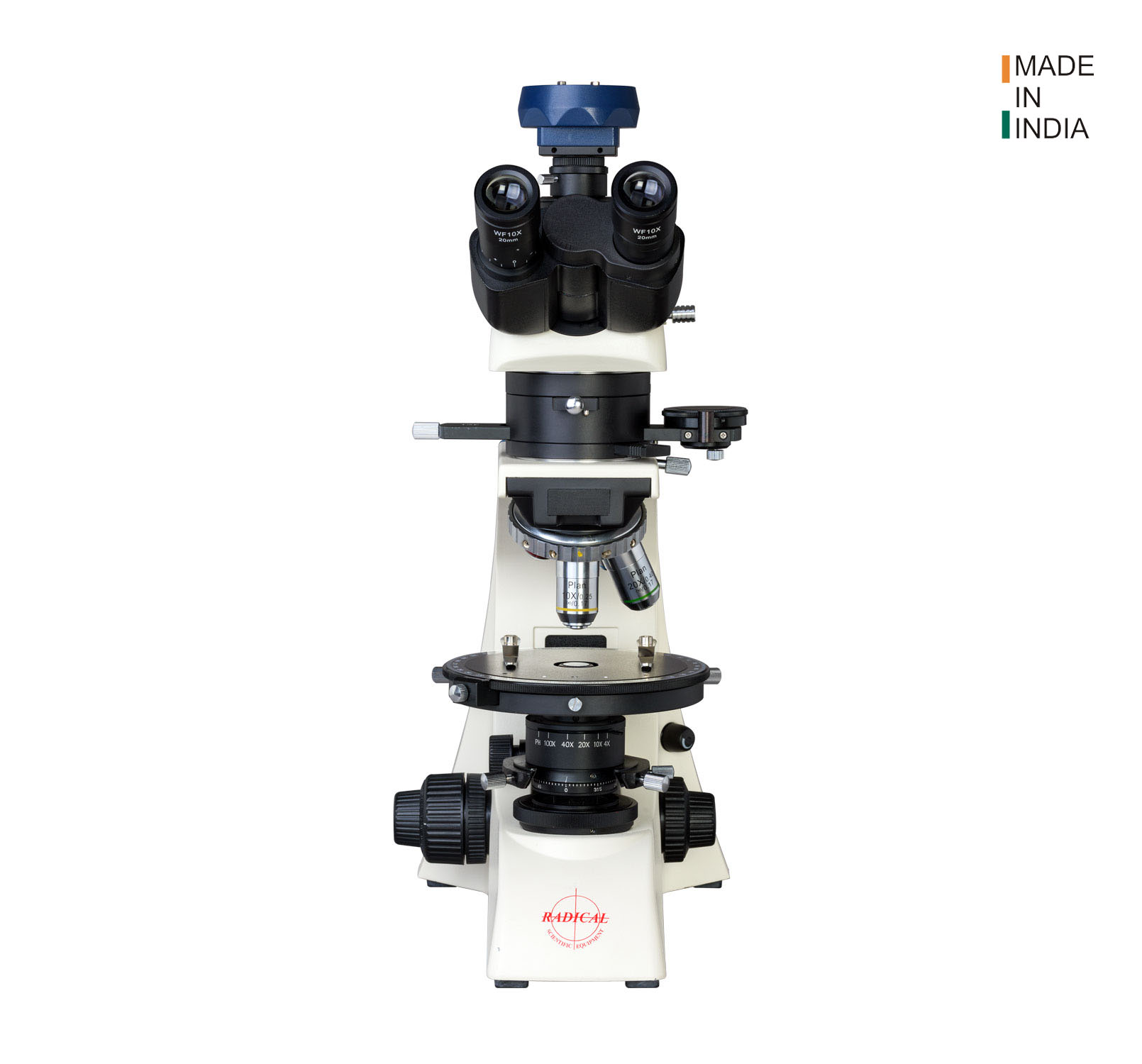

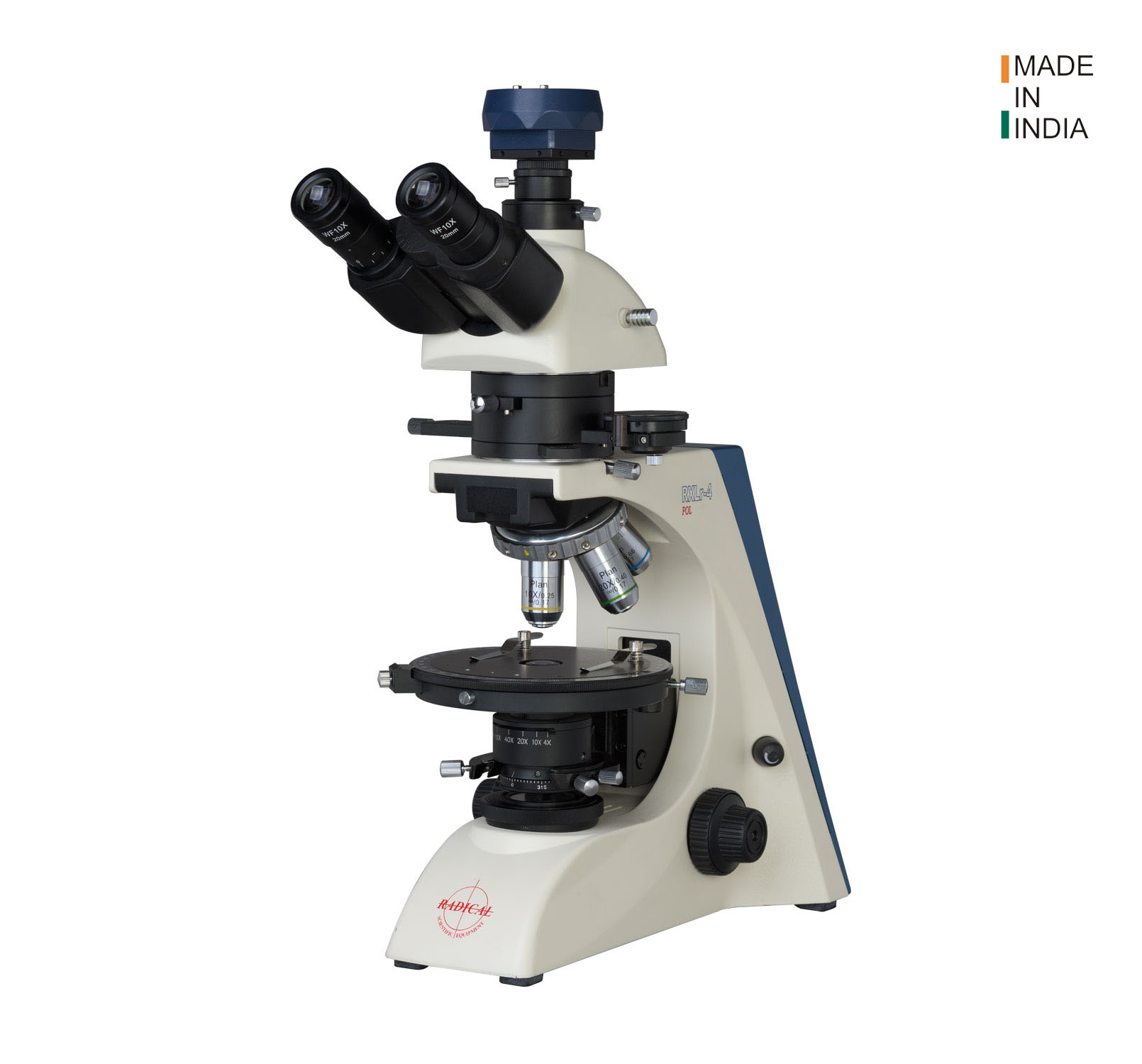

Advanced Research Polarizing Microscope

RXLr-4POL

RXLr-4 Pol microscopes produce brighter, clearer, and higher contrast images. Facilities for diascopic and episcopic microscope illumination makes it a sought after microscope petrological, geological etc labs. The Bertrand lens is also focusable and centerable.

BRIGHTFIELD
DARKFIELD
POLARIZING
Body Rugged, single die cast, ergonomic design, touch point treated
Optical system Strain free achromatic optical system, Color corrected, Anti-fungal, Anti-bacterial Coated (multi-layered hard coated)
Transmitted Illumination Koehler halogen/LED, intensity adjustable, battery backup, auto cut-off
Incident Illumination LED/halogen with aperture and field diaphragm
Polarizing Facilities Polarizer mounted below the condenser
Analyzer Analyzer with scale removable from optical path, rotatable, focusable & centerable bertrand lens
Retarding Plates λPlate, 1/4 λ(Mica) & Quartz Wedge
Viewing Head Monocular/Binocular/Trinocular Head
Nosepiece Reverse Centerable Quadruple/Quintuple M25 x 0.75 Threads with Multiple Ball-Bearing, Rubber/metal Grip & Click Stop
Eyepiece Extra wide field with diopter adjustment
Objectives POL Plan, S-APO/APO, Infinite objectives
Mechanical Stage Graduated large circular rotary stage
Condenser Abbe with iris diaphragm & filter slot. Brightfiled, polarizing
Focusing Coaxial (low position), both side, Coarse & Fine with Tension control & upper limit stopper
Attachment Slots for Compensator Plates
Switchable Orthoscopic/Conoscopic
Certification EU CE, ISI, ISO, TUV
Part Name Part Code Description
Body RXR4PMB Rugged, single die cast, ergonomic design, touch point treated, Intensity controller, ON/OFF Switch, Rubber feet,Kohler Illunimation with aperture and field diaphragm, heat protection filter, blue filter (45mm) for white light (4500K)
Optical system RXR4PiOS Strain free, Infinite optical system, Colour/chromatic & spherical aberration corrected, Anti-fungal, Anti-bacterial Coated (multi-layered hard coated), Colour Coded Objectives, parfocal (45mm)
Transmitted Illumination RXR4PTL20 Halogen Lamp, 6V/20W, Std. life 2,000 hrs.
Viewing Head RXR4PHB30ST Binocular with sidentopf head 30°, 360° rotating, Interpupillary adjustment (48-75mm), FOV 20mm
Nosepiece RXR4P4N Objective centrable Reverse Quadruple nosepiece, ball bearing
Eyepiece RXR4P1020 Paired, WF 10X, FOV-20mm, Multilayered coated,High Quality, antiglare, good contrast, aberration free, Aplantic, precentered, Lockable, diopter adjustment and corosshair in one eyepiece
Mechanical Stage RXR4PMS170 Large Circular Rotary Stage(lockable), Dia. 150mm/170mm, 360° rotatable, 1° increment, precise vernier scale of 0.1° with click stop at 45° increments. Provision for fixing stage clips; attachable mechanical XY travel 30x40mm, object guide with vernier 0.1mm, centrable
Objectives RXR4PPF04 POL PL4X, N.A. 0.10, W.D. 30mm, Plan Achromatic, suitable for transmitted and reflected illumination
RXR4PPF10 POL PL10X, N.A. 0.25, W.D. 6.1mm, Plan Achromatic, suitable for transmitted and reflected illumination
RXR4PPF40 POL PL40X, N.A. 0.65, W.D. 0.65mm, Plan Achromatic, suitable for transmitted and reflected illumination
Focusing RXR4PF25 Coaxial, coarse and fine focus adjustment knobs (low positioned,both side) with rack & pinion arrangement, with tension control, upper limit stopper, full stroke range 30mm, high sensitive focus drive with 0.25mm per revolution, Fine adjustment 2.5µm/Div. Upgradable to 35mm stroke range.
Retarding Plates RXR4P-RPLT Compensator Gypum 1 λ Plate, (1st order red Compensating plate, 560 nanometers) (Mica 1/4 λ 145 nanometers) & Quartz Wedge in metallic mount of 12mmx4mm
Condenser RABC Centerable Abbe Condenser N.A. 0.9, Iris Diaphragm, Filter slot, separate movement from focussing (rack & pinion) suitable for brightfield and polarixing
Analyzer/Polarizer RXR4PAPOL 360° rotatable Polarising mount having 0.1° L.C. below the condenser, built in analyzer can be rotate through 45° with scale removable from optical path wiyh calibrated marking
Power supply RSMPS620 SMPS based, wide voltage range, 90V-240V, 50/60Hz
Standard Accessories RCC Cleaning cloth
RVC Vinyl cover
RCLP C-clamp for tension adjustment
RAK Allen keys
RF5A Fuses - 2 no's
MANUAL Instruction manual
WARRANTY Warranty card
RBF Blue Filter (frosted & Plain)
RPC Power Cord (country Specific)
Part Name Part Code Description

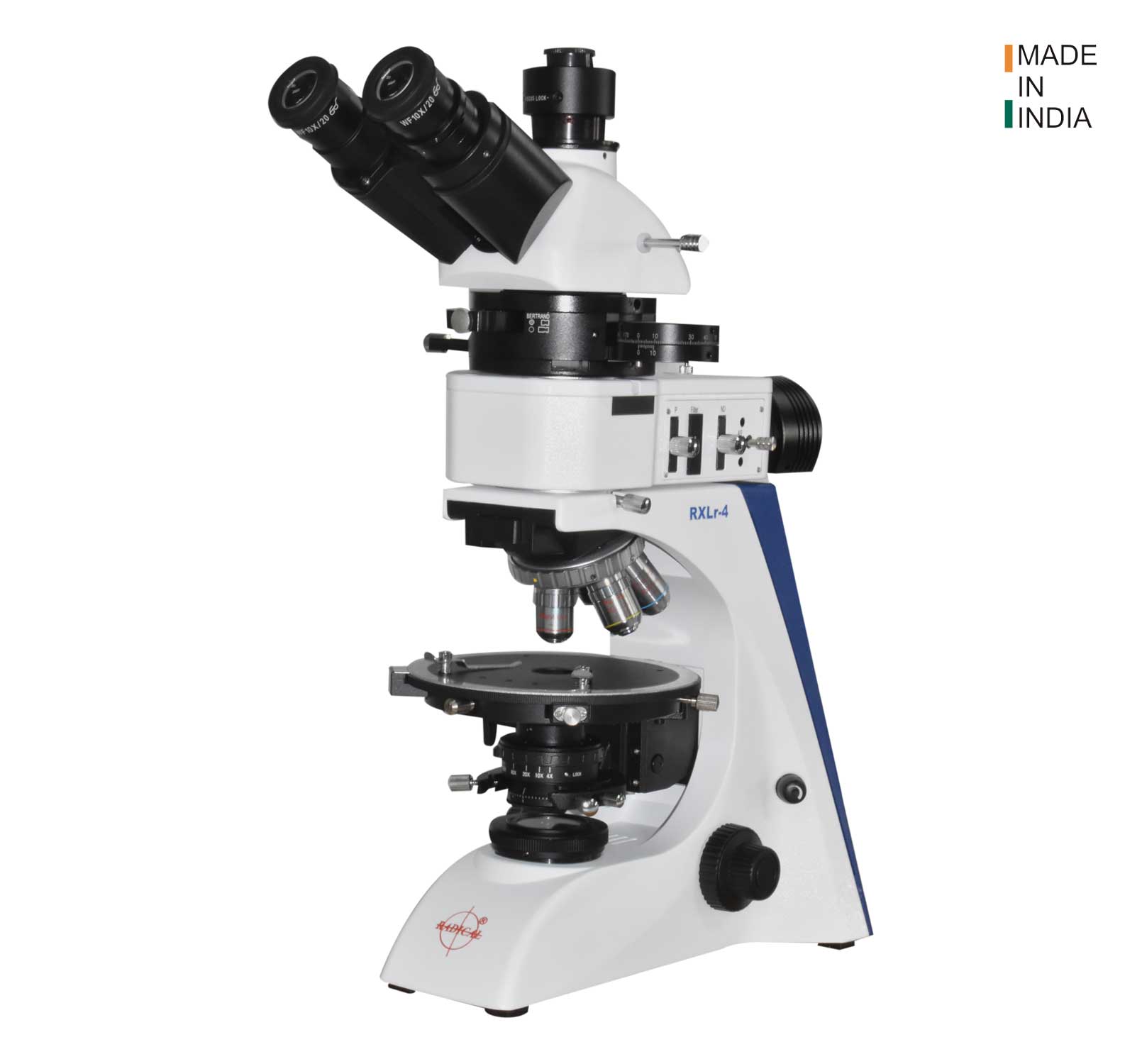

Incident/Reflected Illumination RXR4P-RL30 Halogen Lamp, 6V/30W Std. life 2,000 hrs., Inbuilt Heat Protection Filter, aperture & field diaphragm, daylight filter & polarizing slider
RXR4P-RL50 Halogen Lamp, 12V/50W Std. life 2,000 hrs., Inbuilt Heat Protection Filter, aperture & field diaphragm, daylight filter & polarizing slider
RXR4P-RL100 Halogen Lamp, 12V/100W Std. life 2,000 hrs., Inbuilt Heat Protection Filter, aperture & field diaphragm, daylight filter & polarizing slider
RXR4P-L3WRL-L3 LED 3W, life 30000 hrs., Lumens equivalent 20W Halogen
RXR4P-LBBRL Battery backup from 2-12 hours for LED (internal/external)
RXR4P-L5WRL3 LED 5W, life 30000 hrs., Lumens equivalent 50W Halogen
RXR4P-ACUT-RL Auto-cutoff
RXR4P-L3W-RL-L6 LED 3W life 65000 hrs., Lumens equivalent 20W Halogen
RXR4P-L3W-RL-L8 LED 3W life 82000 hrs., Lumens equivalent 20W Halogen
RXR4P-L5W-RL-L6 LED 5W life 65000 hrs., Lumens equivalent 50W  Halogen
RXR4P-L5W-RL-L8 LED 5W life 82000 hrs., Lumens equivalent 50W Halogen
RXR4P-L-C-RL Extra long life LED upto 1,00,000 hrs 3W/5W
RXR4P-SOLAR-RL Solar power battery charger for LED
Illumination (TL) RXR4P-H20TL Halogen 6V -20W, life 2000 hrs.
RXR4P-H50TL Halogen 12V-50W, life 2000 hrs.
RXR4P-L3WTL-L3 LED 3W, life 30000 hrs., Lumens equivalent 20W Halogen
RXR4P-LBBTL Battery backup from 2-12 hours for LED  (Internal/external)
RXR4P-L5WTL-L3 LED 5W, life 30000 hrs., Lumens equivalent 50W Halogen
RXR4P-ACUT-TL Auto-cutoff
RXR4P-L3W-TLL6 LED 3W life 65000 hrs., Lumens equivalent 20W Halogen
RXR4P-L3W-TLL8 LED 3W life 82000 hrs., Lumens equivalent 20W Halogen
RXR4P-L5W-TLL6 LED 5W life 65000 hrs., Lumens equivalent 50W  Halogen
RXR4P-L5W-TLL8 LED 5W life 82000 hrs., Lumens equivalent 50W Halogen
RXR4P-LCTL Extra long life LED upto 1,00,000 hrs 3W/5W
RXR4P-SOLARTL Solar power battery charger for LED
Viewing Head RXR4P-BST45 Binocular inclined at 45°, Sidentopf Head, rotatable through 360°, IPD - from 48-76, Diopter adjustment on one or both Eyepiece
RXR4P-TSL-45C Trinocular inclined at 45°, Sliding Head, rotatable through 360°, IPD - from 48-76, Diopter adjustment on one or both Eyepiece, port for camera attachment, 2 position light distribution
RXR4P-TST-30-C50 Trinocular inclined at 30°, Sidentopf Head, rotatable through 360°, IPD - from 48-76, Diopter adjustment on one or both Eyepiece, port for camera attachment, splitting ratio 50(EP):50(camera)
RXR4P-TST--30-C80 Trinocular inclined at 30°, Sidentopf Head, rotatable through 360°, IPD - from 48-76, Diopter adjustment on one or both Eyepiece, port for camera attachment, splitting ratio 20(EP):80(camera)
RXR4P-DIP2 additional diopter on both eyepieces.
Nosepiece RXR4P-5N Inward tilted, Precise Quintuple revolving, ball bearing with slot for Pol & Analyzer, centrable
Eyepiece RXR4P-EP0518 WF 5X, FOV-18mm, Multilayered coated,High Quality, good contrast, abresion free, Aplantic, Lockable
  RXR4P-EP1018 WF 10X, FOV-18mm, Multilayered coated,High Quality, good contrast, abresion free, Aplantic, Lockable
  RXR4P-EP1018M WF 10X, FOV-18mm, Micrometer (10/100mm), Multilayered coated, High Quality, good contrast, abresion free, Aplantic, Lockable
  RXR4P-EP1018P WF 10X, FOV-18mm, Pointer, Multilayered coated, High Quality, good contrast, abresion free, Aplantic, Lockable
  RXR4P-EP1020M WF 10X, FOV-20mm, Micrometer (10/100mm), Multilayered coated, High Quality, good contrast, abresion free, Aplantic, Lockable
  RXR4P-EP1020P WF 10X, FOV-20mm, Pointer, Multilayered coated, High Quality, good contrast, abresion free, Aplantic, Lockable
  RXR4P-EP1022  Paired, WF 10X, FOV-22mm, Multilayered coated, High Quality, good contrast, abresion free, Aplantic, Lockable
  RXR4P-EP1022M WF 10X, FOV-22mm, Micrometer (10/100mm), Multilayered coated, High Quality, good contrast, abresion free, Aplantic, Lockable
  RXR4P-EP1022P WF 10X, FOV-22mm, Pointer, Multilayered coated, High Quality, good contrast, abresion free, Aplantic, Lockable
  RXR4P-EP1025 Paired, WF 10X, FOV-25mm, Multilayered coated, High Quality, good contrast, abresion free, Aplantic, Lockable
  RXR4P-EP1025M WF 10X, FOV-25mm, Micrometer (10/100mm), Multilayered coated, High Quality, good contrast, abresion free, Aplantic, Lockable
  RXR4P-EP1025P WF 10X, FOV-25mm, Pointer, Multilayered coated, High Quality, good contrast, abresion free, Aplantic, Lockable
  RXR4P-EP1515 Paired, WF 15X, FOV-15mm, Multilayered coated, High Quality, good contrast, abresion free, Aplantic, Lockable
  RXR4P-EP2010 Paired, WF 20X, FOV-10mm, Multilayered coated, High Quality, good contrast, abresion free, Aplantic, Lockable
  RXR4P-EP-C Cutomized Eye-piece of 5X/10x/12x/15x/16x/20x with different types of reticles/graticule
  RXR4P-ECUP Eyecups (pair)
Mechanical Stage RXR4P-MS-C Large Circular Rotary Stage(lockable), Dia. upto 200mm-customized, 360° rotatable, with 1° interval, precise vernier scale of 0.1° with click stop at 45° increments. Provision for fixing stage clips attachable mechanical XY travel, object guide with vernier 0.1mm, centrable
Objectives RXR4P-PL20i PL20X, N.A. 0.40, W.D. 2.1 mm, Plan Achromatic, Infinite,  Spring Loaded, unbreakable container for storage
  RXR4P-PL60i PL60X, N.A. 0.80, W.D. 0.30mm, Plan Achromatic, Infinite,  Oil immered, Spring Loaded, unbreakable container for storage
  RXR4P-PL63i PL63X, N.A. 0.84, W.D. 0.28mm, Plan Achromatic, Infinite,  Oil immered, Spring Loaded, unbreakable container for storage
  RXR4P-PL100i PL100X, N.A. 1.25, W.D. 0.18mm, DIN Semi Plan, Finite,  Oil immered, Spring Loaded, unbreakable container for storage
Phase objectives RXR4P-PH04i PH4X, N.A. 0.10, W.D. 30mm, Plan Achromatic,  unbreakable container for storage
RXR4P-PH10i PH10X, N.A. 0.25, W.D. 6.1mm, Plan Achromatic,  unbreakable container for storage
RXR4P-PH20i PH20X, N.A. 0.4, W.D. 2.10mm, Plan Achromatic,  unbreakable container for storage
RXR4P-PH40i PH40X, N.A. 0.65, W.D. 0.65mm, Plan Achromatic,  spring loaded, unbreakable container for storage
RXR4P-PH60i PH60X, N.A. 0.80, W.D. 0.30mm, Plan Achromatic, Infinite,  Oil immered, Spring Loaded, unbreakable container for storage
RXR4P-PH63i PH63X, N.A. 0.84, W.D. 0.28mm, Plan Achromatic, Infinite,  Oil immered, Spring Loaded, unbreakable container for storage
RXR4P-PH100i PH100X, N.A. 1.25, W.D. 0.18mm, DIN Semi Plan, Finite,  Oil immered, Spring Loaded, unbreakable container for storage
SEMI APO/Flotar/Fluor Objectives RXR4P-SAPO04i 4X, N.A. 0.13, W.D. 17.1mm, SAPO, unbreakable container for storage
RXR4P-SAPO10i 10X, N.A. 0.3, W.D. 16mm, SAPO, unbreakable container for storage
RXR4P-SAPO20i 20X, N.A. 0.5, W.D. 2.1mm, SAPO,  unbreakable container for storage
RXR4P-SAPO40i 40X, N.A. 0.75, W.D. 0.72mm, SAPO,  spreing loaded, unbreakable container for storage
RXR4P-SAPO60i 60X, N.A. 0.80, W.D. 0.3mm,SAPO, Infinite,  Oil immered, Spring Loaded, unbreakable container for storage
RXR4P-SAPO63i 63X, N.A. 0.85, W.D. 0.28mm, SAPO, Infinite,  Oil immered, Spring Loaded, unbreakable container for storage
RXR4P-SAPO100i 100X, N.A. 1.3, W.D. 0.20mm, SAPO, Finite,  Oil immered, Spring Loaded, unbreakable container for storage
APO Objectives RXR4P-APO04i 4X, N.A. 0.20, W.D. 15.7mm, APO,  unbreakable container for storage
RXR4P-APO10i 10X, N.A. 0.45, W.D. 4mm, APO,  unbreakable container for storage
RXR4P-APO20i 20X, N.A. 0.75, W.D. 1.0mm, APO,  unbreakable container for storage
RXR4P-APO40i 40X, N.A. 0.95, W.D. 0.14mm, APO,  spring loaded, unbreakable container for storage
RXR4P-APO40i-O 40X (Oil), SL,  N.A. 1.0, W.D. 0.16mm, APO,  spring loaded, unbreakable container for storage
RXR4P-APO60i-D 60X, DRY, N.A. 0.95, W.D. 0.15mm,APO, Infinite,  Spring Loaded, unbreakable container for storage
RXR4P-APO60i-O 60X, Oil, N.A. 1.0, W.D. 0.2mm,APO, Infinite,  Oil immered, Spring Loaded, unbreakable container for storage
RXR4P-APO63i 63X, N.A. 0.89, W.D. 0.28mm, APO, Infinite,  Oil immered, Spring Loaded, unbreakable container for storage
RXR4P-APO100i-D 100X, Dry, N.A. 0.9, W.D. 0.30mm, APO, Finite, Spring Loaded, unbreakable container for storage
  RXR4P-APO100i-O 100X, Oil, N.A. 1.4, W.D. 0.20mm, APO, Finite,  Oil immered, Spring Loaded, unbreakable container for storage. more objectives
Conoscopic & Orthoscopic Attachment RXR4P-COA Built-in focusable and centerable Bertrand lens removable from optical path. Rotatable polarizer Switchable conoscopic/ orthoscopic observation including orientation plate.
Compensator/Retarding Plates RXR4P-CP Compensator Gypum 1 λ (1st order Red compensating plate, 560 nanometers) Mica 1/4 λ 145 Nanometers) and Quartz Wedge
Focusing RXR4P-F1.0 Coaxial, coarse and fine focus adjustment knobs (low positioned,both side) with rack & pinion arrangement, with tension control, upper limit stopper, full stroke range 30mm with stage travel upto 20mm, high sensitive focus drive with 0.10mm per revolution, Fine adjustment 1.0µm/Div.Upgradable to 35mm stroke range.
  RXR4PF20 Coaxial, coarse and fine focus adjustment knobs (low positioned,both side) with rack & pinion arrangement, with tension control, upper limit stopper, full stroke range 30mm with stage travel upto 20mm, high sensitive focus drive with 0.20mm per revolution, Fine adjustment 2.0µm/Div.Upgradable to 35mm stroke range.
Condenser RXR4P-CDF Abbe N.A. 1.25 for Darkfield, separate movement from focussing (Rack & Pinion)
  RXR4P-PH-SL Abbe N.A. 1.25 for Phase (sliding type), upto 4 position, separate movement from focussing (Rack & Pinion), filter holder
  RXR4P-PH-TR Abbe N.A. 1.25 for Phase (Turret type), upto 6 position, separate movement from focussing (Rack & Pinion), filter holder
  RABCSL Centerable Abbe Condenser N.A. 0.9/1.25, Sliding-in, Iris Diaphragm, Blue Filter, separate movement from focussing (rack & pinion) suitable for brightfield and polarixing
Fluorescence Attachment RXR4FL3100 Turret 4 filter holder, 100W Hg, std fluorescence filter B & G, others on request.
RXR4FL100 Turret 6 filter holder, 100W Hg, std fluorescence filter B & G, others on request.
RXR4FLLED Turret 6 filter holder, LED, std fluorescence filter B & G, others on request.
RXR4FL1LED Single LED with battery backup, std. B fluorescence filter, others on request.
Heating Stage RHS50 Biotherm heating stage
Filters  RGF Green plane or frosted
Centering Tube RXR4PCTUBE Centering objective for Fluorescence observation
Power supply RTF620 6V-20W Transformer based, wide voltage range, 90V-240V, 50/60Hz,
  RTF630 6V-30W Transformer based, wide voltage range, 90V-240V, 50/60Hz,
  RSMPS630 SMPS based, wide voltage range, 90V-240V, 50/60Hz
  RPSLED LED power supply, wide voltage range, 90V-240V, 50/60Hz
Immersion oil RIO100 High quality immersion oil 100ml
Micrometer/Calibration slide RCS10 Micrometer slide for calibration, 1mm with 10µm least count
  RCS100 Micrometer slide for calibration, 10mm with 100µm least count
C-mount RCMT50X 0.5X Camera Adaptor/Tube/Mount
  RCMT65X 0.65X Camera Adaptor/Tube/Mount
  RCMT70X 0.7X Camera Adaptor/Tube/Mount
  RCMT01X 1X Camera Adaptor/Tube/Mount
Packing  RWBX Wooden box with separate container for accessories, lock & key, carrying handle
RSTYRO Standard Styrofoam packing
Cleaning Kit RCLEAN Anti static cleaning brush, Cleaning tissue paper, Lens cleaning solution


As we are continuously improving & developing our products, this websites may not be updated with advancements done. However, we try our best to update the website for latest information's
For complete updated specifications, please do ask for latest brochures
