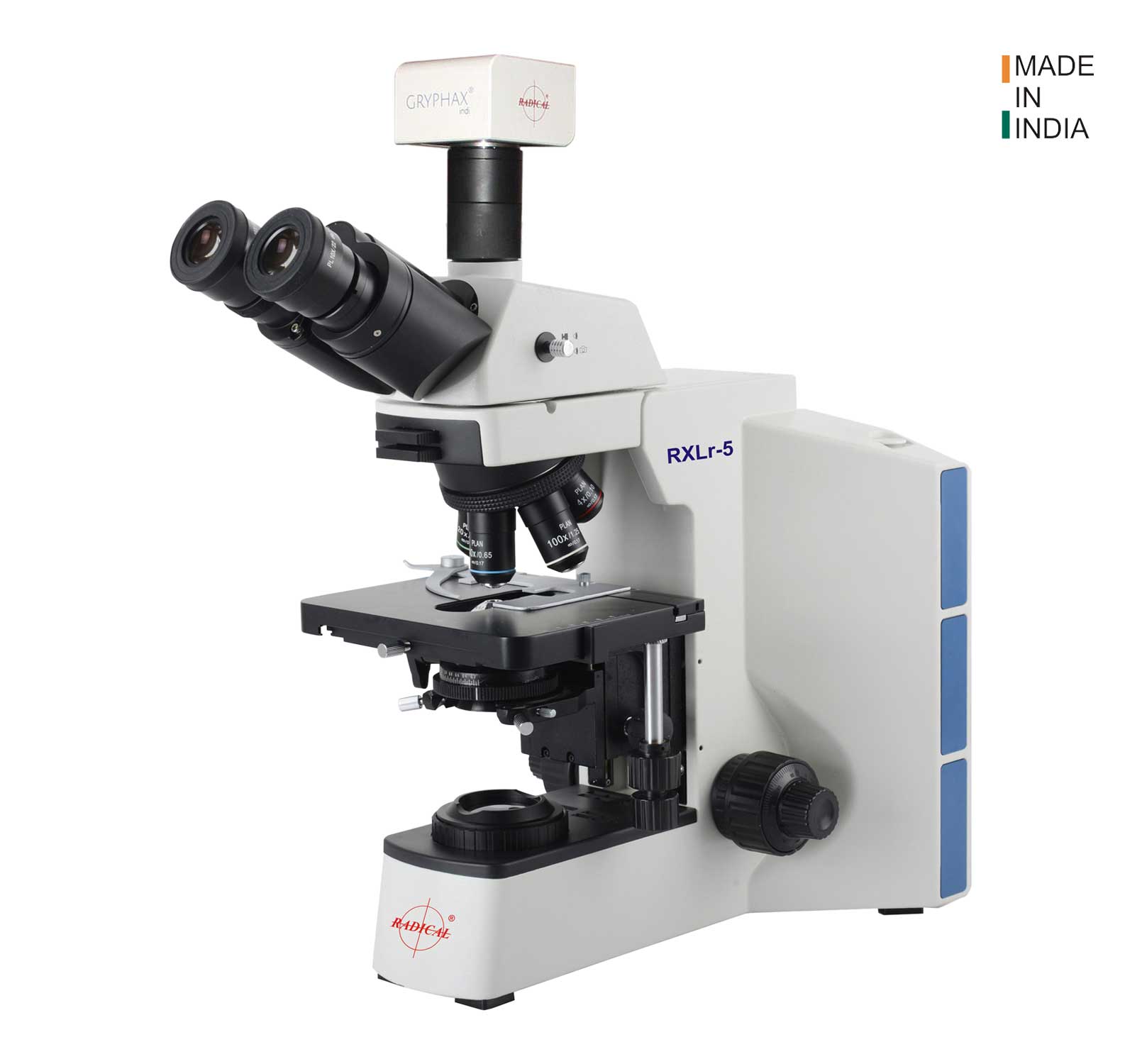

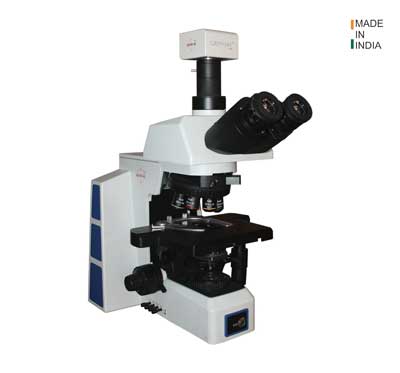

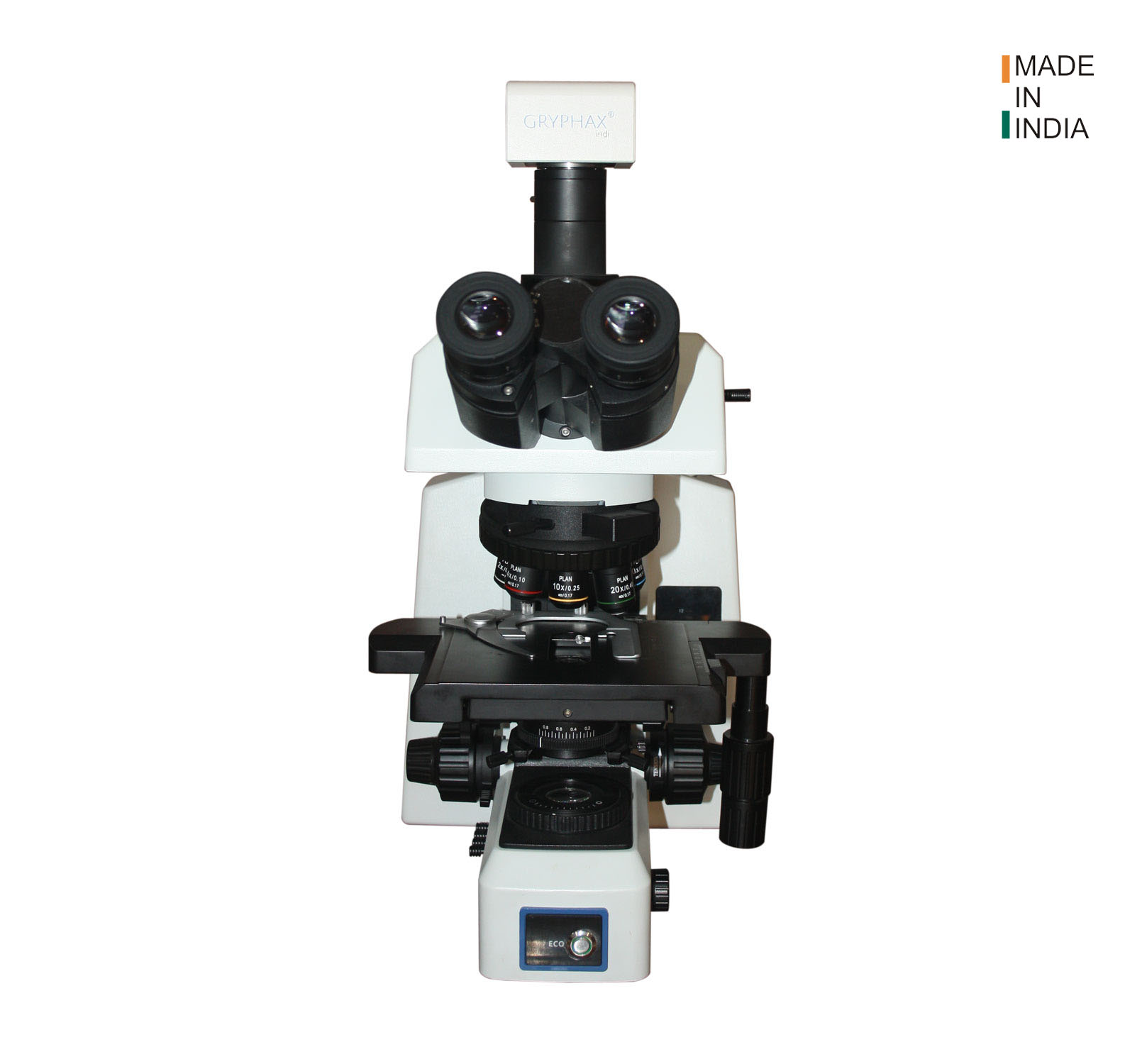

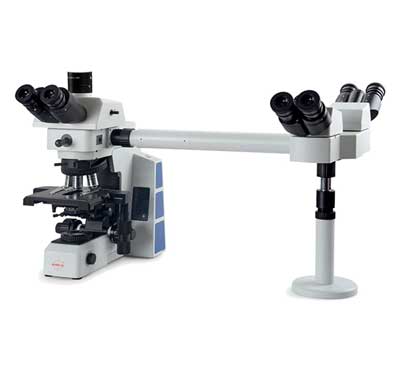

Advanced Research Biological Microscope

RXLr-5 RX

RX series is designed keeping user comfort in mind. Conveniently placed controls for fast and efficient observations. With multi layer coating on our Apochromatic objectives, reduce chromatic aberration to low levels, resulting bright and high contrast images even for low light applications like Fluorescence dark field etc. With septuple nose piece user have choice for extra objectives and multiple illumination techniques. Features adding to user comforts are Light preset switch; Light intensity LED indicator; Built-in filters and many more.

BRIGHTFIELD
DARKFIELD
FLUORESCENCE
PHASE CONTRAST
DIC
POLARIZING
Optical system Universal Infinite optical system, color corrected
Illumination S-LED, Koehler Illumination, LED intensity display, Eco-Energy Saving Auto Cut Off, Fly Eye Lens, Built-in Filters
Viewing Head Inclined, Two/Three position ergo head
Nosepiece Septuple/Sextuple nosepiece with slots for POL / DIC
Eyepiece Super wide field
Mechanical Stage Double Layer, Rackless Ceramic Hard Coated, Stage Lock, Double Slide Holder
Objectives Plan, Phase Achromatic, Fluotar, SEMI-APO, APO
Condenser Swing-out abbe, universal Five/Six position
Focusing 3/2 step focusing
Fluorescence Six filter turret holder
Fluorescence Lamp High intensity mercury lamp, cool LED, fibre optic illumination
Fluorescence Filter Wide, Narrow Band Pass, Multi Band
Darkfield Attachment Cardioid oil condenser all magnification range
DIC Slot for holding DIC plate and prism

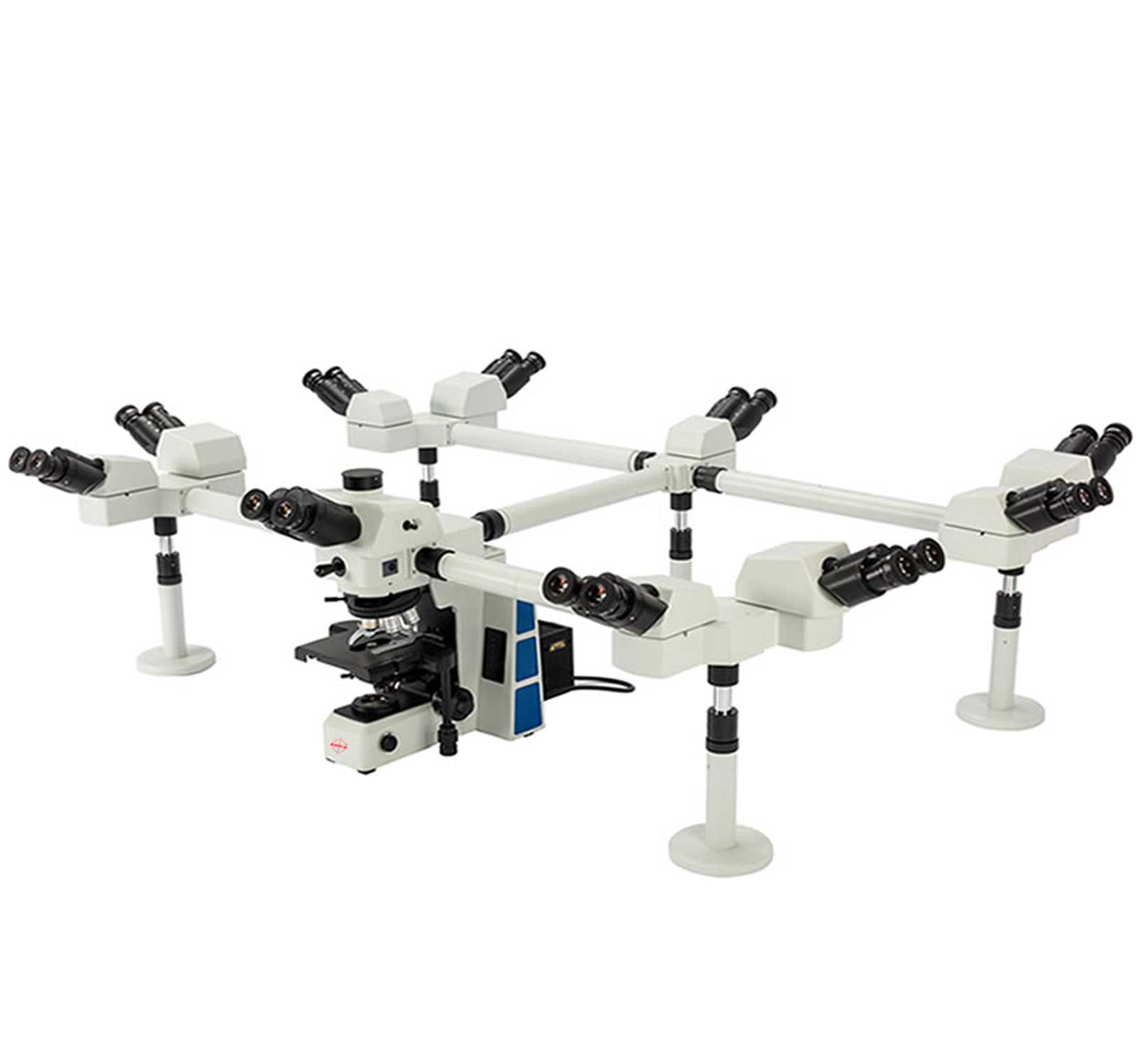

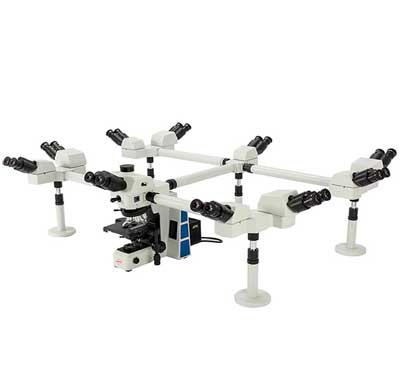

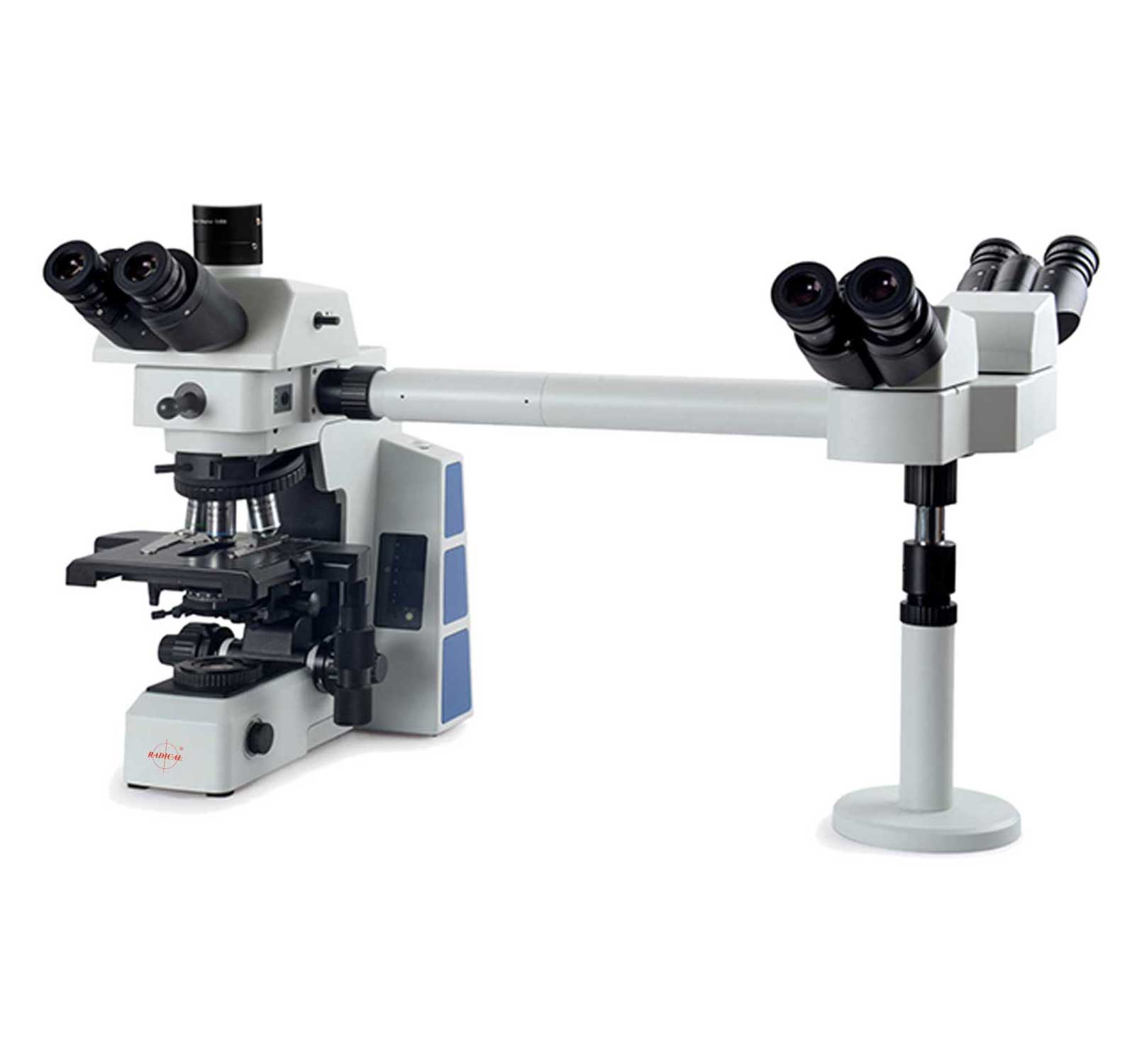

Teaching Head Upto 10 person multi viewing attachment
Motorized Control Possible for X-Y-Z, nosepiece & condenser
Filters Built-in ND Filters
Certification EU CE, ISI, ISO, TUV
Part Name Part Code Description
Body RXR5RXMB Rugged, single die cast, ergonomic design, touch point treated, Intensity controller by digital set & reset, LED display of intensity & ON/OFF Switch, Rubber feet, slot for Ana/Pol, inbuilt transmitted filters LBD/ND6/ND25
Optical System RXR5RXiOS Infinite optical system, Color corrected, Anti-fungal, Anti-bacterial Coated (multi-layered hard coated), Color Coded Objectives, parfocal (45mm), parcentered
Illumination RXR5RXHL100 Kohler illumination Halogen 12V -100W (Life 2000 hrs.), precentered, intensity adjustable with heat absorbant filter
Viewing Head RXR5RXHT30 Trinocular inclined at 30°, Sidentopf Head, rotatable through 360°, IPD - from 50-76, spliting ratio 100:0, 20:80
Nosepiece RXR5RX-7N Inward tilted, Precise Septuple revolving on multiple ball bearing
Eyepiece RXR5RXEP1025 Paired, High Eye point WF 10X, FOV-25mm, Multilayered coated,High Quality, good contrast, abrresion free, Aplantic, precentered, Dioptre adjustment on both eyepiece (±5mm)
Mechanical Stage RXR5RXMS Two way linear guide, Rectangular Right/Left hand low drive Control, 270° rotatable, Hard Coated, Double Slide Holder, Stage Size 168×187mm, X-Y Movement 55-80mm on wire, precision 0.1mm, tension adjustable
Objectives RXR5RXP-SAPO04i 4X, N.A. 0.13, W.D. 17.1mm, SAPO, Infinite, unbreakable container for storage
RXR5RXP-SAPO10i 10X, N.A. 0.3, W.D. 16mm, SAPO, Infinite, unbreakable container for storage
RXR5RXP-SAPO20i 20X, N.A. 0.5, W.D. 2.1mm, SAPO,  Infinite, unbreakable container for storage
RXR5RXP-SAPO40i 40X, N.A. 0.75, W.D. 0.72mm, SAPO,  Infinite, spring loaded, unbreakable container for storage
RXR5RXP-SAPO100i 100X, N.A. 1.3, W.D. 0.20mm, SAPO, Infinite,  oil immered, spring loaded, unbreakable container for storage
Focusing RXF10 Co-axial, tension control, upper limit stopper, coarse adjustable distandce 25mm, high sensitivity focus Drive with 0.10 mm per revolution, fine adjustment 1.0µm/Div, 3step tension, coarse & fine
Condenser RABC Abbe condenser N.A. 0.9/1.25 swing out, for Brightfield, separate movement from focussing (Rack & Pinion), with iris diaphragm, with centre adjustable
Power Supply RSMPS620 SMPS based, wide voltage range, 90V-240V, 50/60Hz
Standard Accessories RCC Cleaning cloth
RVC Vinyl cover
RIO Immersion oil (10ml)
RAK Allen keys
RF5A Fuses - 2 no's
MANUAL Instruction manual
WARRANTY Warranty card
RBF Blue Filter (frosted & Plain)
RPC Power Cord (country Specific)
Part Name Part Code Description
Body RXR5CXMB Rugged, Aluminium single die cast, ergonomic design, touch point treated, Intensity controller by digital set & reset, ON/OFF Switch, Rubber feet, slot for Ana/Pol
Illumination RXR5RXH50 Halogen 12V -50W, life 2000 hrs.
  RXR5RXL3WL3 LED 3W, life 30000 hrs., Lumens equivalent 50W Halogen
  RXR5RXLBB Battery backup from 2-12 hours for LED (internal/external)
  RXR5RXL5WL3 LED 5W, life 30000 hrs., Lumens equivalent 12V-100W Halogen
  RXR5RXACUT Auto-cutoff ECO illumination
  RXR5RXL3WL6 LED 3W life 65000 hrs. , Lumens equivalent 50W Halogen
  RXR5RXL3WL8 LED 3W life 82000 hrs., Lumens equivalent 50W Halogen
  RXR5RXL5WL6 LED 5W life 65000 hrs., Lumens equivalent 100W Halogen
  RXR5RXL5WL8 LED 5W life 82000 hrs. , Lumens equivalent 100W Halogen
  RXR5RXL-C Extra long life LED upto 1,00,000 hrs 3W/5W
  RXR5RXSOLAR Solar power battery charger for LED
Fluorescence Attachment RXR5RXFL4LED Turret 4 filter holder, LED 5W (Equivalent to 100W halogen), std fluorescence filter B & G, others on request, iris diaphragm and aperture diaphragm
  RXR5RXFL6100 Turret 6 filter holder, 100W Hg, std fluorescence filter B & G, others on request, iris diaphragm and aperture diaphragm, central adjustable, with filter slot and polarizing slot
  RXR5RXFL6LED5W Turret  6 filter holder, LED 5W cooled fibre, std fluorescence filter B & G, others on request, iris diaphragm and aperture diaphragm, central adjustable, with filter slot and polarizing slot
  RXR5RXFL6LED10W Turret  6 filter holder, LED 10W cooled fibre, std fluorescence filter B & G, others on request, iris diaphragm and aperture diaphragm, central adjustable, with filter slot and polarizing slot
  RXR5RXFL6C120 Turret 6 filter holder, 120W cooled fibre, std fluorescence filter B & G, others on request, iris diaphragm and aperture diaphragm, central adjustable, with filter slot and polarizing slot
  RXR5RXFL6130 Turret 6 filter holder, 130W cooled fibre, std fluorescence filter B & G, others on request, iris diaphragm and aperture diaphragm, central adjustable, with filter slot and polarizing slot
  RXR5RXFL6200 Turret 6 filter holder, 200W cooled fibre, std fluorescence filter B & G, others on request, iris diaphragm and aperture diaphragm, central adjustable, with filter slot and polarizing slot
Viewing Head RXR5RXHB30 Binocular inclined at 30°, Sidentopf Head, rotatable through 360°, IPD - from 48-76, Dioptre adjustment on both Eyepiece
  RXR5RXTST-C50 Trinocular inclined at 30°, Sidentopf Head, rotatable through 360°, IPD - from 48-76, Dioptre adjustment on both Eyepiece, port for camera attachment, 2 position splitting ratio 50(EP):50(camera)
  RXR5RXTST-C80 Trinocular inclined at 30°, Sidentopf Head, rotatable through 360°, IPD - from 48-76, Dioptre adjustment on both Eyepiece, port for camera attachment, 2 position splitting ratio 20(EP):80(camera)
  RXR5RXTST-C3-80 Trinocular inclined at 30°, Sidentopf Head, rotatable through 360°, IPD - from 48-76, Dioptre adjustment on both Eyepiece, port for camera attachment, 3 position splitting ratio 100:0 , 20(EP):80(camera), 100:0
  RXR5RXTST-C3-50 Trinocular, ergo head, tilting 0° to 40 °, Sidentopf Head, rotatable through 360°, IPD - from 48-76, Dioptre adjustment on both Eyepiece, port for camera attachment,3 position splitting ratio 100:0 , 50(EP):50(camera), 100:0
Nosepiece RXR5RX-6N Inward tilted, Precise Sextuple revolving on multiple ball bearing
  RXR5RX-5N Inward tilted, Precise Quintuple revolving on multiple ball bearing
Eyepiece RXR5RXEP1025M WF 10X, FOV-25mm, Micrometer (10/100mm), Multilayered coated,High Quality, good contrast, abresion free, Aplantic, Lockable
  RXR5RXEP1025P WF 10X, FOV-25mm, Pointer/cross hair, Multilayered coated,High Quality, good contrast, abresion free, Aplantic, Lockable
  RXR5RXEP1026  Paired, WF 10X, FOV-26.5mm, Multilayered coated,High Quality, good contrast, abresion free, Aplantic, Lockable
  RXR5RXEP1026M WF 10X, FOV-26.5mm, Micrometer (10/100mm), Multilayered coated,High Quality, good contrast, abresion free, Aplantic, Lockable
  RXR5RXEP1026P WF 10X, FOV-26.5mm, Pointer/cross hair, Multilayered coated,High Quality, good contrast, abresion free, Aplantic, Lockable
  RXR5RXEP1022 Paired, High Eye point WF 10X, FOV-22mm, Multi-layered coated, High Quality, good contrast, abrresion free, Aplanatic, precentered, dioptre adjustment on both eyepiece (±5mm)
  RXR5RXEP1022P Paired, High Eye point WF 10X, FOV-22mm, with Pointe /cross hair, Multi-layered coated, High Quality, good contrast, abrresion free, Aplanatic, precentered, dioptre adjustment on both eyepiece (±5mm)
  RXR5RXEP1515 Paired, WF 15X, FOV-15mm, Multilayered coated,High Quality, good contrast, abresion free, Aplantic, Lockable
  RXR5RXEP2010 Paired, WF 20X, FOV-10mm, Multilayered coated,High Quality, good contrast, abresion free, Aplantic, Lockable
  RXR5RXEP-C Cutomized Eye-piece of 5X/10x/12x/15x/16x/20x with different types of reticles / graticules
  RXR5RXECUP Eyecups (pair)
Mechanical Stage RXR5RXMS-C Rectangular right/left hand low drive control, 270° rotatable, hard ceramic coating, double slide holder, stage Size-customized as per requirement, X-Y movement-customized as per requirement
  RXR5RXMS-RK Rackless, rectangular right/left hand low drive control, 270°rotatable, hard ceramic coating, double slide holder, stage size-customized as per requirement, X-Y movement-customized as per requirement
Objectives RXR5RXPL02i 2X, N.A. 0.06, W.D. 7.50mm, Plan Achromatic, Infinite, Parfocal & Precentered, unbreakable container for storage
  RXR5RX04i 4X, N.A.0.10, W.D.30mm, plan Achromatic,  Infinite, unbreakable container for storage
  RXR5RX10i 10X, N.A.0.25, W.D.6.1mm, plan Achromatic, infinite, unbreakable container for storage
  RXR5RX20i 20X, N.A. 2.1, W.D. 2.1mm, Plan Achromatic, Infinite, unbreakable container for storage
  RXR5RX40i 40X, N.A. 0.65, W.D. 0.65mm, Plan Achromatic,  Infinite, unbreakable container for storage spring loaded
  RXR5RXPL60i 60X, N.A. 0.80, W.D. 0.30mm, Plan Achromatic, Infinite, Parfocal & Precentered, oil immered, spring loaded, unbreakable container for storage
  RXR5RXPL63i 63X, N.A. 0.84, W.D. 0.28mm, Plan Achromatic, Infinite, Parfocal & Precentered, oil immered, spring loaded, unbreakable container for storage
  RXR5RX100i 100X, N.A. 1.25, W.D. 0.18, Plan Achromatic,  oil immered, Infinite, spring loaded, unbreakable container for storage
  RXR5RXP-100iDF 100X, N.A. 1.25, W.D. 0.18mm, Plan Achromatic, Infinite,  oil immered, spring loaded, darkfield, unbreakable container for storage
Phase Objectives RXR5RXPH04i PH4X, N.A. 0.10, W.D. 30mm, Plan Achromatic,  Infinite, unbreakable container for storage
  RXR5RXPH10i PH10X, N.A. 0.25, W.D. 6.1mm, Plan Achromatic,  Infinite, unbreakable container for storage
  RXR5RXPH20i PH20X, N.A. 0.4, W.D. 2.10mm, Plan Achromatic,  Infinite, unbreakable container for storage
  RXR5RXPH40i PH40X, N.A. 0.65, W.D. 0.65mm, Plan Achromatic,  Infinite, spring loaded, unbreakable container for storage
  RXR5RXPH60i PH60X, N.A. 0.80, W.D. 0.30mm, Plan Achromatic, Infinite,  oil immered, spring loaded, unbreakable container for storage
  RXR5RXPH63i PH63X, N.A. 0.84, W.D. 0.28mm, Plan Achromatic, Infinite,  oil immered, spring loaded, unbreakable container for storage
  RXR5RXPH100i PH100X, N.A. 1.25, W.D. 0.18mm, Plan Achromatic, Infinite,  oil immered, spring loaded, unbreakable container for storage. more objectives
SEMI APO/Flotar/Fluor Objectives RXR5RXSAPO60i 60X, N.A. 0.80, W.D. 0.3mm,SAPO, Infinite,  oil immered, spring loaded, unbreakable container for storage
  RXR5RXSAPO63i 63X, N.A. 0.85, W.D. 0.28mm, SAPO, Infinite,  oil immered, spring loaded, unbreakable container for storage
Centering Objective RXR5RXPH-COBJ Centering objective for Fluorescence observation
Condenser RXR5RX-APC Aplantic condenser N.A 1.4 for 2x-100x magnification
  RXR5RXUNV1.25 Universal condenser for BF upto 100x/PH upto 100x/DF upto 40x observation Abbe N.A. 1.25 (Turret type), separate movement from focussing (Rack & Pinion), filter holder, 6 position, 1 position for BF, 1 position for DF (optional) & 1 position optional
  RXR5RXUNV1.30 Universal condenser for BF upto 100x/PH upto 100x/DF upto 40x observation Abbe N.A. 1.30 (Turret type), separate movement from focussing (Rack & Pinion), filter holder, 6 position, 1 position for BF, 1 position for DF (optional) & 1 position optional
  RXR5RXUNV1.40 Universal condenser for BF upto 100x/PH upto 100x/DF upto 40x observation Abbe N.A. 1.40 (Turret type), separate movement from focussing (Rack & Pinion), filter holder, 6 position, 1 position for BF, 1 position for DF (optional) & 1 position optional
  RXR5RXUNV1.40-7P Universal condenser for BF upto 100x/PH upto 100x/DF upto 40x observation Abbe N.A. 1.40 (Turret type), separate movement from focussing (Rack & Pinion), filter holder, 7 position, 2 position for BF, 2 position for DF (optional) & 2 position optional
  RXR5RXCONDF-1 Darkfield condensor N.A 0.8-0.95, W.D 4mm (dry) for objective 20x-40x
  RXR5RXCONDF-2 Darkfield condensor N.A 1.2-1.43, W.D 1.5mm (oil) for objective 20x-100x
Focusing RXF2.0 Co-axial, Tension Control, Upper Limit Stopper, coarse adjustable distandce 25mm, High Sensitivity Focus Drive with 0.20 mm per revolution, Fine adjustment 2.0µm/Div
  RXF2.5 Co-axial, Tension Control, Upper Limit Stopper, coarse adjustable distandce 25mm, High Sensitivity Focus Drive with 0.25 mm per revolution, Fine adjustment 2.5µm/Div
Analyzer/Polarizer RXR5RXANA Set of analyzer and polarizer
DIC/ Plas DIC Kit RXR5RXDICKIT DIC kit including condensor/Objectives
Dual Head  RXR5RX-Dual-1 Dual Head attachement for 2 viewers (side by side), main/secondary observation: Binocular inclined at 30°, sidentop head, 22/25mm rotating 360°, IPD 48-76, Diopter adjustable on both eyepiece
  RXR5RX-Dual-2 Dual Head attachement for 2 viewers (opposite), main/secondary observation: Binocular inclined at 30°, sidentop head, 22/25mm rotating 360°, IPD 48-76, Diopter adjustable on both eyepiece

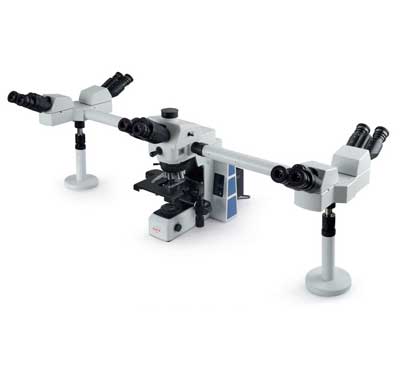

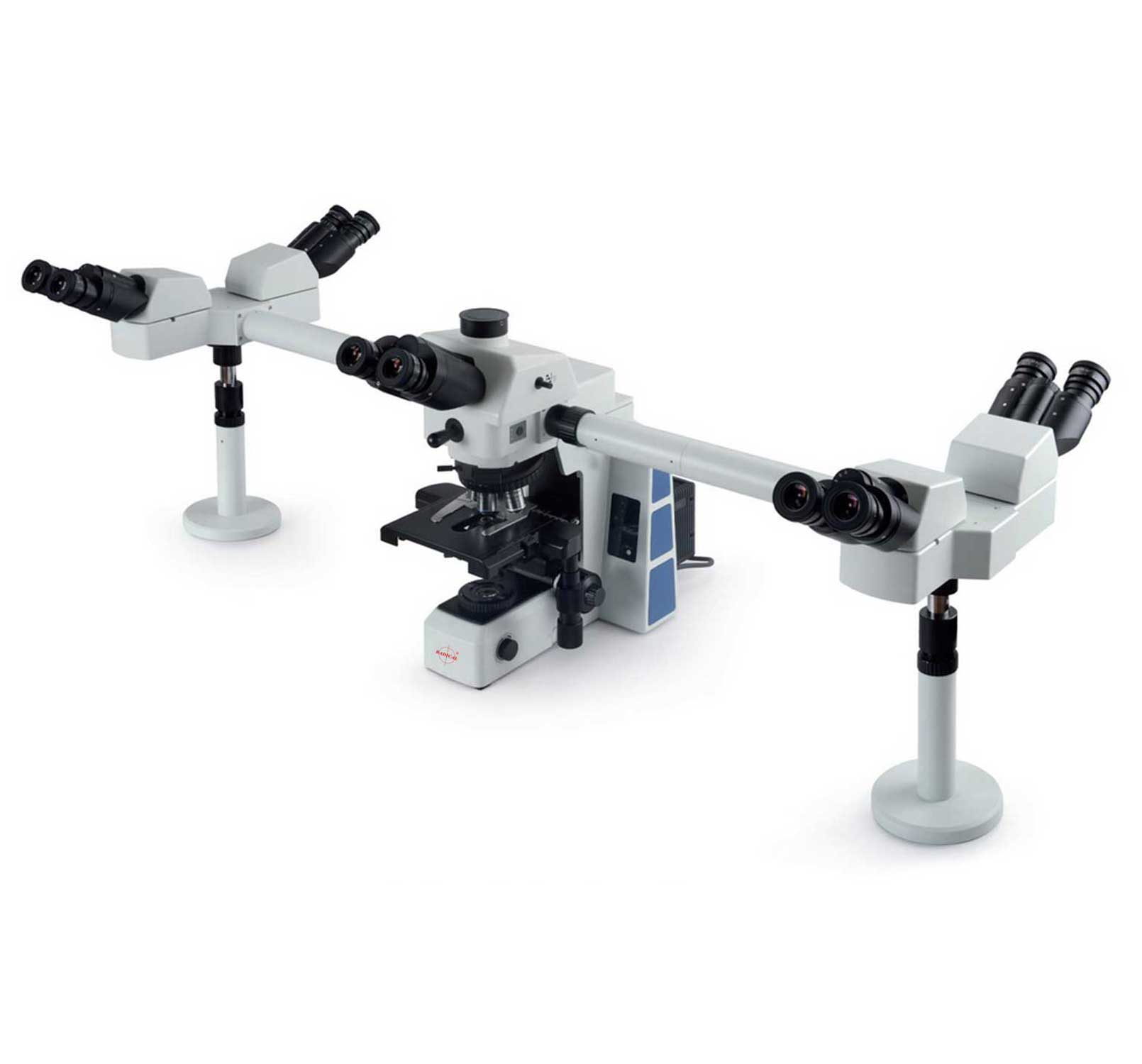

Pentahead  RXR5RX-PENTA-1 Penta Head attachement for 5 viewers, Main/secondary observation: Binocular inclined at 30°, sidentop head, 22mm rotating 360°, IPD 48-76, Dioptre adjustable on both eyepiece
  RXR5RX-PENTA-2 Penta Head attachement for 5 viewers, Main/secondary observation: Binocular inclined at 30°, sidentop head, 25mm for main and 22mm for secondary observer rotating 360°, IPD 48-76, Dioptre adjustable on both eyepiece
  RXR5RX-PENTA-3 Penta Head attachement for 5 viewers, Main/secondary observation: Binocular inclined at 30°, sidentop head, 25mm for main and secondary observer rotating 360°, IPD 48-76, Dioptre adjustable on both eyepiece
  RXR5RX-PENTA-4 Penta Head attachement for 5 viewers, Main/secondary observation: Trinocular inclined at 30°, sidentop head, 22mm rotating 360°, IPD 48-76, Dioptre adjustable on both eyepiece, 2 position beam splitting 100:0, 50:50
  RXR5RX-PENTA-5 Penta Head attachement for 5 viewers, Main/secondary observation: Trinocular inclined at 30°, sidentop head, 22mm rotating 360°, IPD 48-76, Dioptre adjustable on both eyepiece, 2 position beam splitting 100:0, 20:80
  RXR5RX-PENTA-6 Penta Head attachement for 5 viewers, Main/secondary observation: Trinocular inclined at 30°, sidentop head, 25mm for main and 22mm for secondary observer rotating 360°, IPD 48-76, Dioptre adjustable on both eyepiece, 2 position beam splitting 100:0, 20:80
  RXR5RX-PENTA-7 Penta Head attachement for 5 viewers, Main/secondary observation: Trinocular inclined at 30°, sidentop head, 25mm for main and 22mm for secondary observer rotating 360°, IPD 48-76, Dioptre adjustable on both eyepiece, 2 position beam splitting 100:0, 50:50
  RXR5RX-PENTA-8 Penta Head attachement for 5 viewers, Main/secondary observation: Trinocular inclined at 30°, sidentop head, 25mm for main and secondary observer rotating 360°, IPD 48-76, Dioptre adjustable on both eyepiece, 2 position beam splitting 100:0, 50:50
  RXR5RX-PENTA-9 Penta Head attachement for 5 viewers, Main/secondary observation: Trinocular inclined at 30°, sidentop head, 25mm for main and secondary observer rotating 360°, IPD 48-76, Dioptre adjustable on both eyepiece, 2 position beam splitting 100:0, 20:80
  RXR5RX-PENTA-10 Penta Head attachement for 5 viewers, Main/secondary observation: Trinocular inclined at 30°, sidentop head, 25mm for main and secondary observer rotating 360°, IPD 48-76, Dioptre adjustable on both eyepiece,  position beam splitting 100:0, 20:80 , 100:0
  RXR5RX-PENTA-11 Penta Head attachement for 5 viewers, Main / secondary observation: Trinocular inclined at 30°, sidentop head, 25mm for main and secondary observer rotating 360°, IPD 48-76, Dioptre adjustable on both eyepiece,  position beam splitting 100:0, 50:50, 100:0
  RXR5RX-PENTA-12 Penta Head attachement for 5 viewers, Main / secondary observation: Trinocular inclined at 0° - 40° (main observer only), sidentop head, 22mm for main and secondary observer rotating 360°, IPD 48-76, Dioptre adjustable on both eyepiece,  position beam splitting 100:0, 20:80, 100:0
  RXR5RX-PENTA-13 Penta Head attachement for 5 viewers, Main / secondary observation: Trinocular inclined at 0° - 40° (main observer only), sidentop head, 25mm for main and 22mm for secondary observer rotating 360°, IPD 48-76, Dioptre adjustable on both eyepiece,  position beam splitting 100:0, 50:50, 100:0
  RXR5RX-PENTA-14 Penta Head attachement for 5 viewers, Main/secondary observation: Trinocular inclined at 0° - 40° (main observer only), sidentop head, 25mm for main and secondary observer rotating 360°, IPD 48-76, Dioptre adjustable on both eyepiece,  position beam splitting 100:0, 50:50/20:80, 100:0
  RXR5RX-PENTA-15 Penta Head attachement for 5 viewers, Main/secondary observation: Trinocular inclined at 30°, sidentop head, 22mm for main and secondary observer rotating 360°, IPD 48-76, Dioptre adjustable on both eyepiece,  position beam splitting 100:0, 20:80, 100:0
Pointer RXR5RX2PTR 2 color LED pointer, 360° rotatable
  RXR5RX3PTR 3 color LED pointer, 360° rotatable
Heating Stage RHS50 Biotherm heating stage
Filters  RGF Green plane or frosted
Power supply RTF620 6V-20W Transformer based, wide voltage range, 90V-240V, 50/60Hz,
  RTF630 6V-30W Transformer based, wide voltage range, 90V-240V, 50/60Hz,
  RSMPS630 SMPS based, wide voltage range, 90V-240V, 50/60Hz
  RPSLED LED power supply, wide voltage range, 90V-240V, 50/60Hz
Immersion oil RIO100 High quality immersion oil 100ml
Micrometer/Calibration slide RCS10 Micrometer slide for calibration, 1mm with 10µm least count
  RCS100 Micrometer slide for calibration, 10mm with 100µm least count
C-mount RCMT50X 0.5X Camera Adaptor/Tube/Mount
  RCMT65X 0.65X Camera Adaptor/Tube/Mount
  RCMT70X 0.7X Camera Adaptor/Tube/Mount
  RCMT01X 1X Camera Adaptor/Tube/Mount
Packing  RSTYRO Standard Styrofoam packing
Illumination RXR5RXSLED Spare LED
  RXR5RXSDRY Spare Led driver circuit
  RXR5RXSHAL Spare Halogen bulb
Cleaning Kit RCLEAN Anti static cleaning brush, Cleaning tissue paper, Lens cleaning solution

As we are continuously improving & developing our products, this websites may not be updated with advancements done. However, we try our best to update the website for latest information's
For complete updated specifications, please do ask for latest brochures
