Video Measuring Machine

Basic

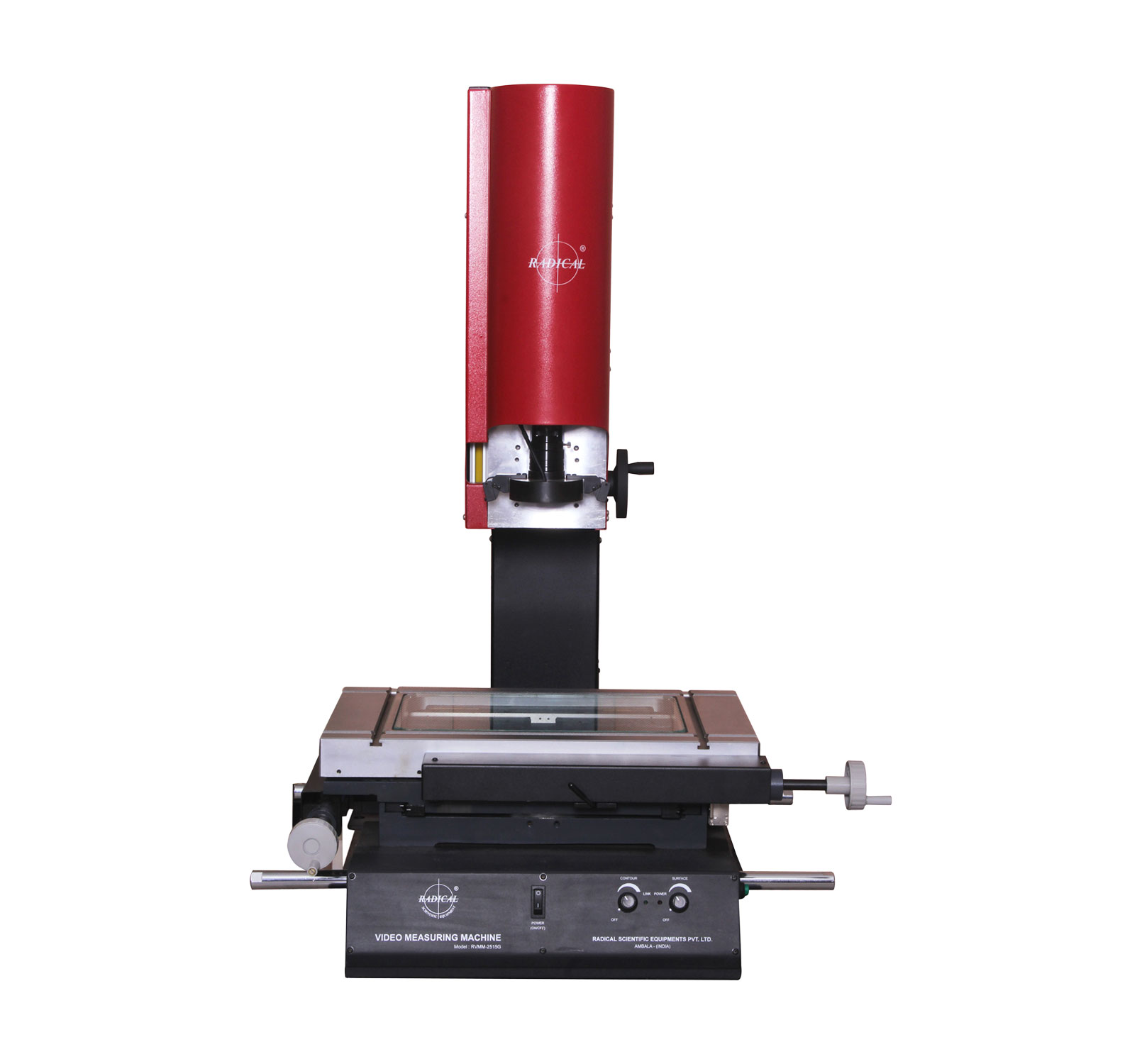

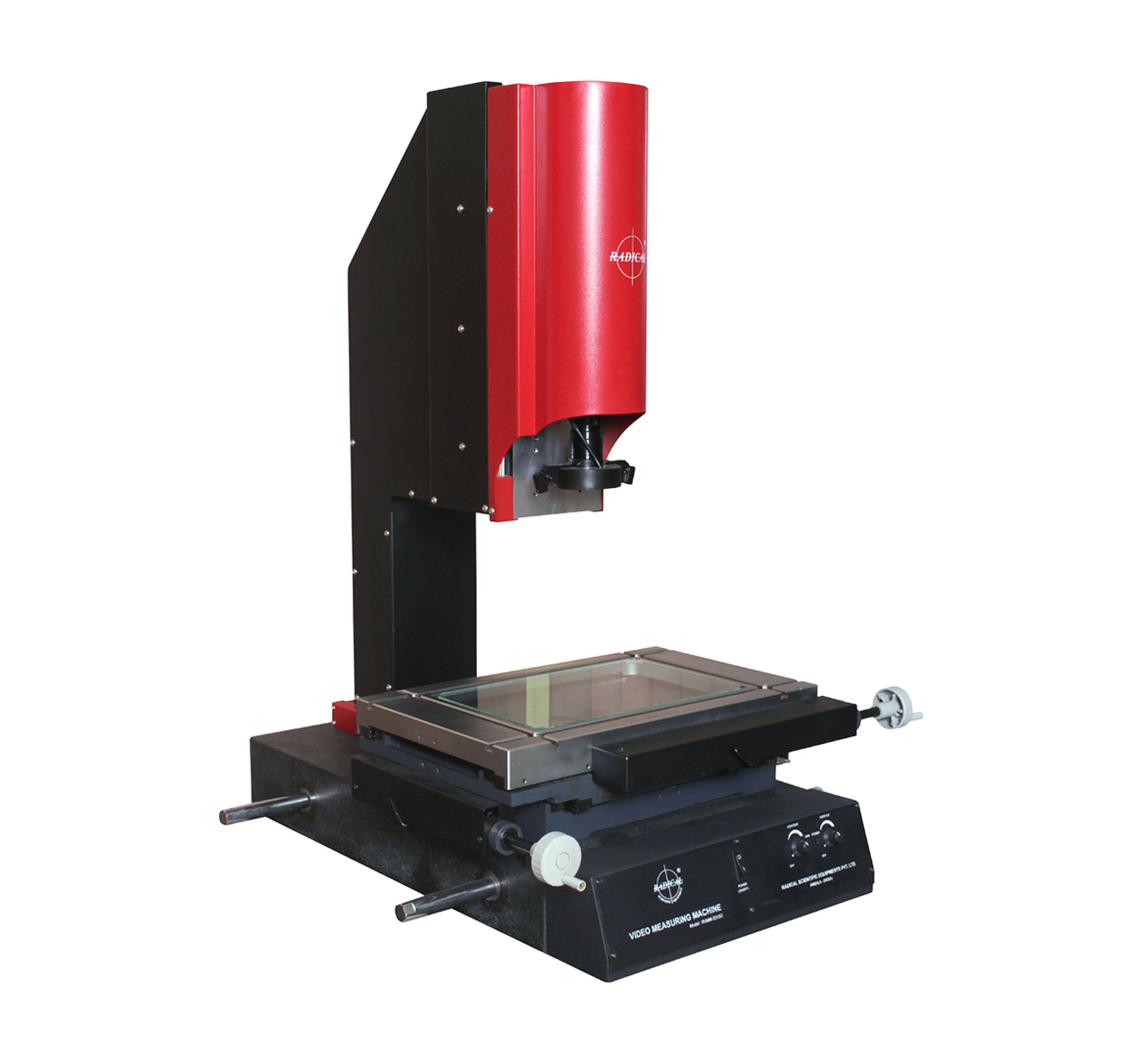

Radical VMM is a general purpose manual video based measuring machine ideal for quality control and inspection labs as well as manufacturing, assembly and research facilities. Providing customers with precise, cost effective equipments and good service is our business philosophy.
VMM with precision mechanical bearing X-Y-Z stage and Cast iron column on granite base translates to accuracy and repeatability

• High-power Non-contact Optical Measuring Instrument with Large Working Travel
• Mainly applicable for the measurement of large PCB, LCD and other big Parts.
• Stable Granite Base
• V-shape Guide
• Precised Metal and Glass Worktable
• Adjustable USB 4-division Ring LED illumination
• Advanced Navitar 0.7~4.5X Zoom Lens
• Sony ½” Colour CCD Camera
• Powerful Measuring Software
• Function of Data Processing,Displaying,Input,Output,
• With RS-232 Interface
SPECIFICATION BASIC-2515
Metal Table Size 450x280mm
X&Y axis travel 250x150mm
Glass Table Size 350x220mm.
Z axis travel 200mm
Resolution 0.001mm.
X&Y axis accuracy <(2.5+L /100mm)µm
Measuring Software QM 2.0
Video System 1/3" color CCD SONY/ NAVITAR
  Zoom lens magnification 0.7x-4.5x
Magnification 26.6x-171x
Field of view 8.1mm-1.3mm
Illumination System Surface LED light & transmitted LED
Net Weight 100kg.
Dimension (mm) 700x600x900

As we are continuously improving & developing our products, this websites may not be updated with advancements done. However, we try our best to update the website for latest information's
For complete updated specifications, please do ask for latest brochures
