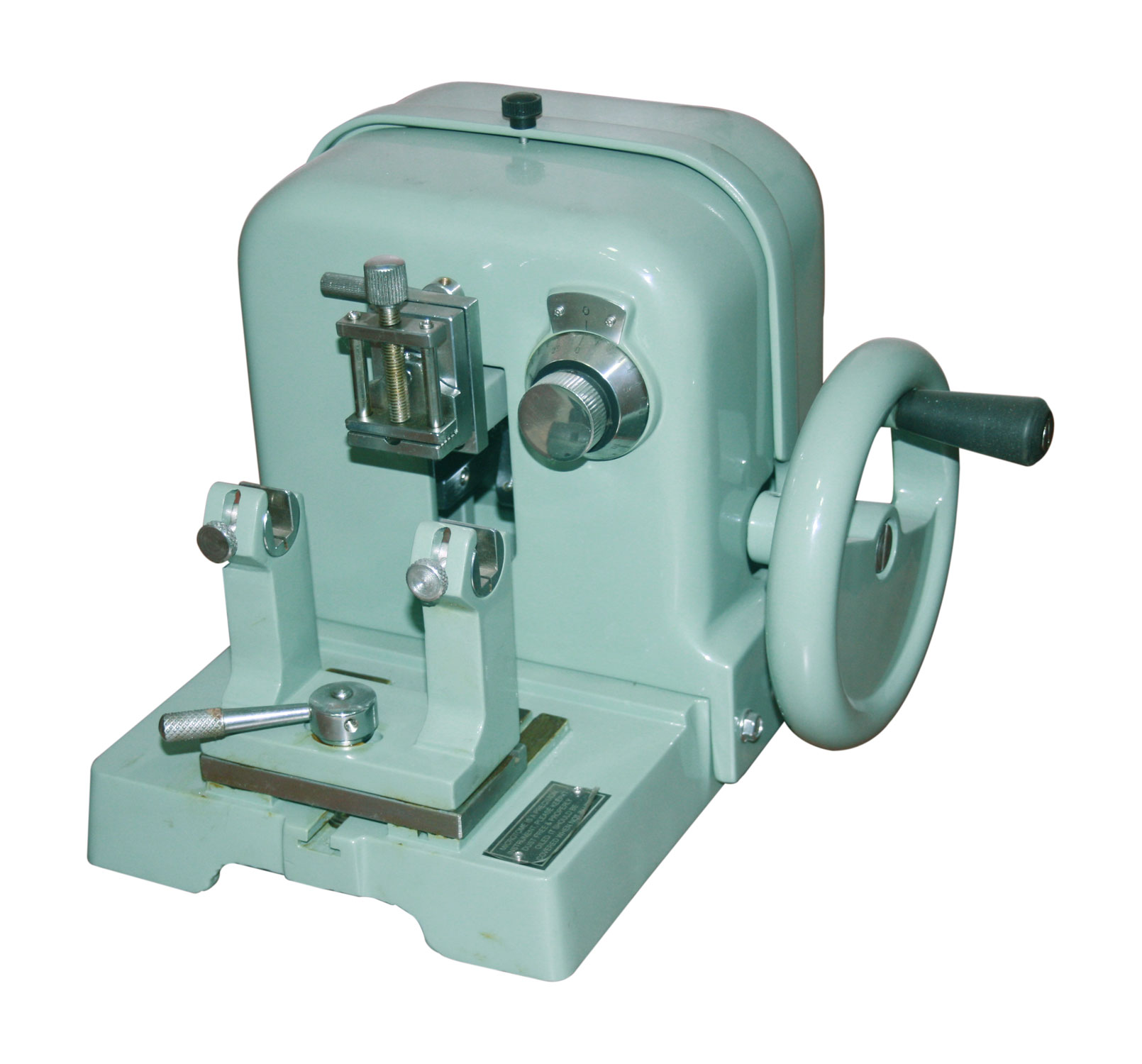

RADICAL Rotary Microtome Model RMT-20 is a highly versatile sectioning device suitable for Medical Institutions, Research & Pathological Laboratories. This microtome has special application for cutting thin sections of histopathological specimens and also caters to the demands of industries such as Plastic, Leather, Textiles, Rubber & Fertilizer. It is ideal for those who want to avail advantages of a Rotary Microtome at a moderate cost.
The entire mechanism stands on a heavy cast iron base ensuring stability and rigidity. Its compound slide ways of critical tolerances guide the specimen block. The metal hinged cover housing protects the internal mechanism against dust and paraffin waste, it can be conveniently opened for resetting, cleaning and lubricating. The Microtome is driven by a handle which can also be locked. Cutting sections are obtained in different thickness by mechanically operated crank through a knurled knob in front of the instrument.
The knurled knob is graduated in microns for feed setting and ready reference. A detent click action ensures positive adjustments in one micron increment.
The knife holder unit is equipped with a rotating knife clamp to adjust desired angles for best sectioning. It has forward and backward movements to ensure contact of specimen with the knife and lateral movement to get maximum use of knife edge. Smooth & accurate specimen movement is achieved with the time proven operating principles of the feed mechanism. Travel is entirely independent to the vertical movement of the specimen block. When the feed limit reaches to an end point, it disengages itself. To bring the feed screw back, the vice is pressed slightly and the main gear wheel is turned clockwise till the screw reaches its starting position. All parts are fabricated from selected alloys and the Microtome knife is manufactured from fine grain steel tested to maintain optimum sharpness strength.
|Feed adjustments||1-25 µm||Overall Dimensions||30 x 33 x 28 cms|
|Minimum thickness||1 µm||Net Weight||25 Kgs. approx.|
|Total Feed excursions||28mm.||Gross Weight||35 Kgs. approx|
|Object Holders (3 Nos.)||1 Set||Lubricating Oil Bottle||1 No.|
|Knife 120mm in a box||1 No.||Dust Cover||1No.|
|Honing Stone||1 No.||Operating Manual||1 No.|
As we are continuously improving & developing our products, this websites may not be updated with advancements done. However, we try our best to update the website for latest information's
For complete updated specifications, please do ask for latest brochures
