UI :- Easy mouse control, Android 5.1 operation system
Mark function :- Point coordinates, Reticle, Coordinates, Text annotation Length measuring: Straight length, broken line length, curve line length, distance between parallel lines, point-line distance
Center distance of circles :- Center distance of circles
Geometry measurement :- Line length, radius setting circle, two points setting circle, three points setting circle, concentric circles
Geometry area :- Polygon and square
Image capture :- Support 16 million static image capture
Video record :- Support 1080P video
Measuring tool :- S-EYE
Mark function :- Point coordinates, Reticle, Coordinates, Text annotation Length measuring: Straight length, broken line length, curve line length, distance between parallel lines, point-line distance
Center distance of circles :- Center distance of circles
Geometry measurement :- Line length, radius setting circle, two points setting circle, three points setting circle, concentric circles
Geometry area :- Polygon and square
Image capture :- Support 16 million static image capture
Video record :- Support 1080P video
Measuring tool :- S-EYE

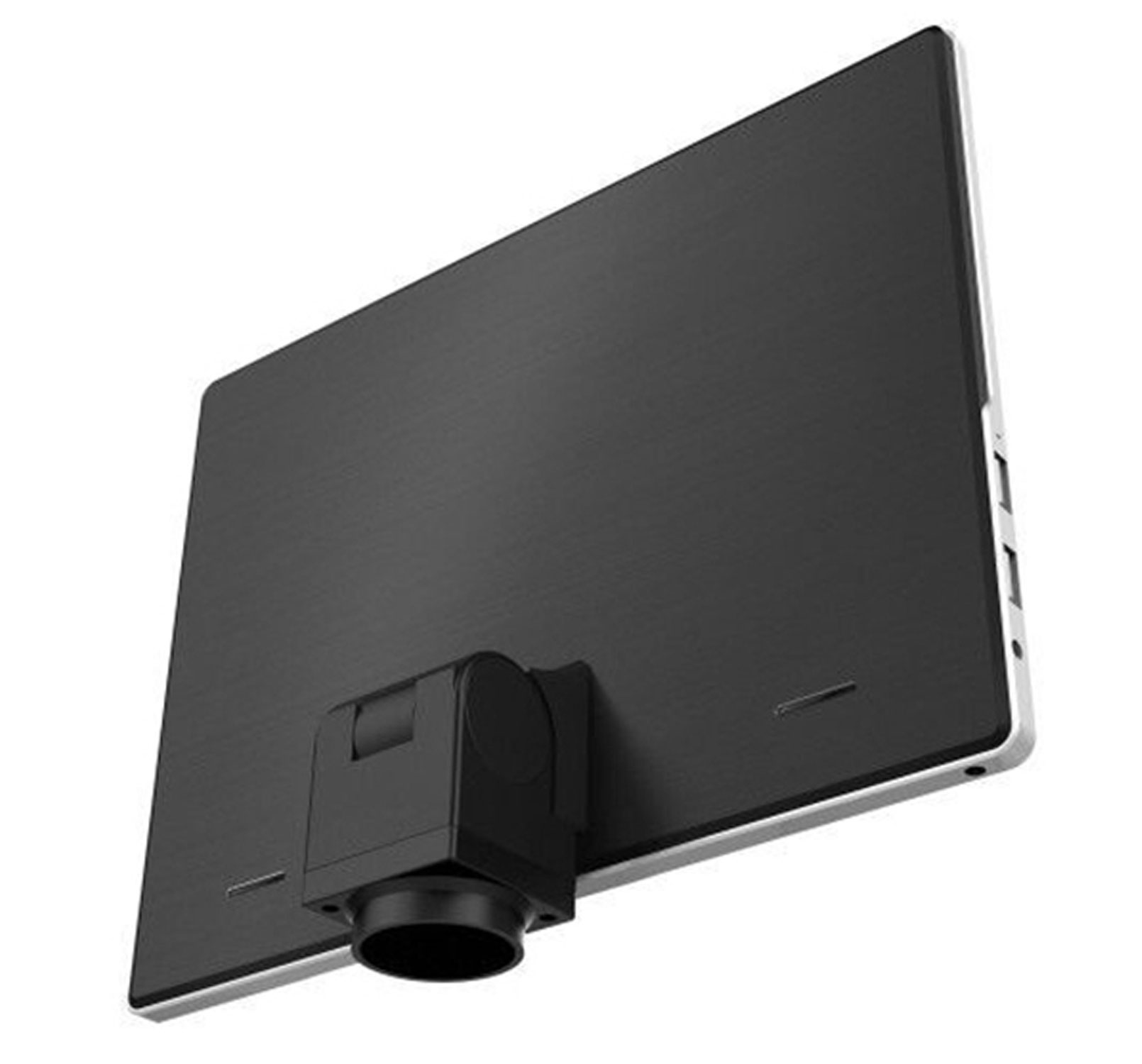

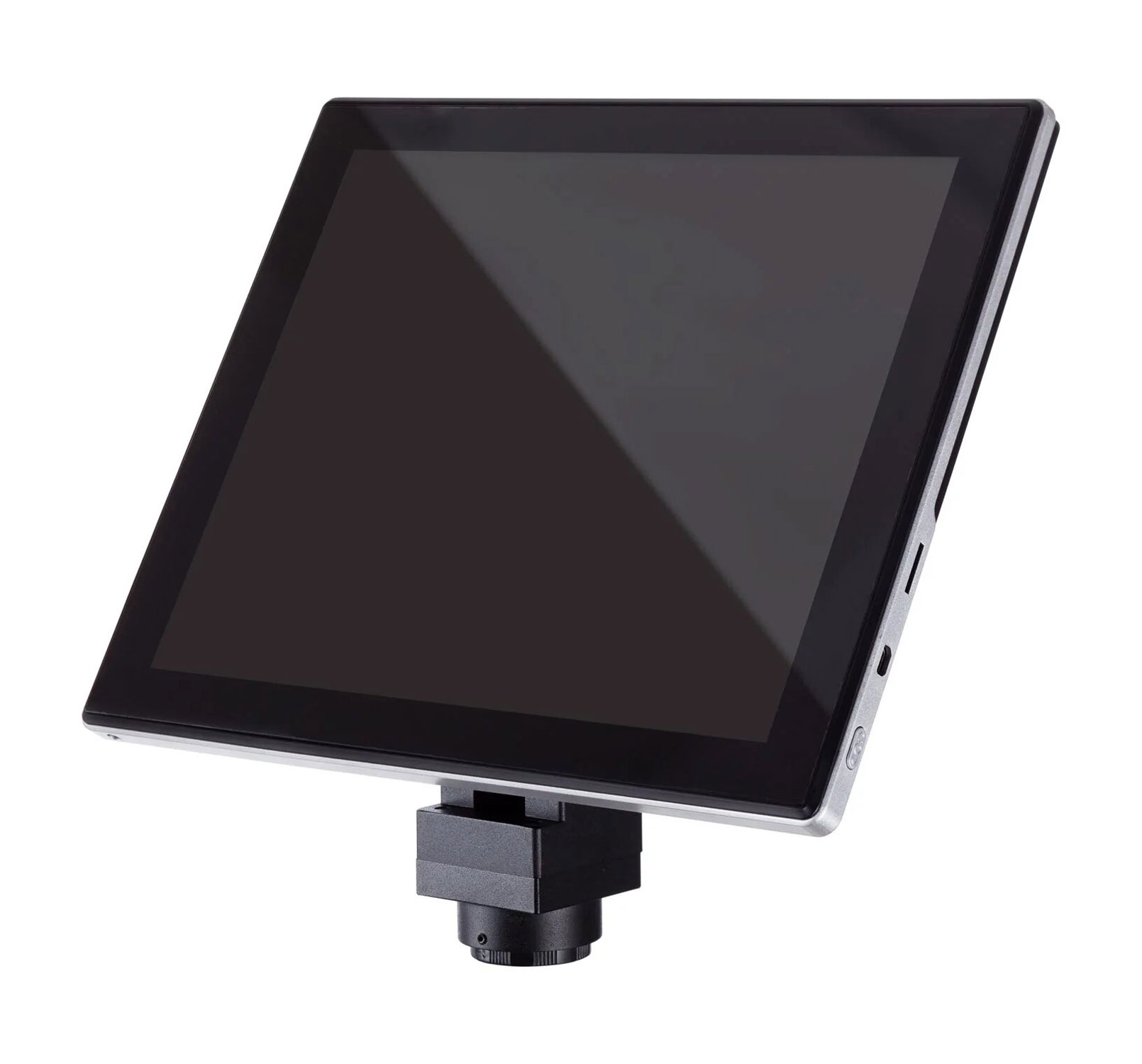

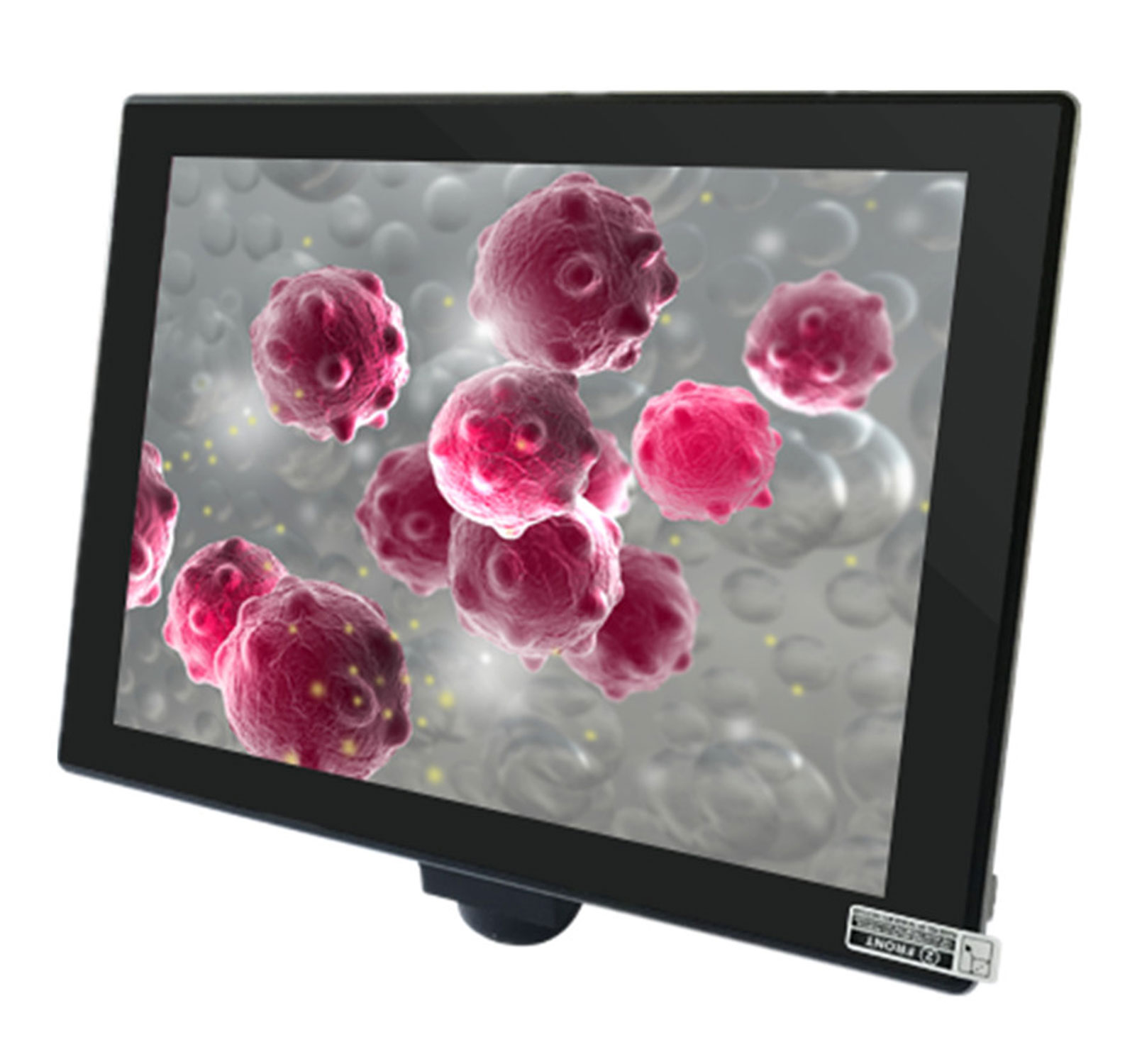

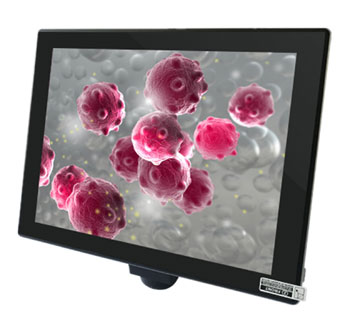

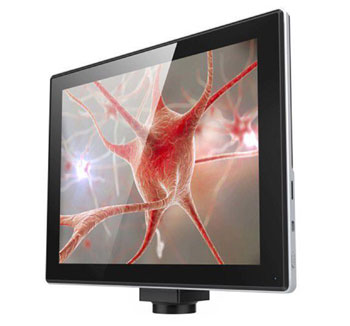

| Series | Integrated display camera |
|---|---|
| Sensor size | 1/2.5" |
| Effective pixels | 5 million pixels |
| Resolution | 2592x1944 : 15 FPS 2048x1536 : 20FPS 1280x720 : 25FPS 640x480 : 30FPS |
| Shutter | Electronic rolling shutter |
| White Balance | Auto/manual |
| Network | WiFi, Bluetooth |
| Output | USB2.0, HDMI, TF card, WIFI |
| Output Ports | 1x HDMI Port; 1x USB 2.0 Port; 1x Mini USB 2.0 Port SD Memory card slot |
| Pixel size | 2.2µm X 2.2µm |
| AD Conversion | 12bit |
| Sensitivity | 0.53V/Lux-sec (550nm) |
| Power | DC-12V/2A |
