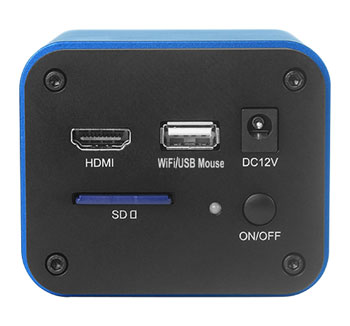

Multiple interfaces (HDMI+WiFi+SD card, so here means multiple interfaces) CMOS camera and it adopts ultra-high performance Sony CMOS sensor as the image-picking device. HDMI+WiFi are used as the data transfer interface to HDMI display or computer.
For HDMI output, will be loaded and a camera control panel and toolbar are overlaid on the HDMI screen, in this case, the USB mouse can be used to set the camera, browse and compare the captured image, play the video ital.
For WiFi output, unplug the mouse and plug in the USB WiFi adapter, connect the computer WiFi to the camera, then the video stream can be transfer to computer with the advanced software. With, you can control the camera, process the image as other USB series camera.
| Model | Truechrome HWL-2MP | Truechrome HW-2MP | Truechrome HW-5MP | Truechrome HWB-5MP | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Sensor size | 1/1.2"(11.25x6.33) | 1/1.9"(7.20x4.05) | 1/1.8"(6.22x4.67) | 1/2.8"(5.18mmX3.89mm) | ||||||||||||
| Pixel size | 5.86µm X 5.86µm | 3.75µm X 3.75µm | 2.4µm X 2.4µm | 2.9µm X 2.9µm | ||||||||||||
| Resolution Frame Rate (Live, Capture & Record) |
1920x1080: 30FPS(HDMI) 1920x1080: 25FPS(WiFi) |
1920x1080: 30FPS(HDMI) 1920x1080: 25FPS(WiFi) |
1920x1080: 30FPS(HDMI) 1920x1080: 25FPS(WiFi) |
1920x1080: 60FPS(HDMI) 1920x1080: 60FPS(WIFI) |
||||||||||||
| Sensitivity | 1016 mv with 1/30s 0.15 mv with 1/30s |
1120 mv with 1/30s 0.15 mv with 1/30s |
425 mv with 1/30s 0.15 mv with 1/30s |
0.53 V/lux-sec @550nm 0.15 mv with 1/30s |
||||||||||||
| Exposure | 0.043ms~1000ms | 0.06ms~918ms | 0.03ms~918ms | 0.03ms~918ms | ||||||||||||
| Binning | 1x1 | |||||||||||||||
| ADC | 10bit | |||||||||||||||
| Interface & Button Functions |
|
|||||||||||||||
| UI Operation | With USB Mouse, ToupView or ToupLite on Windows/Linux/OSX/Android Platform | |||||||||||||||
| Image Capture | JPEG Format with 5M Resolution (2592x1944) in SD Card(8G) JPEG Format with 2M Resolution in SD Card (Global Shutter) |
|||||||||||||||
| Video Record | ASF Format 1080P 30fps in SD Card | |||||||||||||||
| Camera Control Panel | Including Exposure, Gain, White Balance, Color Adjustment, Sharpness and Denoising Control | |||||||||||||||
| Toolbar | Including Zoom, Mirror, Comparison, Freeze, Cross, Browser Function | |||||||||||||||
| WiFi Performance | 802.11n 150Mbps; RF Power 20dBm(Maximum) | |||||||||||||||
| Maximum Connected Devices | 3~6(According to the Environment and Connection Distance) | |||||||||||||||
| White Balance | Auto White Balance | |||||||||||||||
| Color Technique | Ultra-Fine Color Engine (WiFi) | |||||||||||||||
| Capture/Control SDK | Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc) (WiFi) | |||||||||||||||
| Recording System | Still Picture or Movie (WiFi) | |||||||||||||||
| Operating System | Microsoft® Windows® XP /Vista /7/8/8.1/10(32 & 64 bit) OSx(Mac OS X) Linux | |||||||||||||||
| Operating/StorageTemp(in Centidegree) | -10~ 50 / -20~ 60 | |||||||||||||||
| Operating/Storage Humidity | 30~80%RH / 10~60%RH | |||||||||||||||
| Power Supply | DC 12V/2A Adaptor | |||||||||||||||
