TEC CMOS Cameras

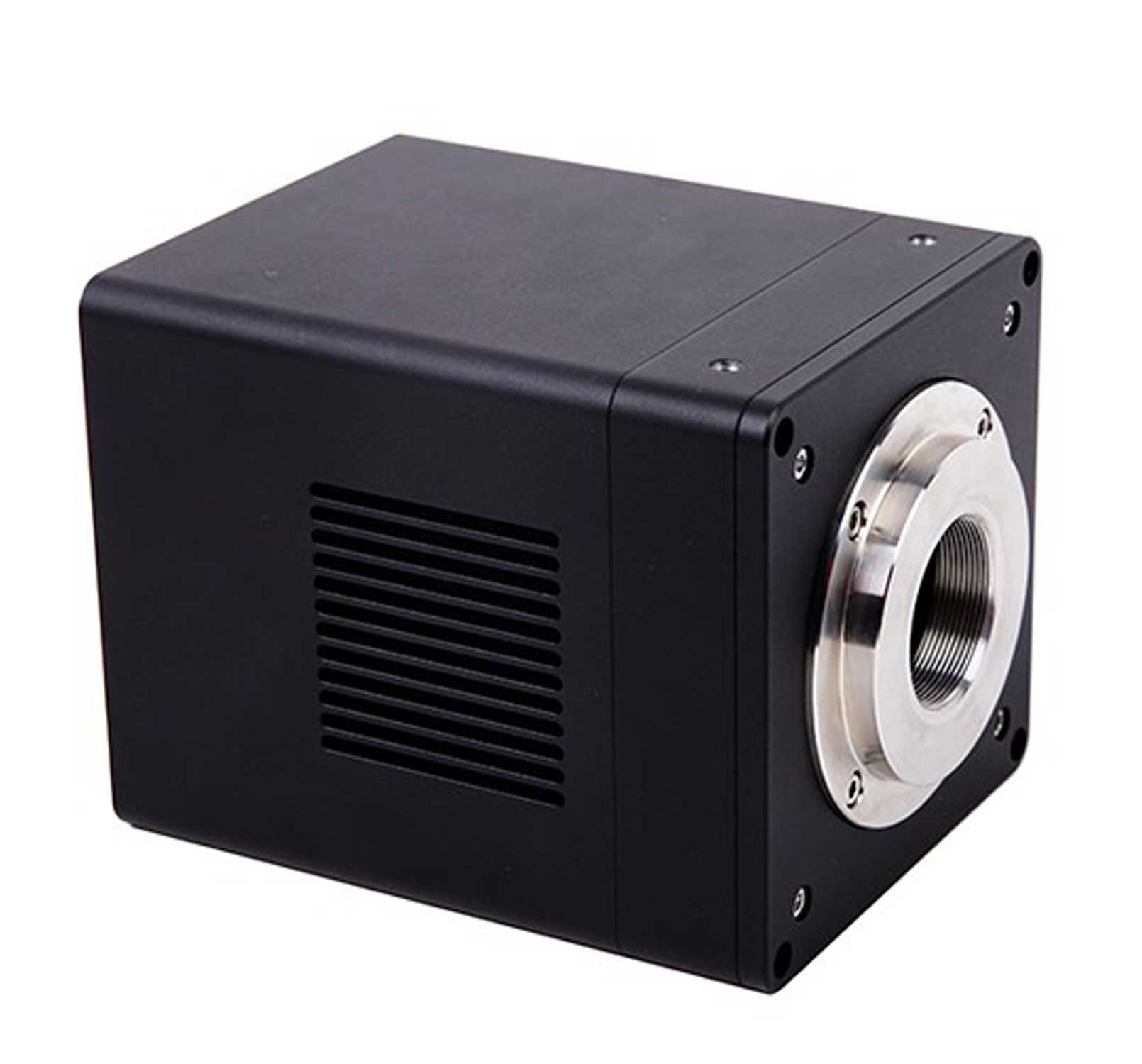

The ProCAM TEC adopt SONY cooled back illuminated CMOS Sensor as the image-picking device and USB3.0 is used as the transfer interface. Hardware resolutions range from 1.7M to 26M and come with the integrated CNC aluminium alloy compact housing.
With the two-stage peltier cooling sensor chip to -42° below ambient temperature. This will greatly increase the signal to noise ratio and decrease the image noise. Smart structure is designed to assure the heat radiation efficiency and avoid the moisture problem. Electric fan is used to increase the heat radiation speed.
ProCAM TEC comes with advanced video & image processing application software, providing Windows/Linux/ OSX multiple platforms SDK, Native C/C++, C#/VB.NET, DirectShow, Twain Control API.
The ProCAM TEC can be widely used in low light environment and microscope fluorescence image capture and analysis, as well as in dark field, phase contrast etc.
| Model | Pixels | Sensor & Size | Pixel Size | Resolution/Frame Rate (Live, Capture & Record) |
G Sensitivity Dark Signal |
Exposure |
|---|---|---|---|---|---|---|
| ProCAM C-1.7MP | 1.7MP (Colour/Mono) CMOS |
1.1" (14.4x9.9mm) |
9.0µmX9.0µm | 1600x1100:33FPS Any ROI |
4910mv with 1/30s 0.15mv with 1/30s |
0.1ms~3600s |
| ProCAM CM-1.7MP | 1.7MP (Mono) CMOS |
1.1" (14.4x9.9mm) |
9.0µmX9.0µm | 1600x1100:94FPS Any ROI |
8100mv with 1/30s 0.30mv with 1/30s |
|
| ProCAM C-7MP | 7MP (Colour/Mono) CMOS |
1.1" (14.4x9.9mm) |
4.5µmX 4.5µm | 3200x2200:14FPS 1600x1100:33FPS Any ROI |
2058mv with 1/30s 0.15mv with 1/30s |
|
| ProCAM CM-7MP | 7MP (Mono) CMOS |
1.1" (14.4x9.9mm) |
4.5µmX4.5µm | 3200x2200:51FPS 1600x1100:133FPS Any ROI |
3354mv with 1/30s 0.15mv with 1/30s |
|
| ProCAM C-9MP | 9.0MP (Colour/Mono) CMOS |
1" (11.28x11.28mm) |
3.76µmX3.76µm | 2992x3000:40FPS 1488x1500:62FPS 992x998:186FPS Any ROI |
534mv with 1/30s 0.10mv with 1/30s |
27µs~3600s |
| ProCAM C-10MP | 10.3MP (Colour/Mono) CMOS |
1.33" (17.47x12.86mm) |
4.63µmX4.63µm | 3704x2778:7.5FPS 4096x2160:10FPS 3072x2048: 32FPS 2048x1080:60FPS 1360x720:96FPS Any ROI |
419mv with 1/30s 0.12mv with 1/30s |
0.015ms~3600s |
| ProCAM C-12MP | 12MP (Colour/Mono) CMOS |
1" (14.13x10.35mm) |
3.45µmX3.45µm | 4096x3000:23.4FPS 2048x1500:46.3FPS Any ROI |
1146mv with 1/30s 0.1mv with 1/30s |
|
| ProCAM C-16MP | 16MP (Colour/Mono) CMOS |
1.65" (36x23mm) |
7µmX7µm | 4648x3506:6FPS 2304x1750:20FPS 1536x1168:48FPS 1024x1040:48FPS Any ROI |
2413LSB 89.1 LSB (Gain=0dB) |
|
| ProCAM CM-16MP | 16MP (Mono) CMOS |
1.65" (36x23mm) |
7µm X7µm | 4648x3506:22.5FPS 2304x1750:43FPS 1536x1168:48FPS Any ROI |
2560LSB 89.1 LSB (Gain=0dB) |
|
| ProCAM C-20MP | 20MP (Colour/Mono) CMOS |
1" (13.06x8.76mm) |
2.4µmX2.4µm | 5440x3648:6FPS 4096x2160:10FPS 2736x1824:15FPS 2048x1536:20FPS 1824x1216:30FPS 1920x1080:60FPS Any ROI |
462mv with 1/30s 0.21mv with 1/30s |
0.1ms~3600s |
| ProCAM CM-20MP | 20MP CMOS(Mono) |
1" (13.06x8.76mm) | 2.4µmX2.4µm | 5440x3648:17.8FPS 4096x2160:41FPS 2736x1824:51FPS 1824x1216:64FPS Any ROI |
388mv with 1/30s 0.21mv with 1/30s |
20µ~3600s |
| ProCAM C-26MP | 26MP (Colour/Mono) CMOS |
1.8" (23.48x15.67mm) |
3.76µmX3.76µm | 6224x4168:14FPS 3104x2048:37FPS 2736x1824:53FPS 1824x1216:67FPS 2064x1388:110FPS Any ROI |
485mv with 1/30s 0.07mv with 1/30s |
0.1ms~3600s |
| Image Data Format | 8/12 bit RAW Format | |||||
| Data Interface | USB 3.0 | |||||
| Gain | Max. 30 | |||||
| ADC | 16 bit | |||||
| Dynamic Range | 2000:1 73.3 dB |
|||||
| Full Well Capacity | 15.000 electrons | |||||
| Shutter | Global/Rolling shutter | |||||
| Dark Noise | <0.05e-/Px/Sec | |||||
| Read Out Noise | ~6 electrons (10 MHz) | |||||
| Binning | 1x1, 2x2, 3x3, 4x4 | |||||
| Quantum Efficiency | Upto 80% | |||||
| Scanning mode | Interlaced Scanning | |||||
| Spectral Range | 380-720nm (with IR-filter), for Monochromatic Camera, AR Is Used coated, C5000 IR cut filter | |||||
| White Balance | ROI White Balance/ Manual Temp-Tint Adjustment | |||||
| HDMi (optional) | Port to connect camera directly to HDMi input port of Projector, Screen etc | |||||
| GigE (optional) | Port to connect & capture camera through network | |||||
| Absolute sensitivity threshold | 7.0e- | |||||
| Color Rendering Technique | Ultra Fine Color Engine, RGB (Bayer) | |||||
| Capture/Control API | Native C/C++, C#, Directshow, Twain, Labview | |||||
| Recording System | Still Picture and Movie | |||||
| Cooling System* | Two-stage Thermo electric-cooling System -45 °C below Camera Body Temperature | |||||
| Operating Temp. | -10°C~ 50°C | |||||
| Storage Temp. | -20°C~ 60°C | |||||
| Operating Humi. | 30~80%RH | |||||
| Image Size* | 2448x1920, 1224x960, 612x480 | |||||
| Lens Mount | C/CS/F Mount | |||||
| Storage Humidity | 10~60%RH | |||||
| Power Supply | DC 5V over PC USB Port, External Power Adapter for Cooling System, DC12V,3A | |||||
| Operating System | Support Microsoft Windows 7/8/10/11 (32 & 64 bit) OS X (Mac OS X), Linux, RGB Bayer color filter mask | |||||
| Minimum PC Requirements | CPU: Equal to Intel Core2 2.8GHz or Higher, Memory: 2GB or More, USB port: USB2.0 High-speed Port, Display: 17" or Larger, CD-ROM | |||||
