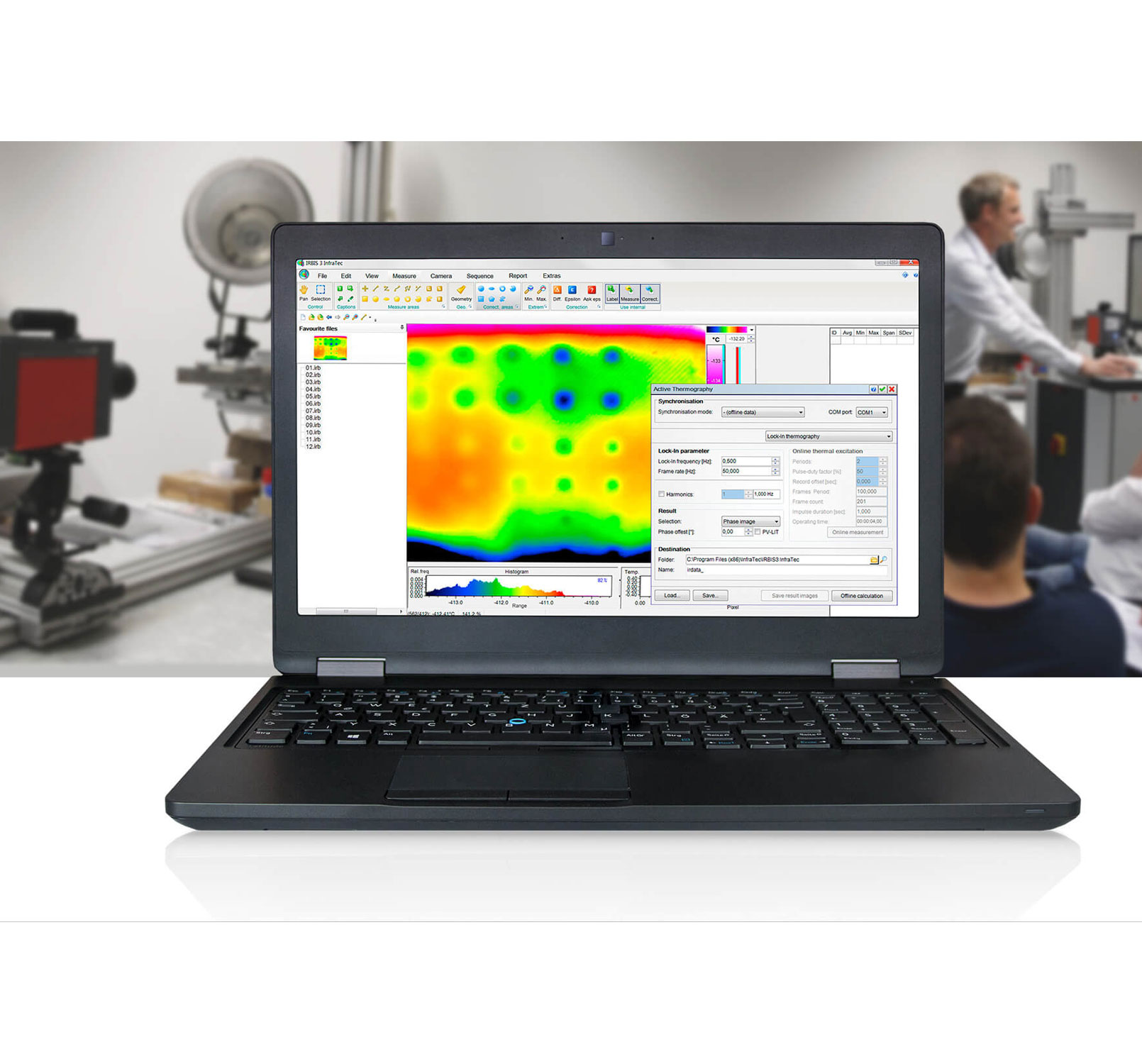

IRBIS® 3 Active Thermography Software



The active thermography software IRBIS® 3 by InfraTec is a modern and universally usable tool for thermographic material testing. Active thermography allows for a non-destructive detection of material defects, such as joint flaws, blowholes, cracks or delamination, by inserting a thermal pulse into the test object.

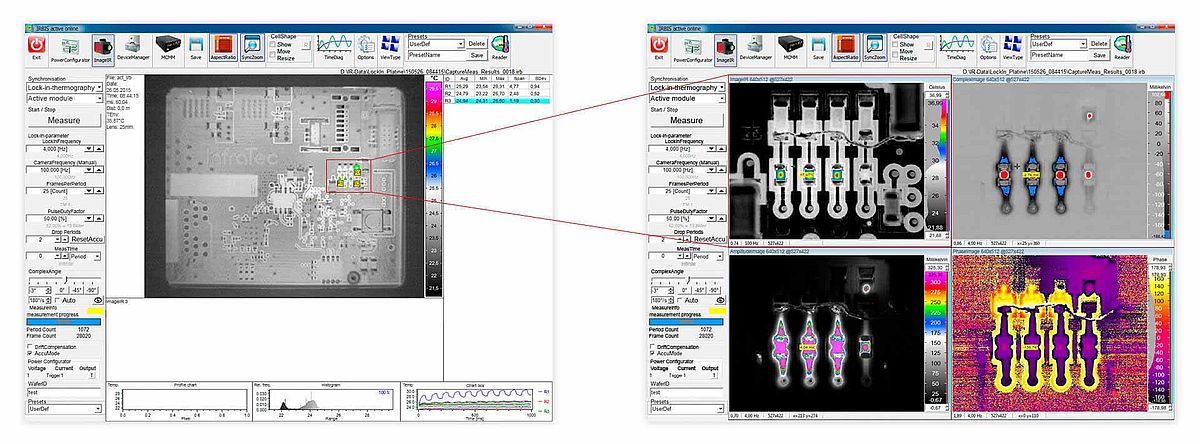

Thermography sequences, which are synchronised with the excitation unit, are edited and displayed as a false colour result image by means of a specially developed analysis procedure. Thus, even small defects can be recognised repeatedly and reliably. The selection of the implemented evaluation algorithm largely depends on the material and geometry of the test object as well as on the type of defect to be detected.




Besides InfraTec's high-end camera series ImageIR®, the utilisation of powerful micro bolometer cameras for active thermography is another completely unproblematic solution nowadays. The excellent geometrical and thermal resolution of the camera series VarioCAM® High Definition as well as their fast image refresh rate and trigger ability are a perfect basis for the solution of a variety of problems.

Features of IRBIS® 3 Active

• Comfortable data evaluation possibilities of image sequences
• Storage of input parameter
• Calculation of phase and amplitude images
• Analysis with different active thermography methods: Quotient Method, Pulse Phase Thermography, Lock-In-Thermography
• Algorithms independent of emissivity
• Storage of input parameters for different test objects

Analysis Methods of IRBIS® 3 Active

Quotient method

The heat flow of the test object will be analysed by means of incline or decline of the surface temperature.

Pulse Phase Thermography (PPT)

The temperature curve will be analysed depending on different frequencies (n = 1, 2, 3 ...). One amplitude image and one phase image will be established for each frequency.

Lock-in Thermography (LIT)

The sequences of periodical excitation of the test object will be analysed.



As we are continuously improving & developing our products, this websites may not be updated with advancements done. However, we try our best to update the website for latest information's
For complete updated specifications, please do ask for latest brochures
